Factory supply inline mixer emulsify pump high shear homogenizer pump
- Category: >>>
- Supplier: Zhejiang Sangtian Fluid Automatic Control Equipment Co. Ltd.
Share on (1600248091865):
Product Overview
Description
Product Description

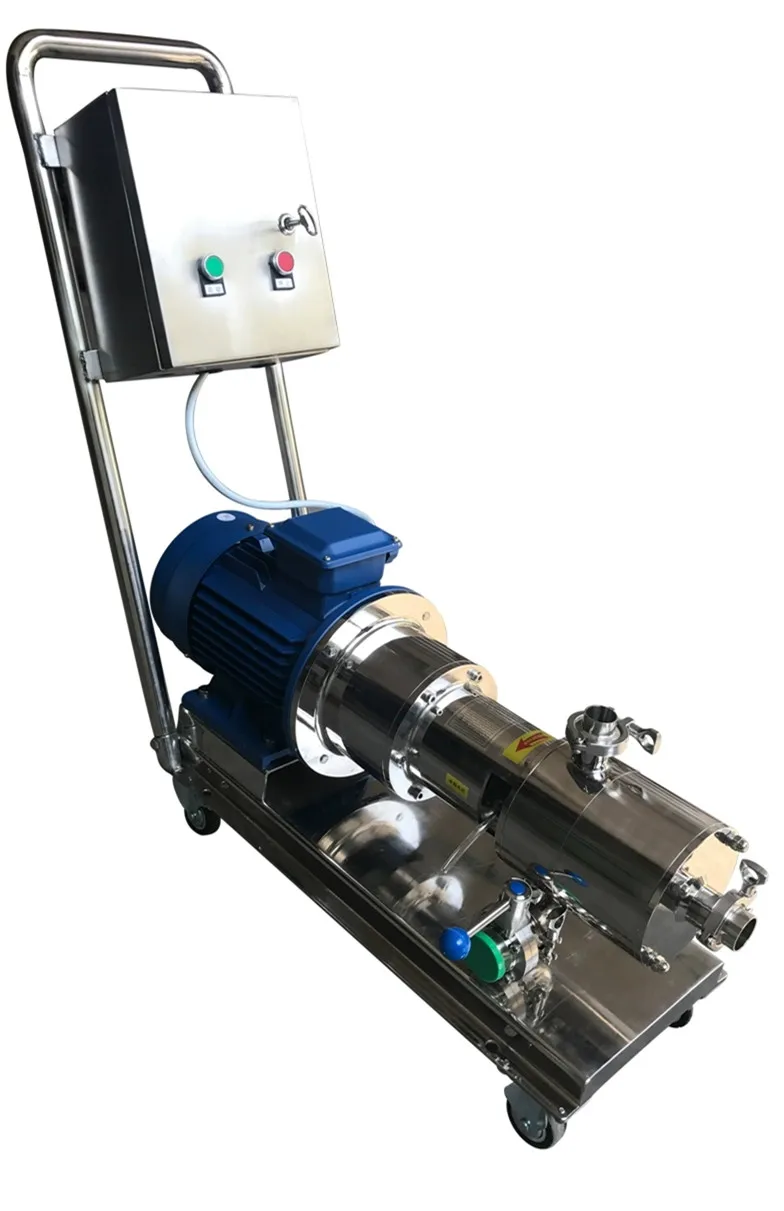

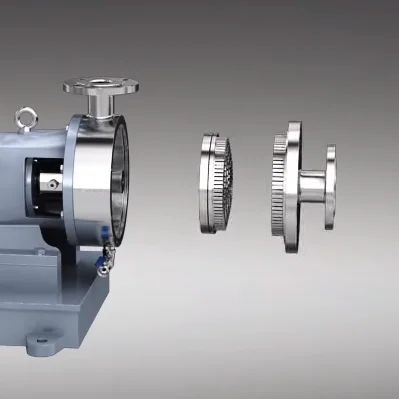

Single-stage emulsified pump

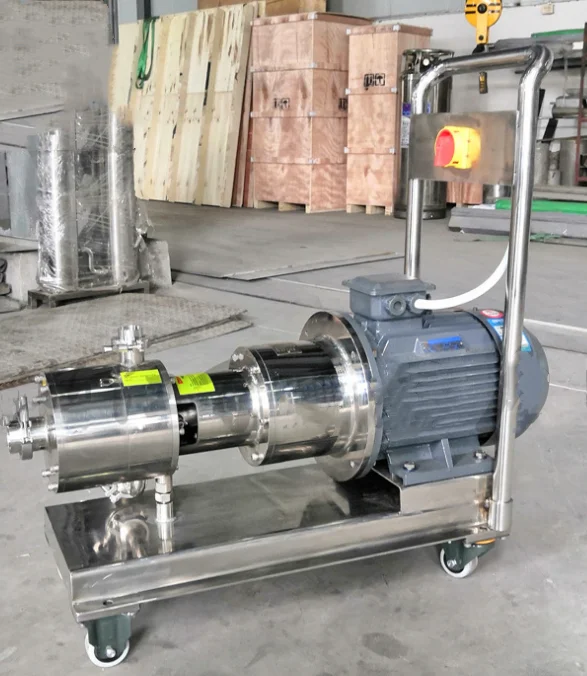

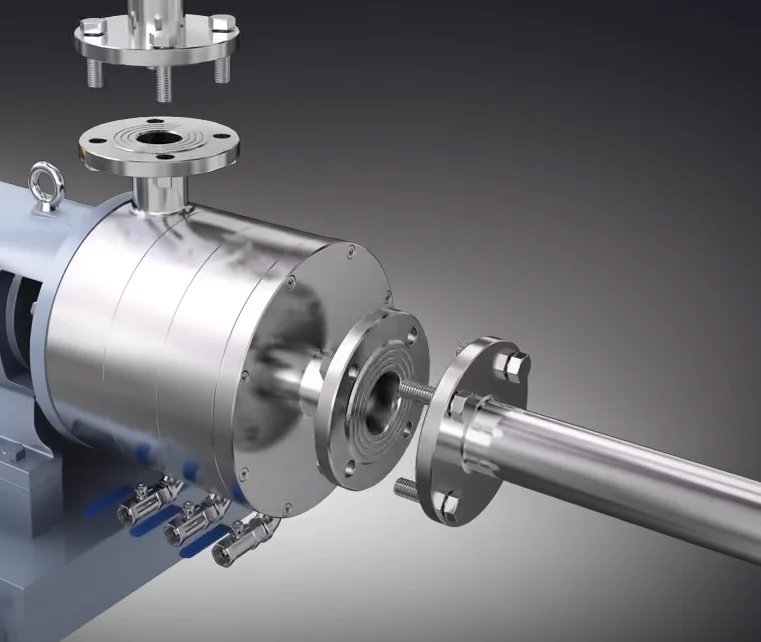

3-stage emulsified pump

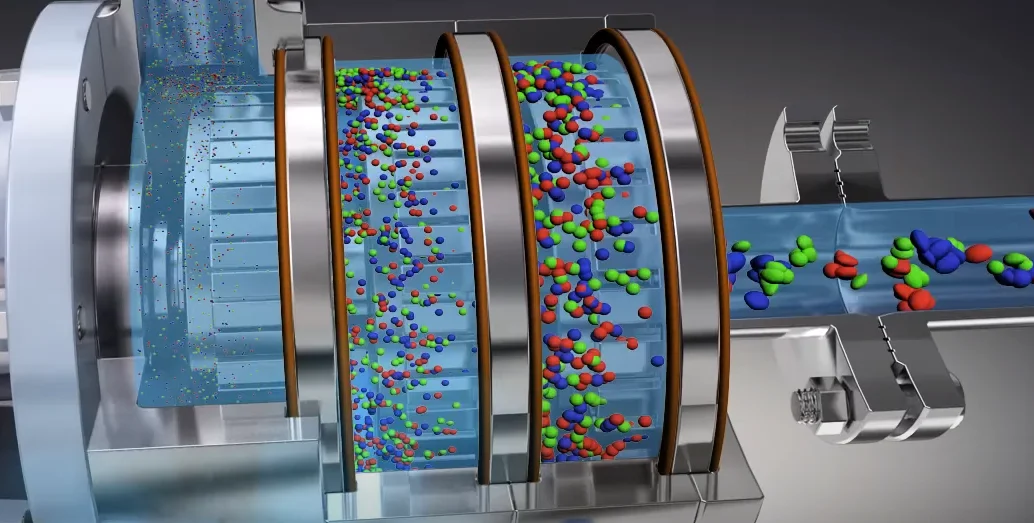

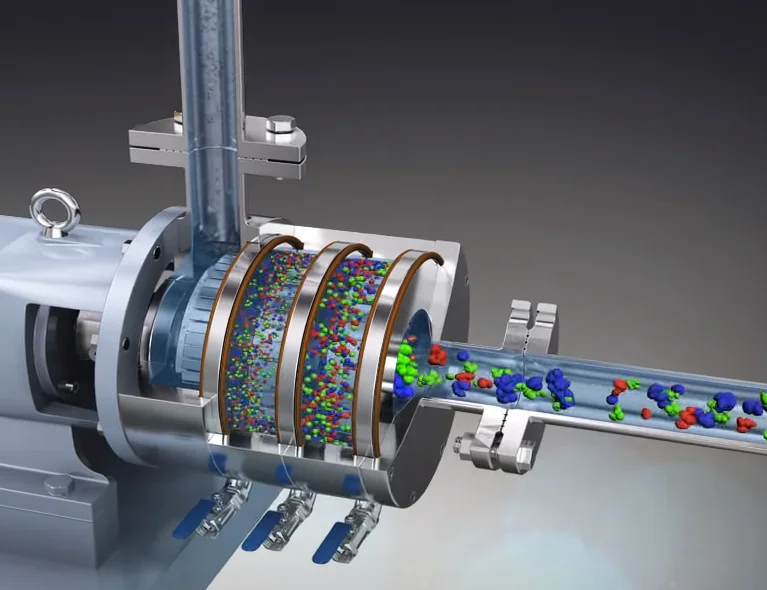

Strong momentum of emulsion pump because of the high-speed rotation of the rotor caused high tangential velocity and high-frequancy mechanical effect brought by,making materials in the set,by the comprehensive effect of mechanical and hydraulic shear,extrusion,friction,centrifugal liquid layer collisions and turbulent strong gap rotor narrow,forming a suspension,emulsion and foam.Emulsion pump so that the solid phase,liquid immiscible phase,gas phase in the common role of the corresponding amount of additives and ripe technology,instant fine dispersion and emulsification,emulsion pump after frequency move in circles,cavity in narrow space,multilayer loaded with 1-3 groups of dual bite fixed,rotor,rotor in motor under the drive of high speed rotating produce axial suction strong material suction cavity.Dispersing,shearing,emulsification treatment of the material in the shortest time,particle size distribution in signicantly narrowed.The preparation of fine long-term stability of the product.

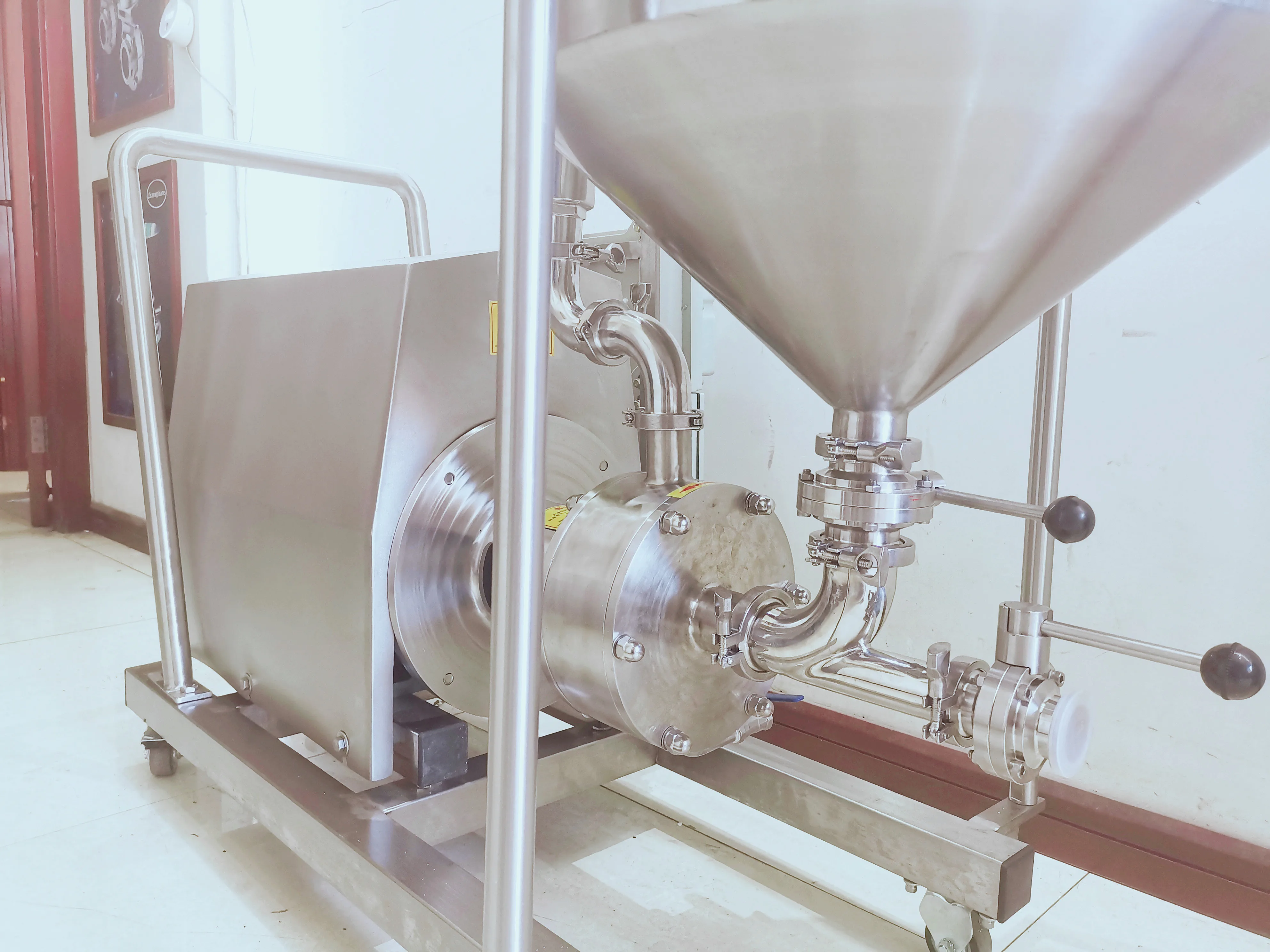

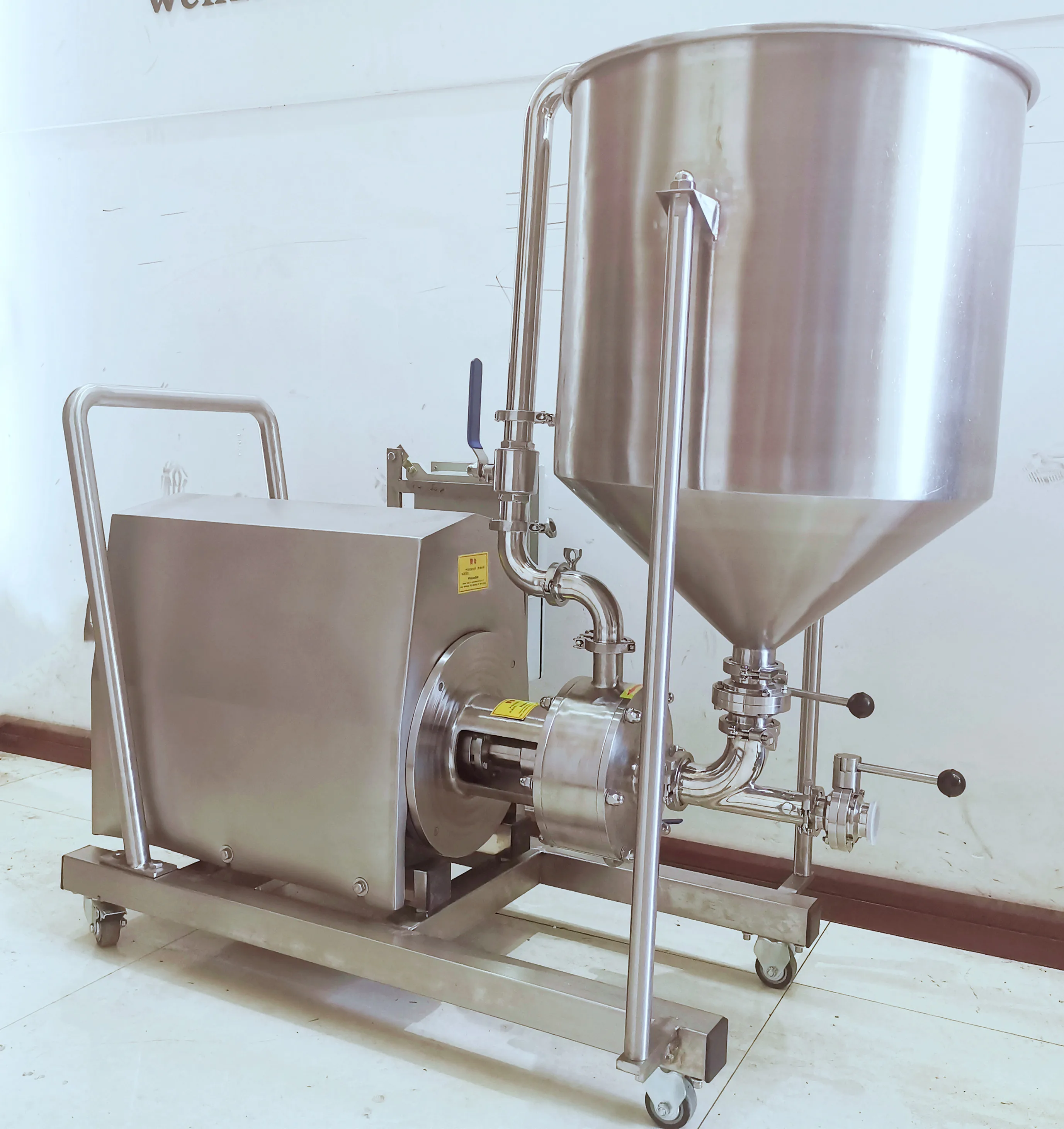

Emulsification system-----Combine the mixer tank with emulsifier pump
Specification
Model | Power(kw) | Speed(rpm) | Flow(m3/h) |
TRL-1-60 | 1.1 | 2800-2900 | 0-1 |
TRL-1-80 | 1.5 | 2800-2900 | 0-1.5 |
TRL-1-100 | 2.2 | 2800 | 0-3 |
TRL-1-130 | 4 | 2800 | 0-4 |
TRL-1-140 | 5.5 | 2800 | 0-5 |
TRL-1-165 | 7.5 | 2800 | 0-8 |
TRL-1-180 | 11 | 2800 | 0-12 |
TRL-1-185 | 15 | 2800 | 0-18 |
TRL-1-200 | 22 | 2800 | 0-25 |
TRL-1-210 | 30 | 2800 | 0-35 |
TRL-1-230 | 45 | 2800 | 0-50 |
TRL-1-250 | 55 | 2800 | 0-80 |
TRL-1-260 | 75 | 2800 | 0-90 |
TRL-1-280 | 90 | 2800 | 0-120 |
TRL-1-290 | 132 | 2800 | 0-135 |
Packing & Delivery
Delivery time:usually within one week,but it depends on actual order quantity.

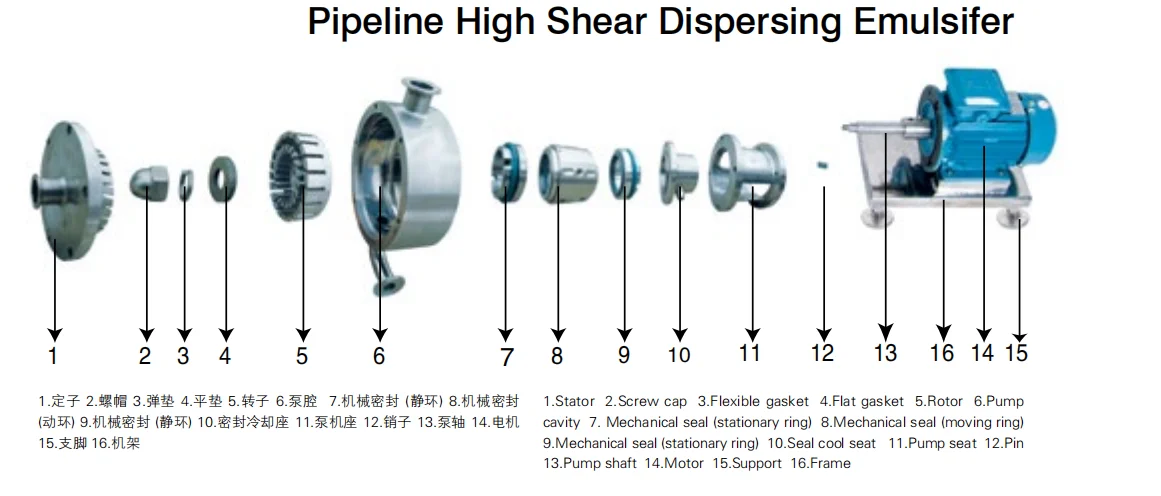

Product Details
100% shearing,Good effect,no blind cornor,simple structure,easy maintenance!

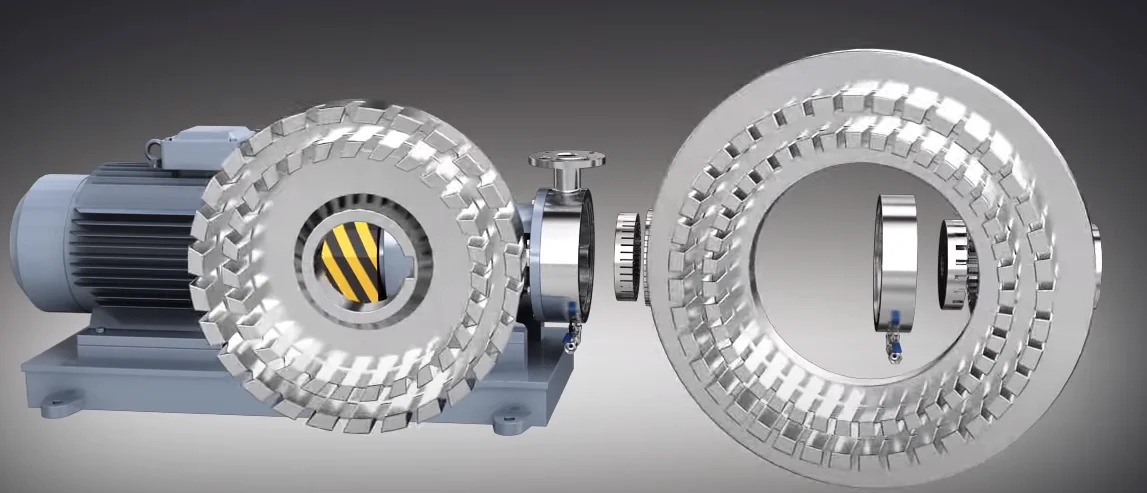

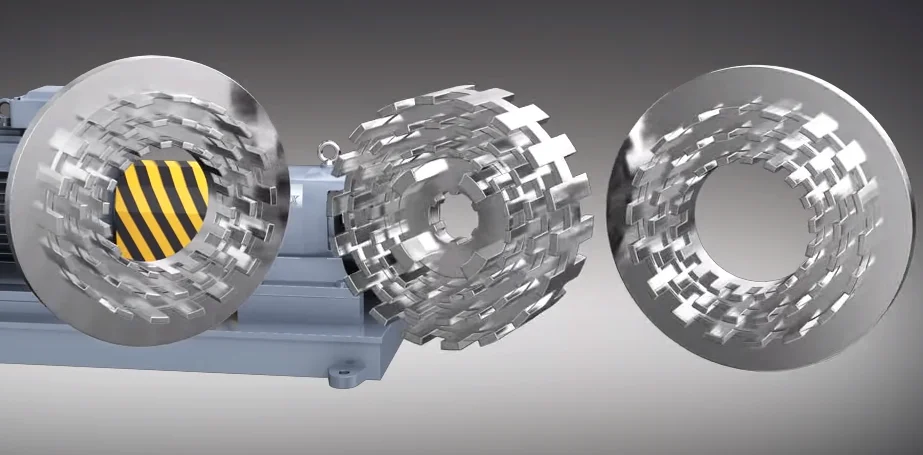

Single- stage & Multi layer structure

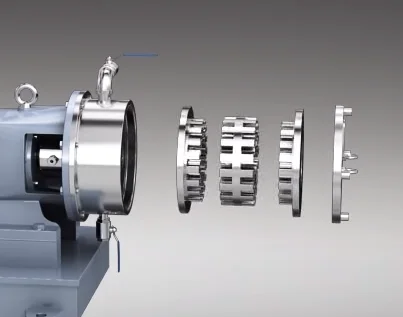

Single-stage & Layer Structure

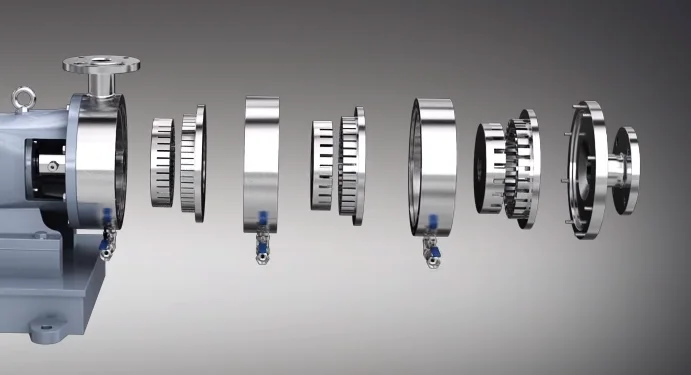

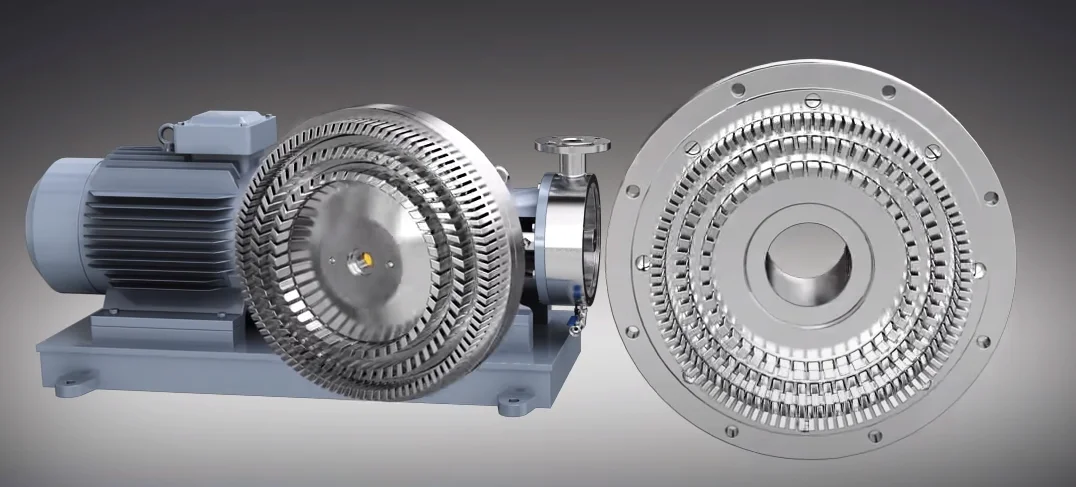

Multi-stage & Multi layer structure
APPLICATION
Food industry;Comestic;Body care;namomaterials;petrochemicals;paper industry;plastics and rubber;pesticides and fertilizers;coatings and inks;power electronics,other fine chemical mixing,diapersing,emulsifying field.
