Поставка от производителя 12 дюймов фрезерный станок Наклонный поворотный стол

Product Overview

Description

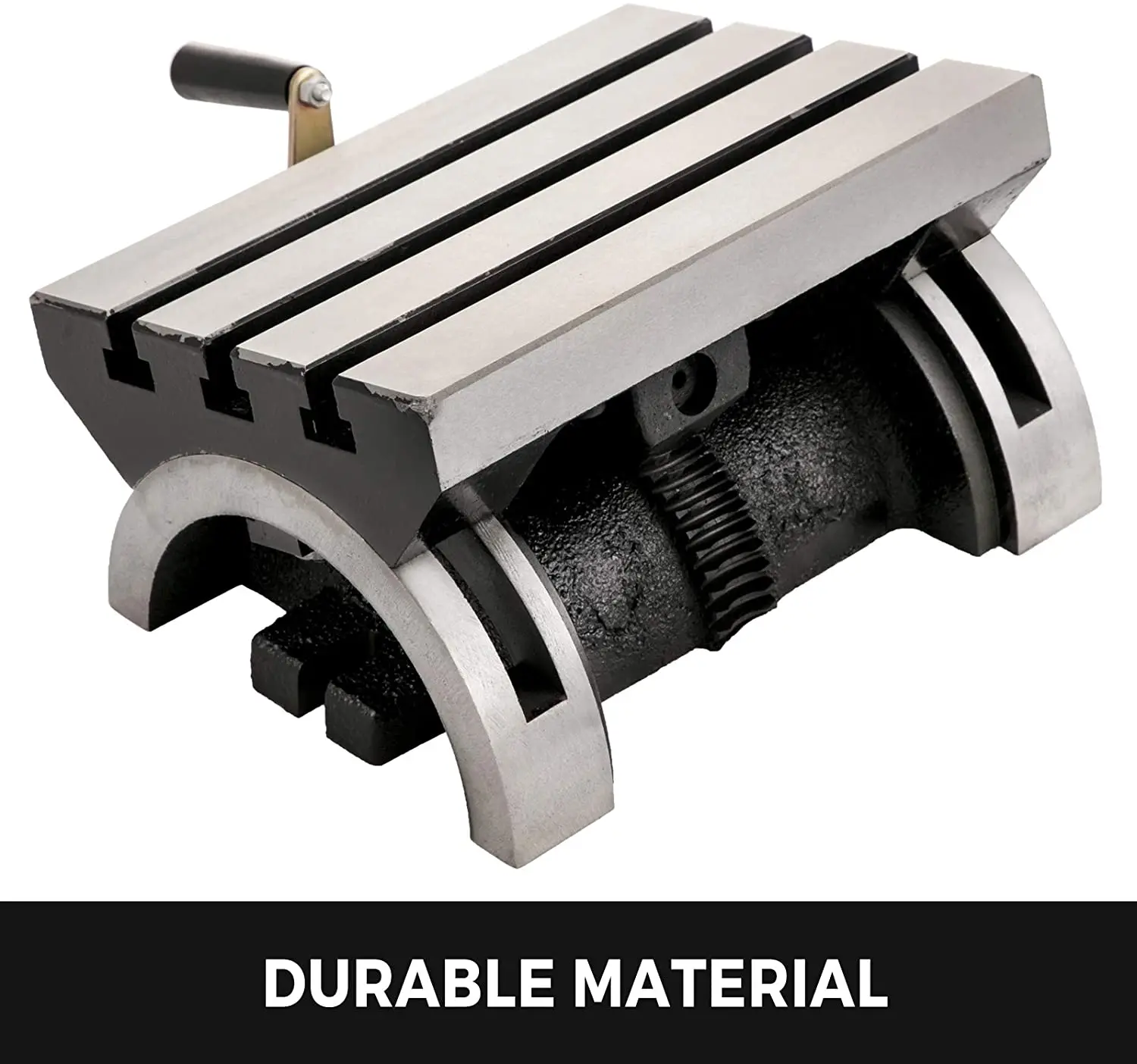

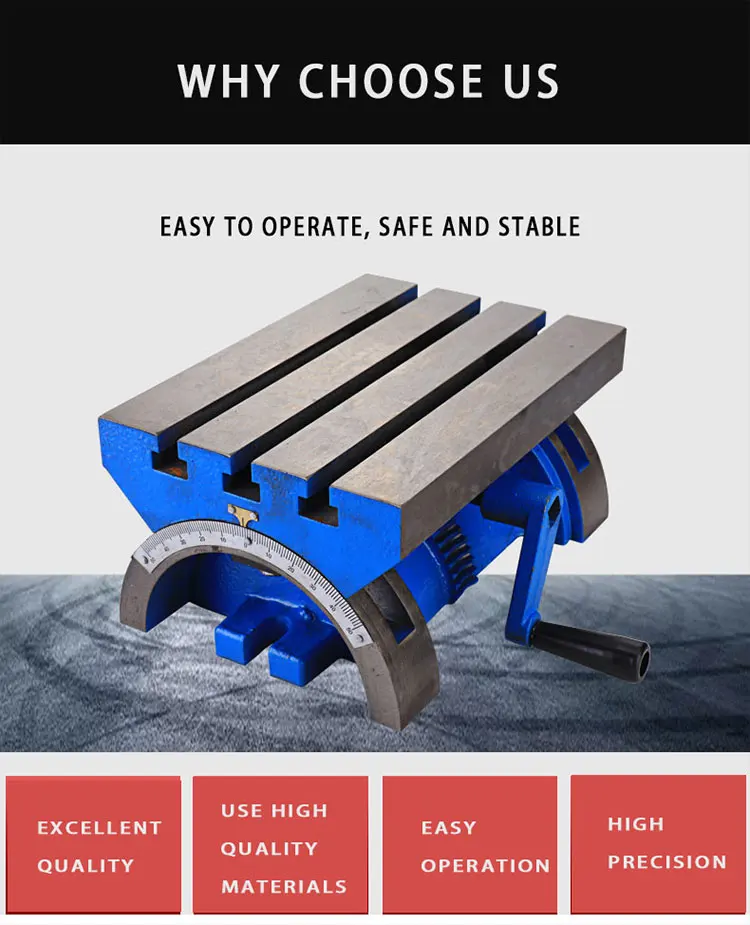

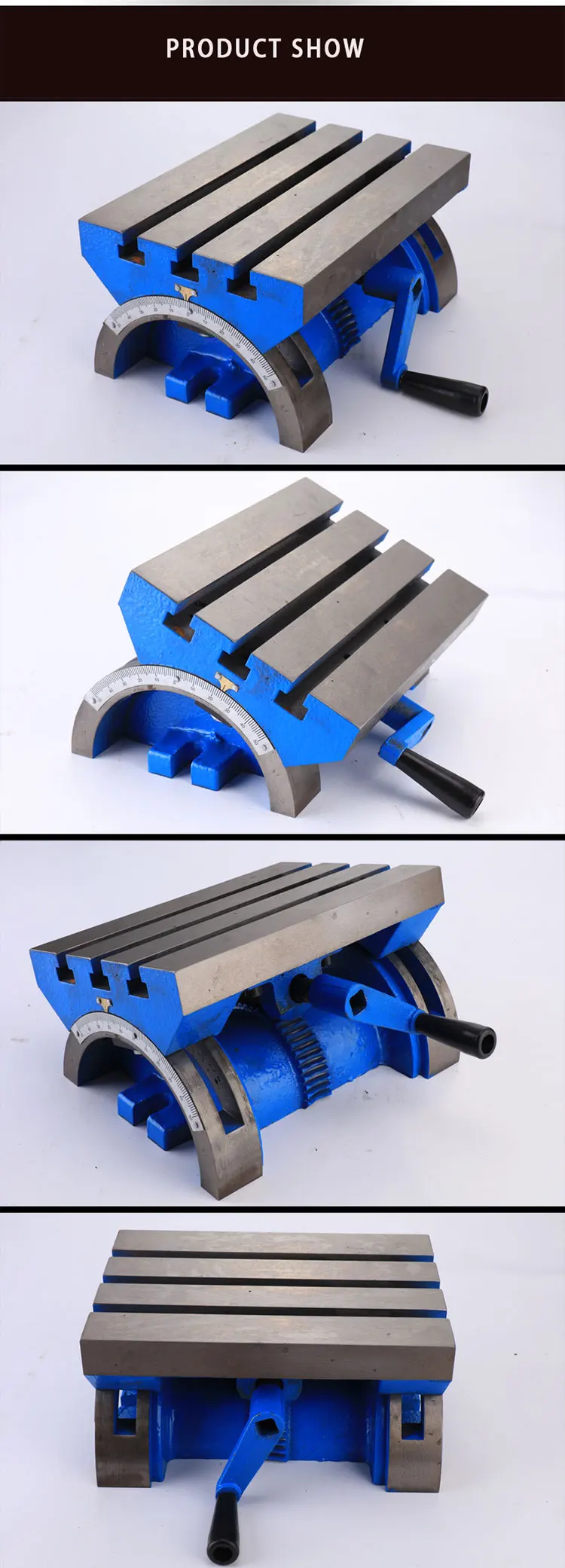

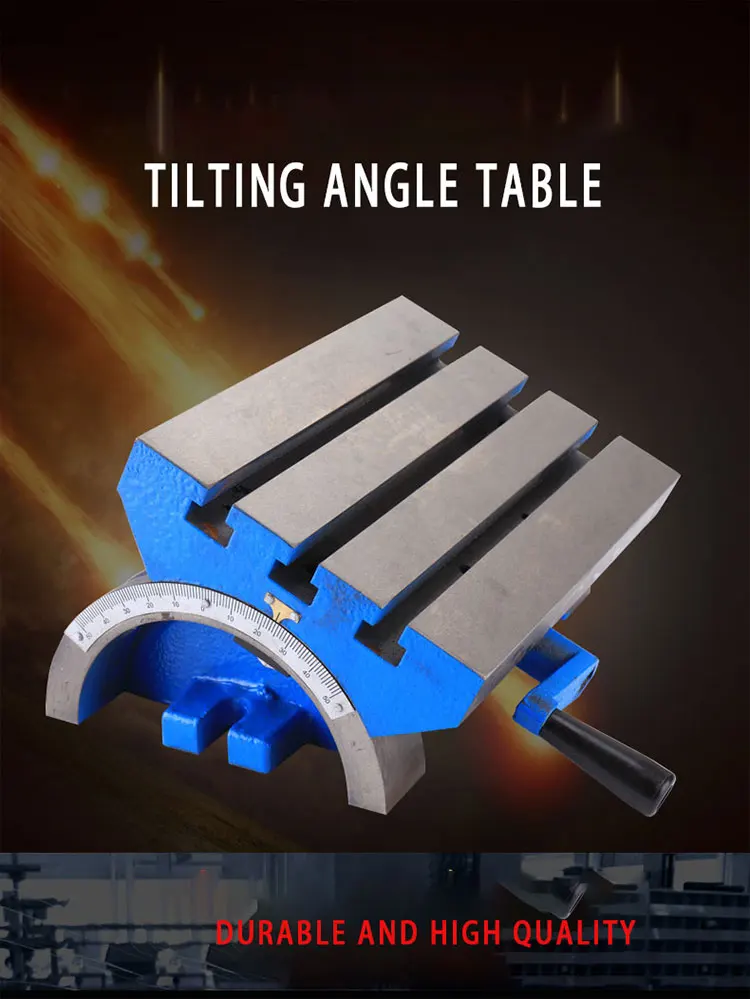

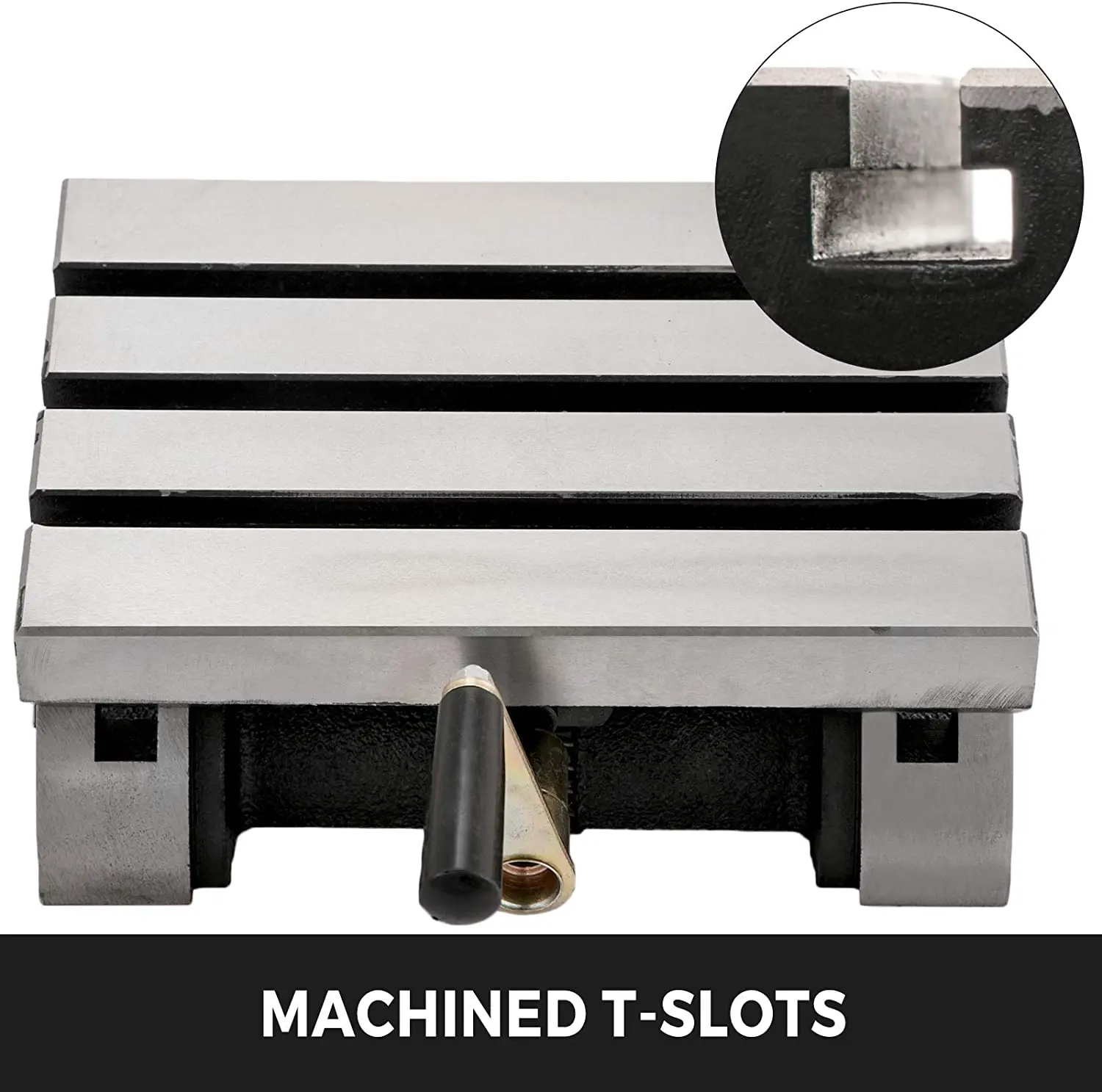

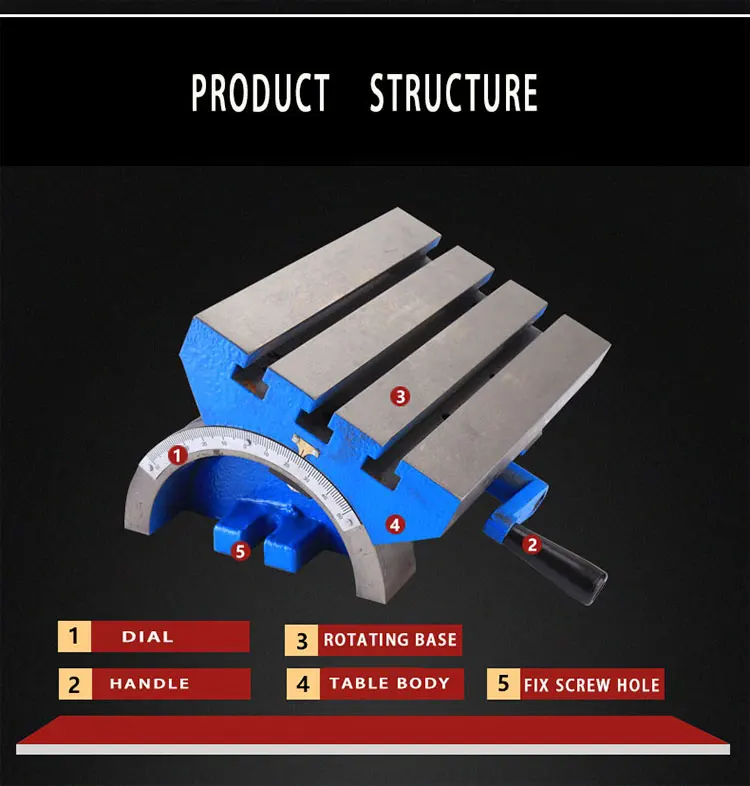

Tilting Table for Milling Machine

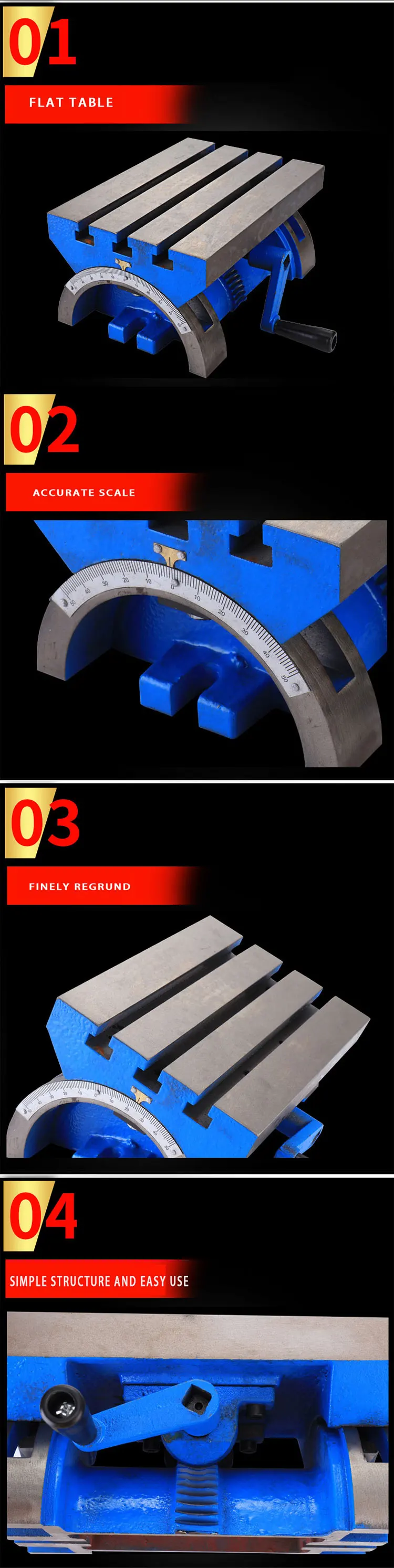

Features:
1. Perfect for setting work at any angle during milling or other operations.

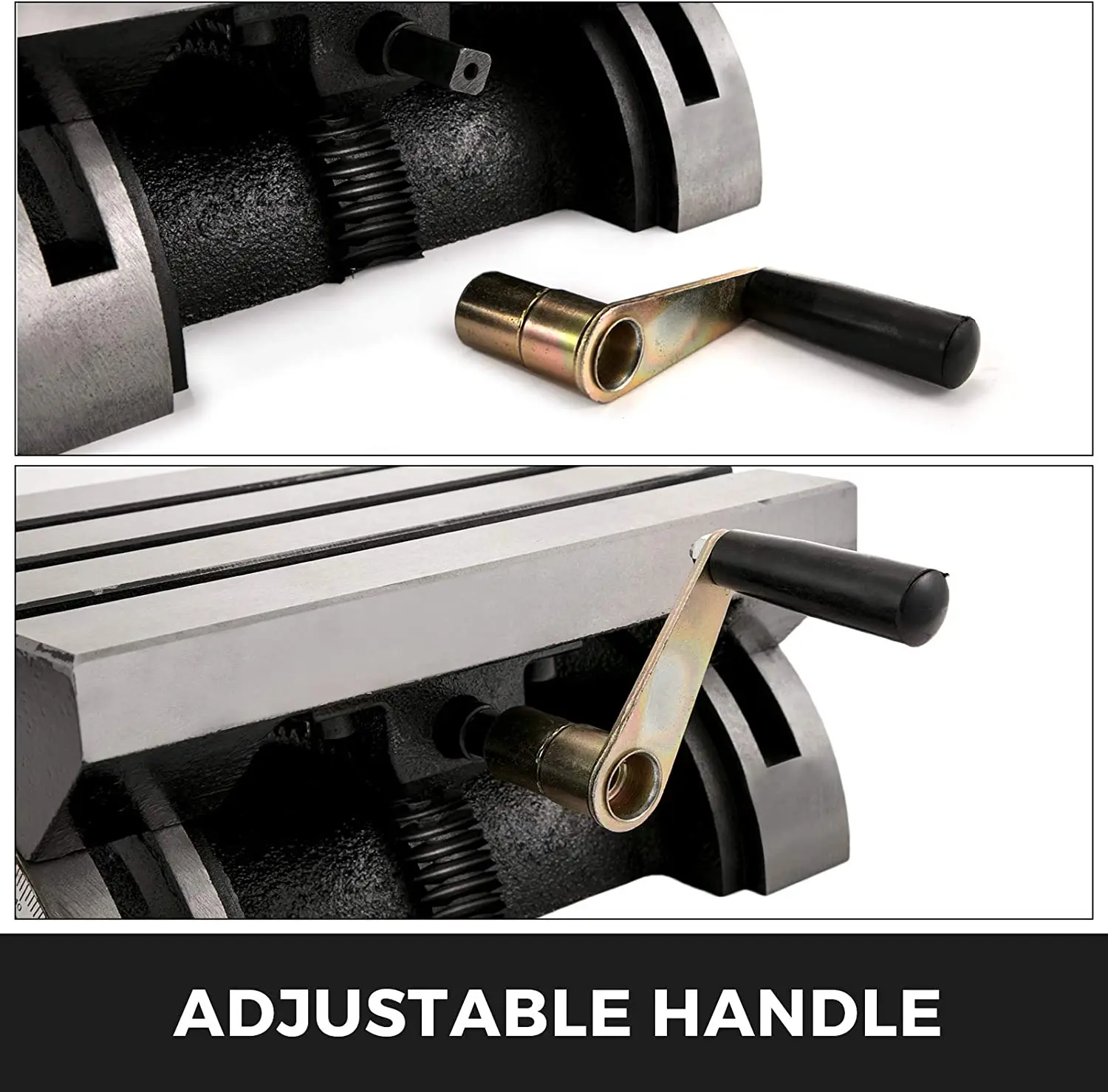

2. 2 screw lock setting. Saves setup time.

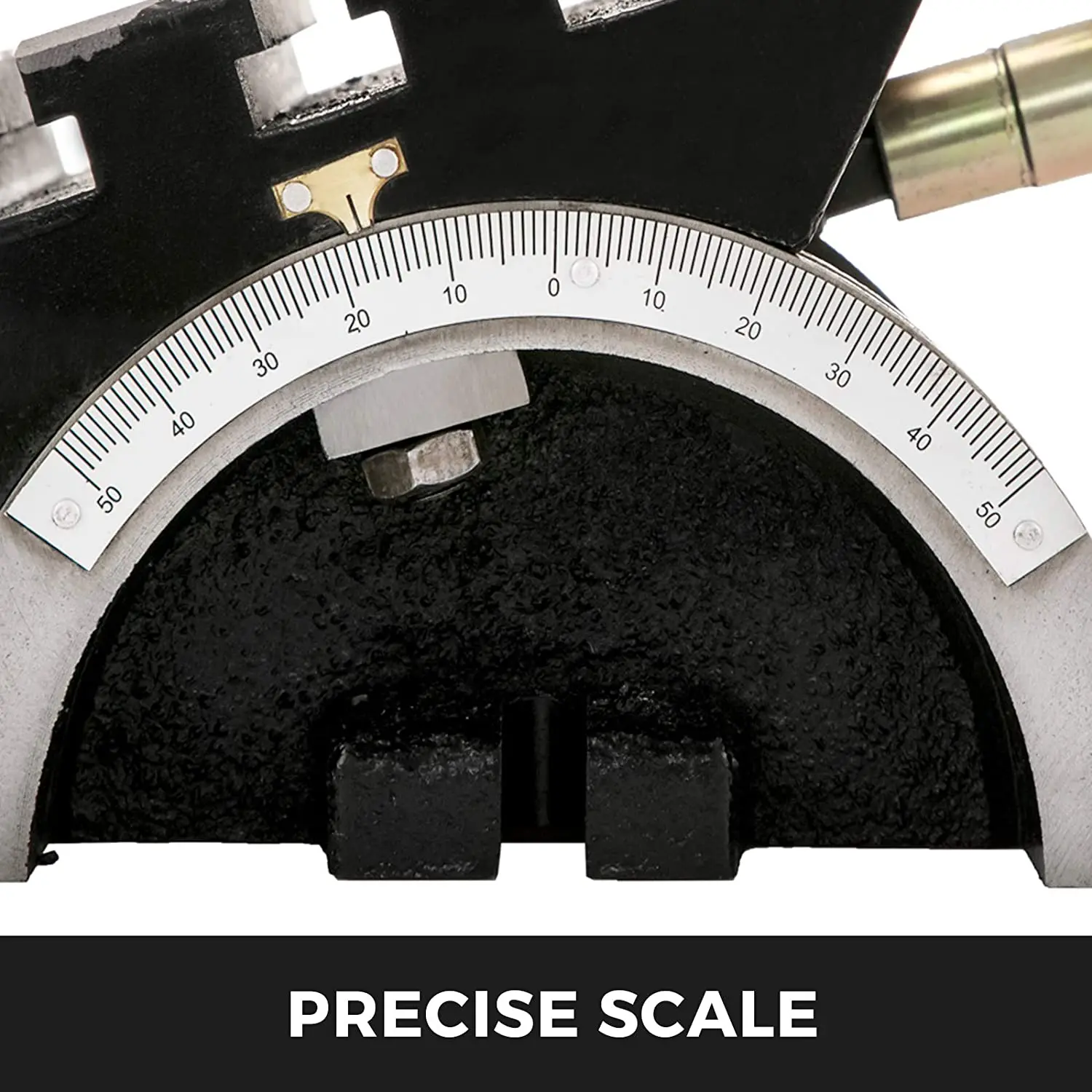

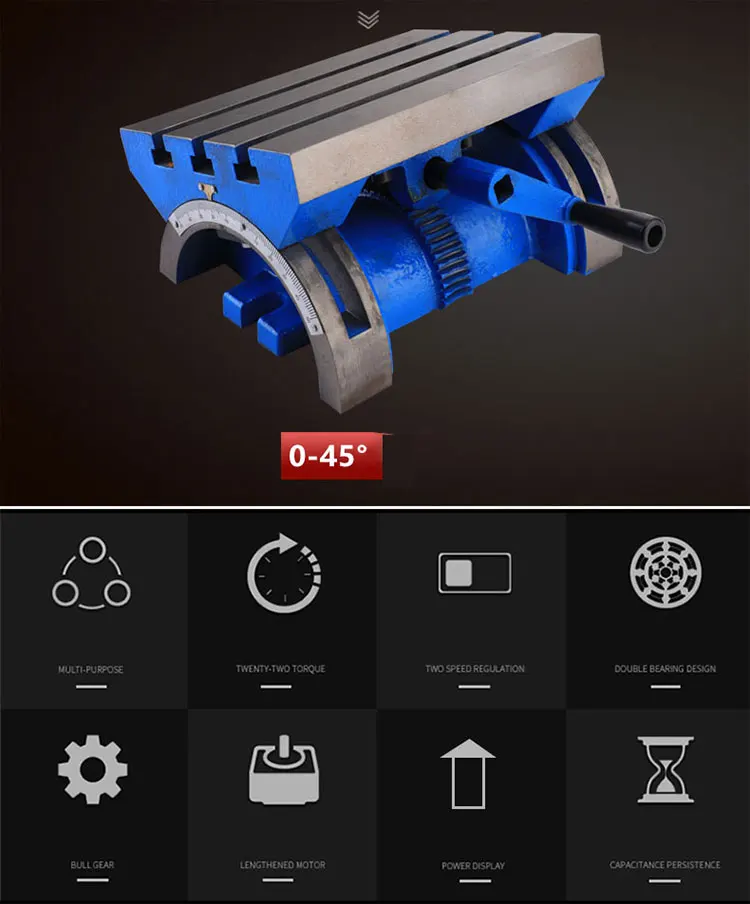

3. Range-45° to +45°. Graduated in degrees for setting purposes.

Tilting Table  size:
125*180mm    (7”)

180*250mm (10”)

250*300mm (12”)

300*380mm (15”)

300*680mm (24”)



Tilting Table  features:

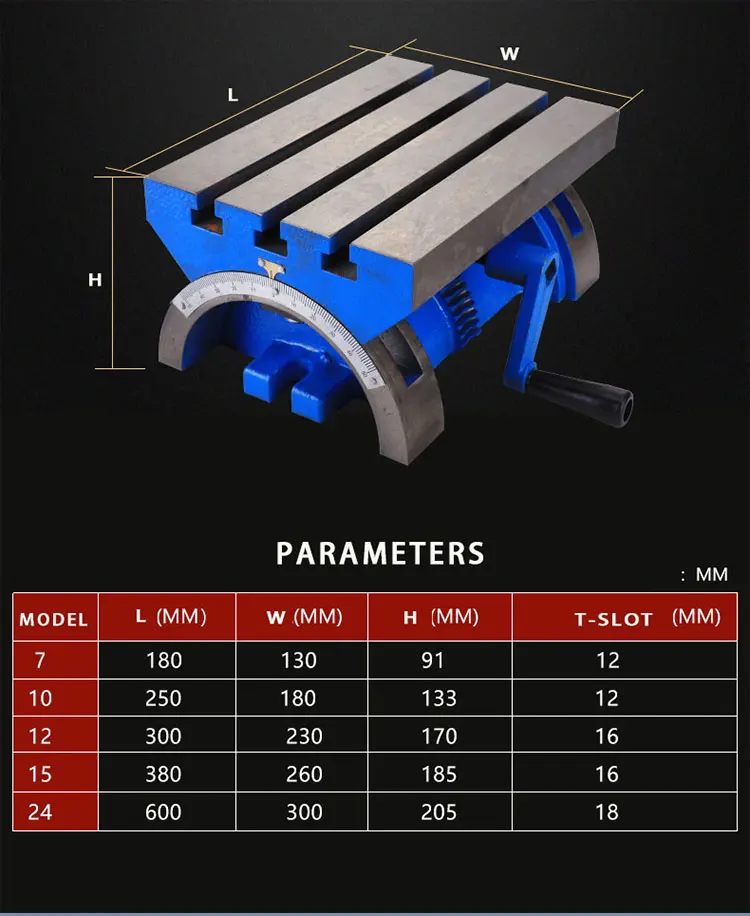

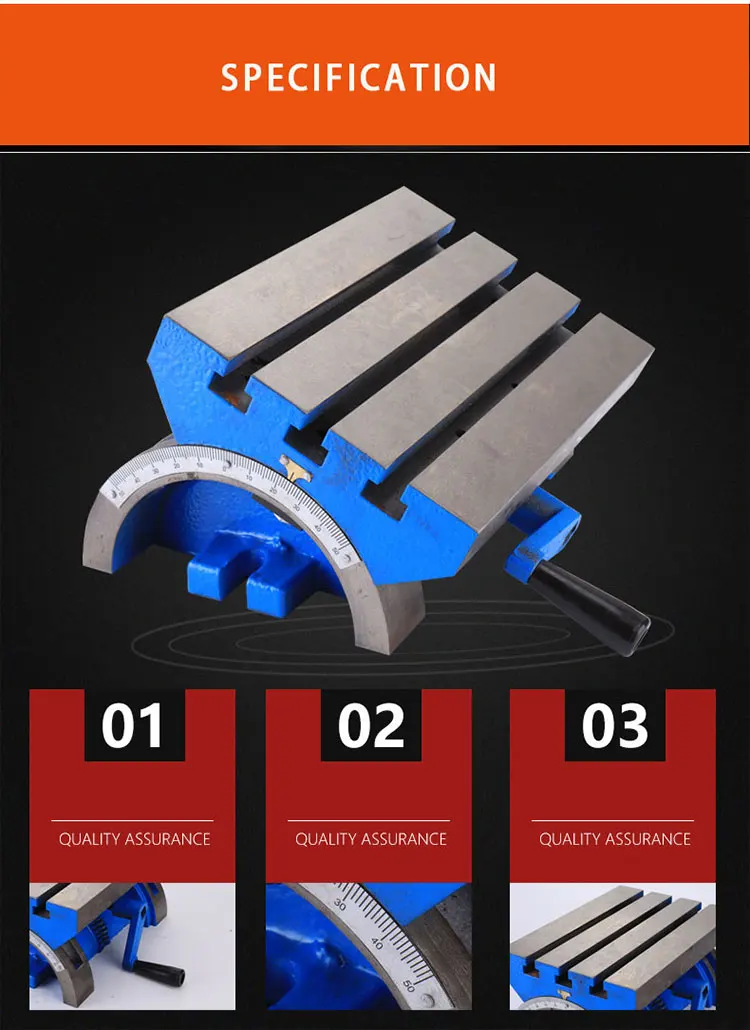

Specification	L(MM)	W(MM)	H(MM)	T(MM)	KG
7"	180	130	90	10	7.8
10"	250	180	125	12	23
12"	300	230	164	12	35
15"	380	260	185	16	45
24"	600	300	205	16	120
