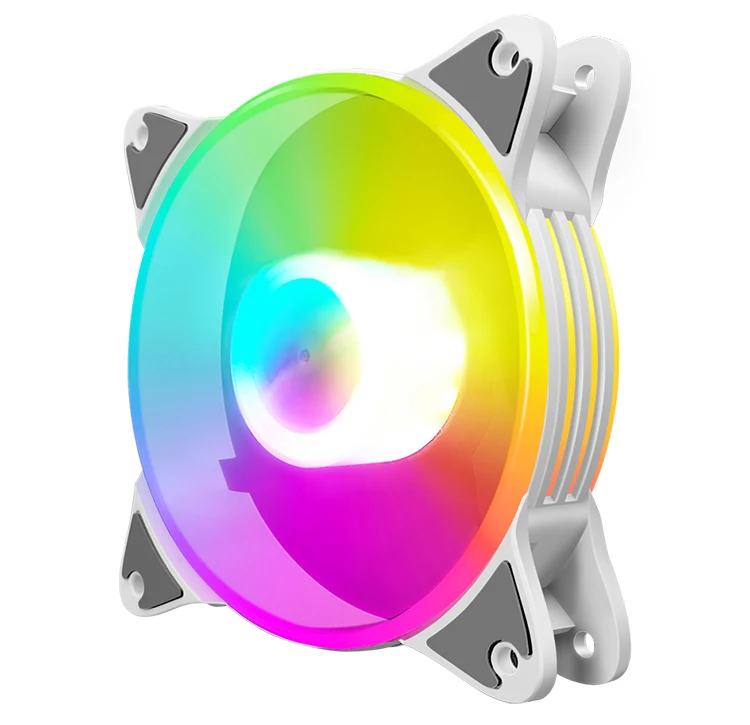

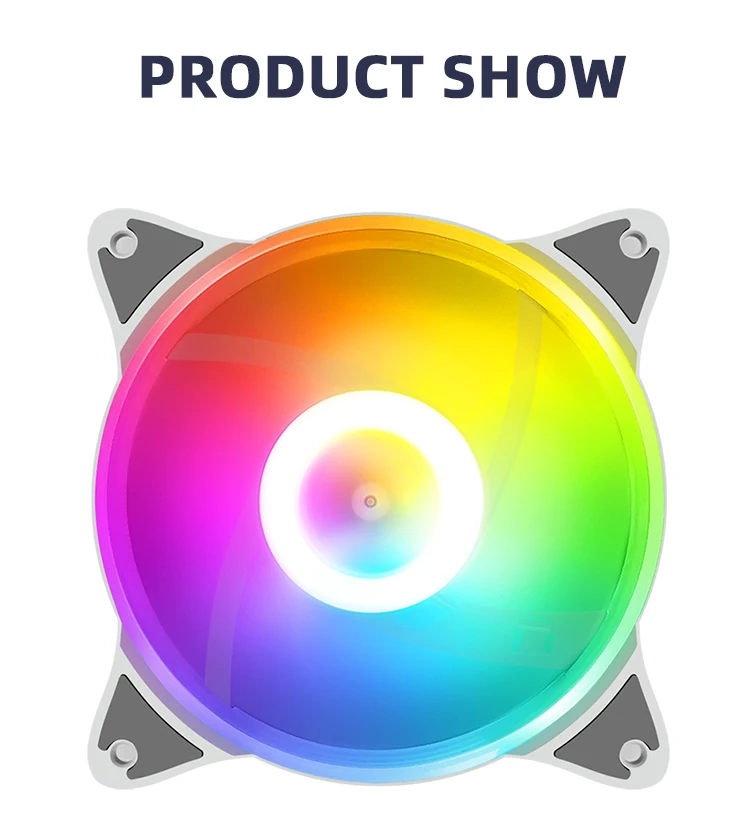

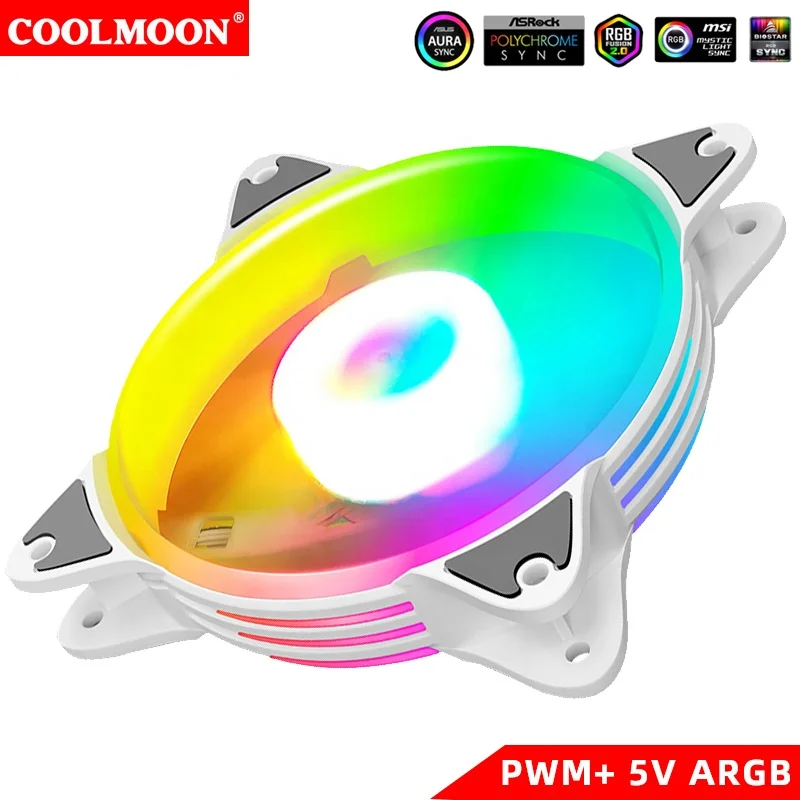

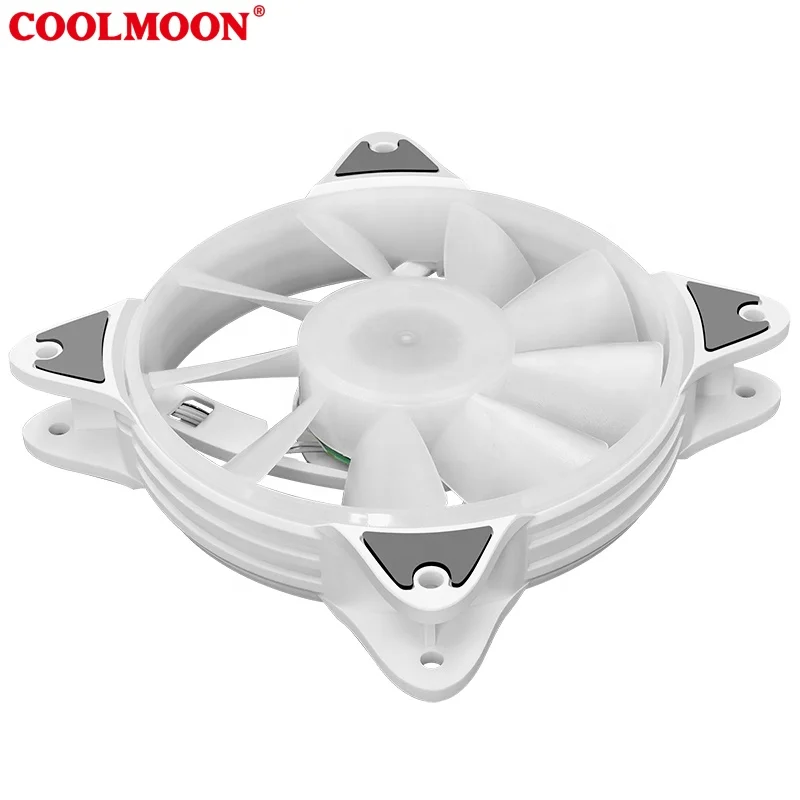

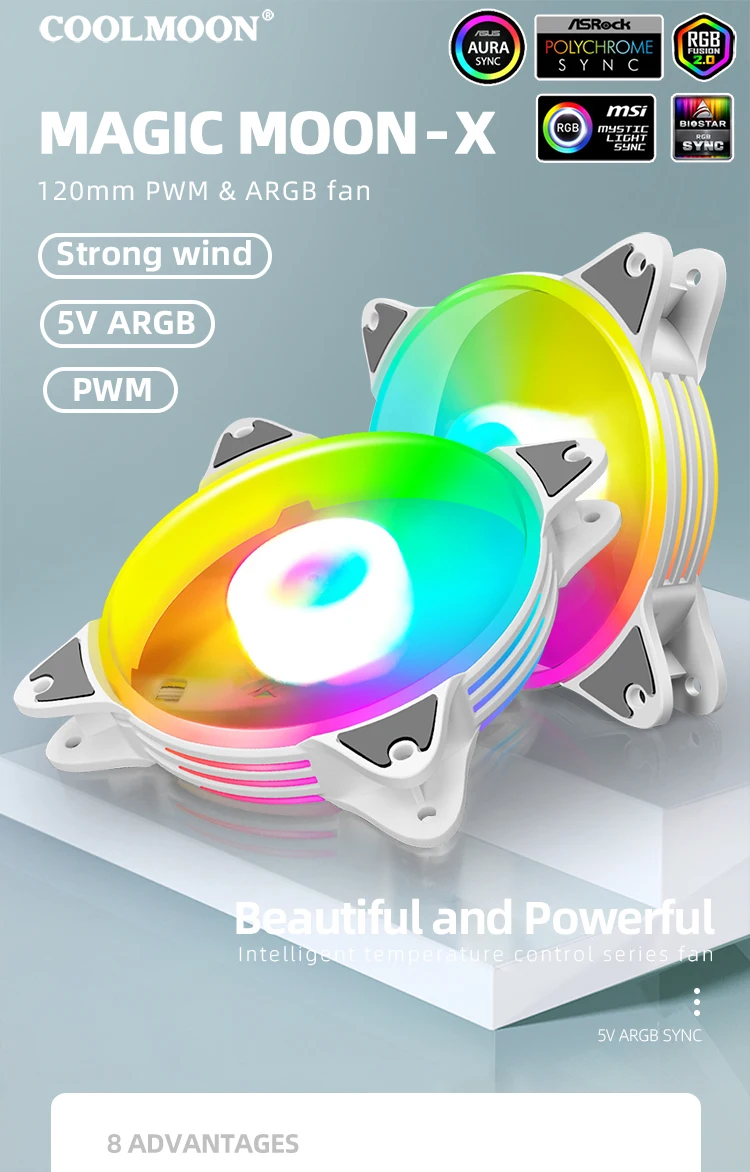

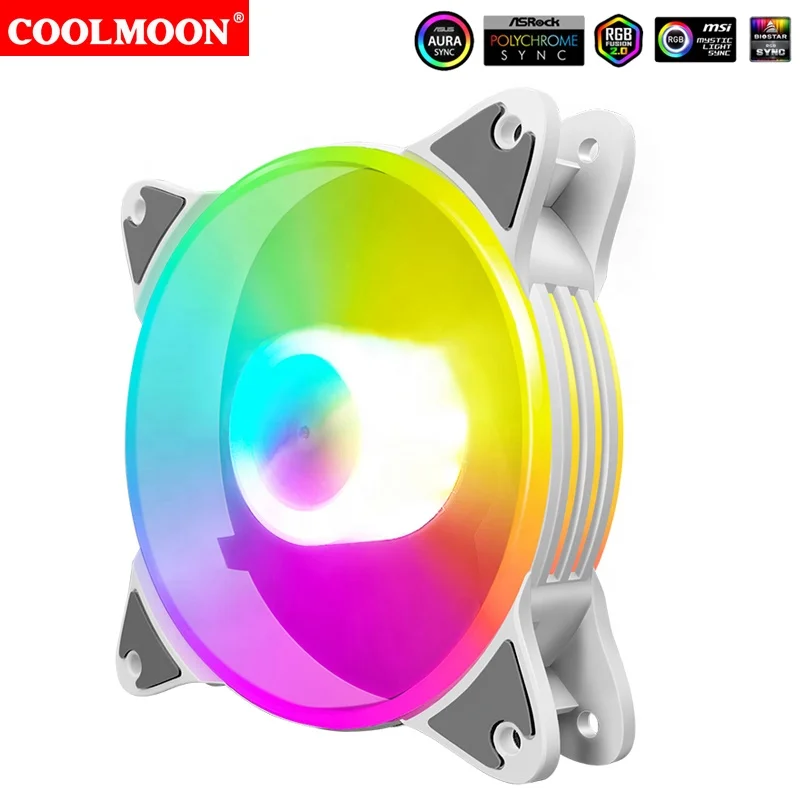

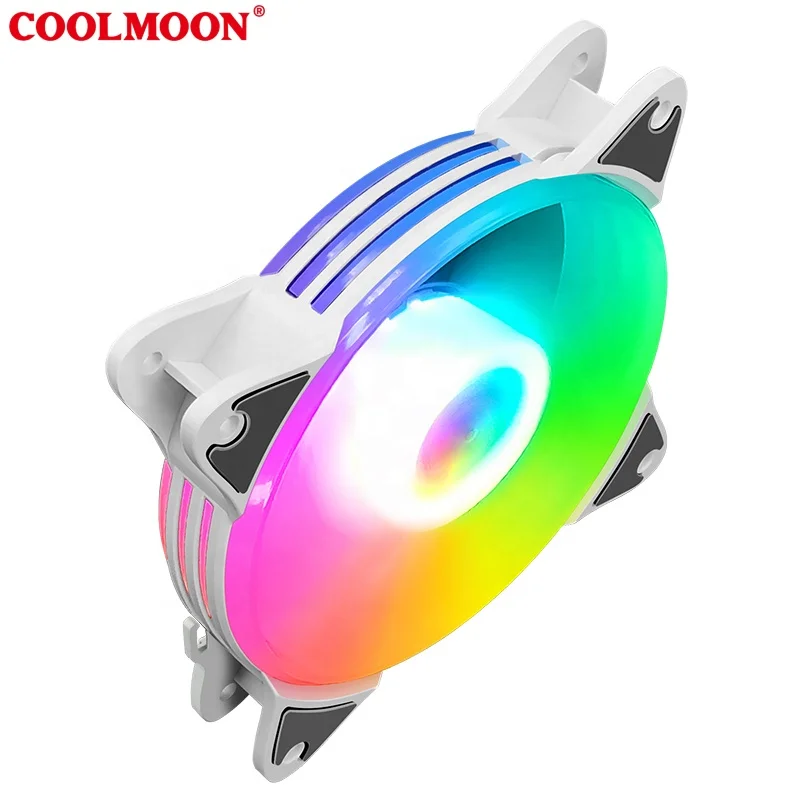

COOLMOON 120mm 5V ARGB computer cooliing fan Addressable Motherboard synchron CPU cooler RGB case fan

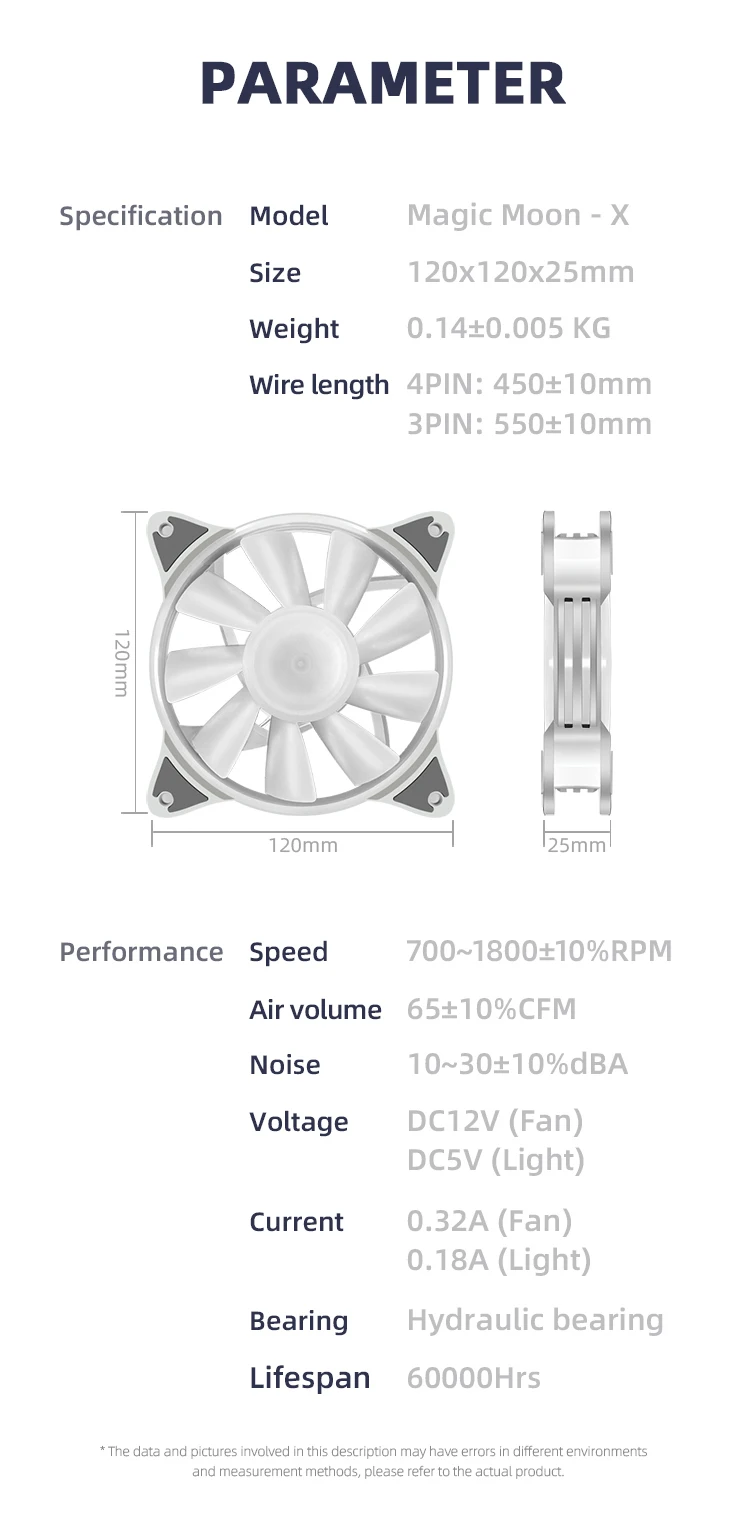

Specifications of fan

LED Color: ARGB

Product Dimension: 120 x 120 x 25mm

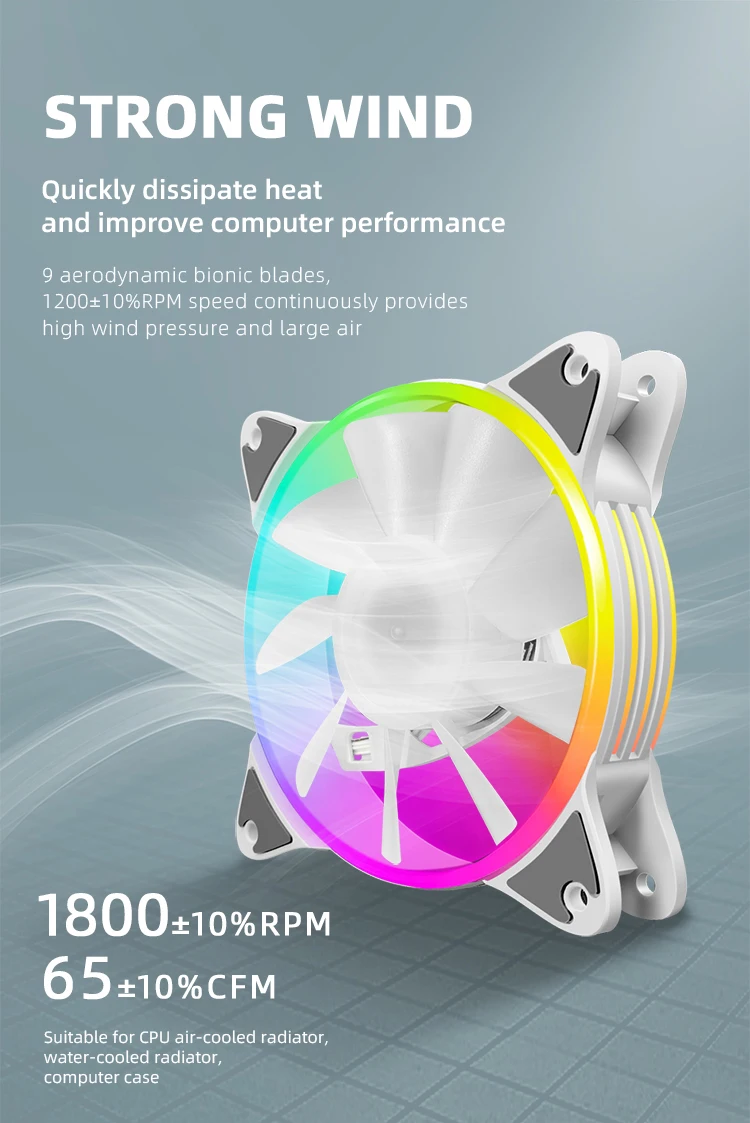

Airflow: 71±10%CFM

Rated Voltage: DC 12V(fan) + 5V(LED) Fan

Rated Current: 0.35A(fan), 0.18A(LED)

Rated Power: 3.6W

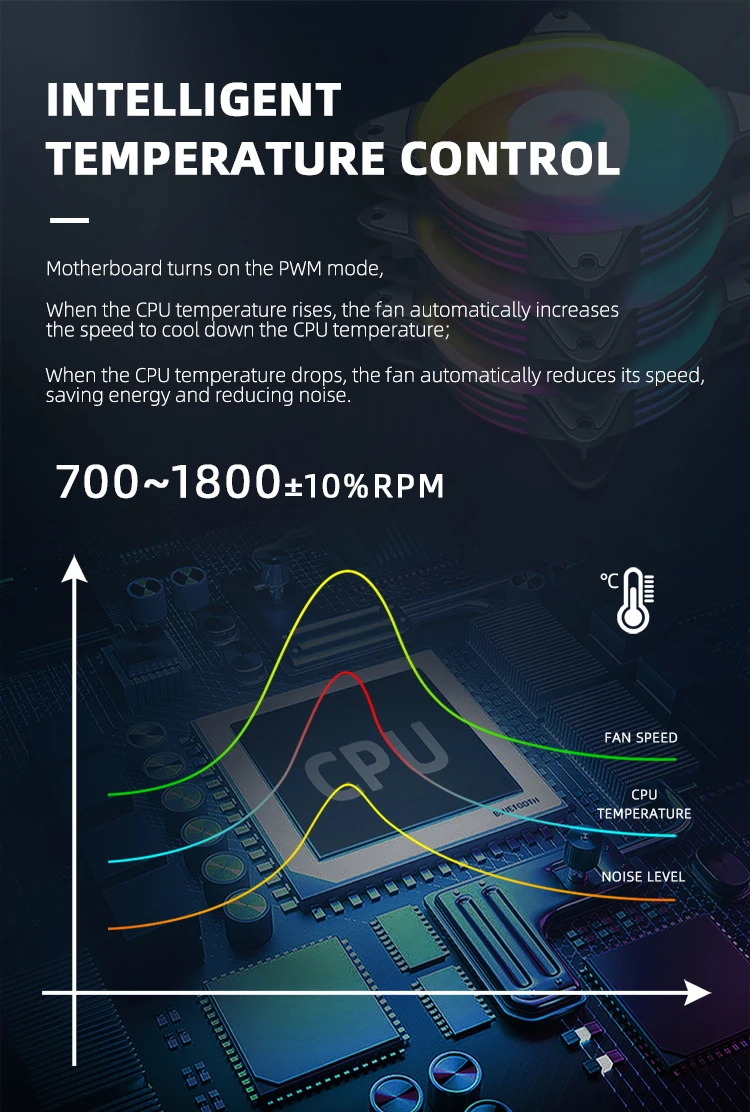

Speed: 700~1800±10%RPM (PWM)

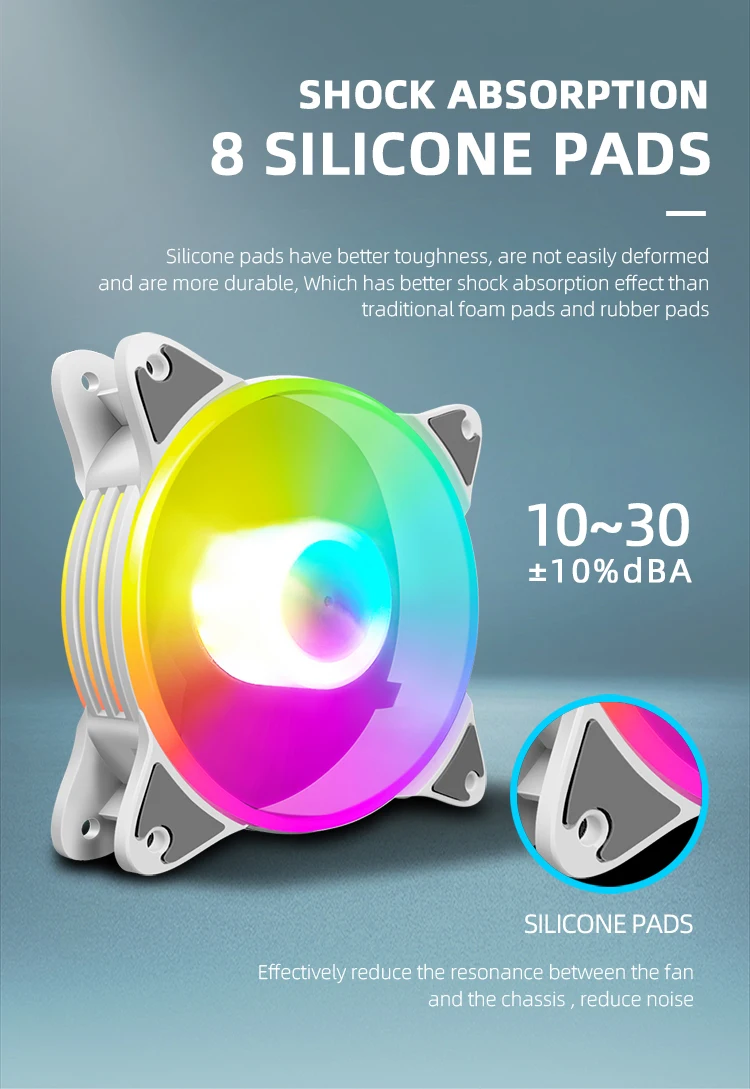

Sound Level: 25±10% dBA

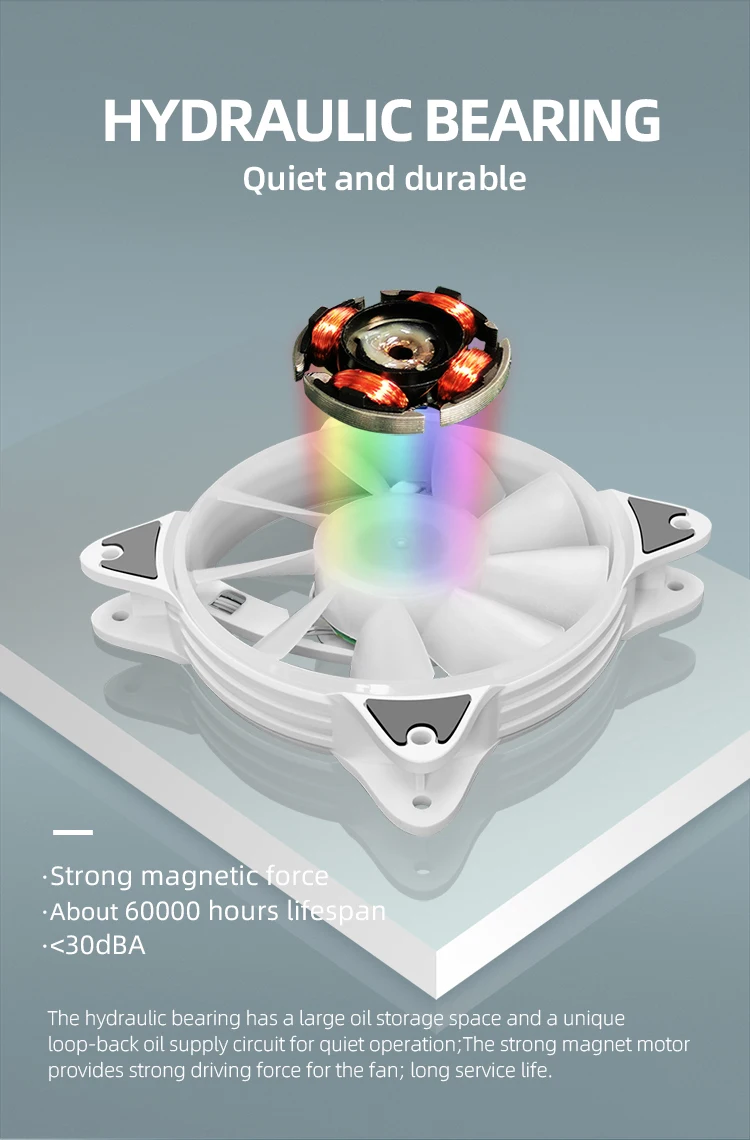

Bearing Type: Hydraulic Bearing

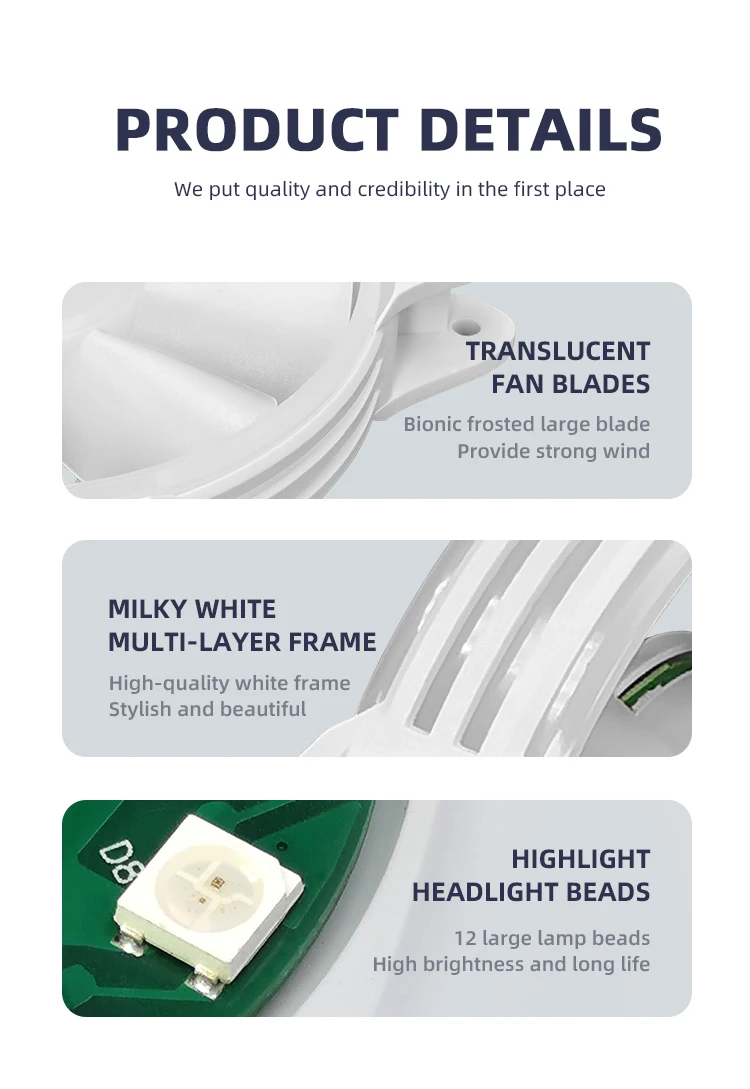

LED QTY: 12 pcs

cable lenght: 450±10mm(4PIN), 550±10mm(3PIN)

weight:0.15±3%KG

Lifetime: 60000Hrs

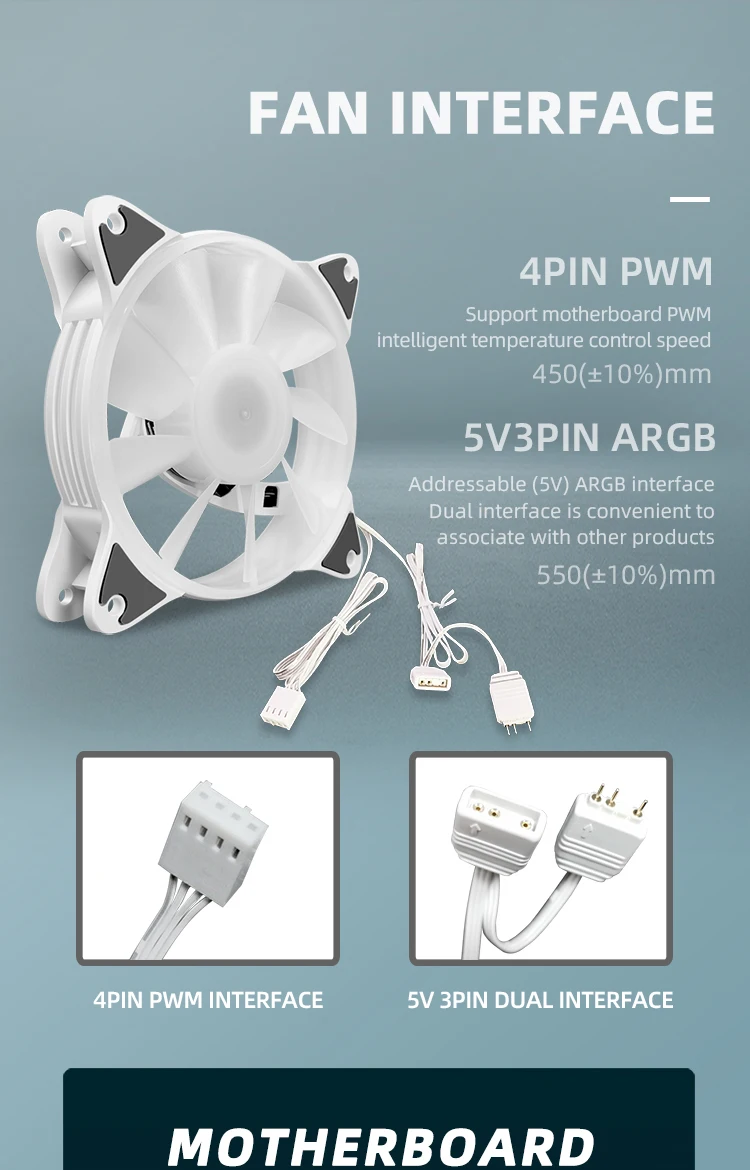

Interface of fan

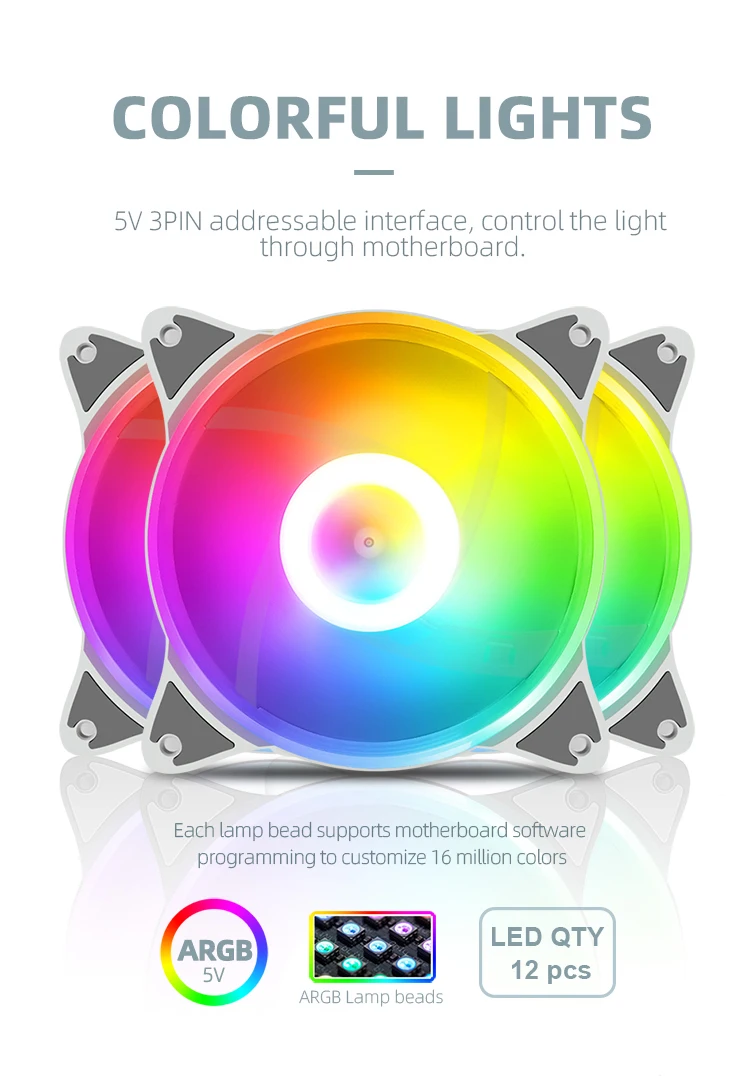

The power supply interfaces of the fan is a small 4PIN PWM interface and Addressable 5V ARGB interface, The motherboard needs to support 5V 3PIN ARGB to light up the fan lights, otherwise it needs to be used with our PWM ARGB controller. When multiple fans need to be used, it also needs to be used with a controller.

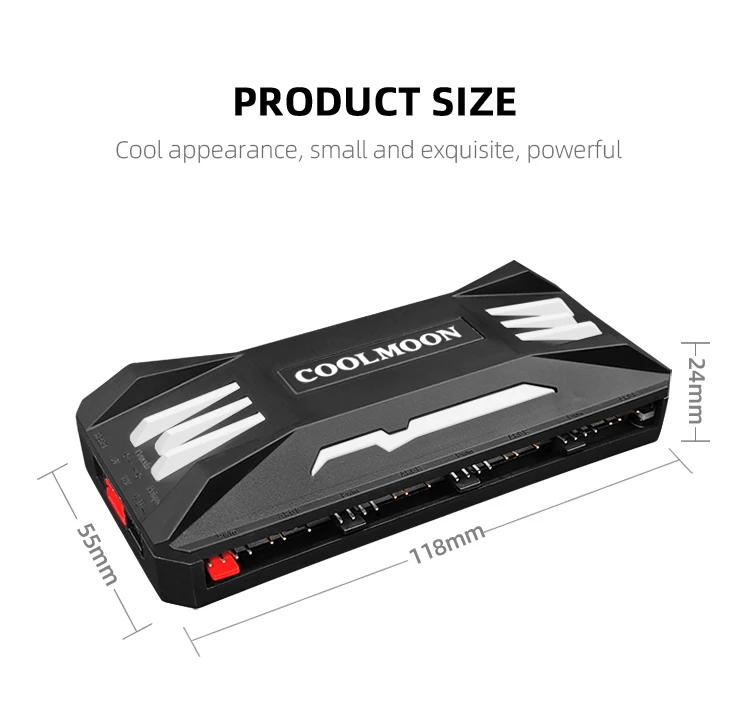

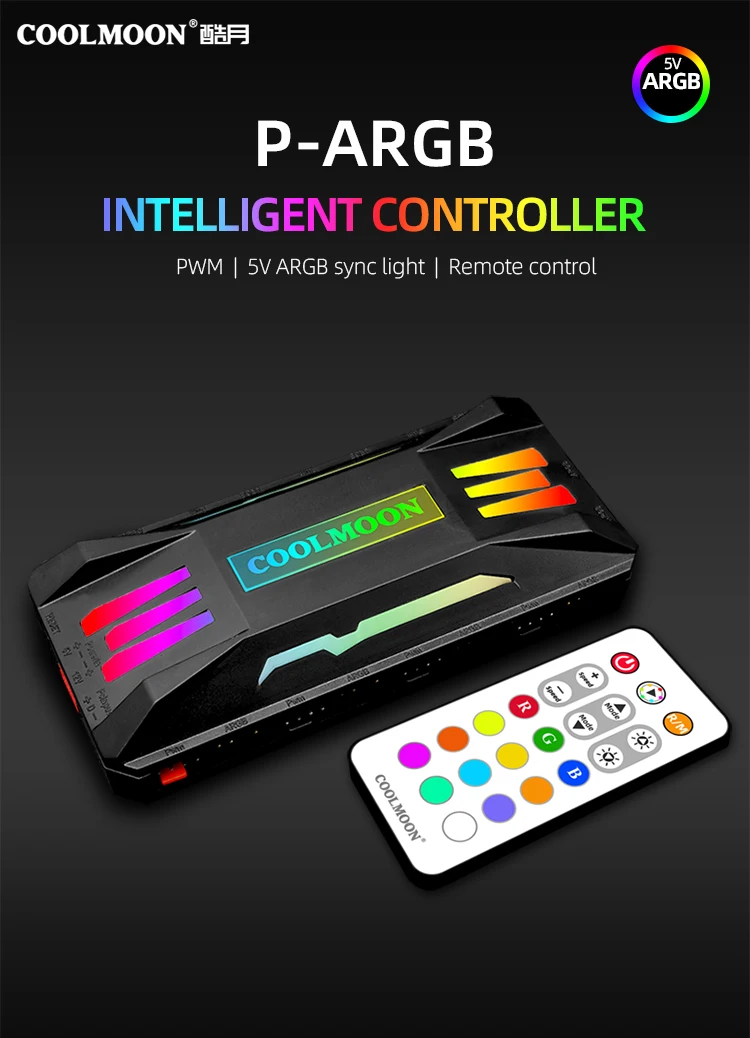

About controller

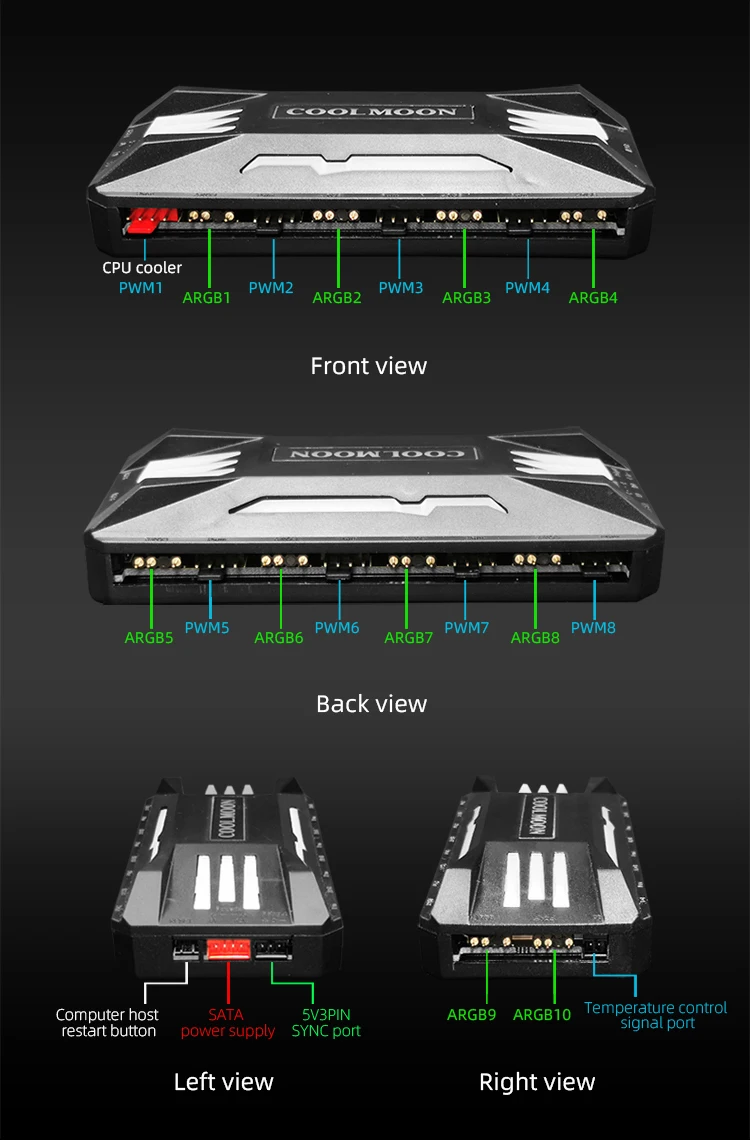

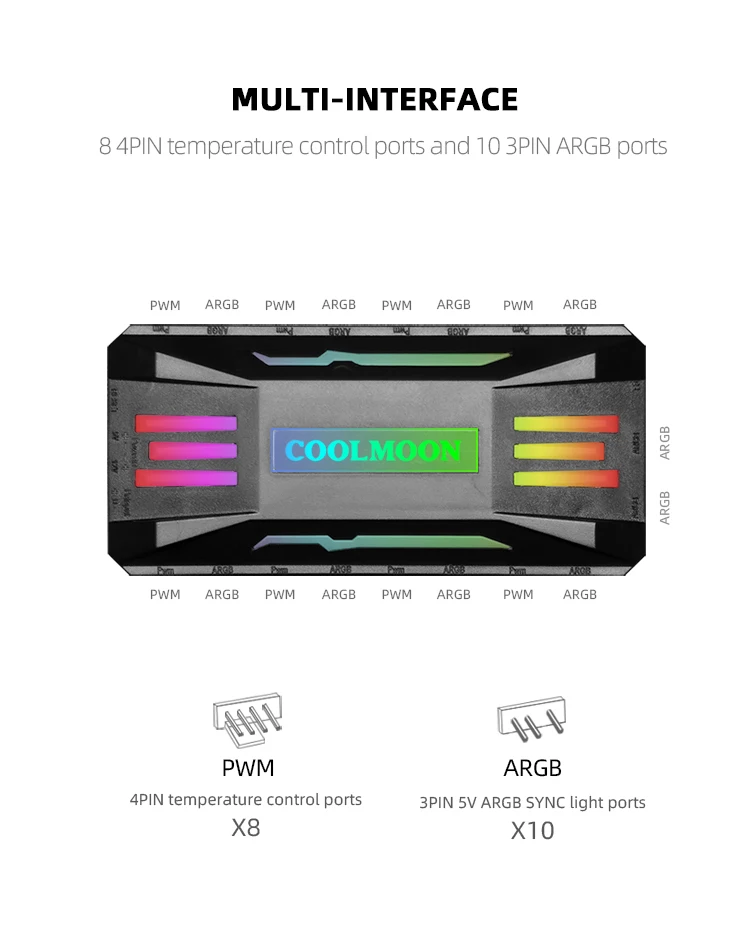

PWM ARGB controller havs 8 ports for 4PIN PWM interface and 10 ports for 5V 3PIN ARGB interface.

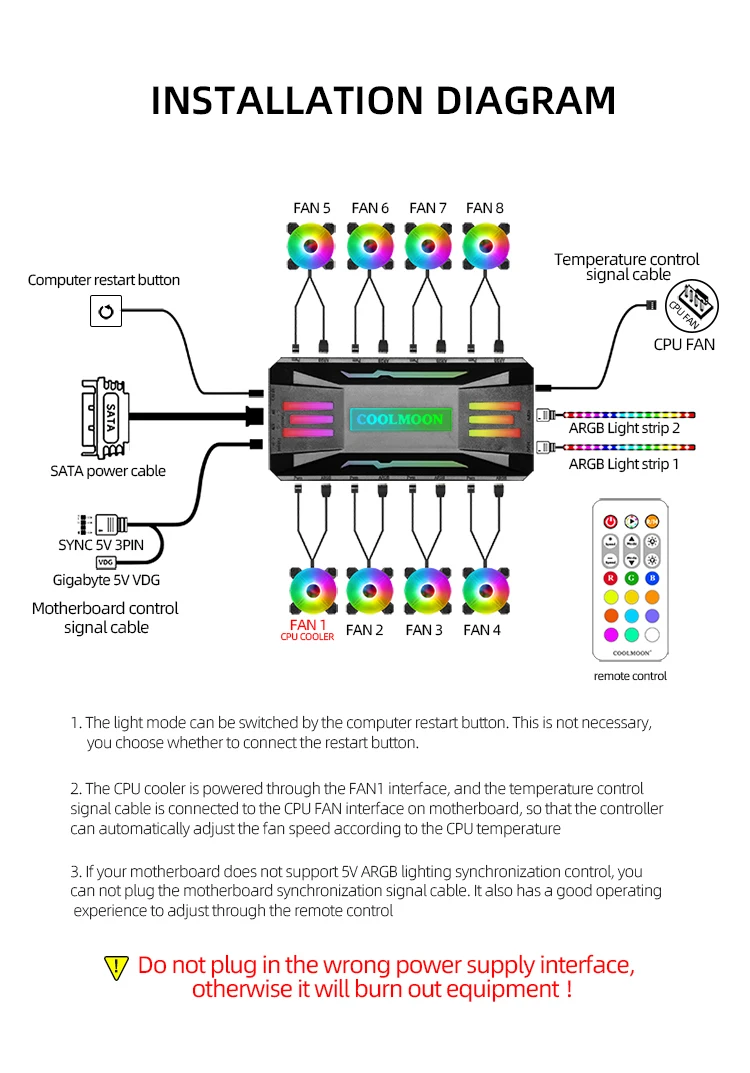

it has 3 control modes: Remote control mode, Motherboard mode, and Computer restart key control mode.

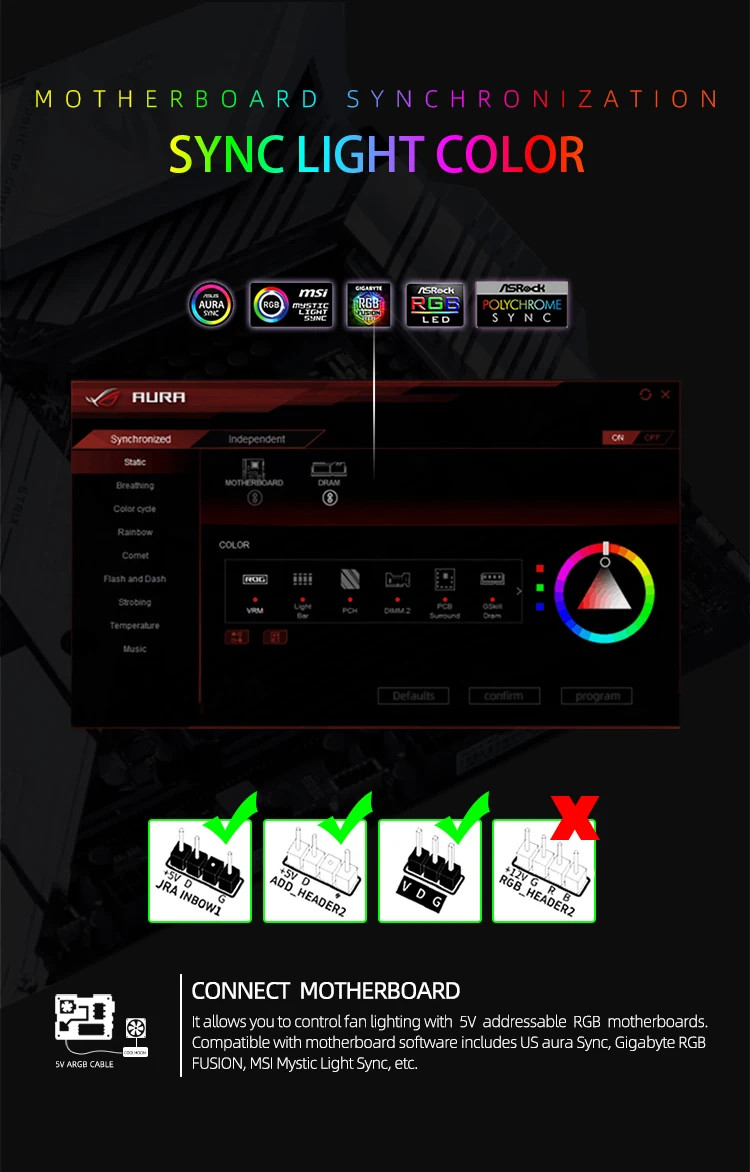

(1) The Motherboard mode allows you to control fan lighting with 5V addressable ARGB motherboards. Compatible with motherboard software includes US aura Sync, Gigabyte ARGB FUSION, MSI Mystic Light Sync, etc.

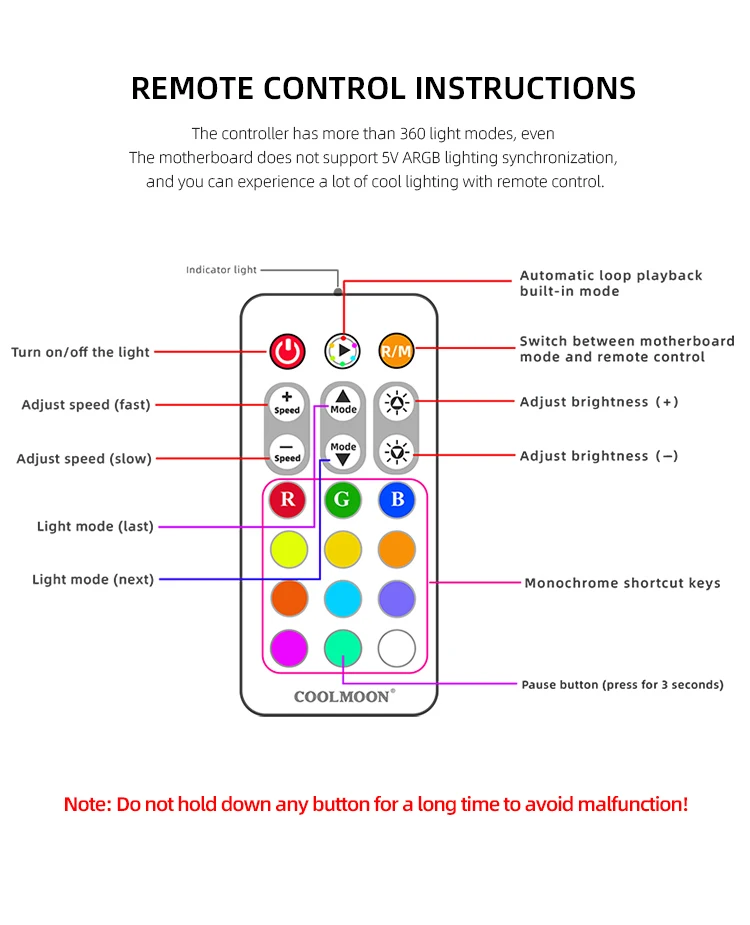

(2) The Remote control mode can be used without connecting the motherboard. Hundreds of lighting modes are built in the remote control mode.

(3) The light mode can be switched by the computer restart button. This is not necessary, you choose whether to connect the restart button.

About packaging

1. For products of different models and specifications, the appearance and size of the packaging box are different. Please refer to the actual product received.

2. It is not acceptable to apply for return based on the difference between the actual packaging box and the description.

3. Each fan has 4 matching screws. 100pcs / box, each fan is about 0.14kg. large quantities can be ordered OEM, Factory brand direct sales. please contact us to place an order.
