For Valleylab Force FX 8C/EX Electrosurgical Unit Single Button IP68 CE Certified Bipolar Foot Pedal Switches
- Category: >>>
- Supplier: Yuanbang Photoelectric Technology (Huizhou) Co. Ltd.
Share on (1600248201293):
Product Overview
Description
Product Description

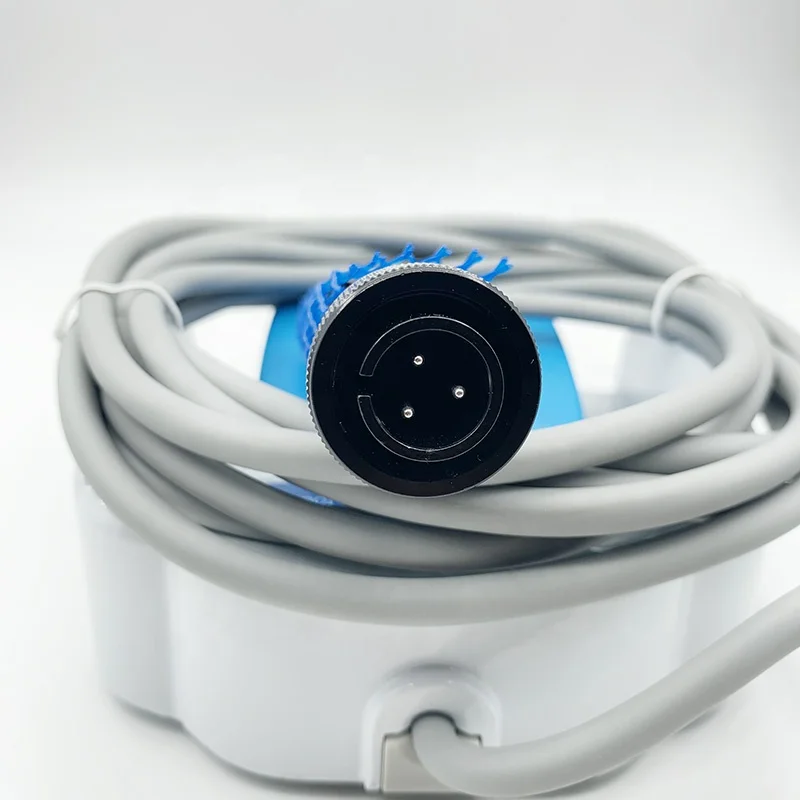

For Valleylab Force FX-8C/EX Electrosurgical Unit Single Button IP68 CE Certified Bipolar Foot Pedal Switches
Item Name | for Valleylab Force FX-8C/EX Medical foot switch |
Pedal Material | Cast aluminum alloy base + ABS pedal |
Cable specifications | 24AWG, 80℃，300V, 4C X 0.2 mm², CE Certificated |
Cable length | 3 meters with gray color |

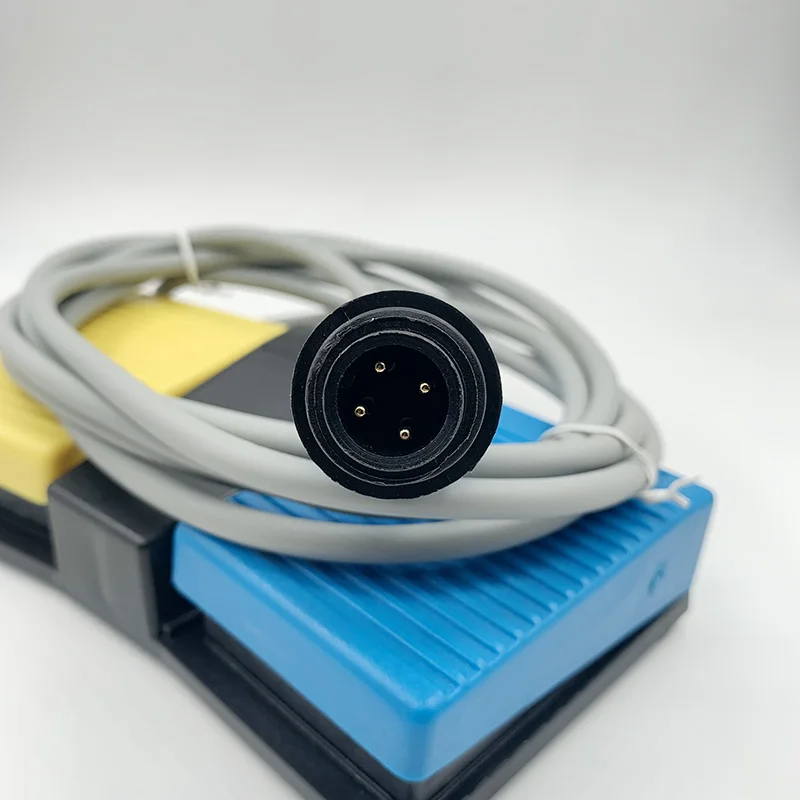

Connector | 3pcs/4pins pins copper core |
Switching voltage | Max 25VAC / 60VDC, Max 250 Vac |
Current on switched | Max 0.5A / Max 5A/Max 10A |
Switching power | Max 30VA / Max 1250 VA |
Environment temperature | -30 -80℃ |
Standards | IEC 6060-1-1; UL 6060-1-1; 93/42/EEC: |
LOGO | Customized or Neutral |
Waterproof standard | IP68 Mechanical life: above 1 million times |
Applicable Model | Valleylab Force FX-8C/EX |
Warranty | 12 months |
Product performance description

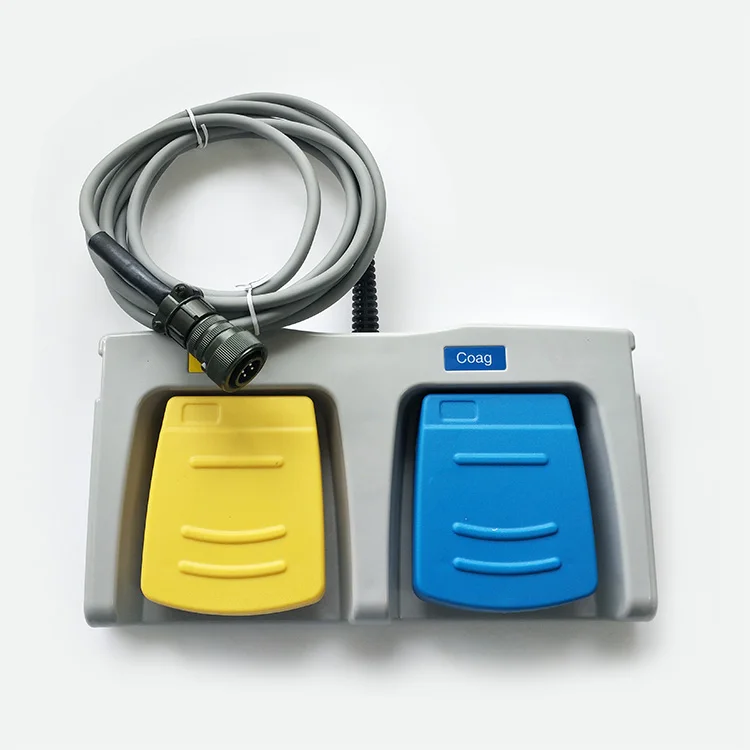

Using for USA Valleylab Force FX-8C/EX series electrosurgical unit, 100% replace the original foot switch to achieve all functions, high-quality alloy base, built-in special waterproof micro switch, waterproof grade IP68, cable with shielding layer to resist electromagnetic wave interference, CE Certified wires, and using life> 1 million times, generally double pedals are yellow on the left and blue on the right.

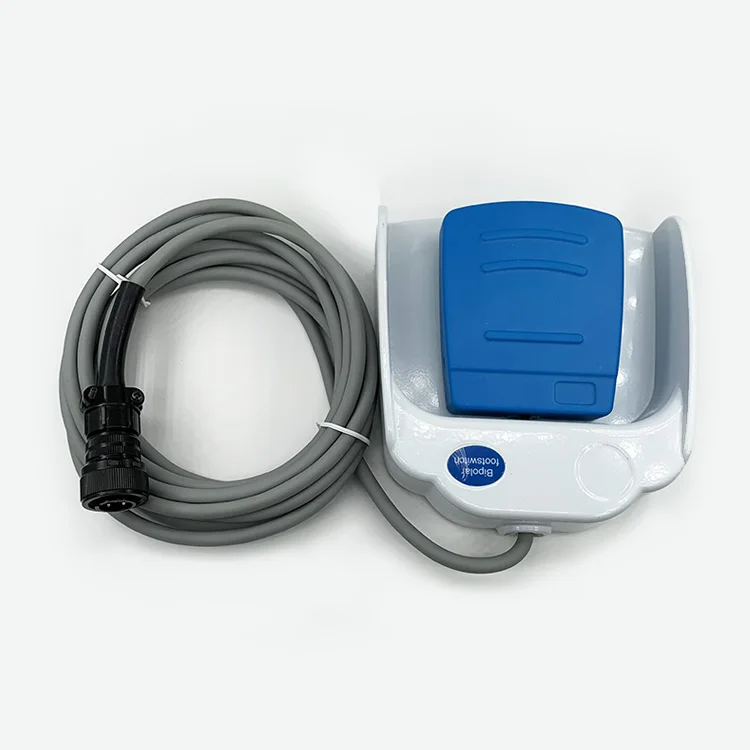

Details Images

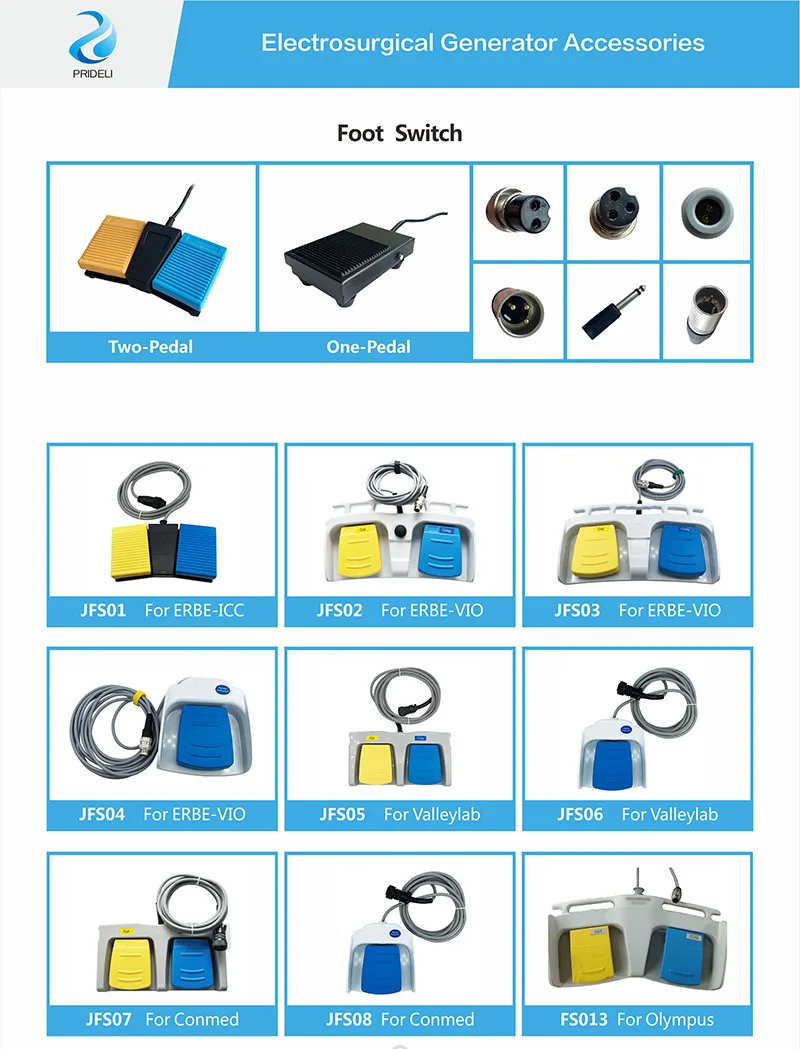

Recommend Products
Product Usage
The method of using the foot switch is very simple.
The foot switch is actually a built-in travel switch. When the foot pedal gives a signal, the switch executes.
That is, the switch that operates the circuit by stepping or stepping on and off is used in the control circuit that cannot be reached by the hands to replace or free the hands to achieve the purpose of operation.
Foot switches are widely used in medical equipment, stamping equipment, welding equipment, textile equipment, and printing machinery.
How to choose a medical foot switch correctly?
The foot switch is an electronic component that is used to switch on and off the circuit by stepping on or stepping on it, andcan also be used to control the magnitude of the current. With the widespread application of foot switches in the medical industry, the role of foot switches has become increasingly prominent. There are currently three main levels on the market:German, American and Korean, and domestic. How to choose a suitable one among many medical foot switch brands?
1. It can meet the electrical control requirements. According to the customer's electrical control requirements to determine the type of pedal: single pedal, double pedal, three pedal; at the same time, the foot switch base can also be equipped with function buttons.
2. Switch components. Mainly divided into micro switch type, reed contact type, and Hall sensor type. The micro switch type is a mechanical contact type, used for high current, and there is a ``ticking'' sound when moving; the reed contact type is a non-contact switch that relies on a permanent magnet to act on the reed tube to conduct Low current, no sound during operation;
Hall sensor type uses Hall electromagnetic effect to generate induced current and conduction. Depending on the magnetic field strength, the magnitude of the induced current changes, and the output is an analog signal.
Hall sensor type uses Hall electromagnetic effect to generate induced current and conduction. Depending on the magnetic field strength, the magnitude of the induced current changes, and the output is an analog signal.
Packing&Shipping
One piece per box with bubbles wrapped, then put more pieces in the shipping corrugated carton, also we can do packaging as customers requests.
DHL | About 3-5 working days Good at Asia, America, Europe, etc |
FedEx | About 3-7 working days Good at India, America, Europe, etc |
UPS | About 3-6 working days Good at America, Europe, South Africa, etc |
TNT | About 3-8 working days Good at The middle east, Africa |
EMS | About 15-20days Good at The Russian Federation |
SF express | About 5-10 working days Good at America, Asia, etc |
By Air | About 4-7 working days Most country available |
By Sea | About 7-30 days Only available for coastal areas.Cheapest and longest |
Company Introduction
Yuanbang Photoelectric Technology (Huizhou) Co., Ltd. is a company belongs to a familiy company group. It's been set up to promote the marketing and sales of related products manufacturered by other group members.
We are mainly in business of Medical accessories, Conference equipments and UAV lithium batteries; Products like electrosurgical accessories, such as medical cables, ESU Pencils, Electrosurgical grounding pads, Electrosurgical Electrodes, TENS Electrodes, ECG Electrodes, Medical Cables, medical footswitches, instrument sterilization boxes; Conference microphone and Conference camera; UAV lithium battery and Outdoor power supply.
We've been in theses business fields for more than 10 years. We believing our products and service can satisfy your
expectations.
expectations.
Our Strength

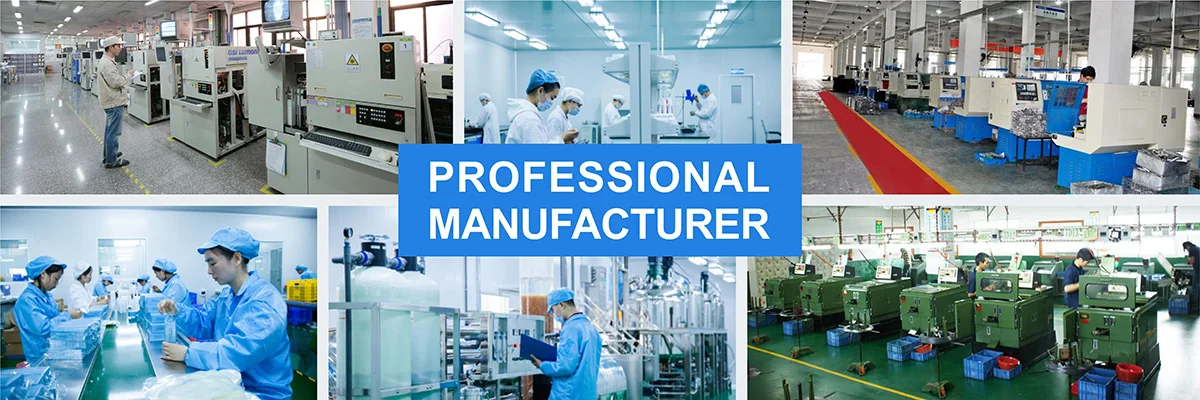

1.We have factory and all raw materials we used after checking and inspection.
2.Quality-control department responsible for quality checking in each process Specially.
3.We have competitive price and small MOQ and Fast Delivery.
FAQ
1，Do you have in stock ?
Yes, we have in stock for small order and can ship out right away after payment.
2, Do you accept OEM/ODM ?
Yes, we CAN; besides, we can off you our own brand for you as well.
3, Are you a factory or trading company in China?
We are a company belongs to a familiy company group. It's been set up to promote the marketing and sales of related products manufacturered by other group members.
