Factory price spray booths portable paint booth for diy spray painting for car
- Category: >>>
- Supplier: Guangzhou Qiangxin Environmental Protection Electromechanical Equipment Co. Ltd.
Share on (1600248247495):
Product Overview
Description
Product Paramenters
Inside dimension | 6900*3900*2650(mm)(L*W*H) | ||||||
Outside dimension | 8200*4000*4000(mm)(L*W*H) | ||||||
Entrance door | Aluminum alloy binding framework(thickness:1.8mm),1 set folding door size:2830*2600(mm)(W*H) | ||||||
Personal door | 1 set side hung door:700*1700mm(W*H)(Face the booth,personal door is on the right side) | ||||||
Wallboard | 50mm EPS(epispastics polystyrene)insulation material with S=0.476 two side steel panel. | ||||||

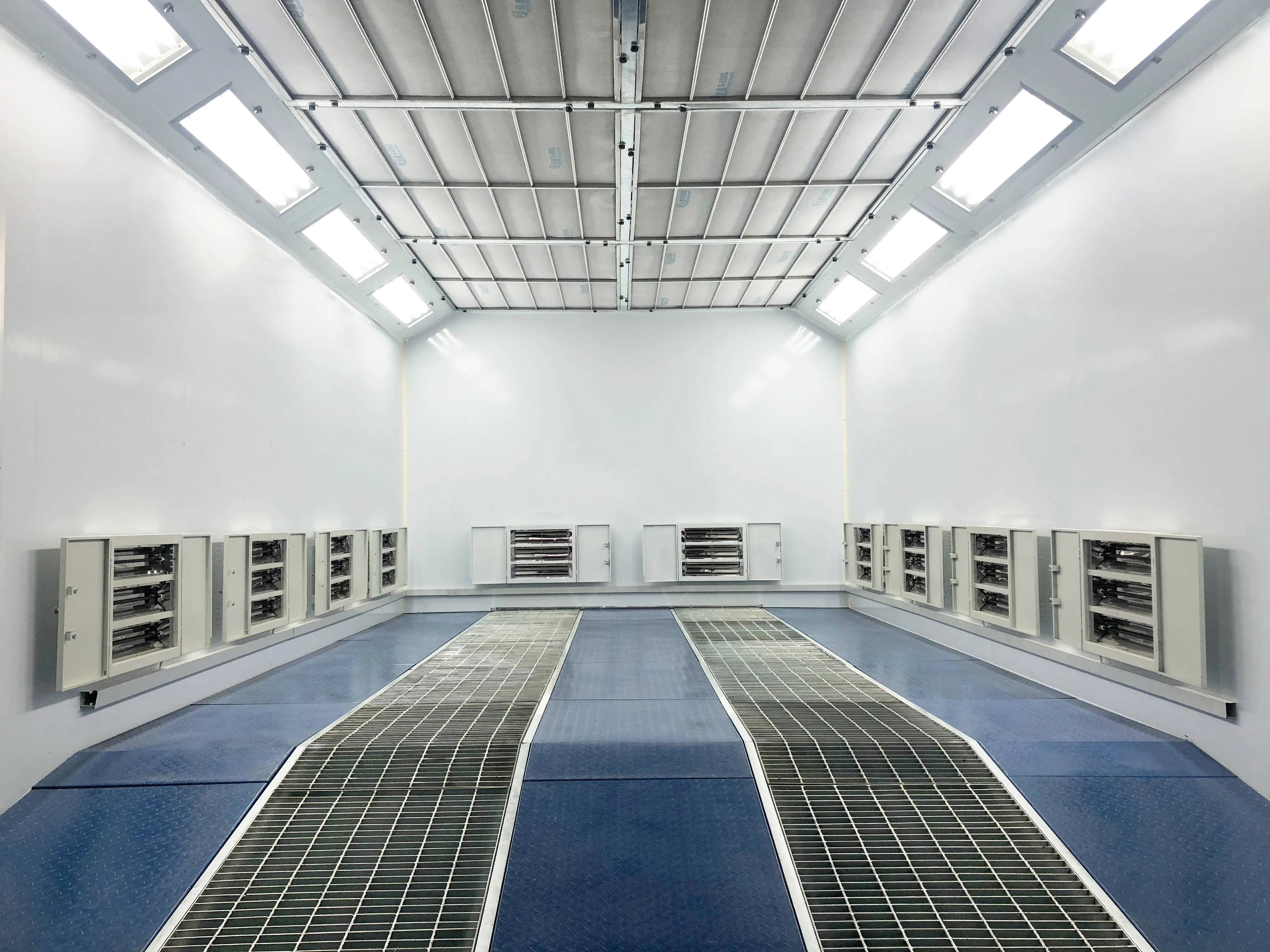

Lighting system | Lamp boxes are 45°fixed on upper two side ,with 8 groups *4pcs =32pcs 18w energy saving LED lamps | ||||||
Air intake&exhaust system | With 2pcs intake air fans.single parameter:RRX-180.1.5kw.125000m³/h With 1pc exhaust air fan,single parameter:YDW5.0A.5.5KW.15000m³/h | ||||||
Cabinet setting | Intake air from upside,downside exhaust wind. Frame is made of tube:50*50mm,body plate is made of galvanized plate(thickness:0.8mm) (face the booth,the air cabinet is on the back side) | ||||||

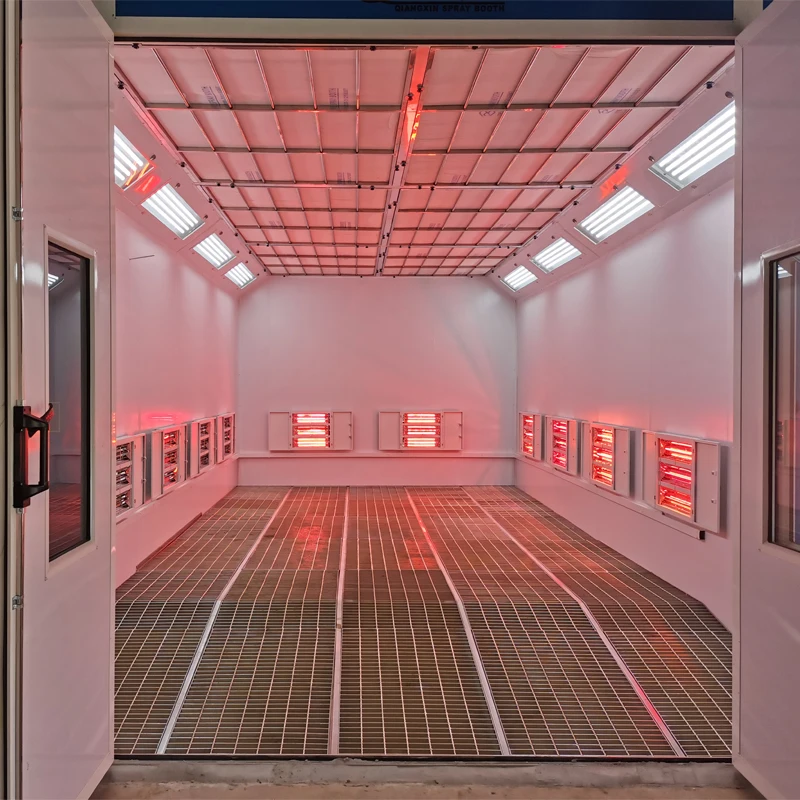

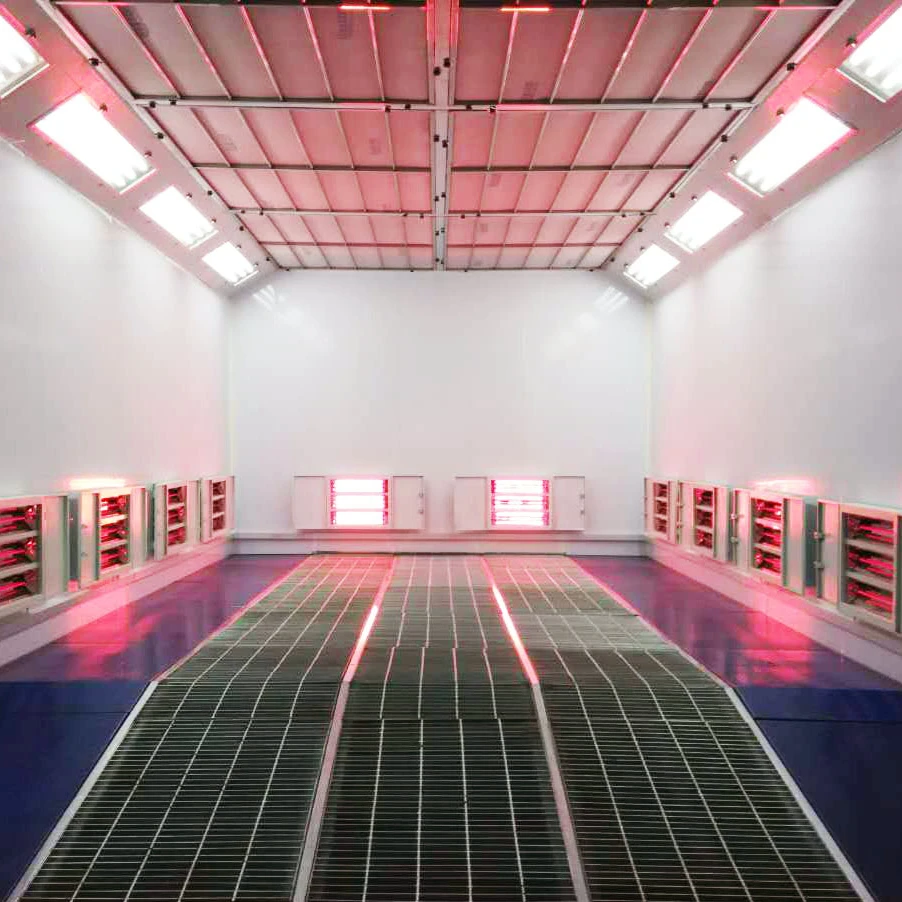

Heating system | 30PCS infrared carbon fiber heating lamps,1000W/piece.The operating temperature:40℃~60℃.Max temperature:80 ℃ | ||||||
Air duct | Made of galvanized plate,700*700*900.2pcs straight,1pc elbow | ||||||
Filtration system | 4 filters: 1.Air inlet with prefilter 2.ceiling equipped with CC-G650 type high-efficiency filter, which can effectively filter the 5PM dust particles. 3. with 3 layers of activated carbon in exhaust cabinet 4. Outlet with filter cotton | ||||||
Roof | 50mm EPS(epispastics polystyrene )insulation material with S=0.476mm two side steel panel | ||||||
Control system | Painting, baking,light switch, breakdown indicator,power switch, emergency stop switch(face the booth, the control system is on the right side) | ||||||
Voltage frequency | 380V 50HZ 3 phase | ||||||
Light intensity | ≥1000luxes | ||||||
Air flow speed | ≥0.25m/s | ||||||
Total power | 39kw | ||||||
Company Profile
GZ QIANGXIN ELECTROMECHANICAL EQUIPMENT CO., LTD.
Our company was founded in 2009,is a pressional manufacturer of spray booths, industrial equipment,enviromental protection equipment,a utomobile maintenance equipment and other equipment. Be equipped with the world's leading production equipment. We have 13 years of industry experience, professional engineering team average of more than 7 years of experience.
We applied the international leading design, advanced manufacture technology. We provide the high-quality spraying equipments to the domestic and foreign clients. And Our products have been exported to Australia, Germany, Norway, Russian Federation, Singapore, Korea, etc.
