4 100M ports PoE switch unmanaged 48V poe switch Total power 70W network switch with CE certificate

Share on (1600248260572):


Price:$15.00 - $20.00

Quantity:


Product Overview

Description

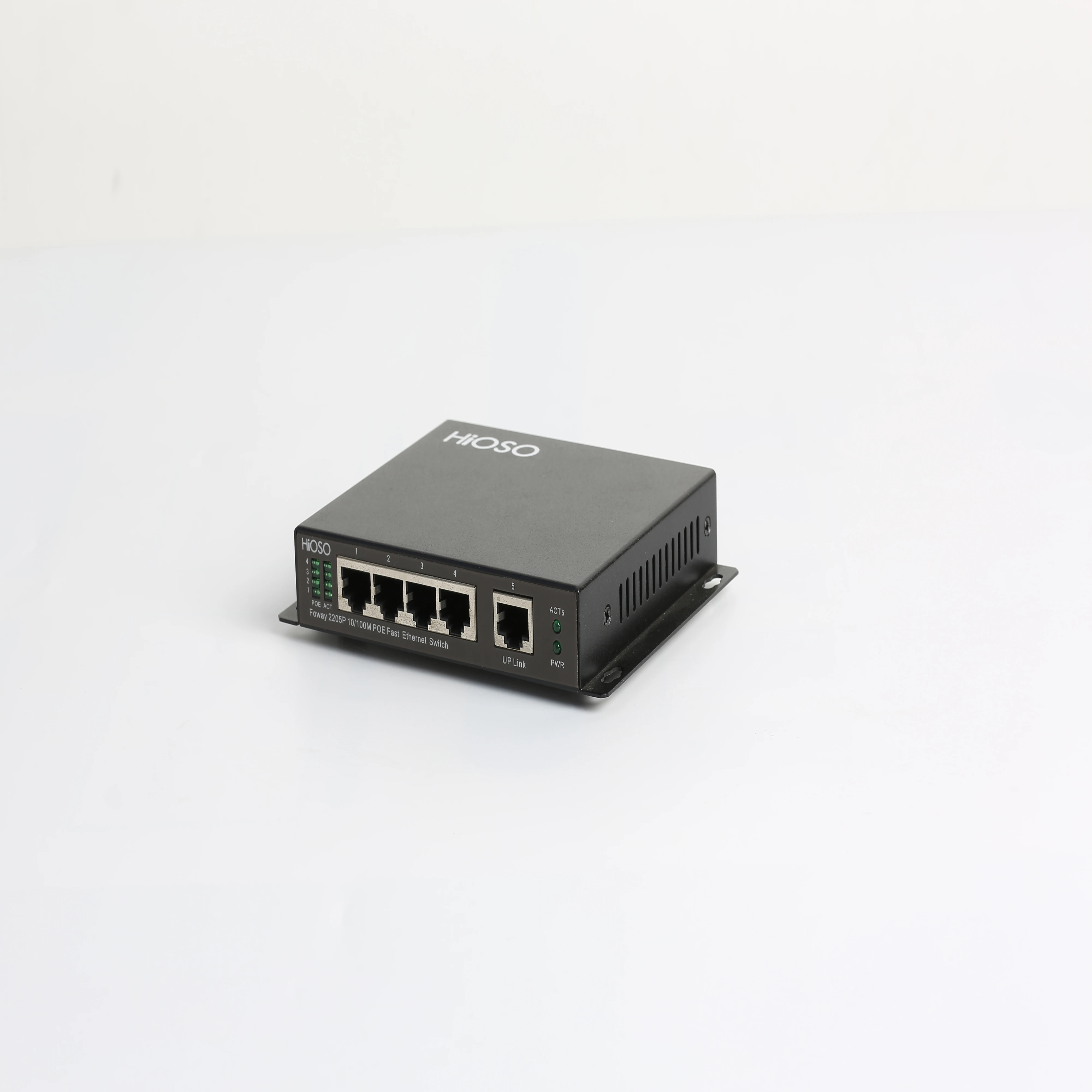

Foway2205P  4 10/100M POE/PSE + 1FE PoE Switch






Overview


HiOSO Foway2205P series 5 ports 100M Security Industrial PoE Ethernet Switches, supply 4 10/100M RJ45 PoE ports and 1 10/100M RJ45 uplink port; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.








Character


Support 4 10/100M RJ45 PoE ports and 1 10/100M RJ45 uplink port


Each PoE port supports auto detect the powered device


Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards


Support each port full rate, full-duplex non-blocking forwarding


Support WEB management and SNMP (optional)


Support 2K MAC learning, 1Mbit storage and forward cache space


Each RJ45 port adopts anti-high voltage circuit, strengthen the lightning protection and anti-interference ability


Supply redundant dual power input ports, enhance reliability


Metal casing with Wall mounting design , better for heat dissipating and installation





 Technical Specification






































































Parameter



Specification



Standard



IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree,IEEE802.3af,IEEE802.3at



PoE



4 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W


Working mode:auto detect powered device,stop powering if not PD device



Transmission distance



CAT5: 100M



Ports



4 10/100M RJ45 ports (POE/PSE): 10/100Mbs


1 10/100M RJ45 uplink port: 10/100Mbps



MAC



2K



Buffer memory space



1Mbit



Bit error rate



<1/1000000000



MTBF



100000 hours



Power



DC48V  dual input redundant backup



Power consumption



70W


Working temperature

Common:-10~60; -T (wide temperature range):-40~75℃



Storage temperature



-40~80℃



Humidity



5%~90% non-condensing



Installation



Wall mounting type



Dimension



26mm (H)×140mm(W)×106mm (D)












Order information























































No



Type



NMS



Ports



Output Power



1



Foway2205P-4AF



NO



4 10/100M PoE+ 1 10/100M RJ45



IEEE802.3af 15.4W, total 62w



2



Foway2205P



NO



4 10/100M PoE+ 1 10/100M RJ45



IEEE802.3af/at 15.4W/30W, total 62w



3



Foway2205P-120W



NO



4 10/100M PoE+ 1 10/100M RJ45



IEEE802.3af/at 15.4W/30W, total 120w



4



Foway2205PM-4AF



YES



4 10/100M PoE+ 1 10/100M RJ45



IEEE802.3af 15.4W, total 62w



5



Foway2205PM



YES



4 10/100M PoE+ 1 10/100M RJ45



IEEE802.3af/at 15.4W/30W, total 62w



6



Foway2205PM-120W



YES



4 10/100M PoE+ 1 10/100M RJ45



IEEE802.3af/at 15.4W/30W, total 120w
