good price shandong 3t 4x4 japanese engine container 4m mast diesel forklift
- Category: Forklifts >>>
- Supplier: Shandong,Oujin,Engineering,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

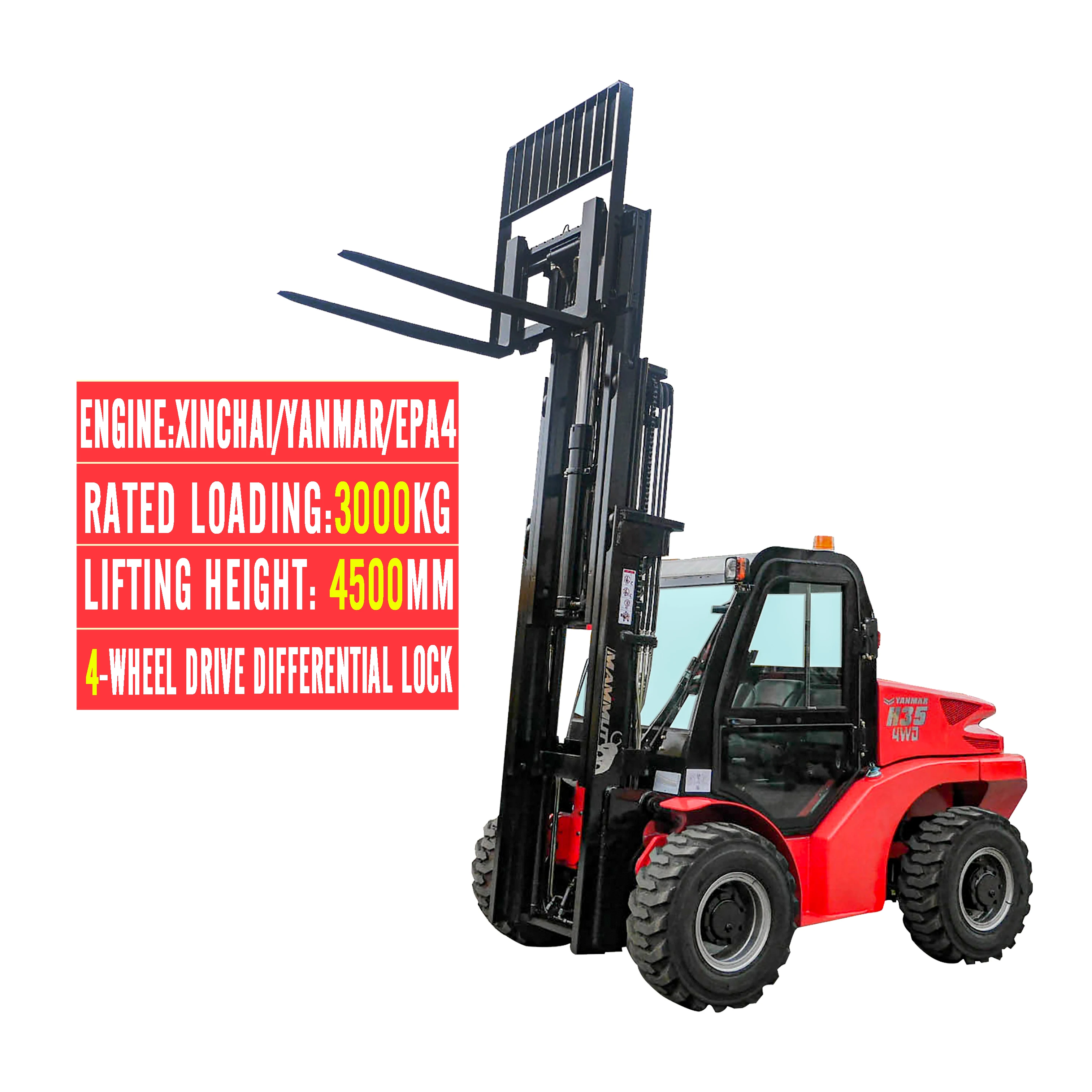

MAMMUT new product H30 rough terrain forklift standard with xinchai Euro iii 36.8kw engine,more powerful.Low cosumption
Also Kubota YANMAR engine optional,4 wheel drive can drive direct into construction site.
Standard with 2 mast lifting three meters and loaded 3 ton cargo,
3mast optional max reach 4.5meters.
Height 2224mm can be used inside container.
Also Kubota YANMAR engine optional,4 wheel drive can drive direct into construction site.
Standard with 2 mast lifting three meters and loaded 3 ton cargo,
3mast optional max reach 4.5meters.
Height 2224mm can be used inside container.
Standard equipment :
1.open cabin
2.2 stage mast 3000mm lifting height
3.4WD 2WD free swift
4.xinchai engine
options :
1.closed cabin
2.air conditioner
3.yanmar engine
4.3stage mast 4500mm lifting height
5.side shift
Model | rought terrain forklift H30 |
Engine | |
Model | yanmar /xinchai |
rated power (KW) | 43kw /36.8kw |
Type | In line,vertical,water cooled,four-stroke |
Number of cylinders | 4 |
rated speed (r/min) | 2300 |
method of starting | electric |
LOAD | |
Rated load(kg) | 3000kg |
Load center distance(mm) | 565 |
Lift height(mm) | 3mast 4500mm /2 mast 3000mm |
The freedom lifts the altitude(mm) | 150 |
lifting load max speed(mm/s) | 372 |
Gate inclination angle (F/R)(°) | 6,/12 |
Moving velocity (idling)(km/h) | 19 |
Max climbing power(%) | 20 |
specification | |
Overal dimensions(L*W*H)(mm) | No fork(mm)3500 |
With fork(mm) 4700 | |
Width (mm) | 1780 |
Height(mm) | 2100 |
Forks the tooth size(L)(mm) | 1200 |
Max traction(kgf) | 2587 |
Max steering angle(°) | ±35° |
The after brige swing angle(°) | ±12° |
Min turning radius(mm) | 4500 |
Drive Mean | Four Wheel drive |
Recommend Products
Company Profile

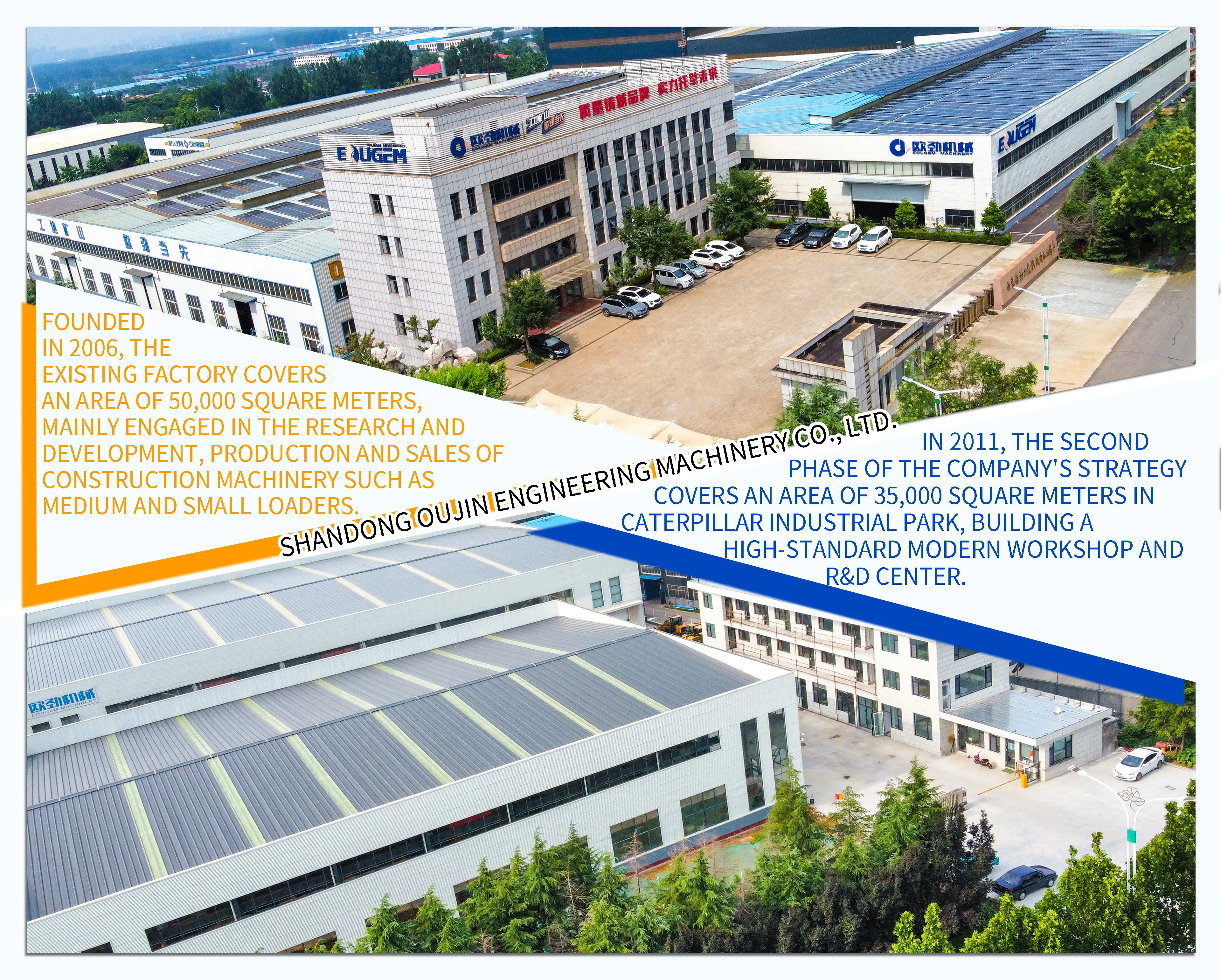

The company has over 200 engineering technicians, a strong technical strength. According to the development strategy, in early
2011, Phase II project started to be built in Caterpillar Industrial Park. The project total investment is 320 million yuan,covers an area of 35000 square meters, is planning to build a high standard modern production base, including workshop, R&D center
and administrative office.The project is expected to be completed at the end of 2012. Annual growth in sales is expected to be
more than 230 million yuan after the project is put into production.
PRODUCT LINE
The enterprise of Oujin Machinery was accredited ISO9001:2000 by international quality management system. We absorb the advanced
technology and management experience from the same industry at home and abroad.
technology and management experience from the same industry at home and abroad.

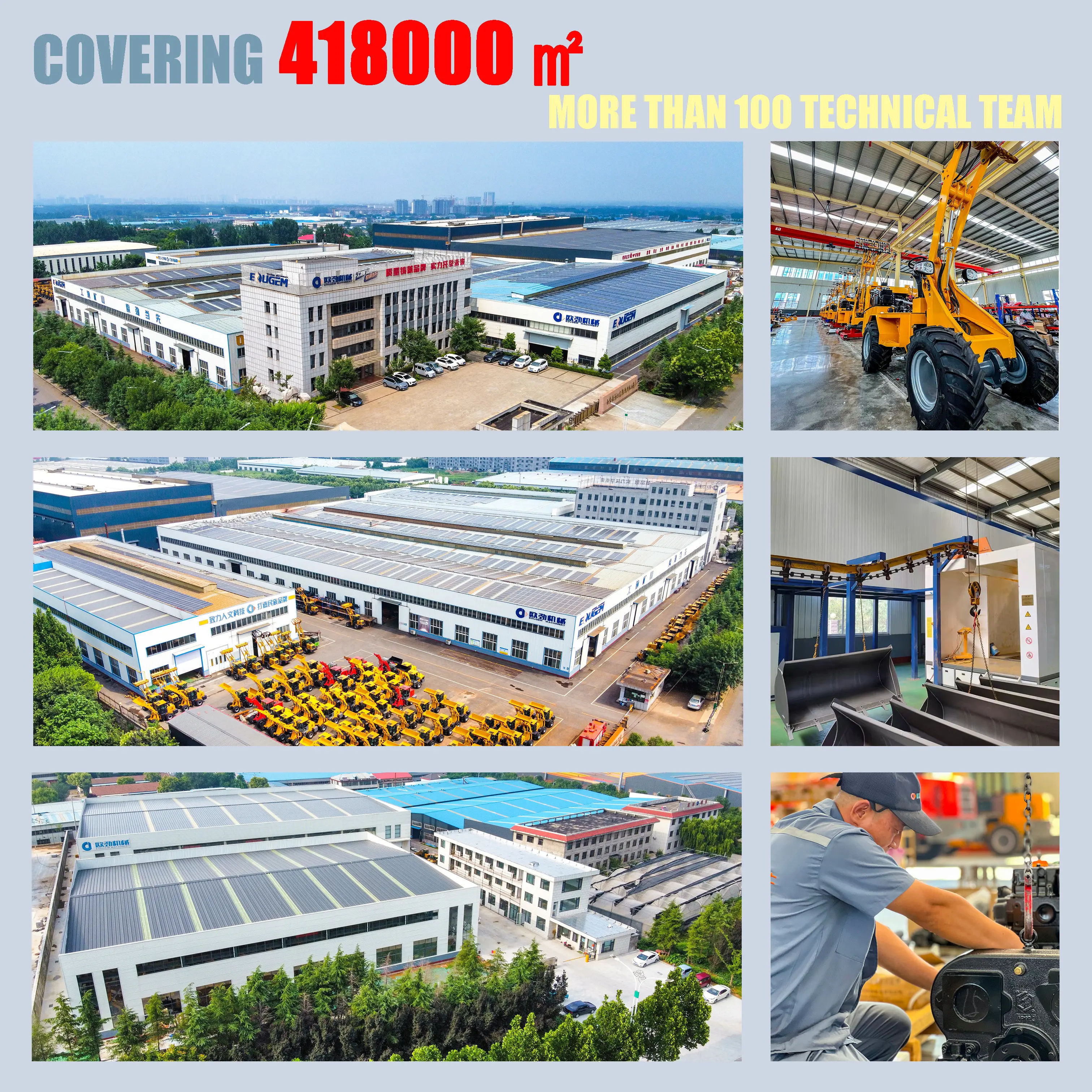

WORKSHOP
We warmly welcome friends from all walks of life to qingzhou to negotiate business, exchange experiences. May our products give a
helping hand in your way to success!
helping hand in your way to success!
Product packaging
after-sale services
CERTIFICATE
CONTACT

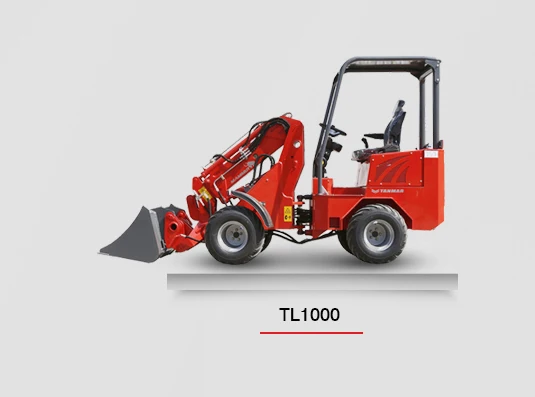

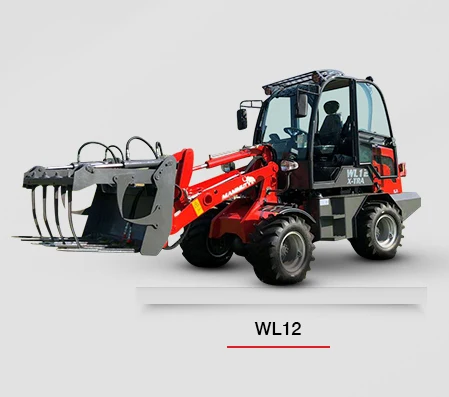

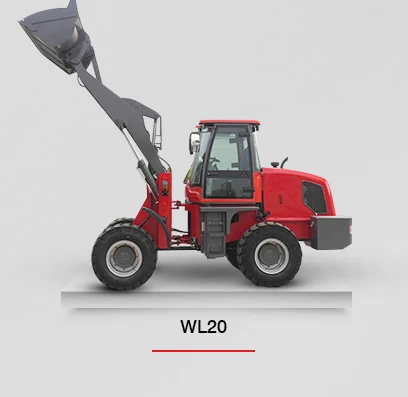

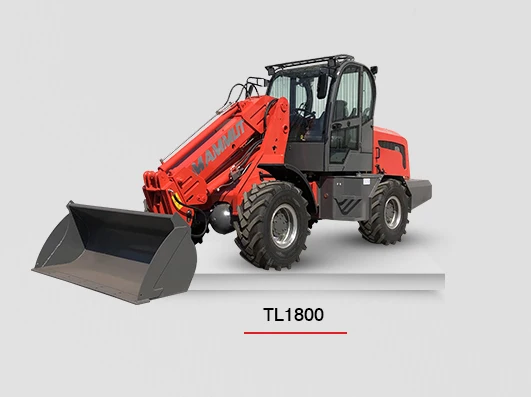

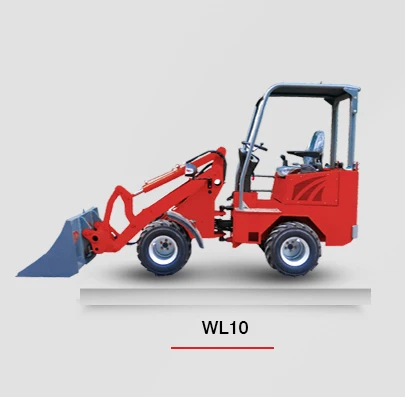

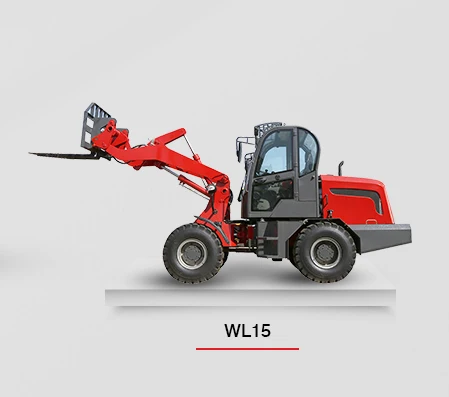

HOT SALE MODELS
