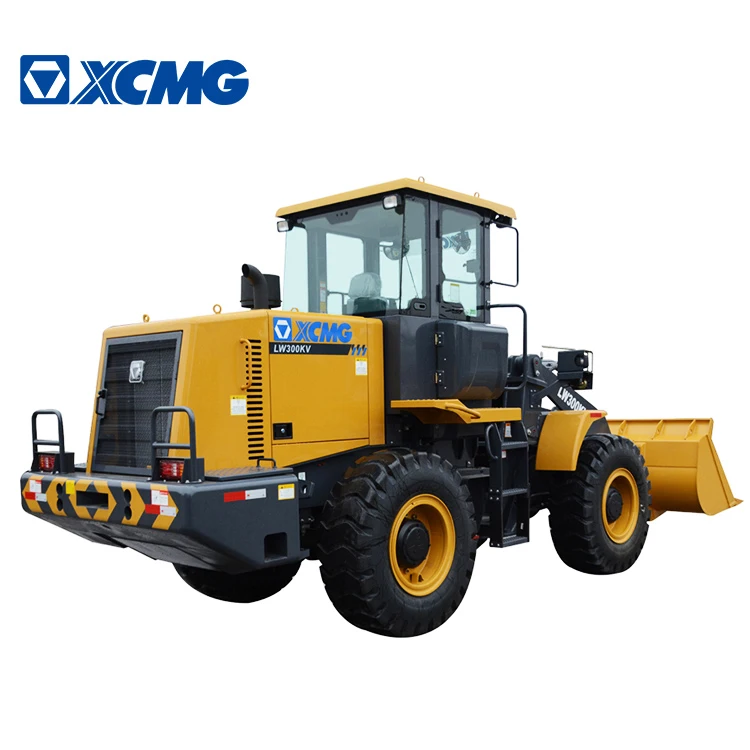

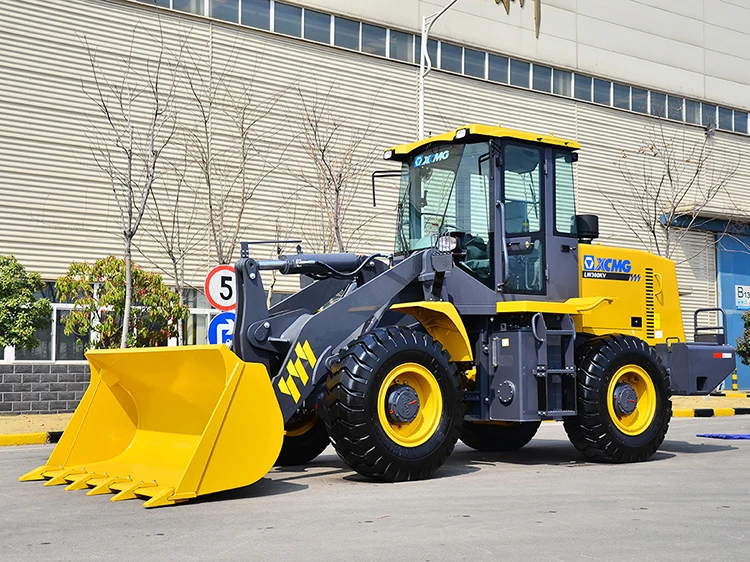

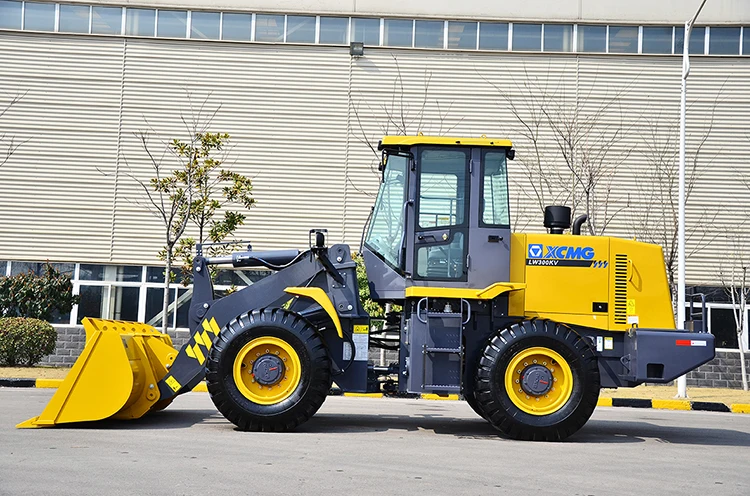

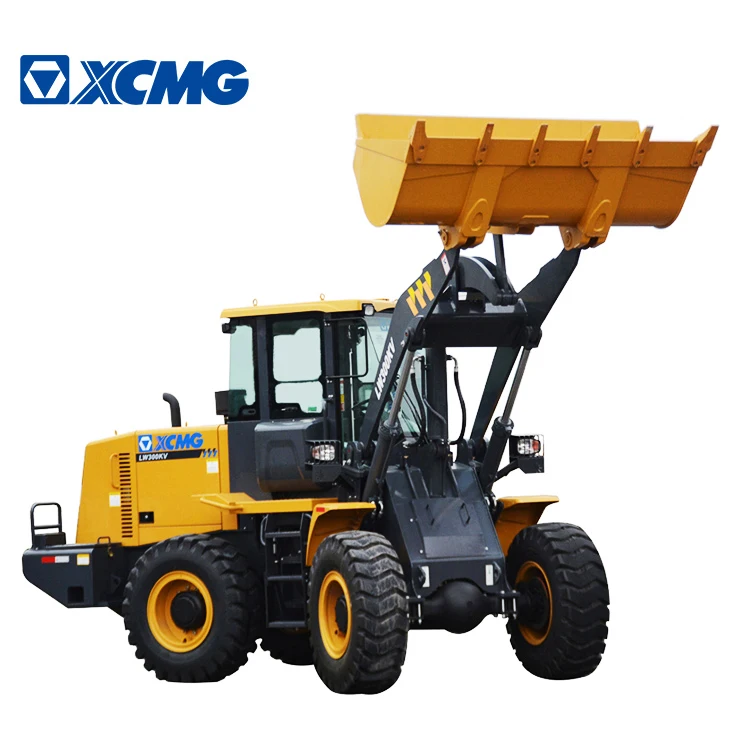

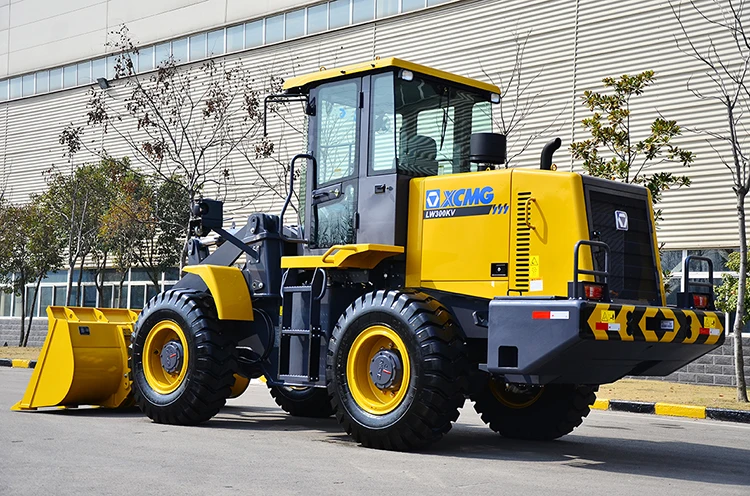

Buy XCMG 3 ton wheel loader LW300KV 92kw power small front loader.
XCMG payloader LW300KV is a self-propelled earthmoving machine which is hinged in front of the chassis and consists of a moving arm, a connecting rod mechanism and a loading bucket.
XCMG payloader LW300KV can be used for shoveling, transporting, unloading and leveling. If the corresponding working device is replaced, payloader LW300KV can also be used for bulldozing, lifting, loading and unloading wood and steel pipes. It is a kind of ten purposes. A wide range of construction machinery.
Performance Characteristics:
1, High energy-conservation, efficiency, reliability, and comfort.
2, All load-carrying portions of the drive axle are solid and firm enough to ensure excellent overload resistance and meet the needs of diversified high strength and high load operations.
3, As the sole low speed engine energy-conservation product among the industry's 3 ton payloaders, it’s leading the industry’s energy-conservation trend.
4, The full-view cab sufficiently takes in consideration the human-machine functions to realize high operation safety and comfort.
5, Undertaking the concept of "ground maintenance", all maintenance locations are scientifically arranged to ease the checking and maintenance.
XCMG payloader LW300KV can be used for shoveling, transporting, unloading and leveling. If the corresponding working device is replaced, payloader LW300KV can also be used for bulldozing, lifting, loading and unloading wood and steel pipes. It is a kind of ten purposes. A wide range of construction machinery.
Performance Characteristics:
1, High energy-conservation, efficiency, reliability, and comfort.
2, All load-carrying portions of the drive axle are solid and firm enough to ensure excellent overload resistance and meet the needs of diversified high strength and high load operations.
3, As the sole low speed engine energy-conservation product among the industry's 3 ton payloaders, it’s leading the industry’s energy-conservation trend.
4, The full-view cab sufficiently takes in consideration the human-machine functions to realize high operation safety and comfort.
5, Undertaking the concept of "ground maintenance", all maintenance locations are scientifically arranged to ease the checking and maintenance.
Specification
Description | Specification | Unit | ||
Rated operating load | 3000 | kg | ||
Bucket capacity | 2.1(1.5-3.5) | m³ | ||
Machine weight | 11000 | kg | ||
Dump clearance at maximum lift | 2850 | mm | ||
Reach at maximum lift | 1080 | mm | ||
Wheel base | 2900 | mm | ||
Tread | 1850 | mm | ||
Max. breakout force | 130±5 | Kn | ||
Max. horse power | 95±5 | Kn | ||
Total hydraulic cycle time | 10 | s | ||
Min. turning radius over tyres | 5170±50 | mm | ||
Articulation angle | 38 | ° | ||
Overall machine dimension LxWxH | 7245x2482x3320 | mm | ||
Rated power/Speed | 92/2000 | Kw/rpm | ||
Travel speed | I-gear(F/R) | 12/16 | km/h | |
II-gear(F/R) | 38 | km/h | ||
