Оптовая продажа, Отслеживание активов R6, чип UHF, Бумажная Этикетка RFID UHF, этикетки для инвентаря UHF, наклейка
- Category: Access Control Systems & Products >>>
- Supplier: Chengdu MIND IOT Technology Co. Ltd.
Share on (1600248803239):
Product Overview
Description
Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags.
RFID inlay can be divided into dry inlay and wet inlay.
RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package;
RFID Wet inlay contains back glue, which can be directly attached to objects. The structure is antenna + chip + chip package + PET + Glue+ Release paper
Frequency requirements: 869-915mhz-uhf / 13.56mhz-iso14443 / 13.56mhz-iso 15693.
MIND has technicians and offer antenna design sevice to meet various customer requirements.
RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package;
RFID Wet inlay contains back glue, which can be directly attached to objects. The structure is antenna + chip + chip package + PET + Glue+ Release paper
Frequency requirements: 869-915mhz-uhf / 13.56mhz-iso14443 / 13.56mhz-iso 15693.
MIND has technicians and offer antenna design sevice to meet various customer requirements.
How Does the RFID Tag Work?
1. Reader transfers energy to the RFID TAG by emitting electromagnetic waves through air.
2. RFID TAG uses RF energy to charge up.
3. RFID TAG receives command/data signal and responds accordingly.
4. Reader receives RFID TAG response and process accordingly. ie. sent to a host computer or external devices through its control lines.
1. Reader transfers energy to the RFID TAG by emitting electromagnetic waves through air.
2. RFID TAG uses RF energy to charge up.
3. RFID TAG receives command/data signal and responds accordingly.
4. Reader receives RFID TAG response and process accordingly. ie. sent to a host computer or external devices through its control lines.

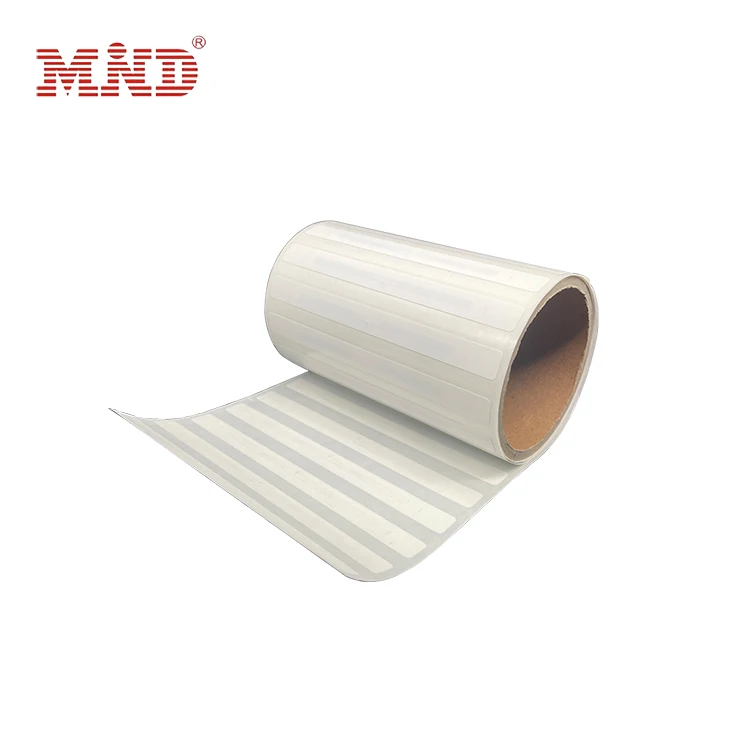

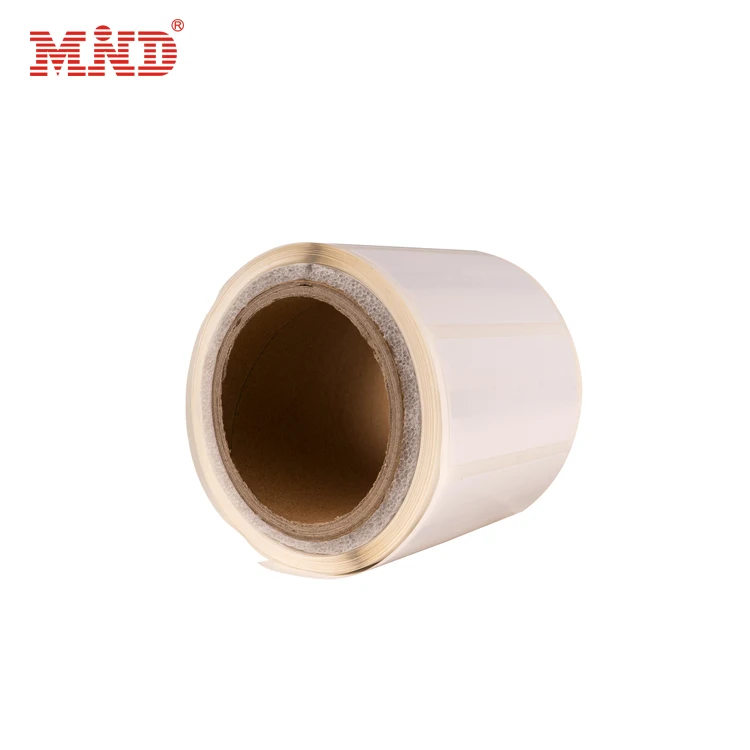

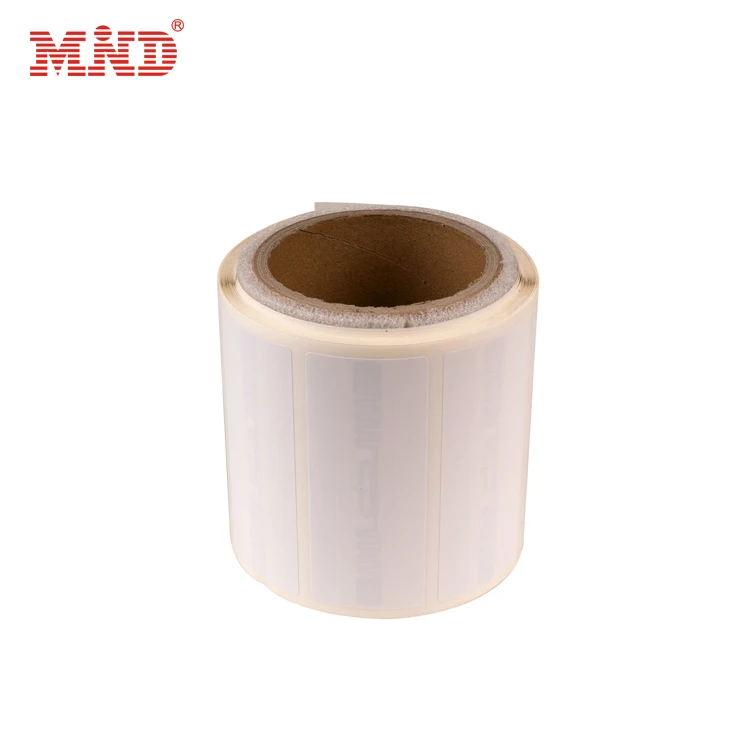

Product Description
Chip | R6-P |
Frequency | 860～960MHz |
Material | Coated Paper/ PET/Synthetic paper/Thermal paper/customization |
Working Mode | Passive |
IC Life | 100,000 Programming cycles, 10years data retention |
Operating temperature/humidity | -25~50℃/20%~80% RH |
Storage temperature/humidity | +23°C±5°C/ 50%±10% RH(Without condensation). |

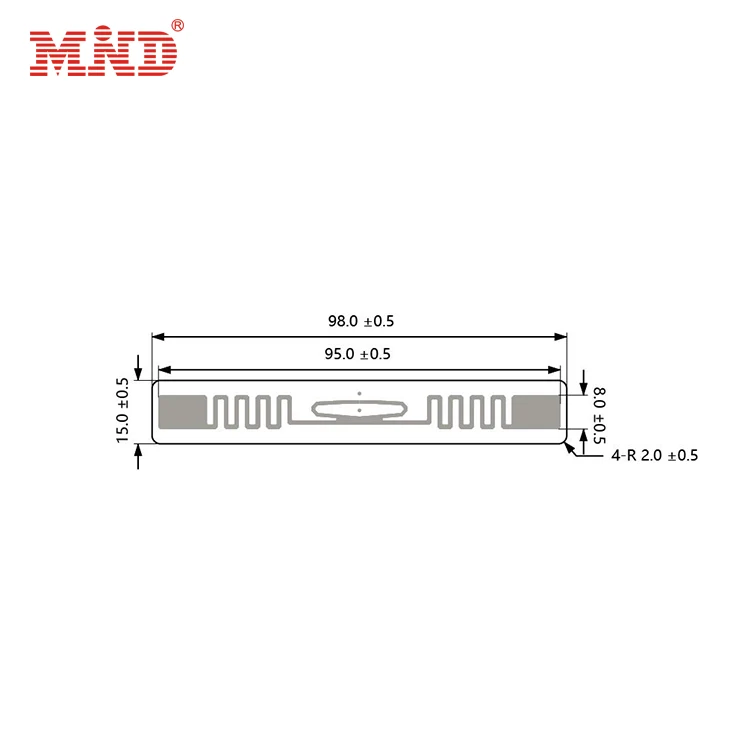

Antenna | Aluminum Etching, 95*8mm |

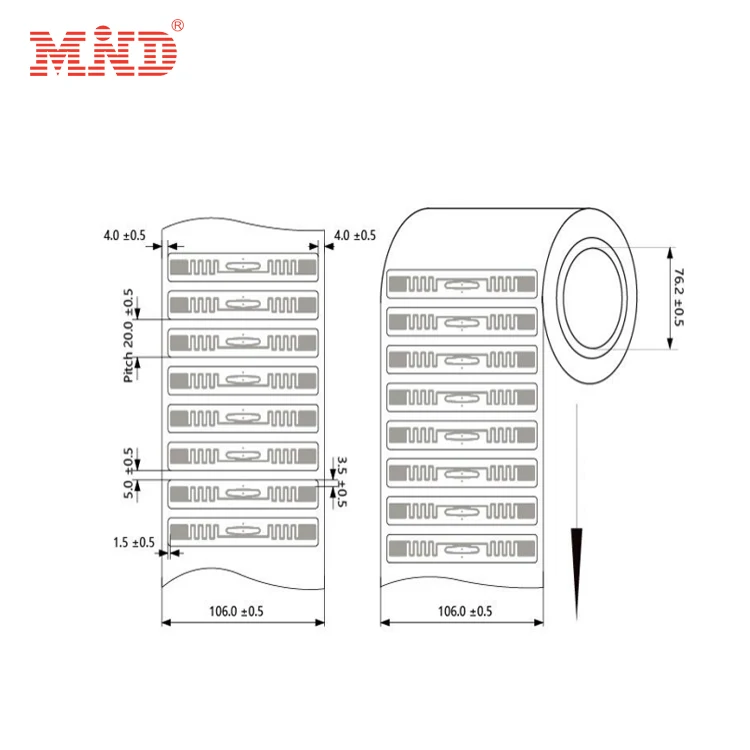

Wet inlay/Label Size | 98*15mm or customization |
Place of origin | Chengdu,china |
Application/Solution | Secure Admission Control/Cashless Payment Membership and loyalty programs |
Event Access and Branding/Social Media/Retail | |
Environment/Games & Toys Location/Electronics/Trade Shows | |
Events/Call request/Business Cards |

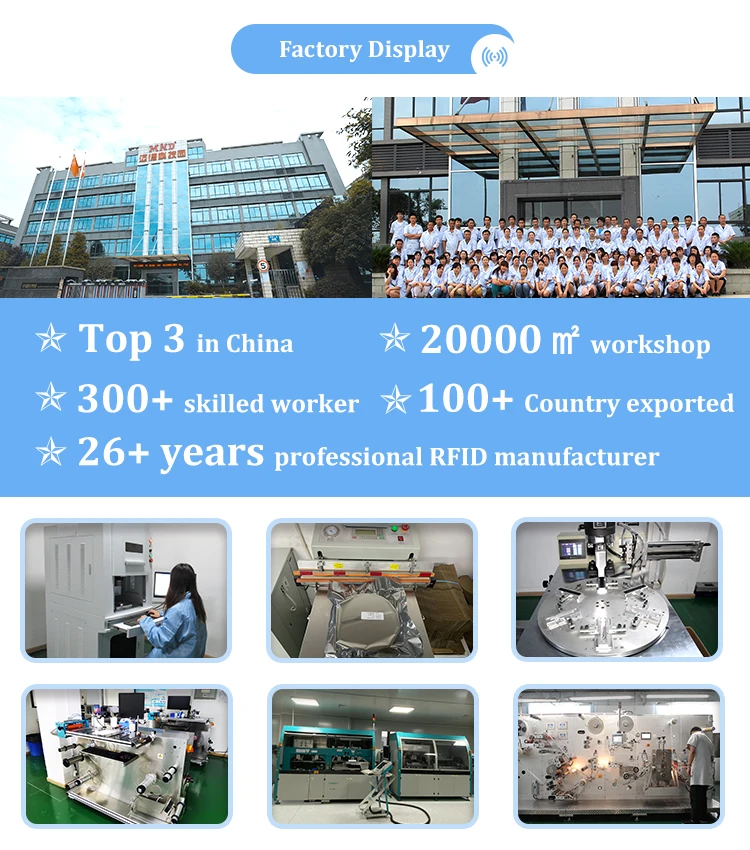

Company Profile
Established in 1998, Chengdu Mind IOT Technology Co.,Ltd is a leading manufacturer specialized
in the designing,researching, manufacturing and selling of RFID Dry Inlay,Wet inlay/sticker,RFID White label/sticker,NFC label/sticker,Asset management rfid tag,Soft/ABS/Epoxy/NFC anti-metal label etc.
We will supply more diversified designs and professional services continuously and we sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.
We are looking forward to receiving your enquiries soon.
in the designing,researching, manufacturing and selling of RFID Dry Inlay,Wet inlay/sticker,RFID White label/sticker,NFC label/sticker,Asset management rfid tag,Soft/ABS/Epoxy/NFC anti-metal label etc.
We will supply more diversified designs and professional services continuously and we sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits.
We are looking forward to receiving your enquiries soon.
Our Advantage:

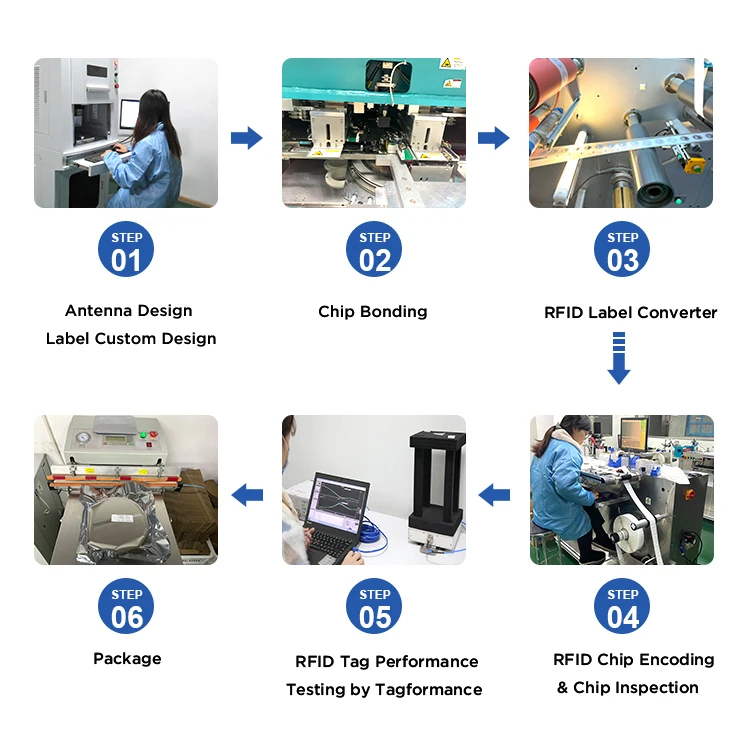

1.Antenna: Made by laser cutting, with straight antenna lines, stable performance, environmental protection, no environmental pollution caused by traditional etching processes.
2.OEM: label design & selection, antenna design and manufacturing
3.Excellent R & D team, complete R & D equipment system
4.Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
1.Antenna: Made by laser cutting, with straight antenna lines, stable performance, environmental protection, no environmental pollution caused by traditional etching processes.
2.OEM: label design & selection, antenna design and manufacturing
3.Excellent R & D team, complete R & D equipment system
4.Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
Packaging&Shipping
By Sea, by air and express, client can choose what you want！
Carton size： | ||||||||
Quantity | Carton Size | Weight(KG) | volume(cbm) | |||||
1000 | 27*23.5*13.5cm | 6.5 | 0.009 | |||||
2000 | 32.5*21*21.5cm | 13 | 0.015 | |||||
3000 | 51*21.5*19.8cm | 19.5 | 0.02 | |||||
5000 | 48*21.5*30cm | 33 | 0.03 | |||||
FAQ
Q: 1. Why us?
A: Excellent R & D team—quick to solve problems, creative to design new items, latest RFID items are from us.
Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.
Strict QC factory—Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
Q: 2. Can I get Free Samples?
A: The free sample will be offered all the time. But if you want customized samples,it would be charged.
Q: 3. How long can I expect to get the sample?
A: 3-5 working days.
Q: 4. What about the lead time for mass production?
A: 4-7 working days in regular,1-2 weeks for the busy season.
Q: 5. OEM & ODM available?
A: We offer label design & selection, antenna design and manufacturing.
Q: 6. What are your terms of delivery?
A: EXW, FOB, CIF and the bases of the other on your requestion.
A: Excellent R & D team—quick to solve problems, creative to design new items, latest RFID items are from us.
Big capacity—cost-effective and flexible to adjust production for volume and urgent orders.
Strict QC factory—Voyantic Tagformance: 100% tags performance testing, control the sensitivity distribution within +/- 0.5 dBm
Q: 2. Can I get Free Samples?
A: The free sample will be offered all the time. But if you want customized samples,it would be charged.
Q: 3. How long can I expect to get the sample?
A: 3-5 working days.
Q: 4. What about the lead time for mass production?
A: 4-7 working days in regular,1-2 weeks for the busy season.
Q: 5. OEM & ODM available?
A: We offer label design & selection, antenna design and manufacturing.
Q: 6. What are your terms of delivery?
A: EXW, FOB, CIF and the bases of the other on your requestion.
