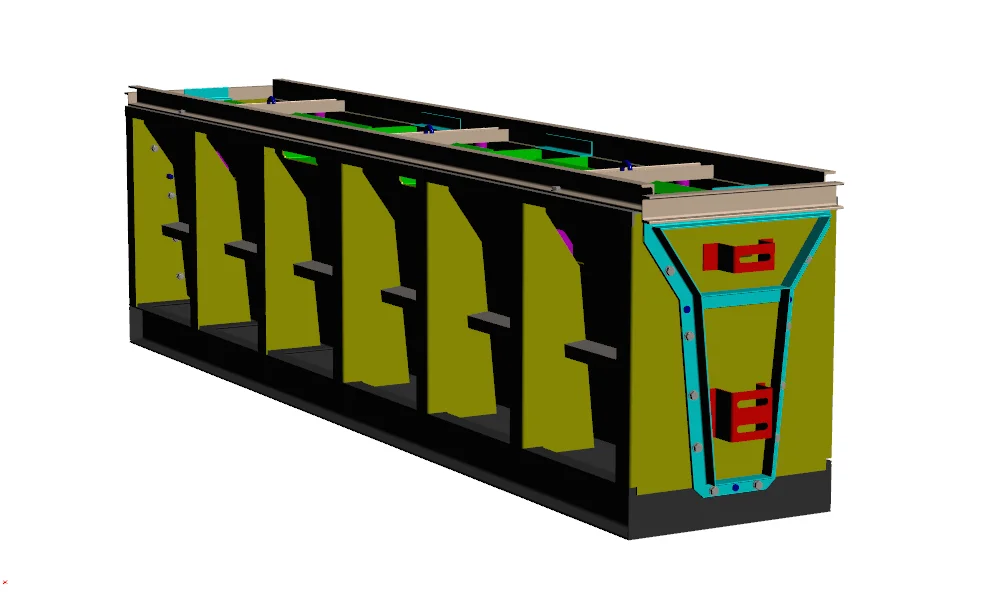

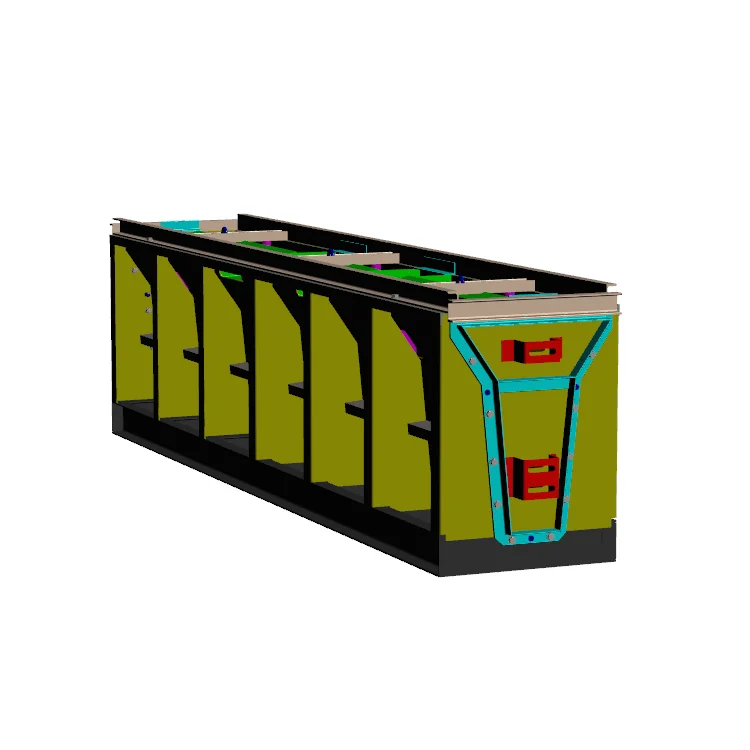

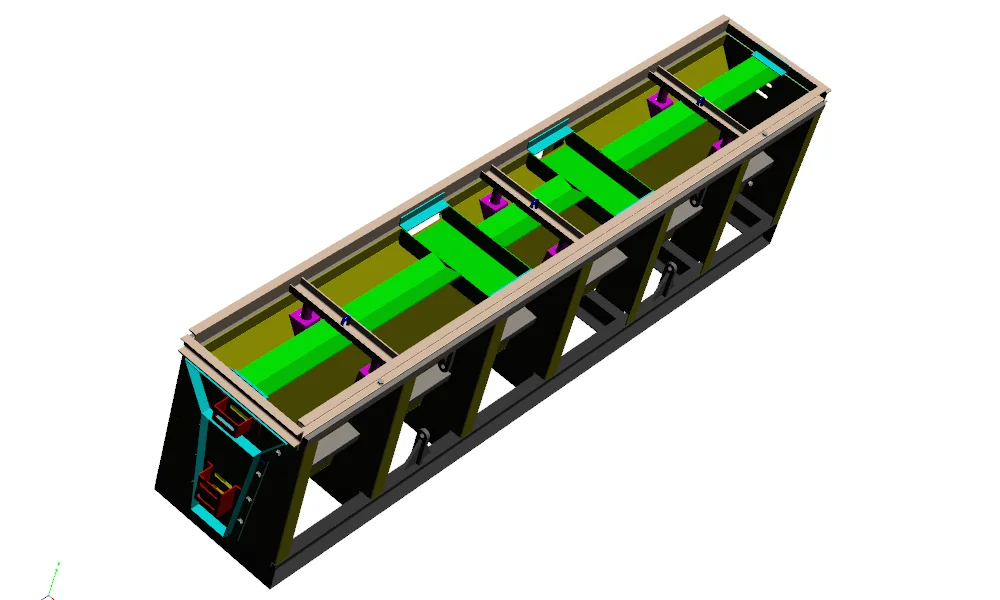

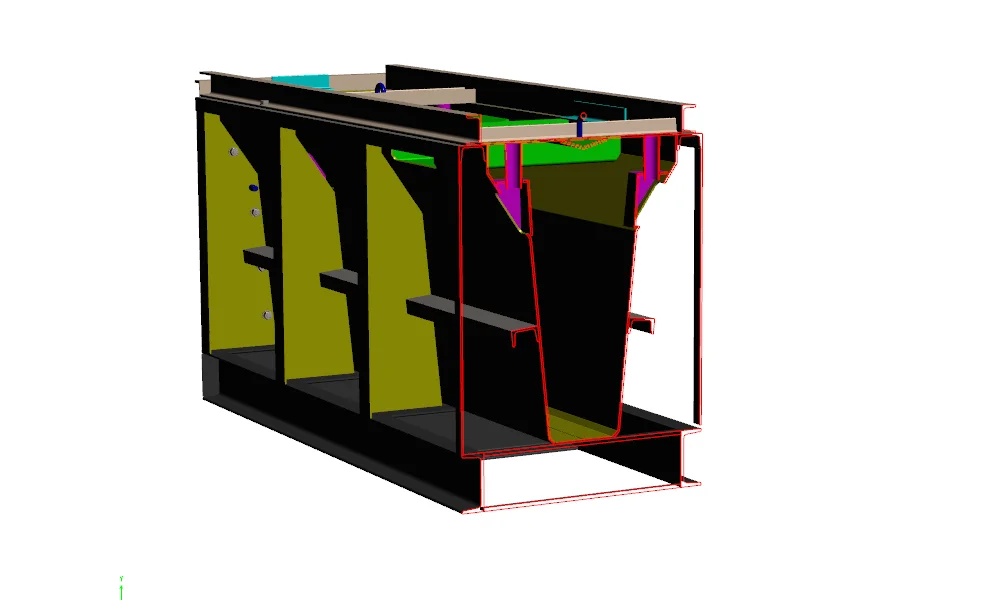

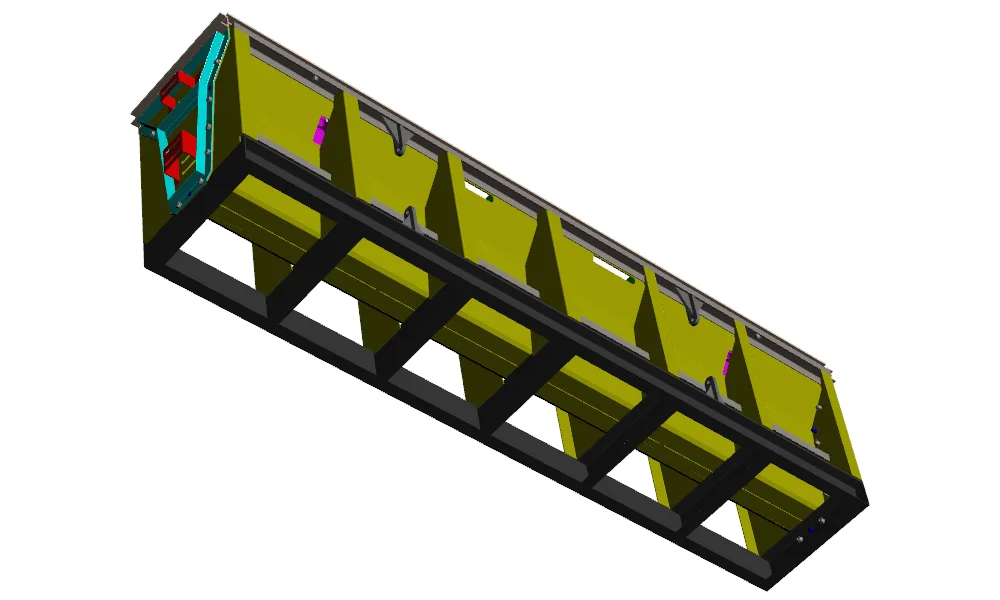

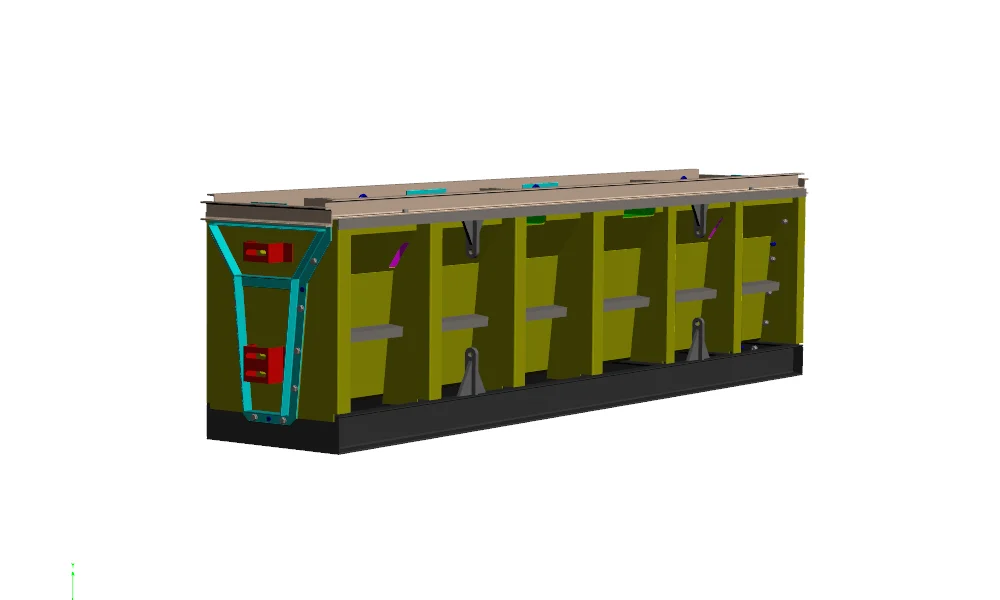

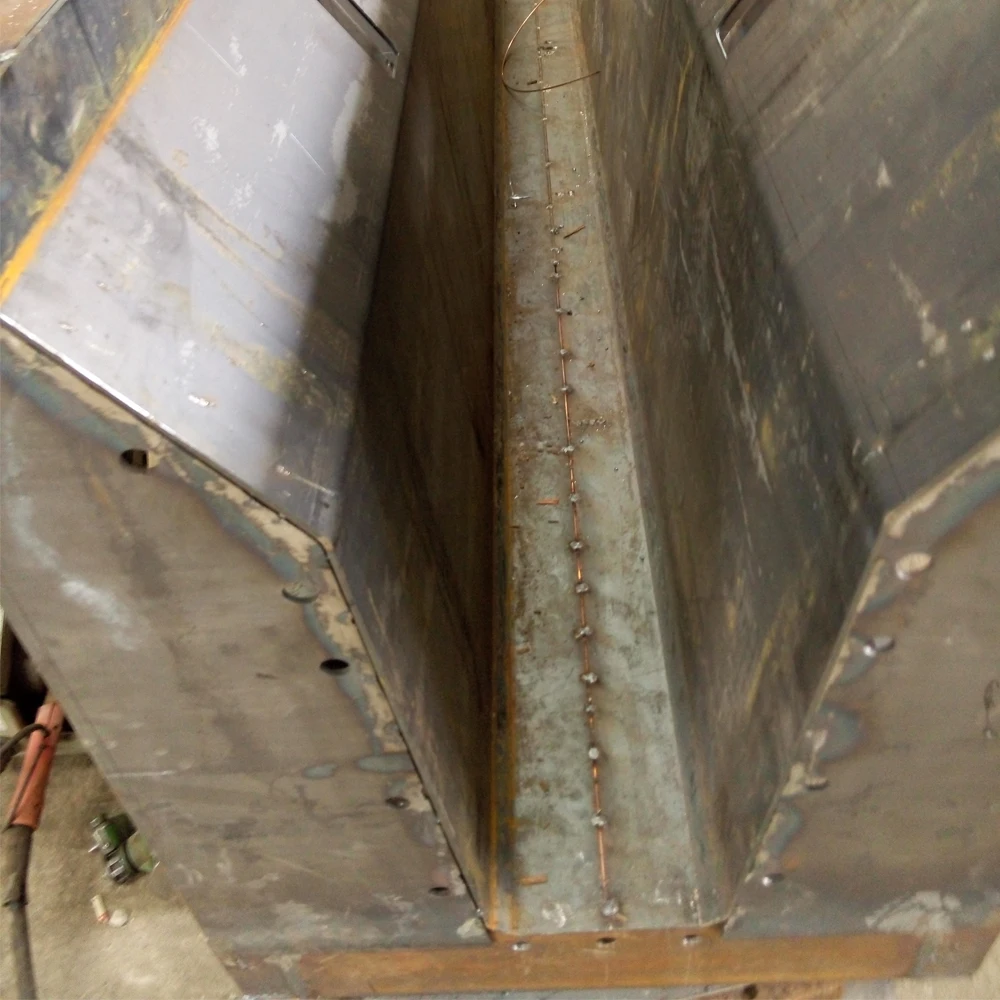

Steel Precast Mould for Concrete Traffic Barrier
- Category: >>>
- Supplier: Xiamen Openex Mechanical Technology Limited
Share on (1600248914366):
Product Overview
Description

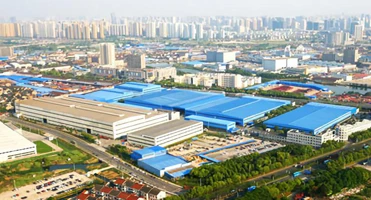

Who Are We?
Hi there,
Nice to meet you! We provide metalwork services with METAL CASTING, CNC MACHINING and STEEL FABRICATION, and all products are customized.
If you need a SAMPLE to check the quality, please feel free to contact us.
Nice to meet you! We provide metalwork services with METAL CASTING, CNC MACHINING and STEEL FABRICATION, and all products are customized.
If you need a SAMPLE to check the quality, please feel free to contact us.
To get a quote quickly, please provide the following information and we will reply soon.
*Detailed drawings
They should including material, dimensions, tolerances, surface fishinging, etc.
*Quantity per order
It is very important, may affect the process and material cost.
*3D file
It’s not essential, but it can speed up our quotation as well as the accuracy.
Product Description
*Materials* It is made of high-quality mild steel plate Q345 (A36 steel equivalent). Use 6mm thick plates to ensure the mould is strong and durable. The materials are purchased from well-known steel mills to ensure that the tensile strength and yield strength meet the GB standard. A material certificate can be provided.
*Easy to Operate* The mold design is reasonable and the operation is humanized. Only 1-2 employees can easily produce the concrete barrier.
*Product specifications* Section size: (206+570)*815 mm, the range of length: 610*2 +1290*N mm, (N-integer), rebar is for your own needs.
*Accept Customization* The profile, length and color of the mold can be customized. Detailed drawings are required for customized molds.
*Packing & Shipping* We use stretch film to wrap the product, and the length within 5800 can be shipped by 20ft. The length within 12000mm can be shipped by 40ft.
*One-Stop Service* We have more than 10 years of experience in the metalwork industry and can produce all kinds of products with complex shapes and strict technical requirements. We provide a one-stop service from raw material purchase to delivery, allowing you to enjoy cost-effective products and services.

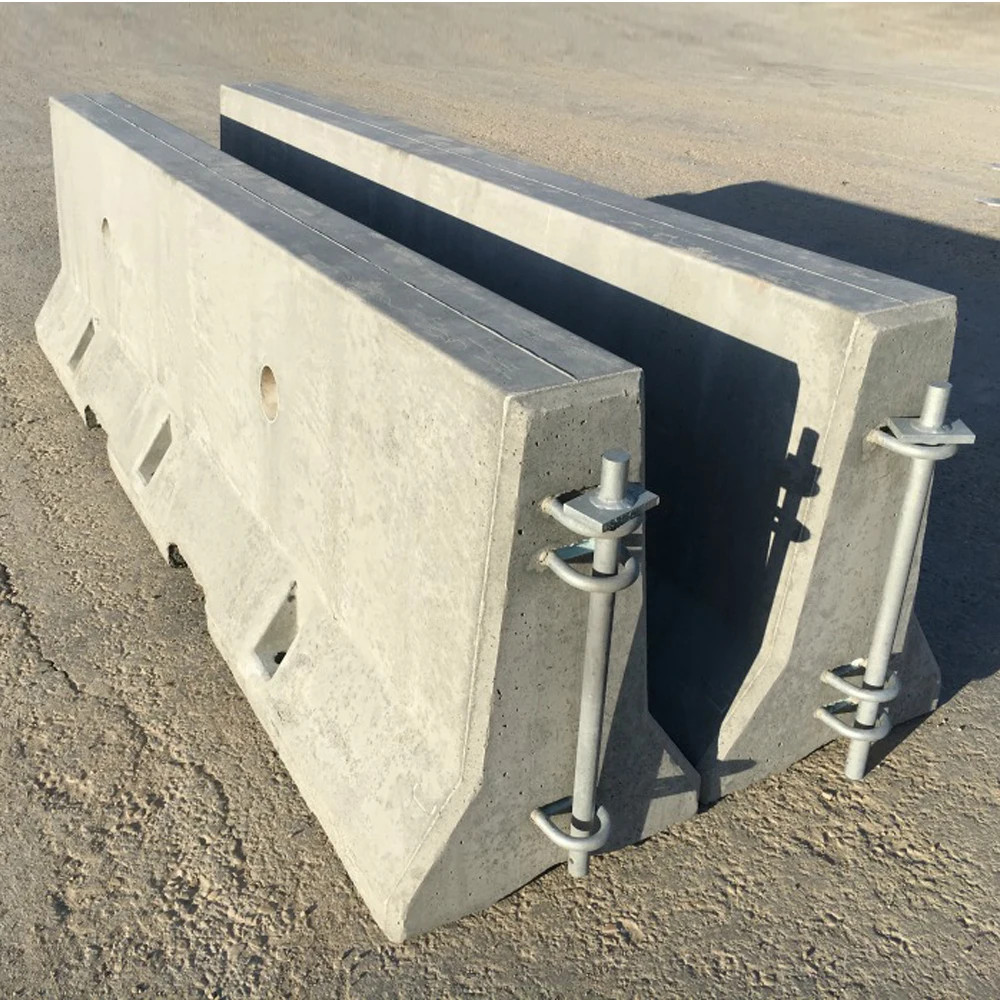

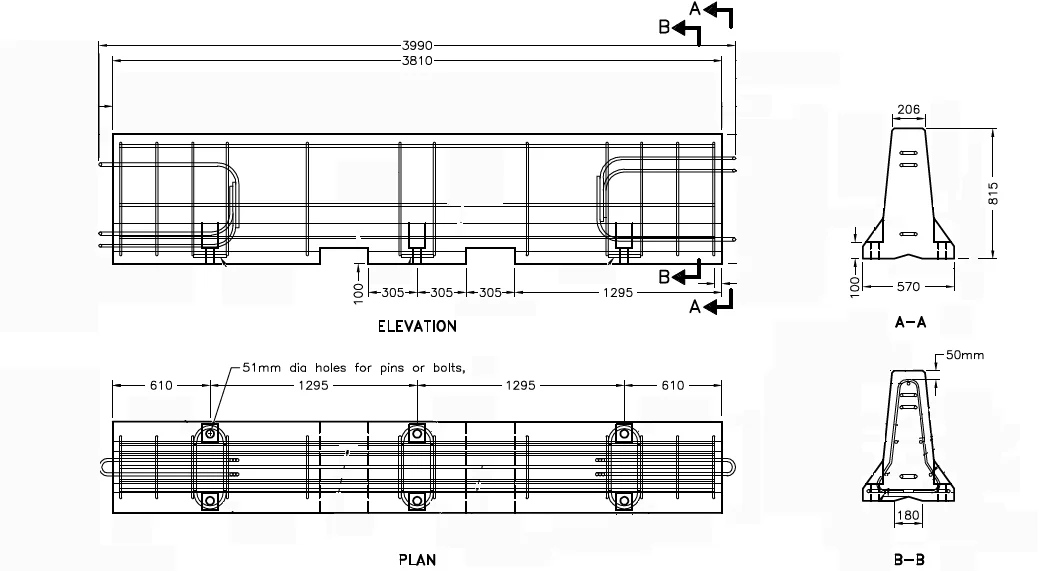

The profile and length of the concrete barrier.
Section size: (206+570)*815 mm, the range of length: 610*2 +1295*N mm, (N-integer), rebar is for your own needs.
The profile, length and color of the mold can be customized. Detailed drawings are required for customized molds.
Concrete Barrier Length | Description (mm) | Mold Size (L*W*H) mm | Mould Net Weigt |
2515 mm (99 in) | 610+1295*1+610 mm | L2715×W740×H1060 | 725 kg (1595 pounds) |
3810 mm (150 in) | 610+1295*2+610 mm | L4010×W740×H1060 | 990 kg (2178 pounds) |
5105 mm (200 in) | 610+1295*3+610 mm | L5205×W740×H1060 | 1310 kg (2882 pounds) |
6400 mm (252 in) | 610+1295*4+610 mm | L6600×W740×H1060 | 1625kg (3575 pounds) |
7695 mm (303 in) | 610+1295*5+610 mm | L7895×W740×H1060 | 1945 kg (4279 pounds) |
8990 mm (354 in) | 610+1295*6+610 mm | L9190×W740×H1060 | 2260 kg (4972 pounds) |

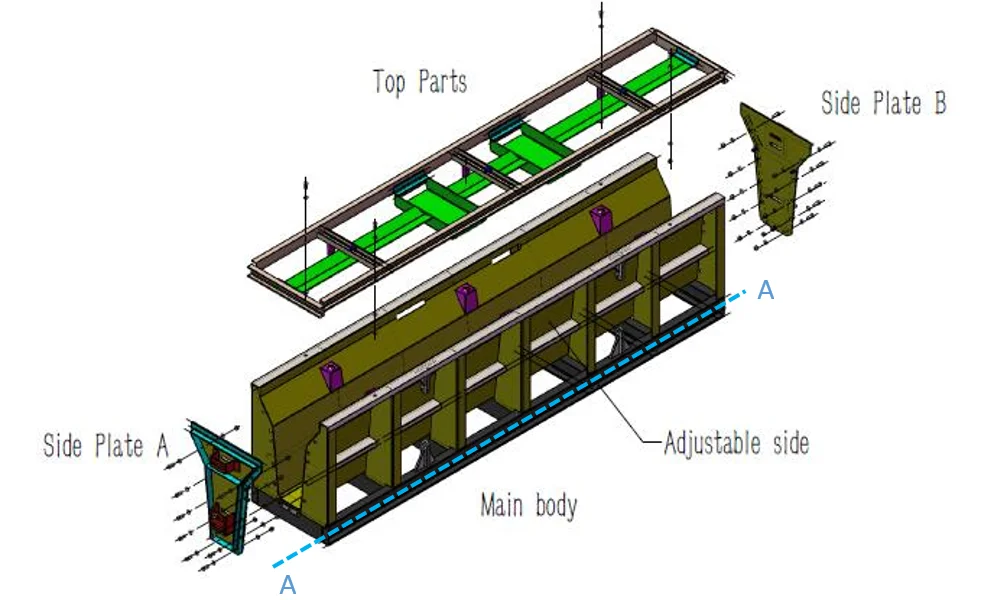

5 Steps to Bulid a New Barrier
1.Fix side plate A, side plate B and top parts on the main body with pins.
2. Put the reinforce ribs into the mold.
3. Pouring concrete into the mold.
4. After the concrete has solidified, remove the pins and remove the side plate A, side plate B, and top parts.
5. Use a wrench to adjust the adjustable side so that it rotates outward along the A-A axis.
The concrete barrier is completed.
Manufacturing process
cutting-->bending-->assembling-->welding -->painting.

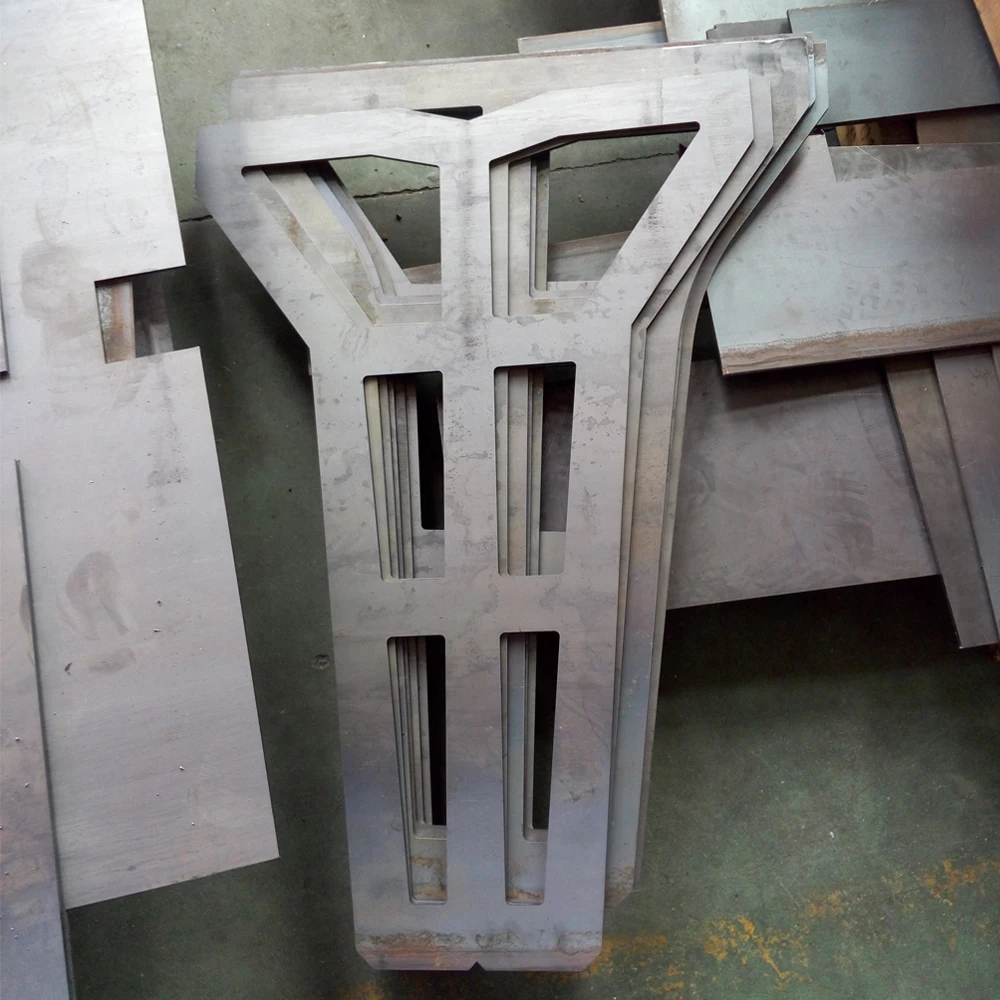

Laser Cutting
The laser cutting machine with a power of 3KW can cut carbon steel below 16mm (0.63 in) with an accuracy of ± 0.2 mm (0.008 in）.
Bending
The press brake with a capacity of 1000 tons can bend steel plates with a thickness of less than 20 mm (0.8 in )and a length of 6100 mm (240 in).

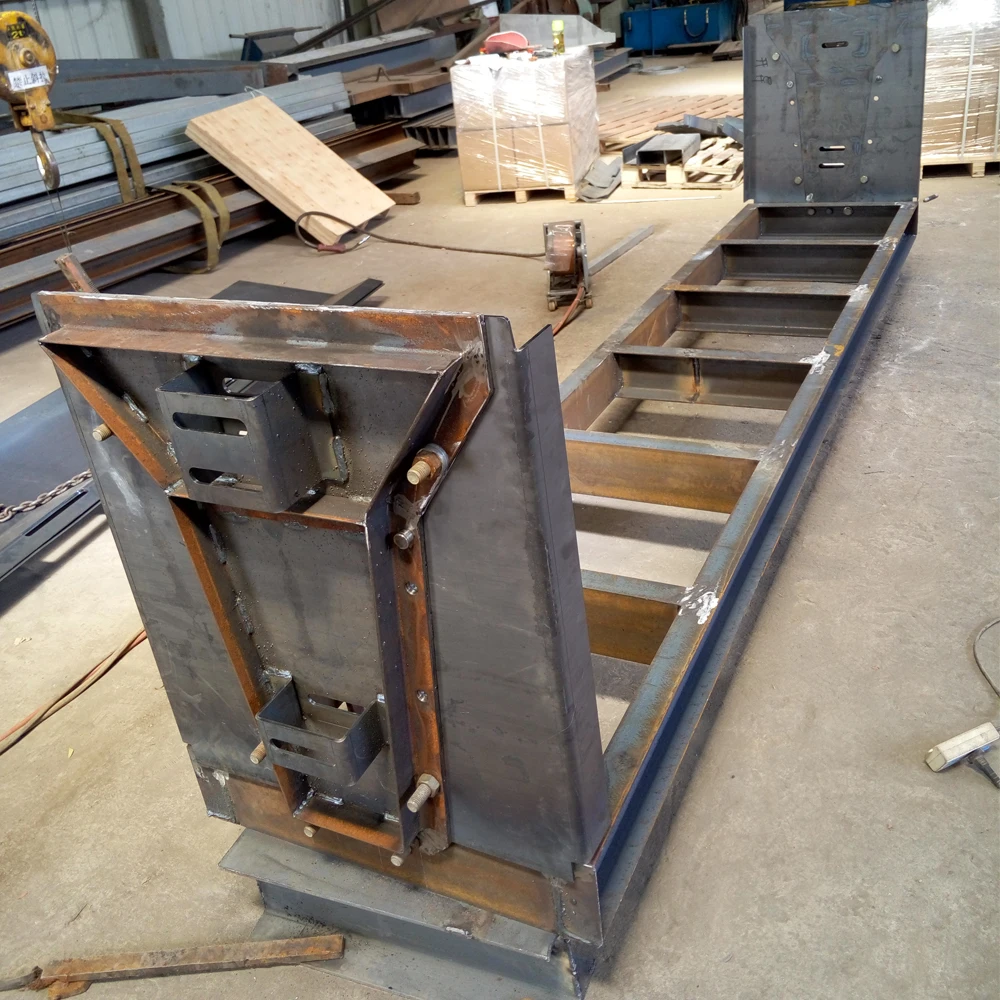

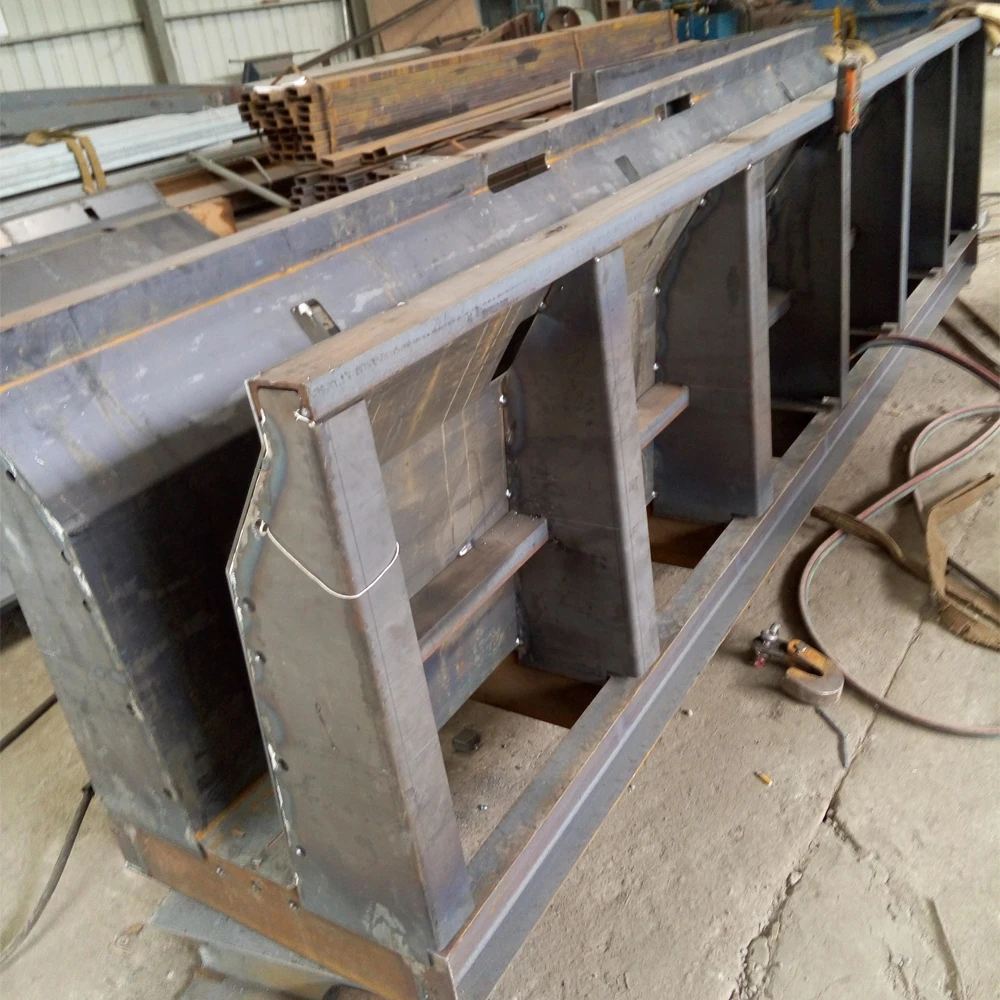

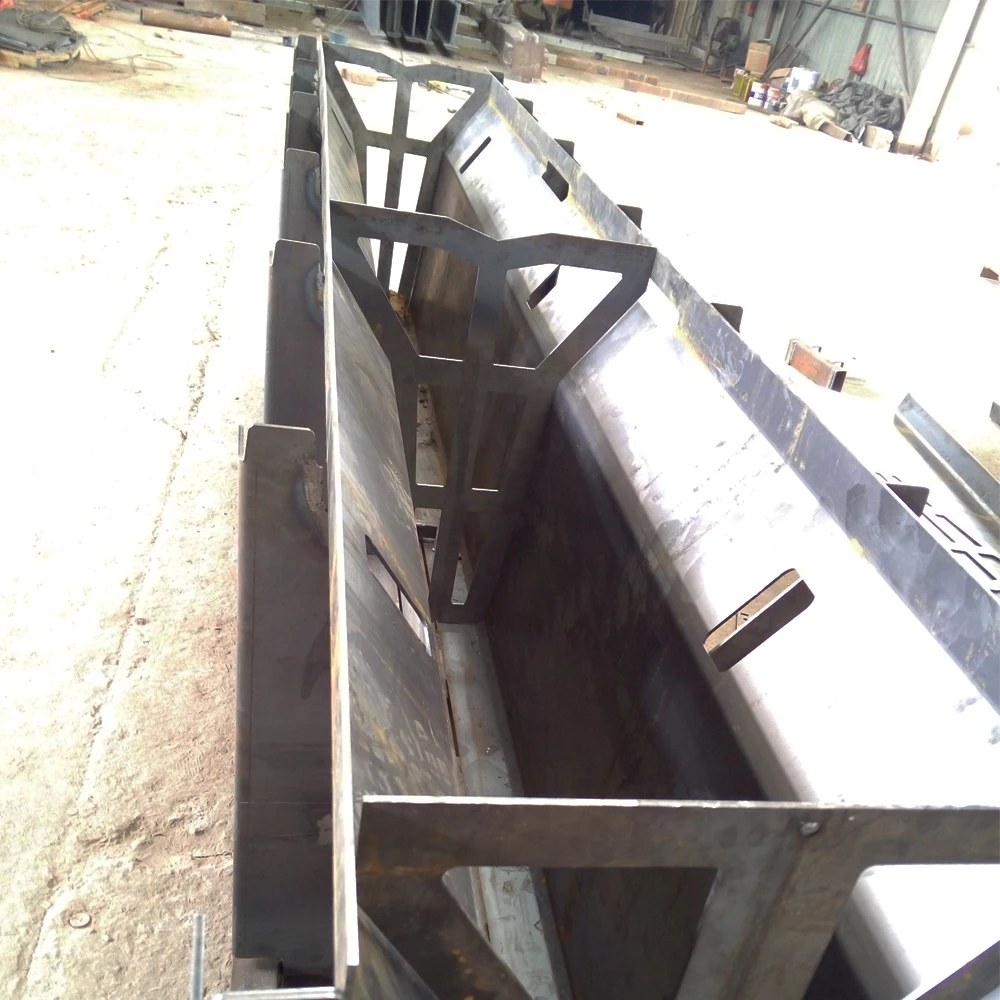

Welding
The combination of manual welding and robot welding not only ensures processing efficiency but also welding quality.
Inspection
The dimensions and welds bead will be 100% inspected to ensure that the quality meets the requirements.

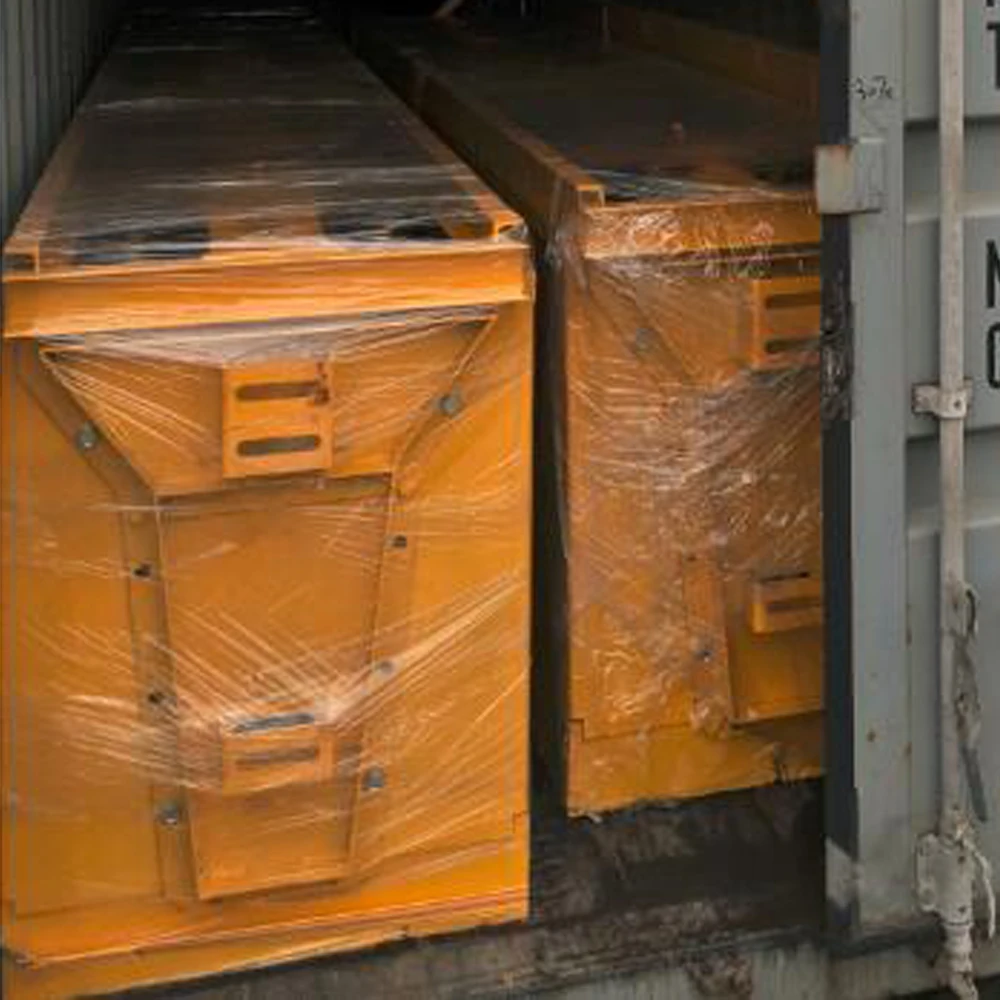

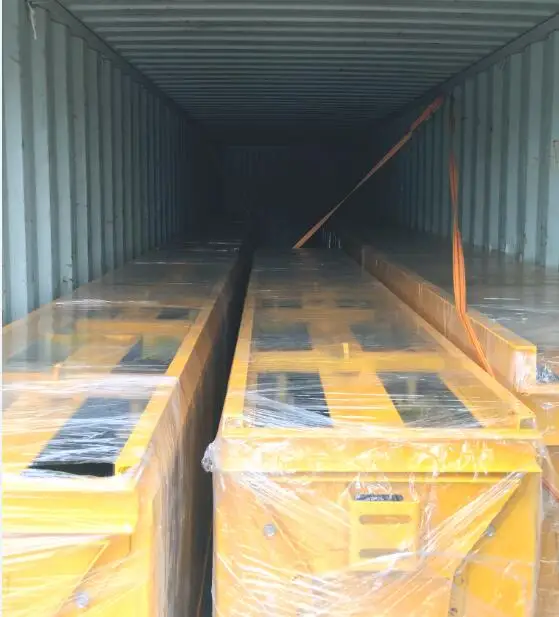

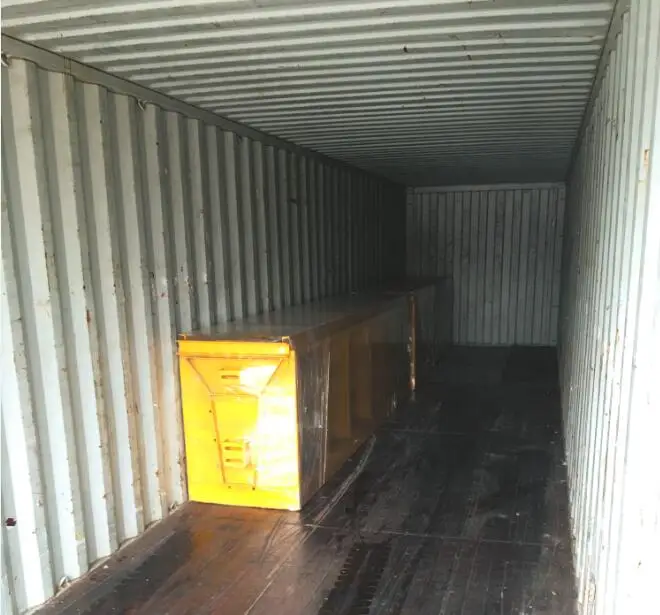

Packing & Shipping
We use stretch film to wrap the product.The length within 5800 can be shipped by 20ft directly. Longer than 5800mm will be divided into several sections and then shipped by 20ft.
