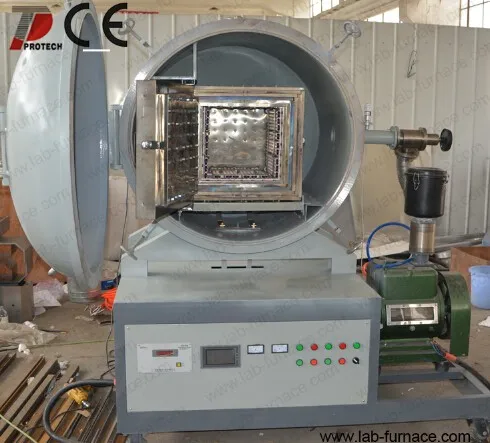

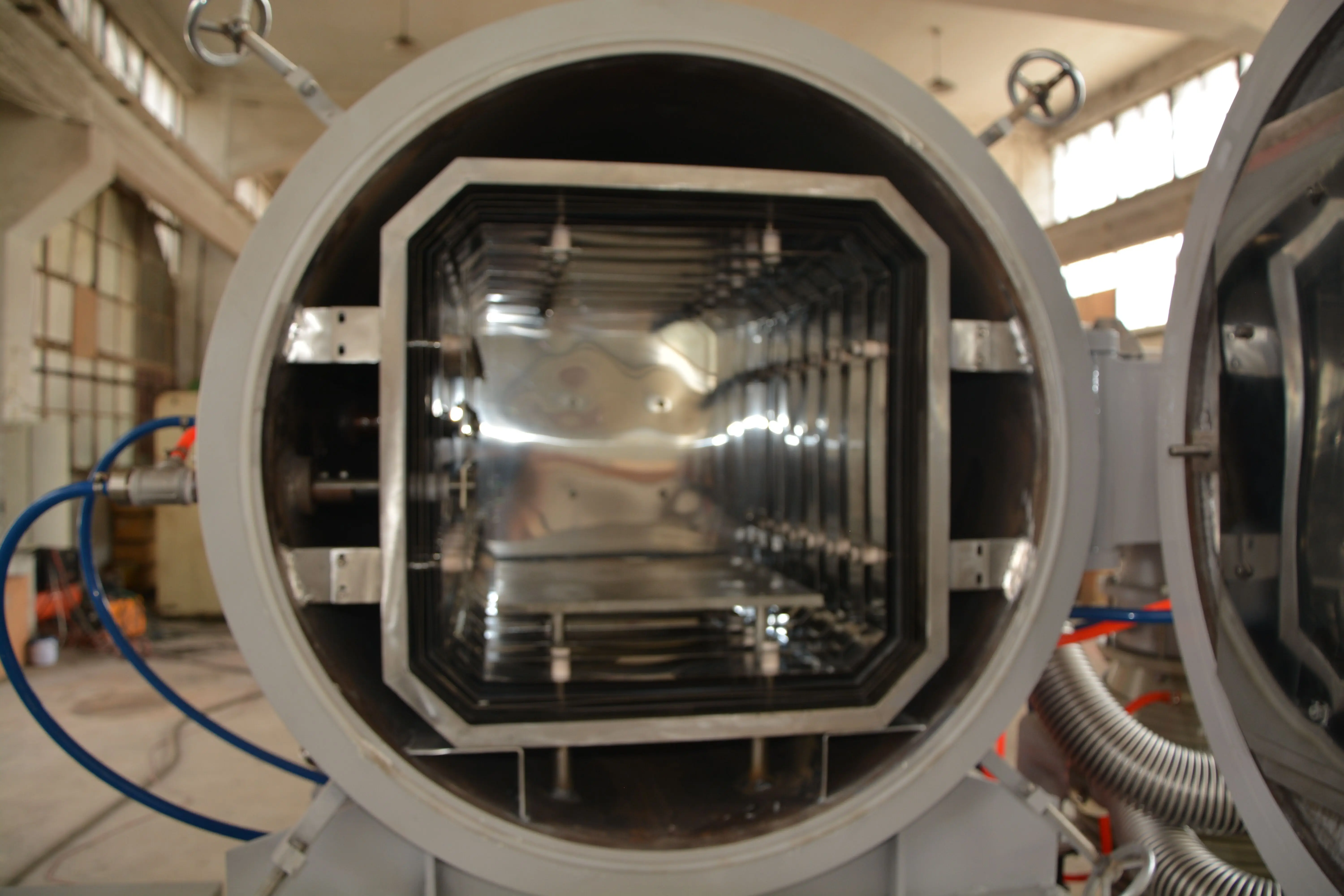

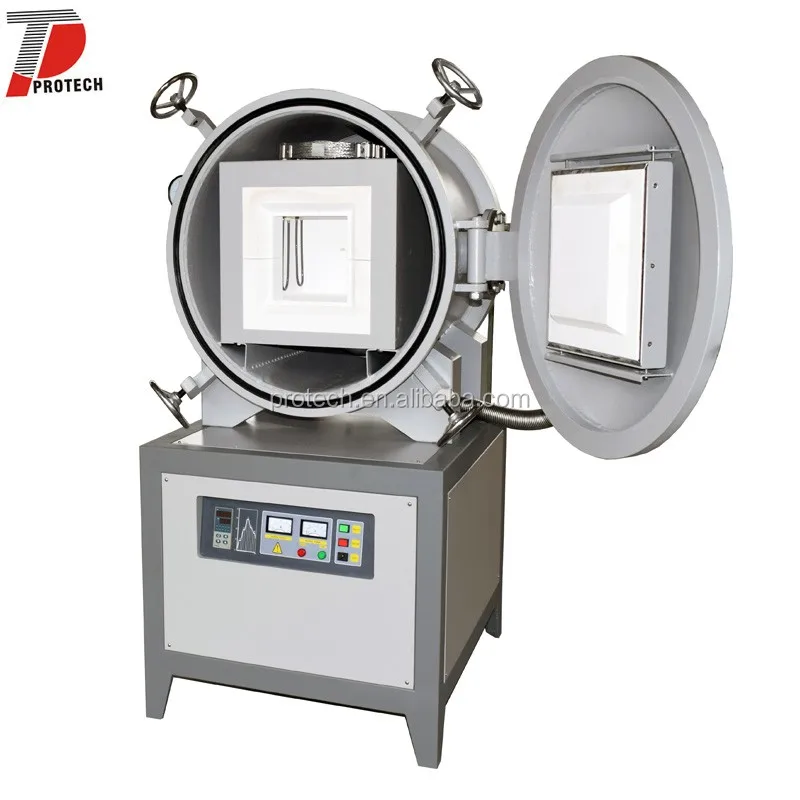

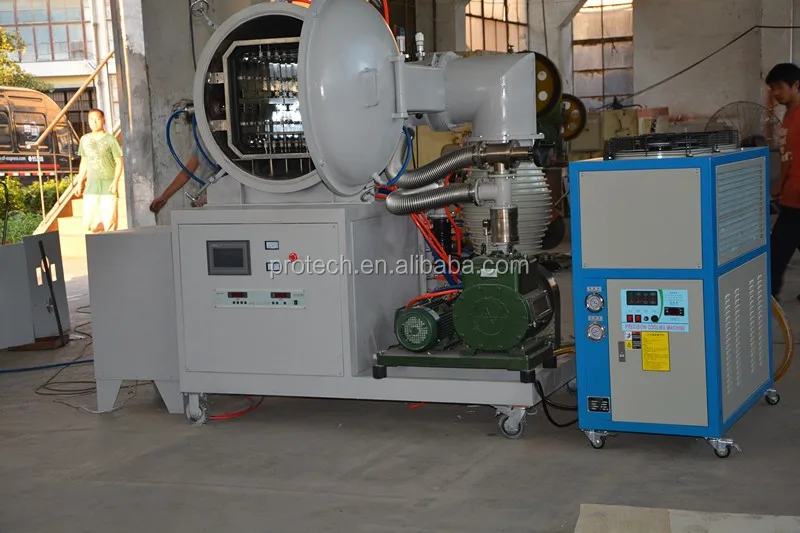

1200C 1400C 1700C high temperature PT V1200 Vacuum Aluminum Brazing Furnace

Product Overview

Description

Product description

Brief introduction

 PT-V series vacuum aluminum brazing furnace is a type of furnace that can heat materials,typically metals,to very high temperature and carry out processes such as brazing,sintering,and heat treatment with high consistency and low contamination.

Application

• Highly automated control

• Process using grinding mouth cavity seal sealing interface is stable and reliable

• New type chamber lining material.Low power consumption,energy saving and pro-environment.



Technical specification



.Main technical specifications

              1) Type:   Side Opening and discharging

2) Heating type:   Molybdenum Belt Heating Material

3) Heating voltage:   <50KW

4) Power:   380V,three phase,50Hz

5) Chamber Size:   dimension:  500×500×700mm(H×W×L)

6) Max temperature:   1200℃

7) Rated temperature:   1100℃

8) Limited vacuum degree: 6.×10^-4Pa

9) pressure surge:   ≤±0.1 MPa

10) displacement accuracy:   0.02mm

11) pressure stroke :   0~100mm(Digital display)

12) Temperature control accuracy: ±1℃

13) Protect atmosphere:   Argon gas or high purity nitrogen



Standard chamber size(Customer design sizes and volume is accepted)

Model	Chamber size(W*H*D)	Effective volume(L)
PT-1200M	100X100X100mm	1
	150X150X150mm	3.4
	150x150x200mm	4.5
	200x200x200mm	8
	200x200x300mm	12
	300x300x300mm	27
	300X300X400mm	36
	400x400x400mm	64
	500x500x500mm	125
	600x600x600mm	216
	800x800x800mm	512
If you need other special size, we could customize it for you, contact me freely.



Outstanding features

l Water Cooling

l Dual-Furnace body design

l PID + PLC Auto/Manuel Control

l Molybdenum Belt Heating Material

l Molybdenum insulation screen/heat shield

l Combination Pumps



Our service

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Professional factory : We are manufacturer, specializing in laboratory furnaces.





After sales Service:

1.No matter big order or small order , we will provide all the best quality , best service.

2.We offer 100% Guarantee on our product.



Customer Service

Company Info.

PROTECH COMPANY VIEW



 PROTECH CERITIFICATE

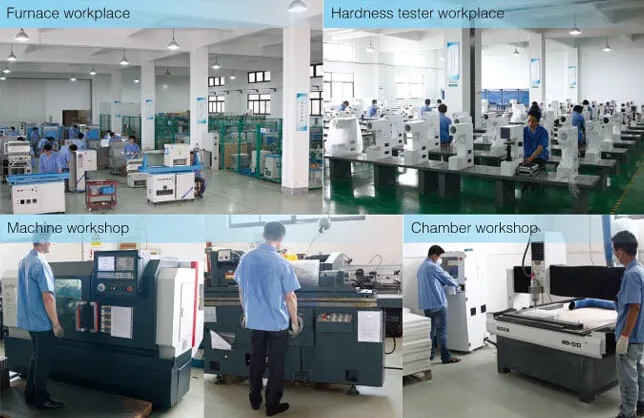

PROTECH PRODUCTOIN

PROTECH PACKING DELIVRRY

PROTECH CLIENT SITE

Shipping



FAQ



v Are you a manufacturer or just a trading company?

Our factory is in Zhengzhou city of China, we welcome you visit us anytime, and we are not only manufacturing, but also developing newest furnace with our own patent!

v How is the your furnace quality? We need a low price but high quality furnace

We do not label our furnace is the top quality in China, but the tremendous well feedbacks from our clients is a proving; our furnace price may not the lowest, but the high cost performance and service is our company key strength!



v What control systems do you offer?

Our thermal control system includes EUROTHERMAL,SHINKO and YUDIAN, other brands are also available according to customer requirement.

Our operating control can be digital and touch screen as while

v 4. We need one reliable and technical know-how supplier, efficient technical support is very important, are you the one?

The founder of our company is one furnace engineer, and our technical team is all much experienced engineers, we are probing both the furnace producing and applications, we are open to share our experiences on the furnace making and thermal applications with our clients.
