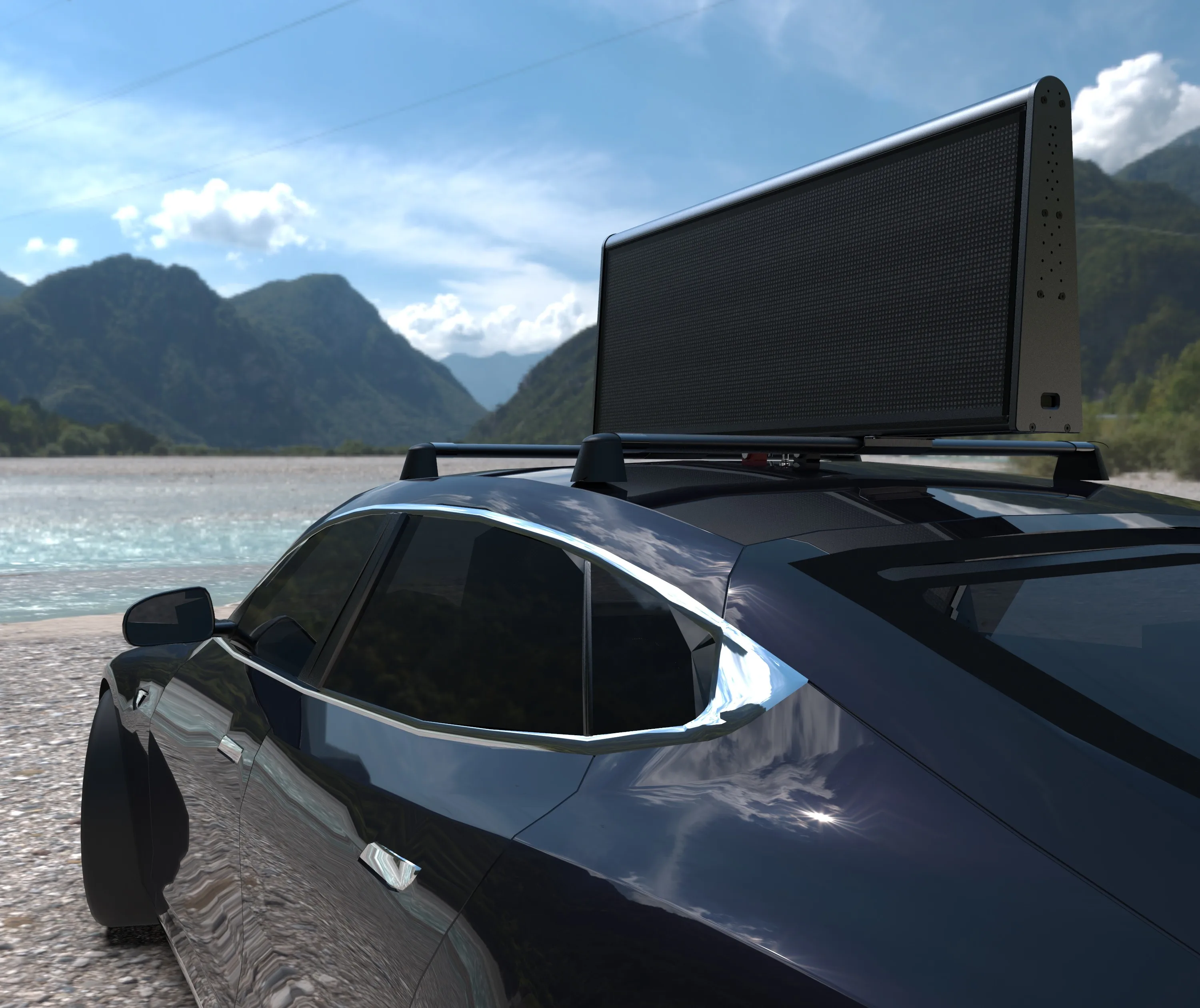

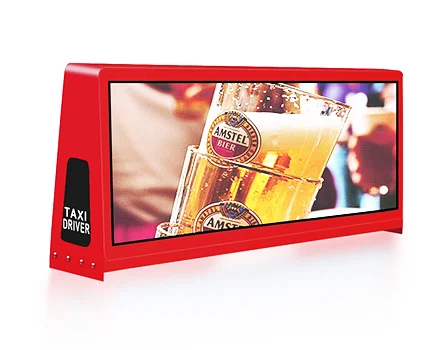

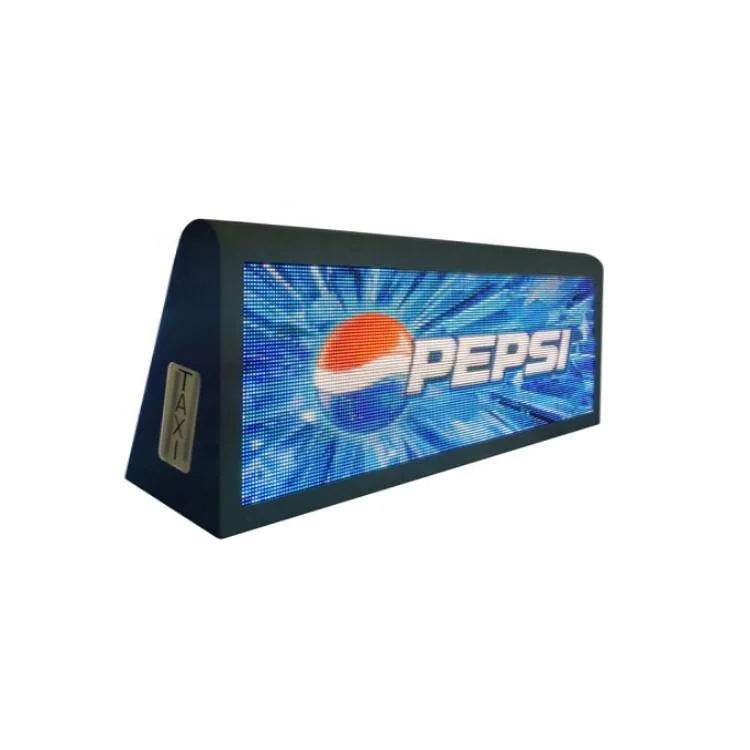

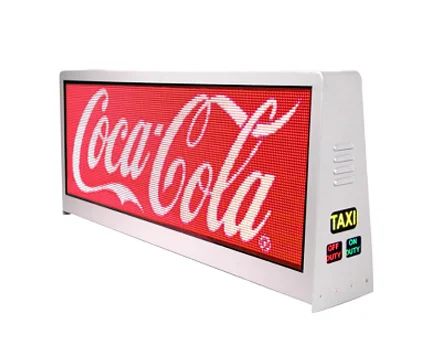

Рекламный цифровой знак на крышу такси с Wi Fi 3G 4G в наличии
- Category: Digital Signage >>>
- Supplier: Shenzhen Longvision Technology Co. Ltd.
Share on (1600248944520):
Product Overview
Description
Specification
Product Advantages
1, Patent structure design,aluminum case with oxidation treatment,coating film for unti ultraviolet, outdoor painting for anti-rusting and anti-aging.
2, High tranparent pc cover that not turning yellow color or old in 10 years.
3, high level powersupply,beyond voltage,current load,short circuit will be protected, work in -40°C~+70°C environment.
4, Web control and could manage in anytime and any location through web browser.No need for download software.
5, Easy installtion bracket , fast maintenance structure.
2, High tranparent pc cover that not turning yellow color or old in 10 years.
3, high level powersupply,beyond voltage,current load,short circuit will be protected, work in -40°C~+70°C environment.
4, Web control and could manage in anytime and any location through web browser.No need for download software.
5, Easy installtion bracket , fast maintenance structure.
Product Description
Product Size
Here is standard size, special installation way should follow the car size.
Bracket installation
Easy design leads a quick way installtion of bracket.
Sign installation
Each type of vehicle has different mounting racks.
Different lengths of mounting racks can be selected according to type to be installed.
The corresponding installation method can be designed according to different types of vehicles.
Connection Schematic Diagram
Main cable connect with car battery and control cable connect with lighter position.
Control schematic
Supports 3G 4G WIFI Internet connection.
Quickly and simply change your content anytime, anywhere.

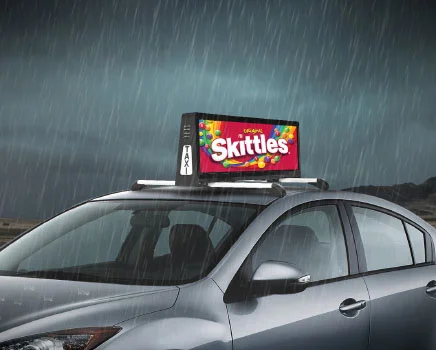

Waterproof Testing
IP65 High protection, can adapt to any extreme enviroment.

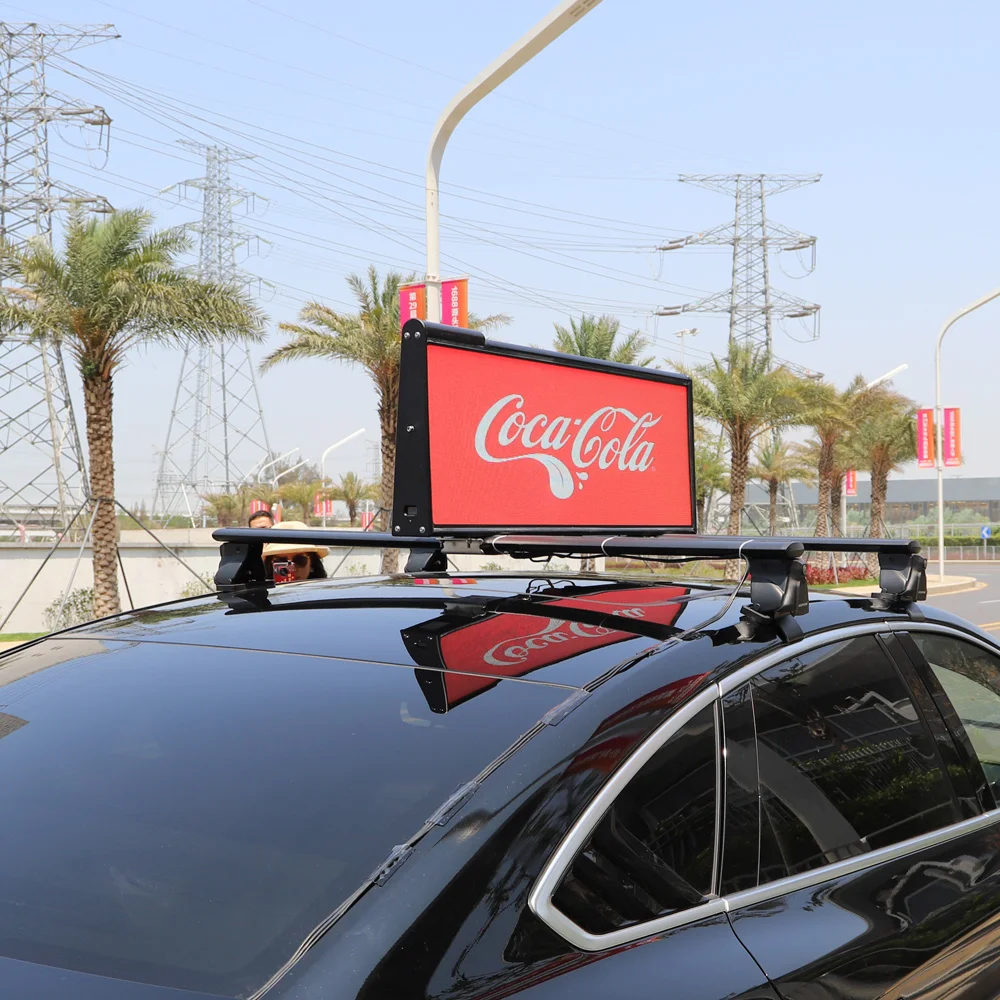

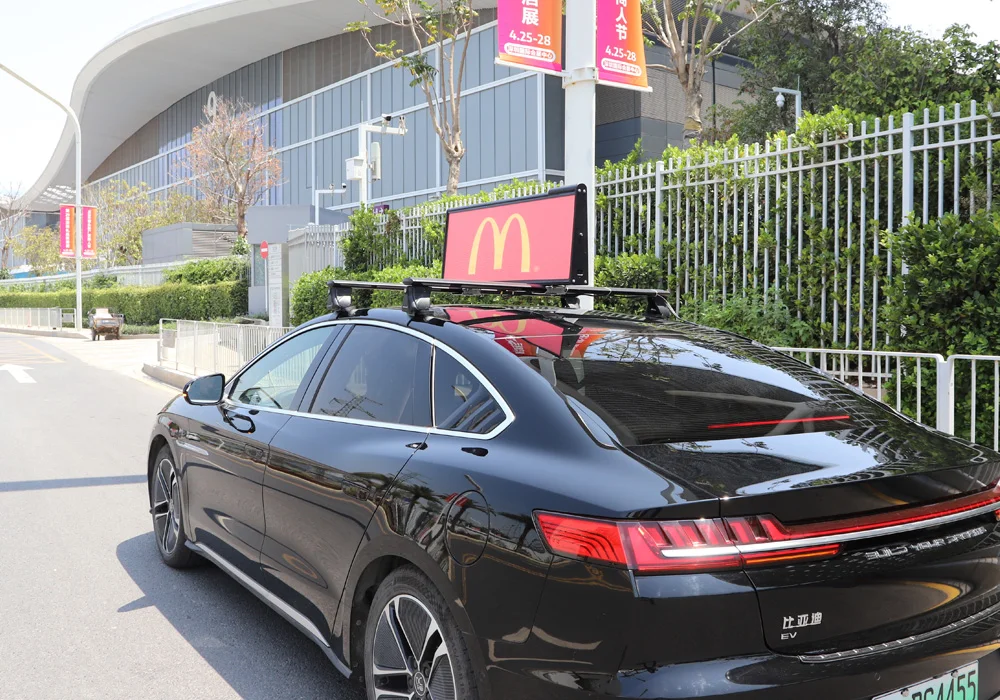

Cases Show
To make a movable advertising for your brand!
Product Parameters
Pixel Pitch P2.5~P5
Model | P2.5 | P3 | P4 | P5 | |||
Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | |||
Application | Indoor | Outdoor | |||||
LED Configuration | SMD1921 | SMD1921 | SMD1921 | SMD2727 | |||
Pixel Density (dots/㎡) | 160,000 | 111111 | 62,500 | 40,000 | |||
Module size | 160×160mm | 192×192mm | 256×128mm | 320×160mm | |||
Module Resolution | 64×64dots | 64×64dots | 64×32dots | 64×32dots | |||
Cabinet Size | 1600×320 | 1536×384 | 1536×384 | 960×320(Double Sided) | |||
Cabinet Resolution | 640×128dots | 512×128dots | 384×96dots | 192×640dots | |||
Cabinet Weight | 20kg | 23kg | 23kg | 25kg | |||
IP Rating | IP65 | IP65 | IP65 | IP65 | |||
Brightness Intensity | ≥2500cd/㎡ | ≥2500cd/㎡ | ≥2500cd/㎡ | ≥5000cd/㎡ | |||
Viewing Angle | 140° | 140° | 140° | 140° | |||
View Distance | ＞2m | ＞3m | ＞4m | ＞5m | |||
Gray Scale | 16bit | 16bit | 16bit | 16bit | |||
Max./Avg. Consumption (m²) | 400W/130W | 460W/150W | 480W/160W | 500W/160W | |||
Operating Life | 100,000hours | ||||||
Refresh Frequency | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | |||
Control Mode | Synchronous display with control PC by DVI | ||||||
Operation Power | AC100/240 50/60HZ | ||||||
Operating Condition | - 20℃~+50℃, 10~90% RH | ||||||

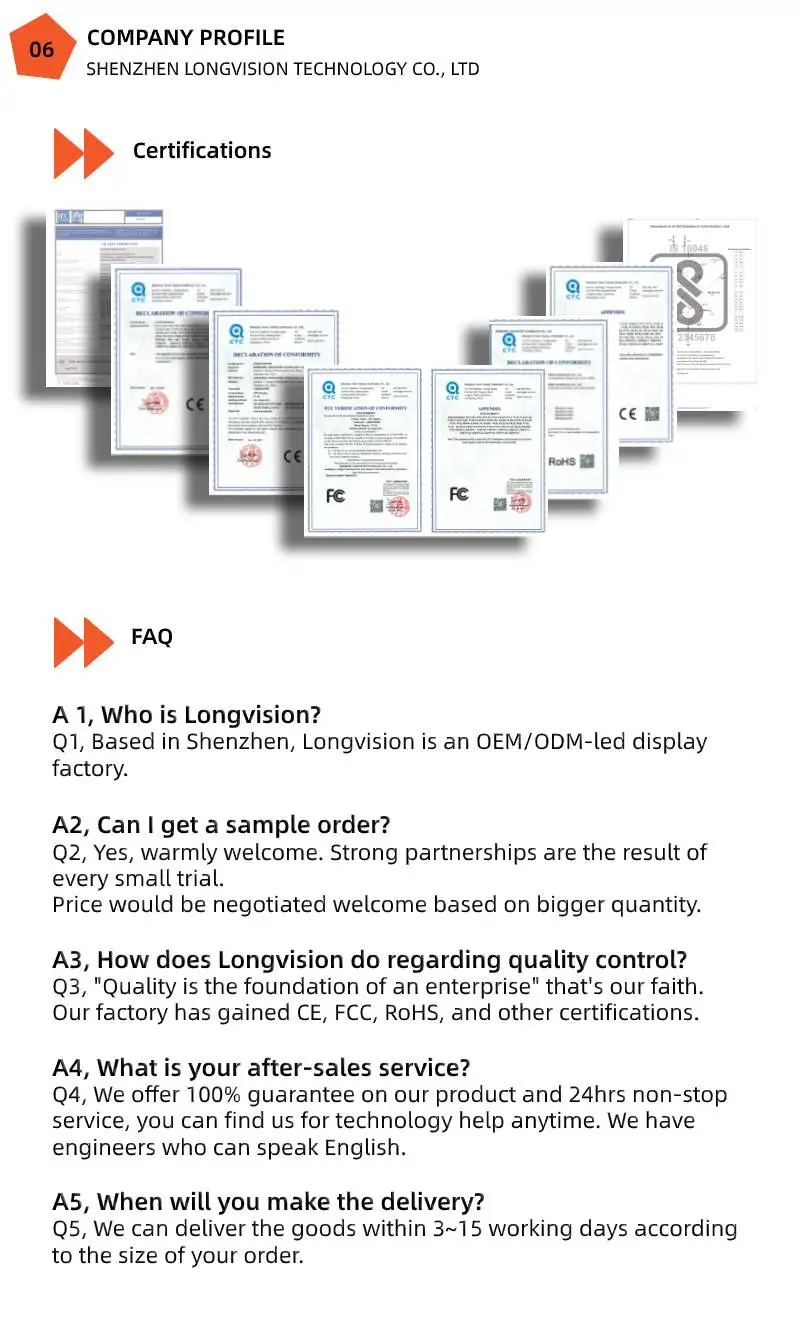

Company Profile
