QC11Y QC11K 16x5000 E21S metal steel steel plate cutting machine cnc hydraulic shearing guillotine machine
- Category: Machine Tool Equipment >>>
- Supplier: Nanjing,Dijia,Machinery,Trade,Co.,Ltd.
Share on:
Product Overview
Description
Type | Cutting Thickness | Cutting Width | Cutting Angle | Bumper distance | Throat depth | Travel Times | Power | Dimension |
(mm) | (mm) | (°) | (mm) | (mm) | (Min﹣¹) | （KW) | L×W×H(mm) | |
6×2500 | 6 | 2500 | 0.5°～1°30´ | 600 | 80 | 14 | 7.5 | 3100×1725×1960 |
6×3200 | 6 | 3200 | 0.5°～1°30´ | 600 | 80 | 12 | 7.5 | 3650×1750×1980 |
6×4000 | 6 | 4000 | 0.5°～1°30´ | 600 | 80 | 10 | 7.5 | 4650×1780×2075 |
6×5000 | 6 | 5000 | 0.5°～1°30´ | 600 | 80 | 8 | 7.5 | 5650×1830×2250 |
6×6000 | 6 | 6000 | 0.5°～1°30´ | 600 | 80 | 8 | 7.5 | 6650×1890×2380 |
8×2500 | 8 | 2500 | 0.5°～1°30´ | 600 | 80 | 14 | 7.5 | 3100×1725×1960 |
8×3200 | 8 | 3200 | 0.5°～1°30´ | 600 | 80 | 12 | 7.5 | 3850×1750×1980 |
8×4000 | 8 | 4000 | 0.5°～1°30´ | 600 | 80 | 10 | 7.5 | 4650×1850×2075 |
8×5000 | 8 | 5000 | 0.5°～2° | 600 | 80 | 7 | 15 | 5805×2000×2500 |
8×6000 | 8 | 6000 | 0.5°～2° | 600 | 100 | 7 | 15 | 6805×2115×2715 |
10×2500 | 10 | 2500 | 0.5°～2°30´ | 600 | 120 | 10 | 15 | 3195×1800×2210 |
10×3200 | 10 | 3200 | 0.5°～2°30´ | 600 | 120 | 8 | 15 | 3895×1800×2240 |
10×4000 | 10 | 4000 | 0.5°～2°30´ | 600 | 120 | 6 | 15 | 4695×1930×2275 |
10×5000 | 10 | 5000 | 0.5°～2°30´ | 600 | 120 | 5 | 15 | 5905×2115×2715 |
10×6000 | 10 | 6000 | 0.5°～2°30´ | 600 | 120 | 5 | 15 | 6905×2215×2800 |
12×2500 | 12 | 2500 | 0.5°～2°30´ | 600 | 120 | 10 | 15 | 3195×1800×2210 |
12×3200 | 12 | 3200 | 0.5°～2°30´ | 600 | 120 | 8 | 15 | 3895×1800×2240 |
12×4000 | 12 | 4000 | 0.5°～2°30´ | 600 | 120 | 6 | 15 | 4710×1950×2485 |
12×5000 | 12 | 5000 | 0.5°～2°30´ | 600 | 120 | 5 | 18.5 | 5905×2115×2800 |
12×6000 | 12 | 6000 | 0.5°～2°30´ | 600 | 120 | 4 | 18.5 | 7000×2300×3100 |
16×2500 | 16 | 2500 | 0.5°～2°30´ | 600 | 120 | 8 | 15 | 3215×1880×2340 |
16×3200 | 16 | 3200 | 0.5°～2°30´ | 600 | 120 | 7 | 15 | 3915×1880×2445 |
16×4000 | 16 | 4000 | 0.5°～2°30´ | 600 | 120 | 6 | 15 | 4715×1950×2590 |
16×5000 | 16 | 5000 | 0.5°～3° | 600 | 120 | 5 | 22 | 6000×2300×3000 |
16×6000 | 16 | 6000 | 0.5°～3° | 600 | 120 | 4 | 37 | 7000×2300×3100 |
20×2500 | 20 | 2500 | 0.5°～3° | 600 | 120 | 6 | 22 | 3215×1890×2465 |
20×3200 | 20 | 3200 | 0.5°～3° | 600 | 120 | 5 | 30 | 4120×1890×2780 |
20×4000 | 20 | 4000 | 0.5°～3° | 600 | 120 | 4 | 30 | 4925×2150×2900 |
20×5000 | 20 | 5000 | 0.5°～3° | 600 | 120 | 4 | 37 | 6000×2300×3050 |
25×2500 | 25 | 2500 | 0.5°～3.5° | 600 | 120 | 5 | 30 | 3435×2000×2710 |
25×3200 | 25 | 3200 | 0.5°～3.5° | 600 | 120 | 5 | 30 | 4120×2200×3000 |
25×4000 | 25 | 4000 | 0.5°～3.5° | 600 | 120 | 3 | 30 | 4950×2200×3150 |
30×2500 | 30 | 2500 | 1°～3.5° | 600 | 120 | 4 | 30 | 3435×2020×2770 |
30×3200 | 30 | 3200 | 1°～3.5° | 600 | 120 | 3 | 37 | 4200×2300×3200 |

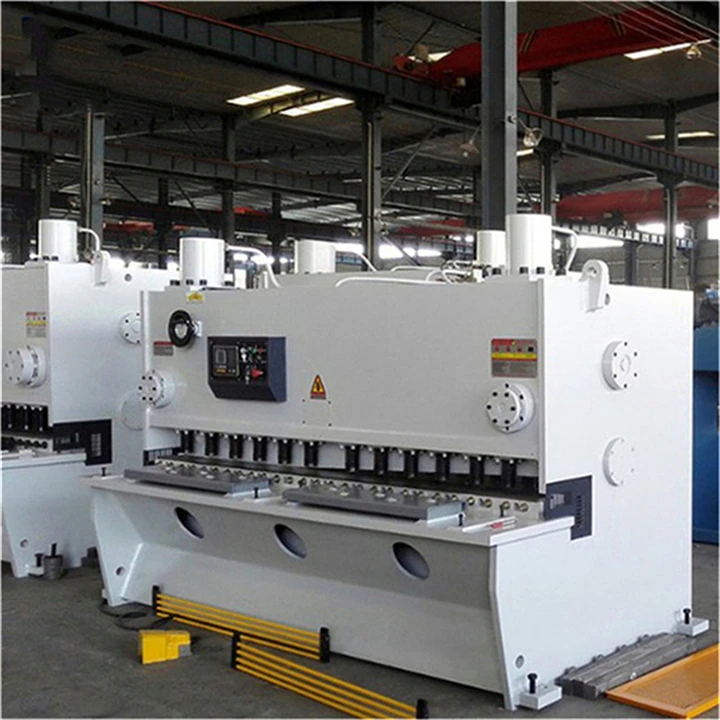

1.Hydraulic plate shears of second generation;
2.Total steel welded structure,internal stress eliminated by heat treatment and excellent rigidness and stability;
3.Advanced integral hydraulic system with good reliability;
4.Three-point contact bearing guideway that can eliminate the bearing clearance so as to improve the shearing quality;
5.Rapid,convenient and accurate hand-wheel adjustment of blade clearance;
6.Rectangular blade with four edges usable and with long service life;
7.Adjustable shearing angle to reduce the distortion and deformation of the plate;
8.Inward incline structure for the upper blade holder for an easy blanking and workpiece accuracy improvement;

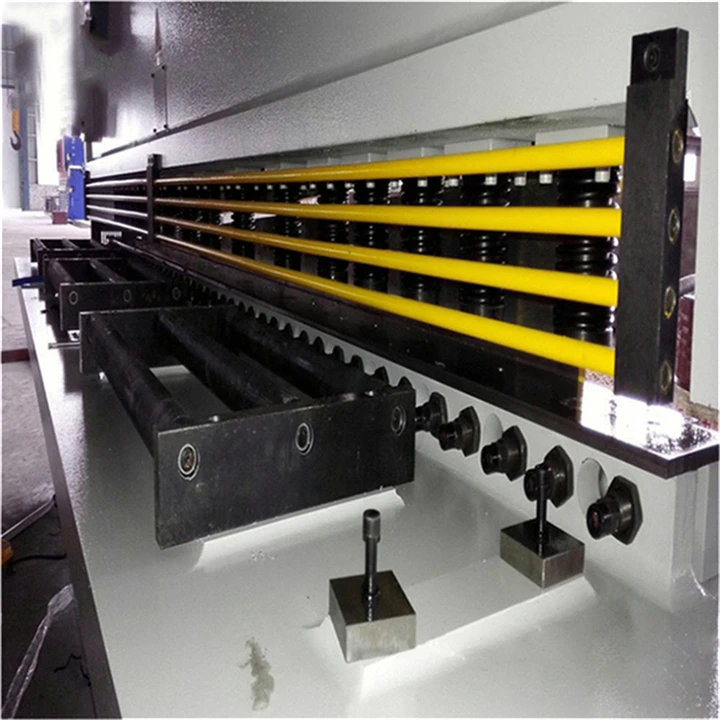

9.Rolling the ball,reducing sheet scratches and reducing frictional resistance;
10.Electric rear block,digital display,convenient and accurate;
11.Back support device(optional)
2.Total steel welded structure,internal stress eliminated by heat treatment and excellent rigidness and stability;
3.Advanced integral hydraulic system with good reliability;
4.Three-point contact bearing guideway that can eliminate the bearing clearance so as to improve the shearing quality;
5.Rapid,convenient and accurate hand-wheel adjustment of blade clearance;
6.Rectangular blade with four edges usable and with long service life;
7.Adjustable shearing angle to reduce the distortion and deformation of the plate;
8.Inward incline structure for the upper blade holder for an easy blanking and workpiece accuracy improvement;
9.Rolling the ball,reducing sheet scratches and reducing frictional resistance;
10.Electric rear block,digital display,convenient and accurate;
11.Back support device(optional)
Q1: After I buy the machine, what will you do if I don't know some of the function?
A1: We will show you how to use the machine perfectly. Technical support and the video is available.
Q2: Will you show me how to install the machine?
A2: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.
Q3: How about your after sales service?
A3: Our experienced engineers are waiting to make service for you. One-top service term made us survive from fierce competition.
Q4: What's the policy for guarantee and broken parts?
A4: Warranty period of equipment lasts two years, during which the broken parts and spares caused by quality can be offered free.
