water irrigation solar pump system set helical rotor solar pump with solar panels submersible solar pump with brushless motor
- Category: >>>
- Supplier: Hangzhou Qinjie Electromechanical Co. Ltd.
Share on (1600249015246):
Product Overview
Description
Our advantage
◆Our Vision: world knows our creation, let’s change life.
◆Water pumps have obtained relevant export certificates such as CE SGS CB.
◆We have 5 utility model patents, and we are always updating our technology.
◆Water pumps have obtained relevant export certificates such as CE SGS CB.
◆We have 5 utility model patents, and we are always updating our technology.
◆Pumps will be three times tested before sending to customers.
Pump Description

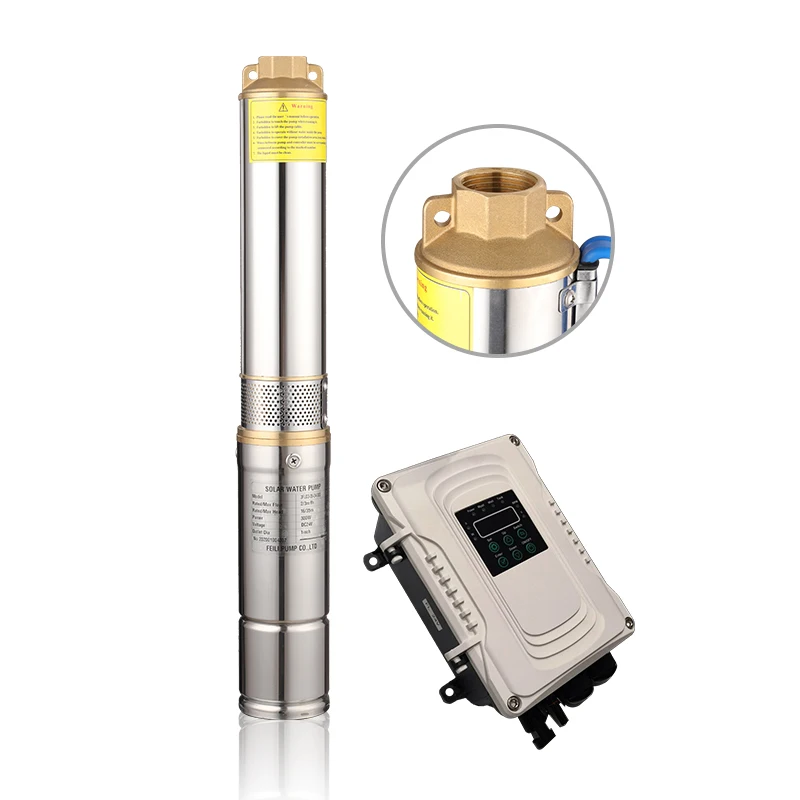

Submersible Solar Water Pump
Model: 3FLD3.2-80-48-750
Power: 750W
Voltage: DC48V
Max flow: 3.2m3/h
Max head:80m(suit for 60m deep well)
Outlet Dia: 1inch
Pump Dia: 3inch
Cable: 3m
Suggest equip 4pcs 275w solar panels
Voltage: DC48V
Max flow: 3.2m3/h
Max head:80m(suit for 60m deep well)
Outlet Dia: 1inch
Pump Dia: 3inch
Cable: 3m
Suggest equip 4pcs 275w solar panels

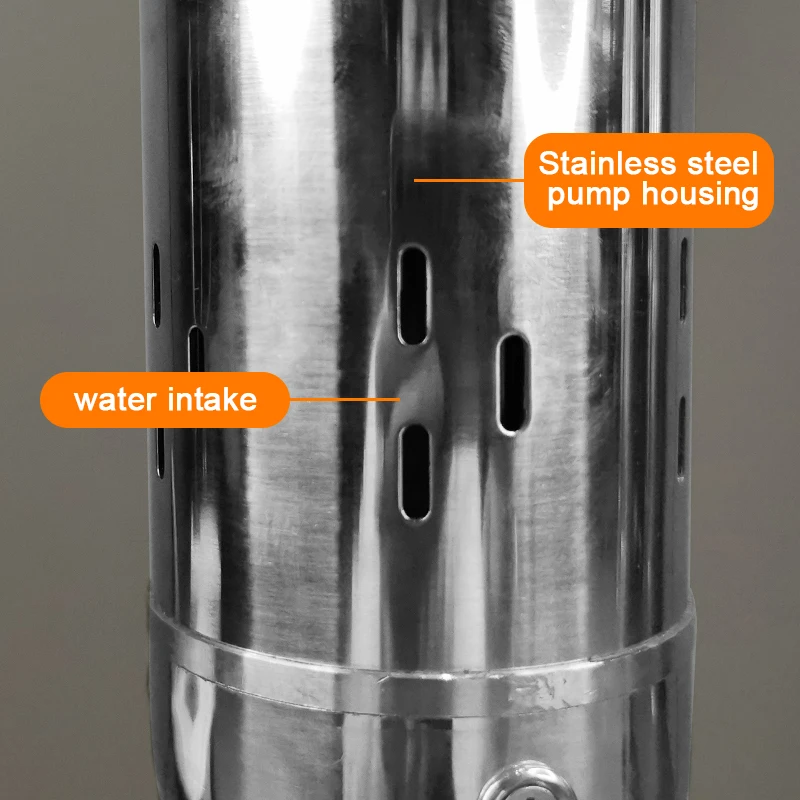

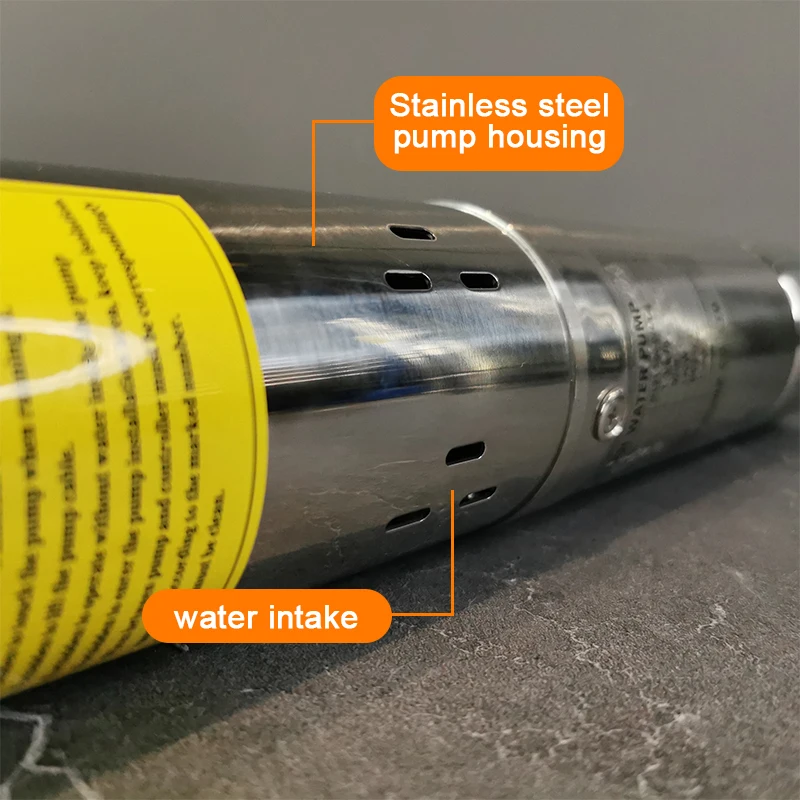

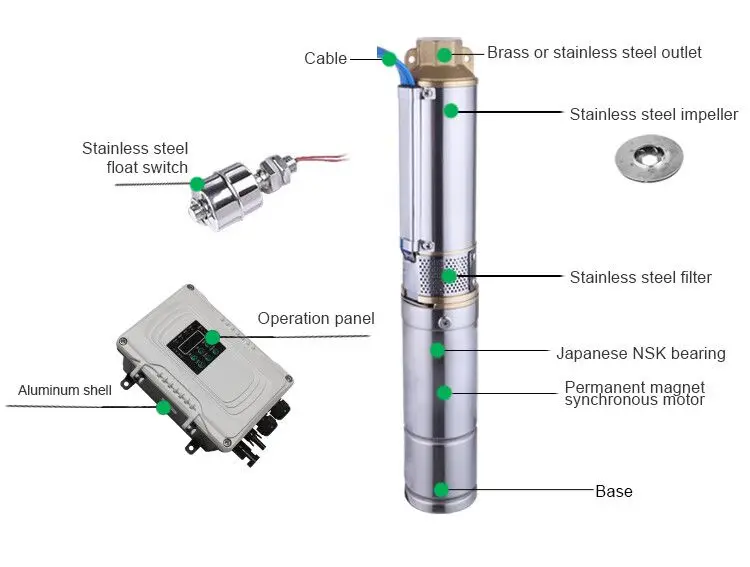

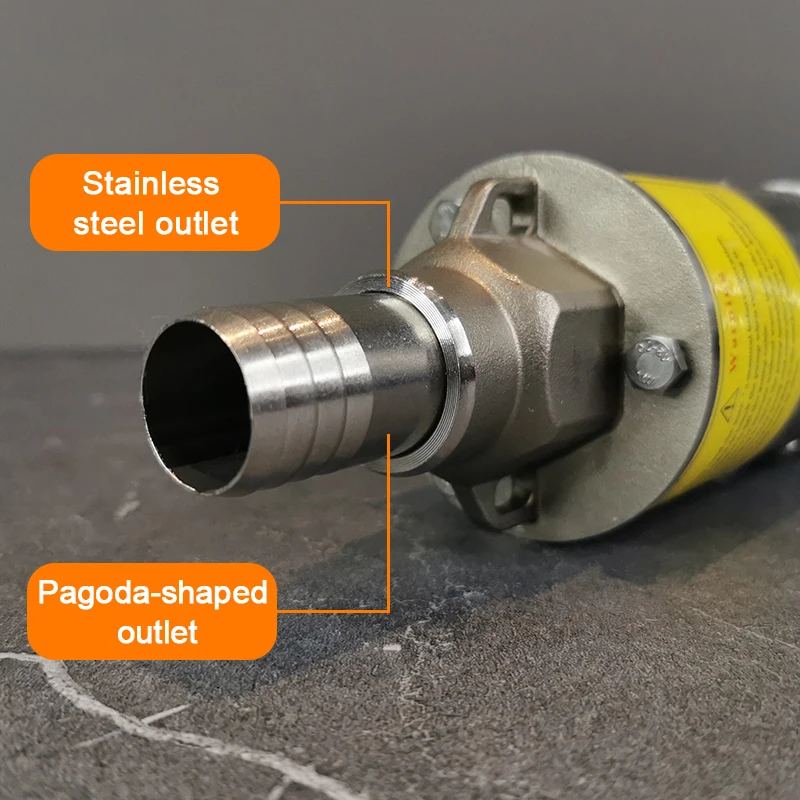

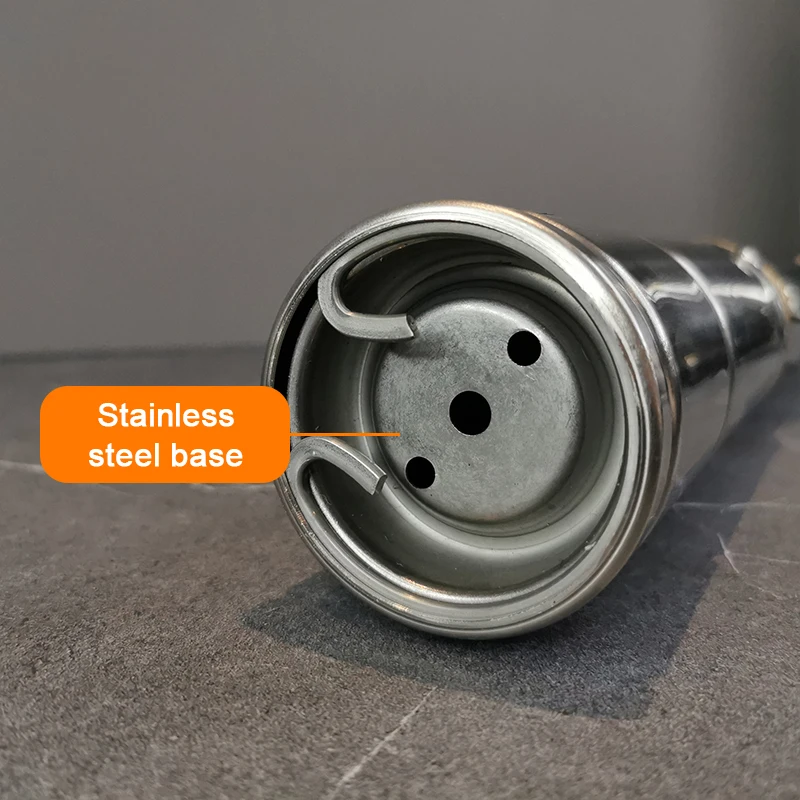

DC Solar Pump Details

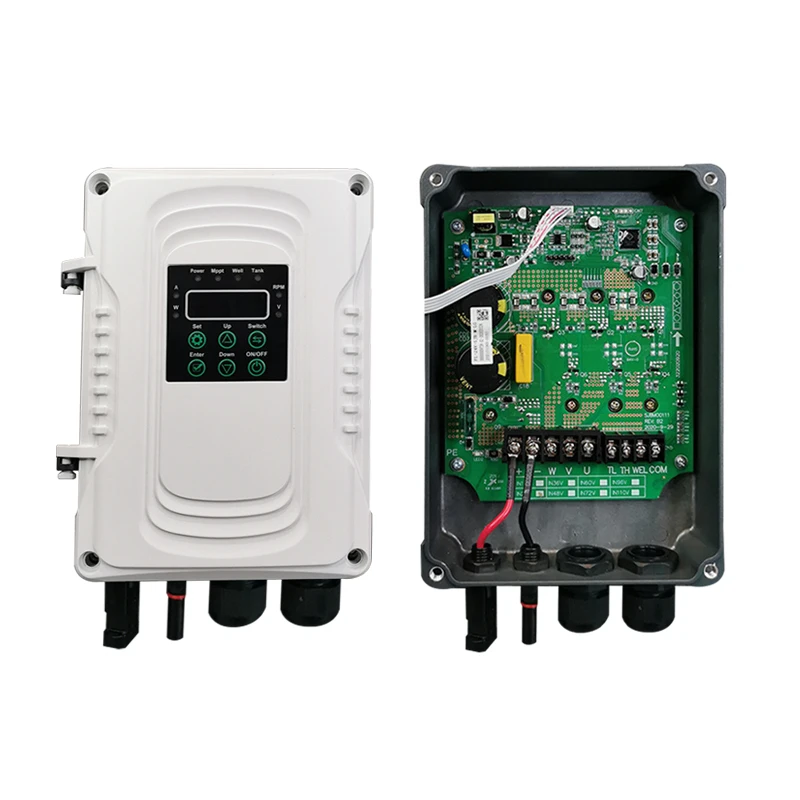

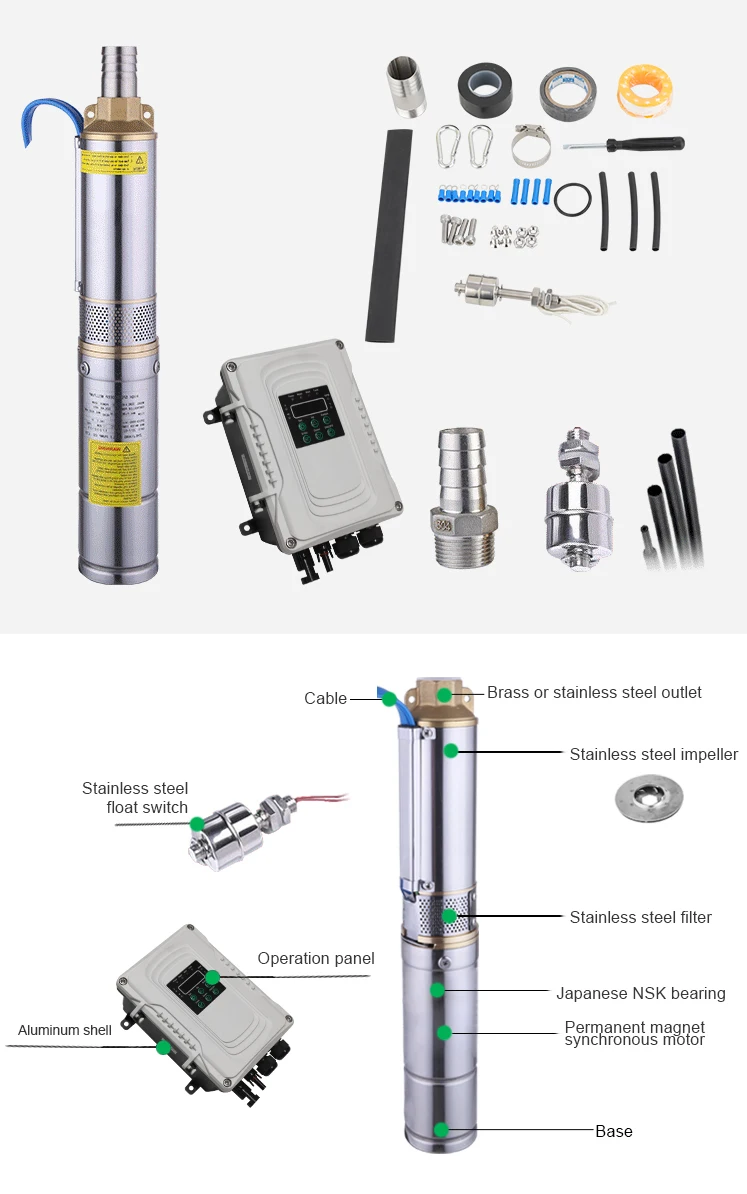

What else fitting we can be supplied?
Related Solar Products
DC Solar Pump Connect ways

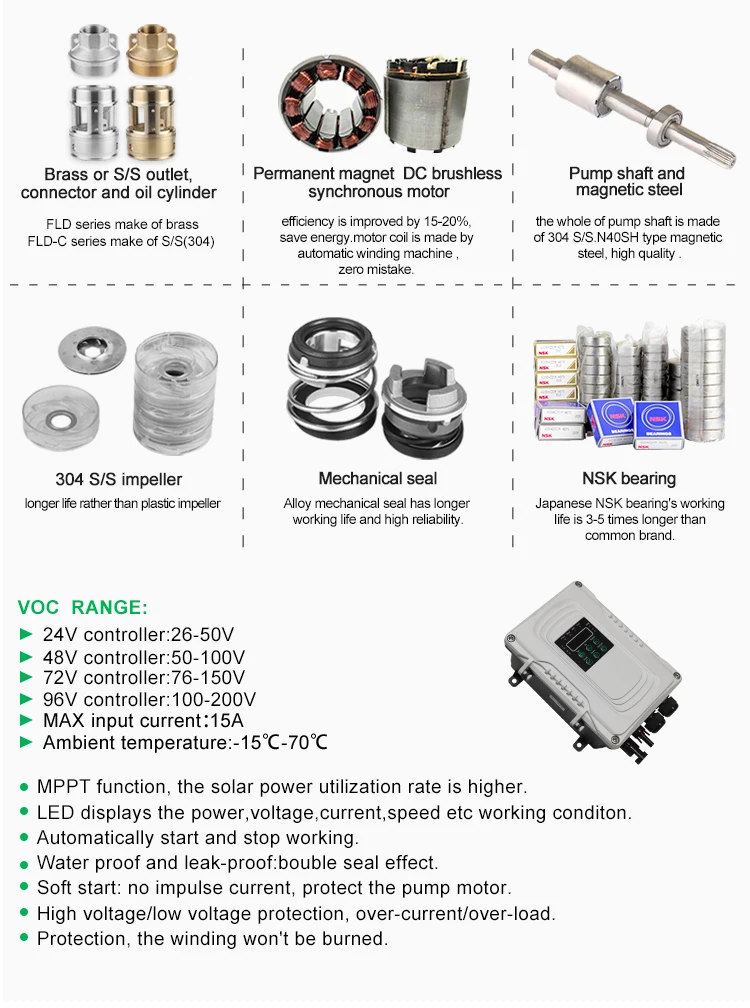

DC Solar Pump Advantage
Product Parameters
Model | Rated/Max Flow (m3/h) | Rated/Max Head (m) | Pump | Solar Panels | Pump Dia (inch) | Outlet Dia (inch) | ||||||||||
Voltage(v) | Power(w) | Voc(v) | Power(w) | |||||||||||||
3inch Solar Screw Pump | ||||||||||||||||
3FLS1.0/30-D24/80 | 1 | 30 | DC24 | 80W | 25-50 | 150 | 3 | 0.75 | ||||||||
3FLS1.3/50-D24/140 | 1.3 | 50 | DC24 | 140W | 25-50 | 200 | 3 | 0.75 | ||||||||
3FLS1.8/80-D24/210 | 1.8 | 80 | DC24 | 210W | 25-50 | 300 | 3 | 0.75 | ||||||||
3FLS1.8/100-D24/270 | 1.8 | 100 | DC48 | 300W | 25-50 | 500 | 3 | 0.75 | ||||||||
3FLS1.8/120-D36/500 | 1.8 | 120 | DC48 | 500W | 50-100 | 800 | 3 | 0.75 | ||||||||
3FLS2.3/140-D48/750 | 2.3 | 140 | DC48 | 750W | 50-100 | 1125 | 3 | 0.75 | ||||||||
3FLS2.3/160-D72/1100 | 2.3 | 160 | DC72 | 1100W | 75-150V | 1650 | 3 | 0.75 | ||||||||
3FLS2.3/180-D72/1200 | 2.3 | 180 | DC72 | 1200W | 75-150V | 1800 | 3 | 0.75 | ||||||||
3inch Solar Centrifugal Pump | ||||||||||||||||
3FLD2.5-15-24-140 | 0.5/2.5 | 9/15 | DC24 | 140 | 25-50 | 200 | 3 | 1 / 1.25 | ||||||||
3FLD2.7-22-24-180 | 0.8/2.7 | 15/22 | DC24 | 180 | 25-50 | 250 | 3 | 1 / 1.25 | ||||||||
3FLD3-35-24-300 | 2/3 | 16/35 | DC24 | 300 | 25-50 | 450 | 3 | 1 / 1.25 | ||||||||
3FLD3-35-48-300 | 2/3 | 16/35 | DC48 | 300 | 50-100 | 450 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-40-48-400 | 1/3.2 | 30/40 | DC48 | 400 | 50-100 | 600 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-54-48-550 | 1/3.2 | 40/54 | DC48 | 550 | 50-100 | 825 | 3 | 1 / 1.25 | ||||||||
3FLD5-35-48-550 | 2/5 | 22/35 | DC48 | 550 | 50-100 | 825 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-65-48-600 | 1/3.2 | 48/65 | DC48 | 600 | 50-100 | 900 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-80-48-750 | 3/5 | 33/50 | DC48 | 750 | 50-100 | 1125 | 3 | 1 / 1.25 | ||||||||
3FLD5-50-48-750 | 3/5 | 33/50 | DC48 | 750 | 50-100 | 1125 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-80-72-750 | 1/3.2 | 60/80 | DC72 | 750 | 75-150V | 1125 | 3 | 1 / 1.25 | ||||||||
3FLD5-50-72-750 | 3/5 | 33/50 | DC72 | 750 | 75-150V | 1125 | 3 | 1 / 1.25 | ||||||||
3FLD3.2-120-72-1100 | 1/3.2 | 80/120 | DC72 | 1100 | 75-150V | 1650 | 3 | 1 / 1.25 | ||||||||
3FLD5-72-72-1100 | 3/5 | 50/72 | DC72 | 1100 | 75-150V | 1650 | 3 | 1 / 1.25 | ||||||||
3FLD5.4-85-96-1300 | 3/5.4 | 63/85 | DC96 | 1300 | 100-200V | 1950 | 3 | 1 / 1.25 | ||||||||
4inch Solar Centrifugal Pump | ||||||||||||||||
4FLD3.4-50-48-550 | /3.4 | /50 | DC48 | 550 | 50-100 | 825 | 4 | 1.25/1.5 | ||||||||
4FLD5-36-48-550 | /5 | /36 | DC48 | 550 | 50-100 | 825 | 4 | 1.25/1.5 | ||||||||
4FLD7-30-48-550 | /7 | /30 | DC48 | 550 | 50-100 | 825 | 4 | 1.25/1.5 | ||||||||
4FLD10-21-48-550 | /10 | /21 | DC48 | 550 | 50-100 | 825 | 4 | 1.5 | ||||||||
4FLD3.4-80-48-750 | /3.4 | /80 | DC48 | 750 | 50-100 | 1125 | 4 | 1.25 | ||||||||
4FLD5-54-48-750 | /5 | /54 | DC48 | 750 | 50-100 | 1125 | 4 | 1.25 | ||||||||
4FLD7-40-48-750 | /7 | /40 | DC48 | 750 | 50-100 | 1125 | 4 | 1.25 | ||||||||
4FLD10-32-48-750 | /10 | /32 | DC48 | 750 | 50-100 | 1125 | 4 | 1.5 | ||||||||
4FLD3.4-96-72-1100 | /3.4 | /96 | DC72 | 1100 | 75-150V | 1650 | 4 | 1.25/1.5 | ||||||||
4FLD5-72-72-1100 | /5 | /72 | DC72 | 1100 | 75-150V | 1650 | 4 | 1.25/1.5 | ||||||||
4FLD7-60-72-1100 | /7 | /60 | DC72 | 1100 | 75-150V | 1650 | 4 | 1.25/1.5 | ||||||||
4FLD10-43-72-1100 | /10 | /43 | DC72 | 1100 | 75-150V | 1650 | 4 | 1.5 | ||||||||
4FLD18-22-72-1100 | /18 | /22 | DC72 | 1100 | 75-150V | 1650 | 4 | 2 | ||||||||
6FLD34-15-72-1100 | /34 | /15 | DC72 | 1100 | 75-150V | 1650 | 6 | 3 | ||||||||
4FLD3.4-140-96-1300 | /3.4 | /140 | DC96 | 1300 | 100-200V | 1950 | 4 | 1.25/1.5 | ||||||||
4FLD5-120-96-1300 | /5 | /120 | DC96 | 1300 | 100-200V | 1950 | 4 | 1.25/1.5 | ||||||||
4FLD7-95-96-1300 | /7 | /95 | DC96 | 1300 | 100-200V | 1950 | 4 | 1.25/1.5 | ||||||||
4FLD10-60-96-1300 | /10 | /60 | DC96 | 1300 | 100-200V | 1950 | 4 | 1.5 | ||||||||
4FLD18-33-96-1300 | /18 | /33 | DC96 | 1300 | 100-200V | 1950 | 4 | 2 | ||||||||
6FLD38-18-96-1300 | /38 | /18 | DC96 | 1300 | 100-200V | 1950 | 6 | 3 | ||||||||
4FLD3.7-154-96-1500 | 3.7 | 154 | DC96 | 1500 | 100-200V | 2250 | 4 | 1.25/1.5 | ||||||||
4FLD5.5-132-96-1500 | 5.5 | 132 | DC96 | 1500 | 100-200V | 2250 | 4 | 1.25/1.5 | ||||||||
4FLD7.7-105-96-1500 | 7.7 | 105 | DC96 | 1500 | 100-200V | 2250 | 4 | 1.25/1.5 | ||||||||
4FLD11-66-96-1500 | 11 | 66 | DC96 | 1500 | 100-200V | 2250 | 4 | 1.5 | ||||||||
4FLD20-36-96-1500 | 20 | 36 | DC96 | 1500 | 100-200V | 2250 | 4 | 2 | ||||||||
6FLD42-20-96-1500 | 42 | 20 | DC96 | 1500 | 100-200V | 2250 | 6 | 3 | ||||||||
Application and Feedback
