Product Overview
Description

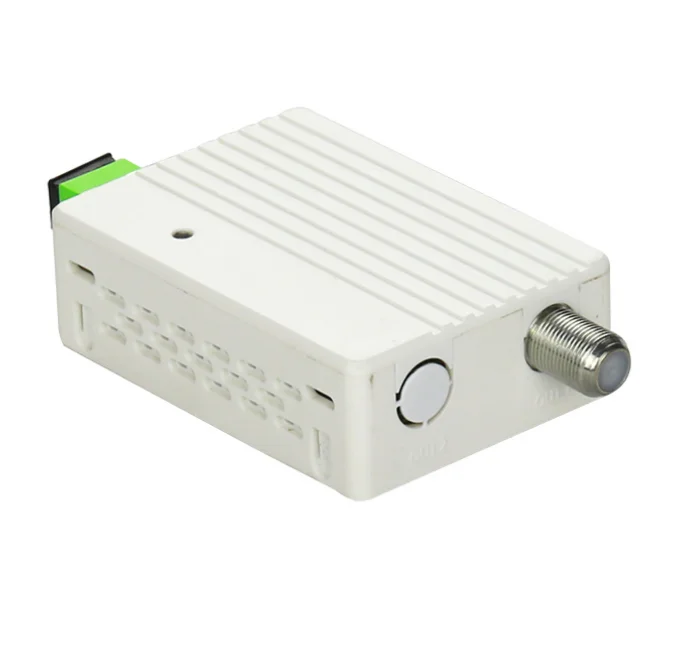

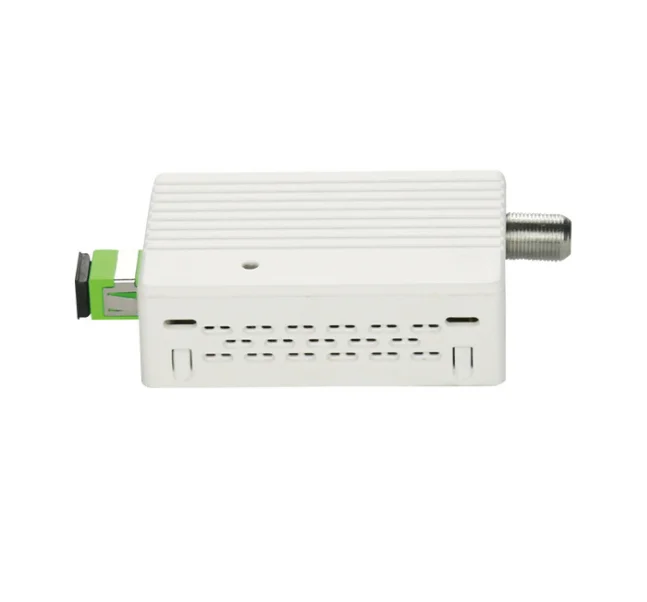

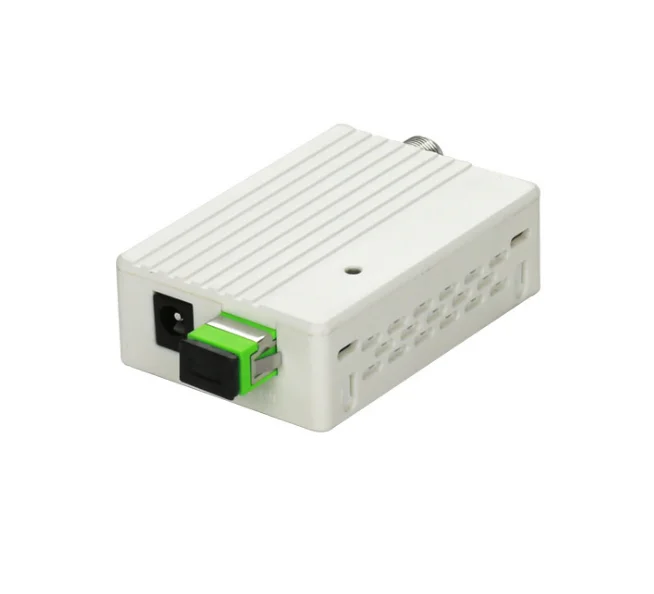

Fiber Optic to RF Converter AGC CATV Home FTTH Node,Digital Cable TV Receiver Optic CATV Receiver
OR18 Series AGC Control 1550nm filter 1 output optical receiver node is a home-based optical receiver for FTTH (fiber to the home) network optical fiber access terminal, in order to achieve analog or digital signal. The machine uses low-power optical detectors, GaAs and AGC technology to meet the needs of FTTH CATV reception. A variety of functional products in the application, slightly different. OR18A and OR18B pay attention to product economy practicability, among them OR18B has AGC control function, bring economical application to the user, the minimum that the digital signal receives is -15dBm; OR18C and OR18D pay attention to the product high performance index, possess AGC function, digital signal receive 0 ~ -18dBm.

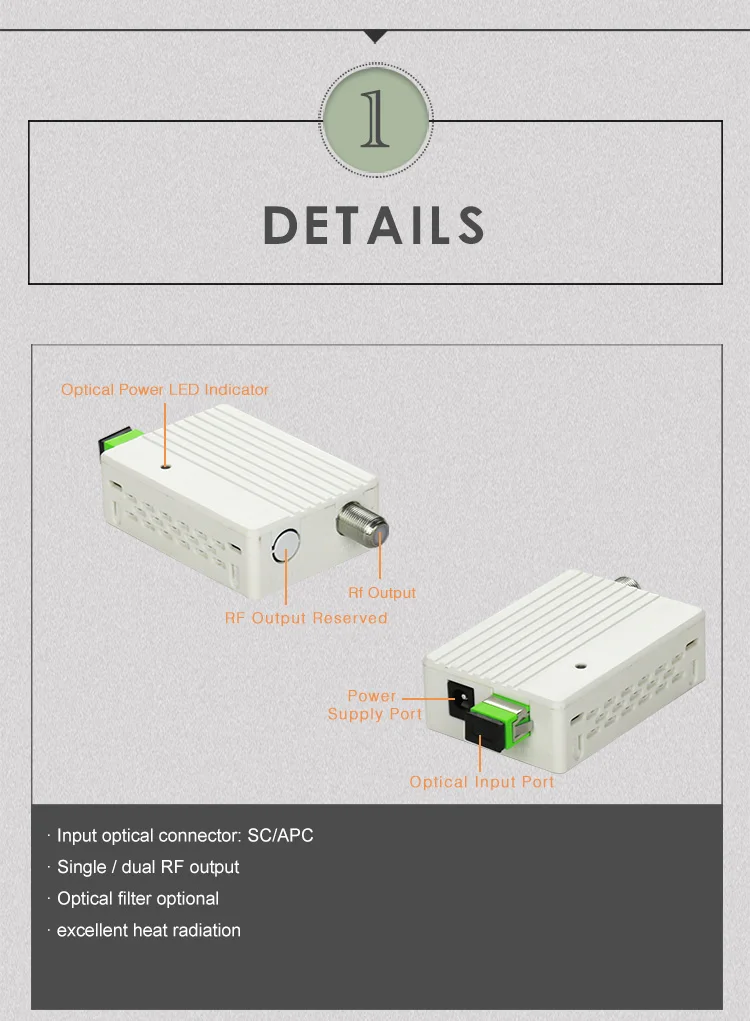

Features
OR18 FTTH optical receiver provides customers with a variety of options to meet the actual needs of different networks.
OR18A: Economic models, no AGC, the lowest digital signal reception -15dBm, the output level ≥ 100dBuv (PIN = 0dBm);
OR18B: Economic models, AGC range optional, the lowest digital signal receiver -15dBm, the output level ≥ 80dBuv (AGC: 0 ~ -9dBm)
OR18C: Economic + Performance: AGC range optional, the minimum digital signal reception-18dBm, the output level ≥ 73dBuv (AGC: 0 ~ -9dBm)
OR18D: High performance: AGC range optional, the lowest digital signal reception -18dBm, the output level ≥ 94dBuv (AGC: 0 ~ -9dBm)
OR18A: Economic models, no AGC, the lowest digital signal reception -15dBm, the output level ≥ 100dBuv (PIN = 0dBm);
OR18B: Economic models, AGC range optional, the lowest digital signal receiver -15dBm, the output level ≥ 80dBuv (AGC: 0 ~ -9dBm)
OR18C: Economic + Performance: AGC range optional, the minimum digital signal reception-18dBm, the output level ≥ 73dBuv (AGC: 0 ~ -9dBm)
OR18D: High performance: AGC range optional, the lowest digital signal reception -18dBm, the output level ≥ 94dBuv (AGC: 0 ~ -9dBm)

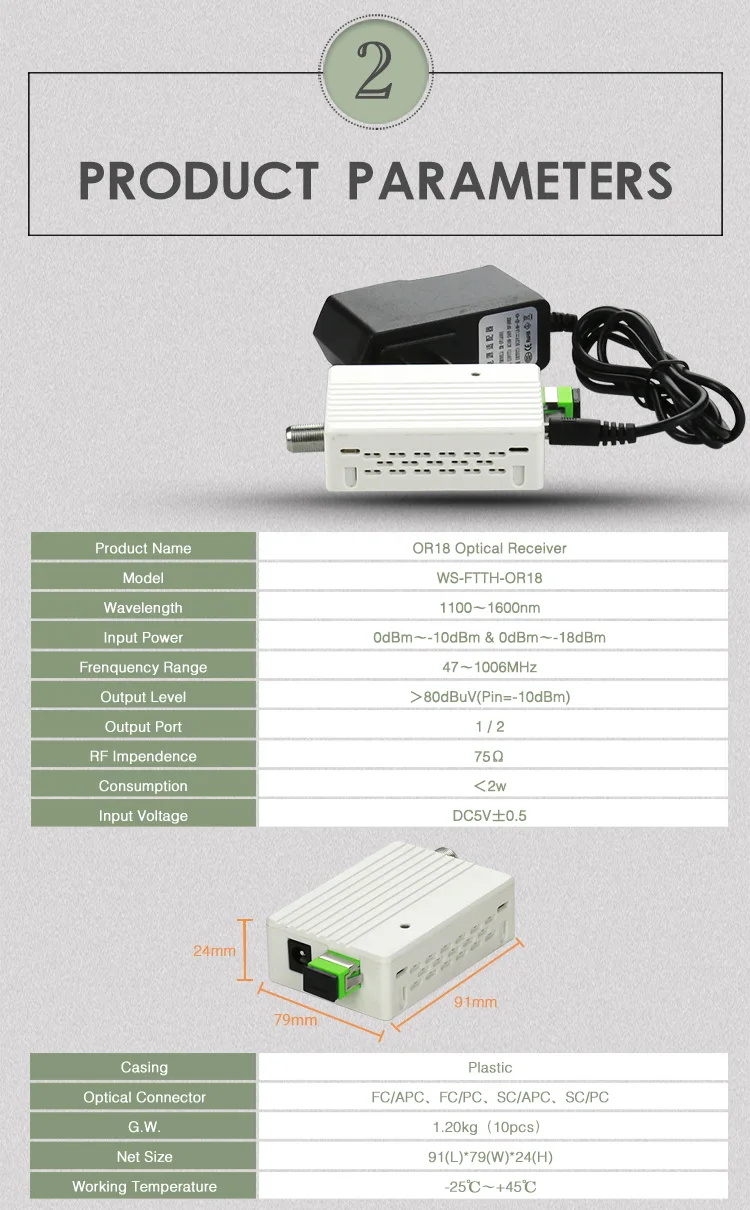

Model | OR18A | OR18B | OR18C | OR18D | |||||
Wavelength | 1100~1600nm&1550nm | ||||||||
Input Optical Power | 0dBm~-10dBm(analog)&0dBm~-15dBm(digital) | 0dBm~-10dBm(analog)&0dBm~-18dBm(digital) | |||||||
Return Loss | >45 dB | ||||||||
Optical Connector | FC/APC&SC/APC&FC/PC&SC/PC | ||||||||
RF Bandwidth | 40~1006MHz | ||||||||
Flatness | ±1dB@40~1006MHz | ||||||||
RF Output Loss | ≥16dB@ 40~550MHz ≥14dB@550~1006MHz | ||||||||
Output Level(single port)Pin@-15dBm | (70±1)dBuV | (67±1)dBuV | (61±1)dBuV | (82±1)dBuV | |||||
Output Port | 1&2(customize) | ||||||||
Output Impedance | 75Ω | ||||||||
AGC Range | 0dBm~-9dBm&-3dBm~-12dBm(customize)&-6dBm~-15dBm(customize) | ||||||||
C/N(Note 1) | ≥51dB | ||||||||
CTB(Note 1) | ≥65dB | ||||||||
CSO(Note 1) | ≥62dB | ||||||||
Equipment Volatage | DC5V±0.5 | ||||||||
Adapter Volatage | AC220V | ||||||||
Inner Feedback Volatage | DC5V±0.5 | ||||||||
Working Temperature | -25℃ ~+45℃ | ||||||||
Consumption | <2W | ||||||||
Size | 91×79×24mm | ||||||||
Carton Gross Weight | 1.20kgs(10pcs) | ||||||||
Related Products
Packing & Delivery

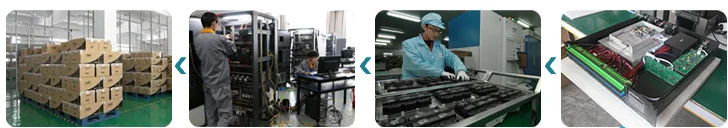

Company Profile
