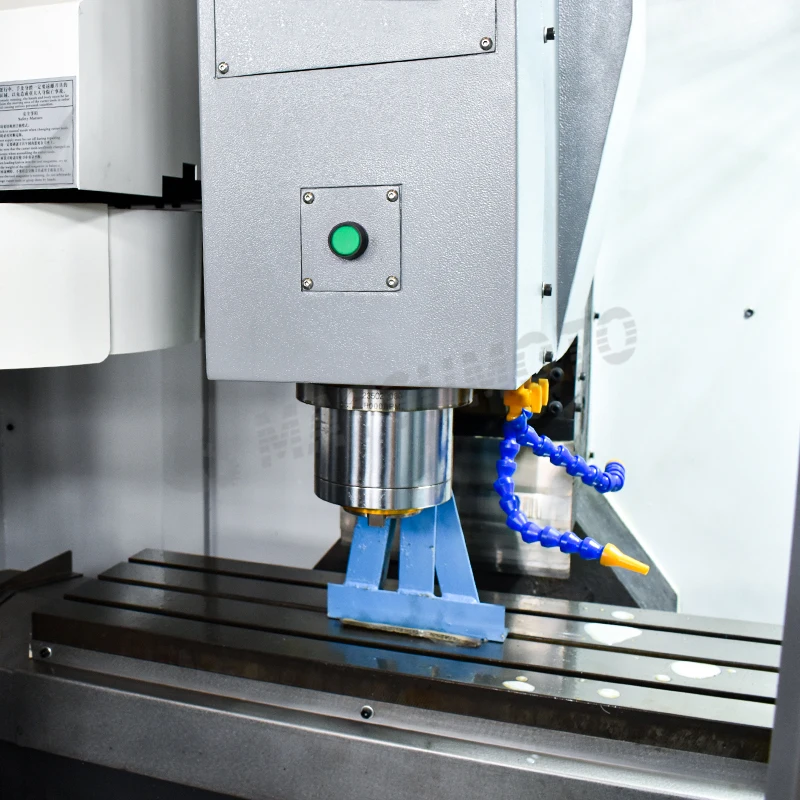

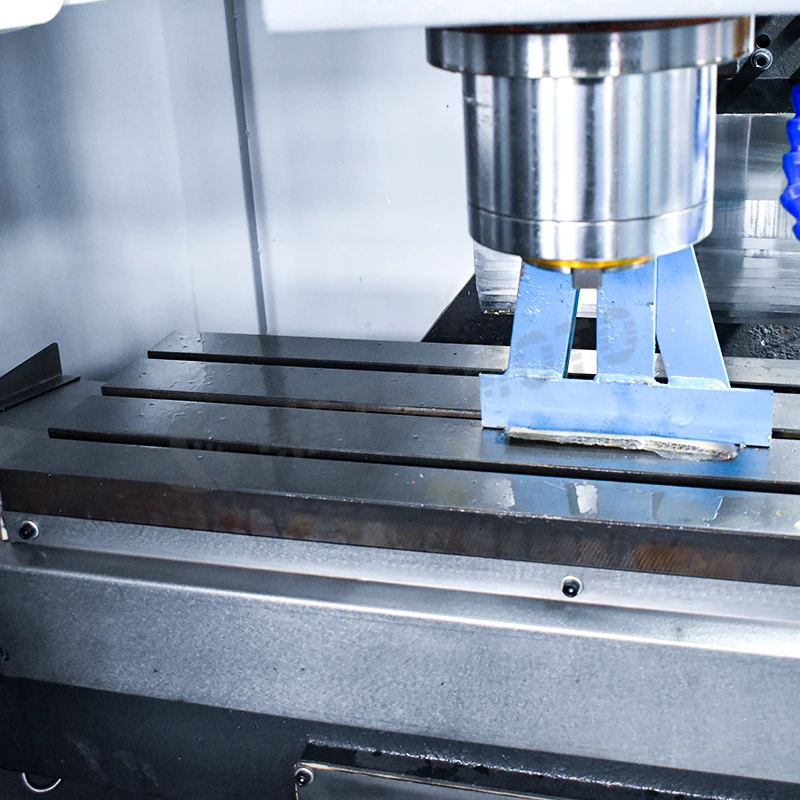

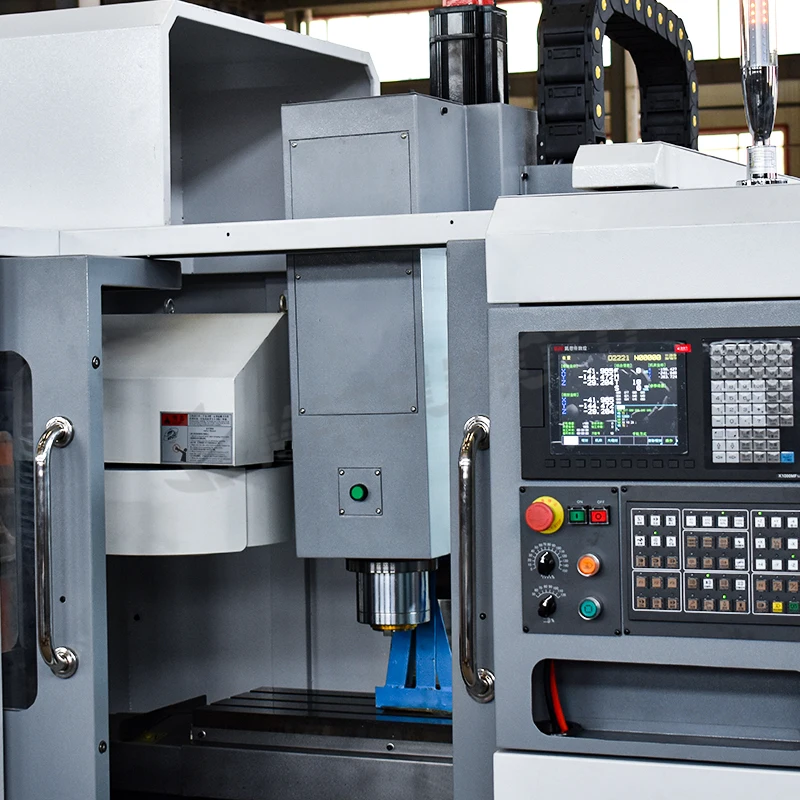

VERTICAL MACHINE CENTER XK7126

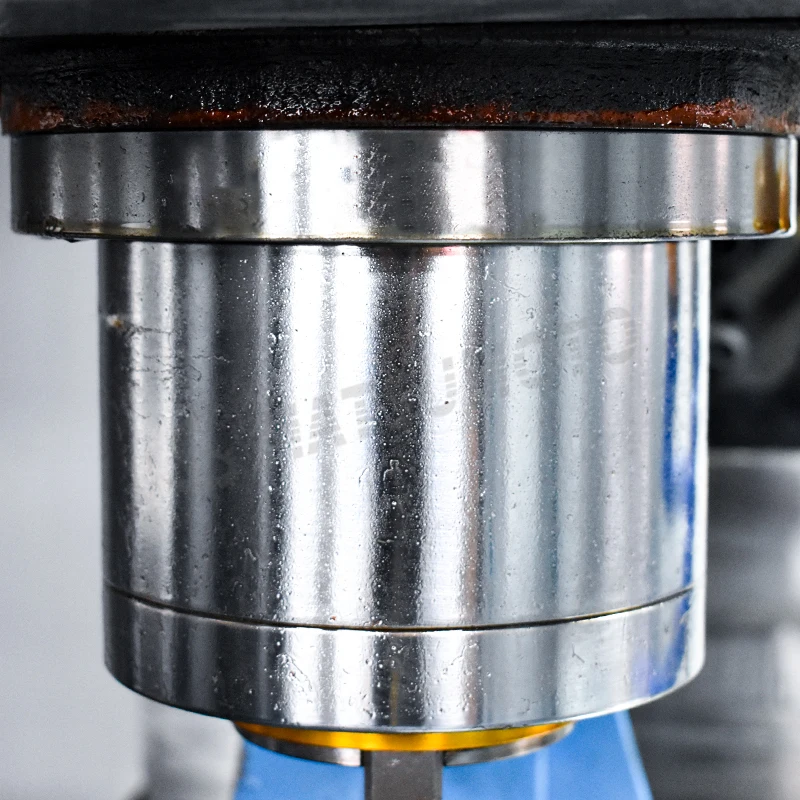

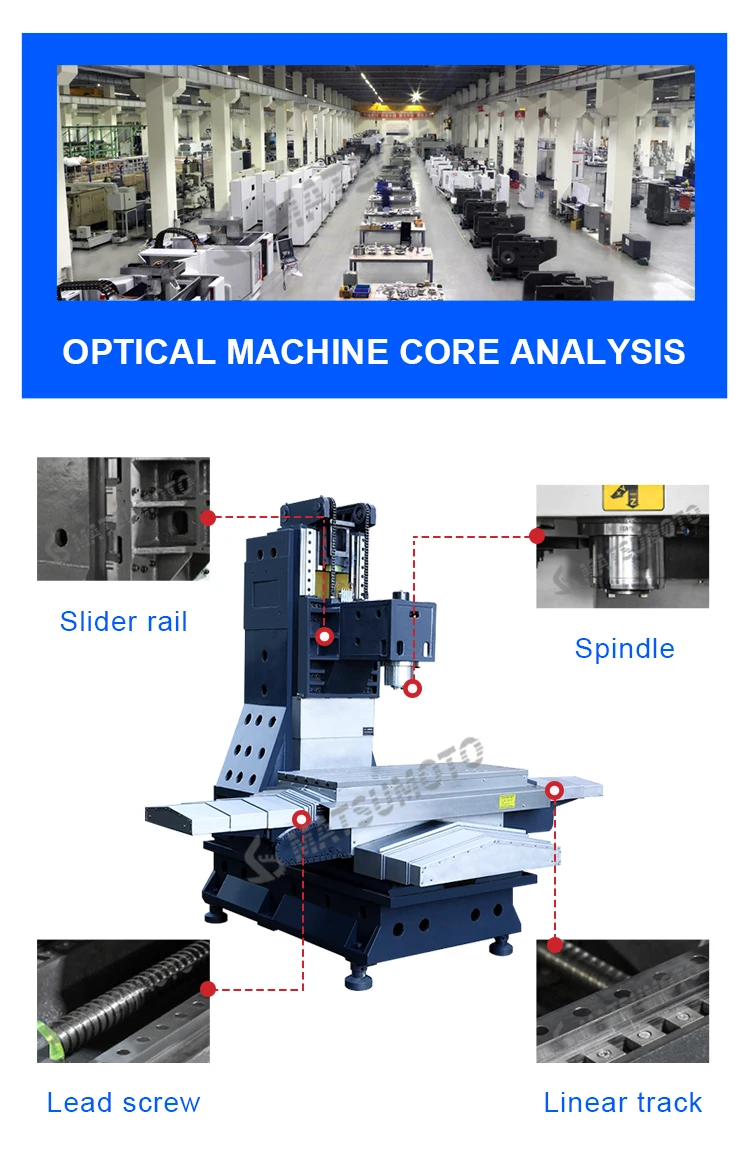

FEATURES:Use strong rigid casting steel. X/Y/Z axis are supplied with rectangular guide ways by plastic sticker,edium frequency quenching and precisely scraping. Spindle from Taiwan with high speed and precision. Imported bearing with high precision.Coolant system equipped with pump of large flow and high lift pump to insure enough cooling under high-speed cutting.
SPECIFICATIONS:
ITEM | XK7126 |
X-Axis travel | 500mm |
Y-Axis travel | 320mm |
Z-Axis travel | 375mm |
Distance from Spindle nose to worktable surface | 25-425mm |
Distance from spindle center to surface of column ram | 343mm |
T slot (width×number) | 16mm×3 |
Worktable size | 600×300mm |
Max.loading of worktable | 120Kg |
Power of spindle motor | 3.7KW |
Spindle speed | 6000-10000rpm |
Spindle taper | BT30 |
Spindle bearing | P4 |
Rapid traverse speed of 3 axis | X /Y 15m/min |
Z 15m/min | |
Cutting feed rate | 0-4000mm/min |
Min.set unit & moving unit | 0.001mm |
Pitch of X/Y axis | 6mm |
Pitch of Z axis | 6mm |
Positioning accuracy (300mm) | ±0.008 |
Repeatability accuracy (300mm) | ±0.005 |
Changing way of tools | Cloak'type |

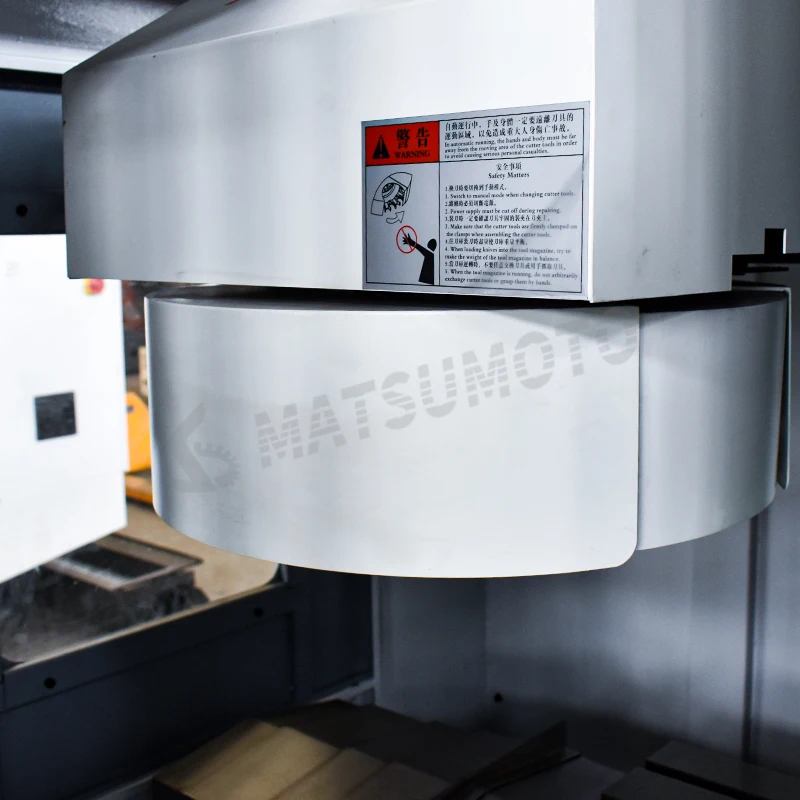

Tool magazine | 12 |
Tool spec. max.dia. (neighboring Tool)×weight×length | φ60mm×3.5Kg×175 |
Tool changing time | 6s |
Machine weight | 1800kg |
Power of cooling pump for cutting | 370W |
Overall size | 1700*1640*2100mm |
