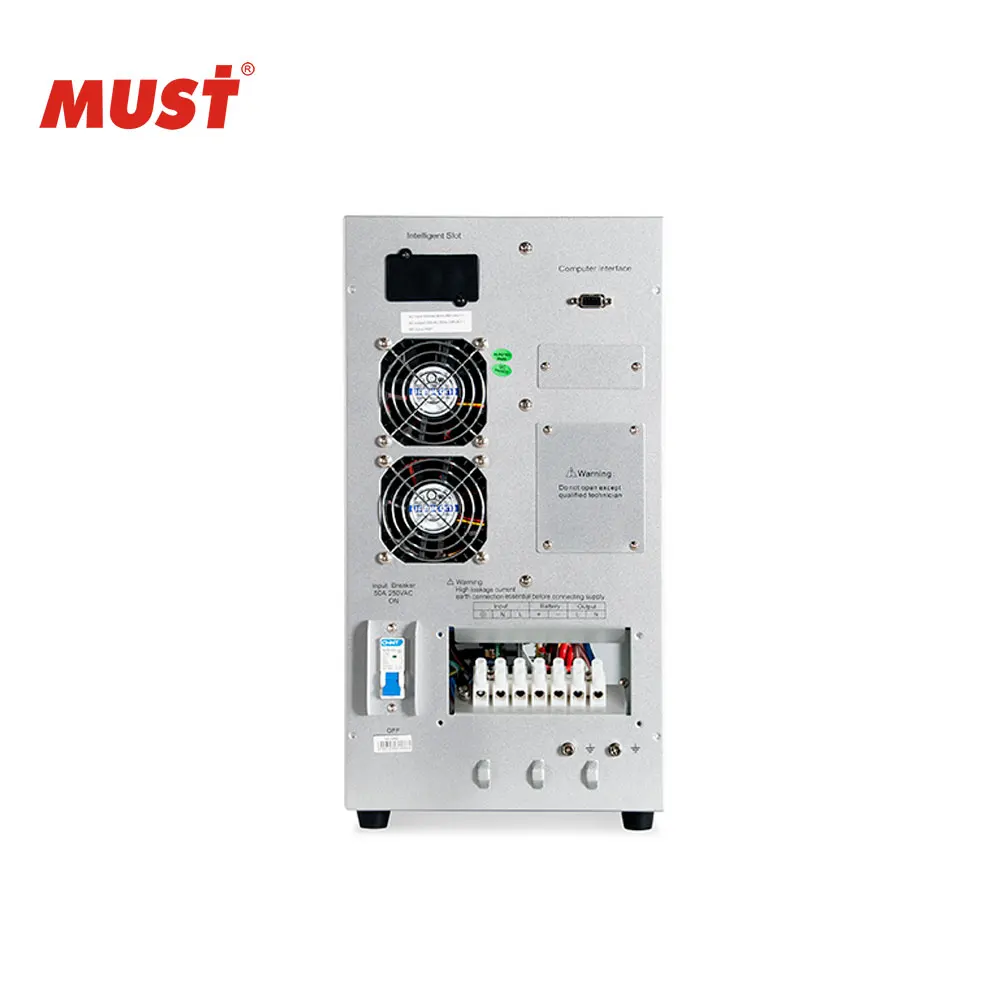

MUST High frequency Online UPS 10KVA three phase with 192vdc external battery set
- Category: >>>
- Supplier: Shenzhen Must Power Limited
Share on (1600249283038):
Product Overview
Description
***************ANY QUESTIONS, INQURIES WELCOMED TO ZOEY !!!!***************
WHATSAPP/WECHAT: 008613694205624
MUST Smallest UPS battery backup 220v 6kva 10kva with external battery high frequency

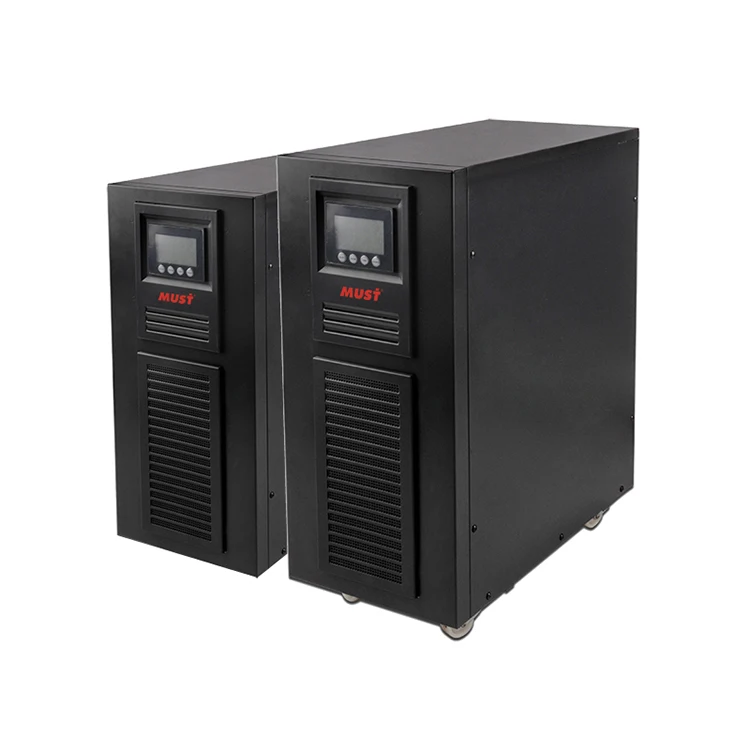

Product Description
This Online Series is an uninterruptible power supply incorporating conversion technology. It provides perfect protection specifically for computer equipment, communication systems to computerized instruments.The double-conversion principle eliminates all mains power disturbances. A rectifier converts the alternating current from the utility power to direct current. This direct current charges the batteries and powers the inverter. On the basis of this DC voltage. the inverter generates a sinusoidal AC voltage which is constantly powering the loads.Computers and Peripherals are thus powered entirely by the UPS. In the event of power failure, the maintenance-free batteries power the inverter.

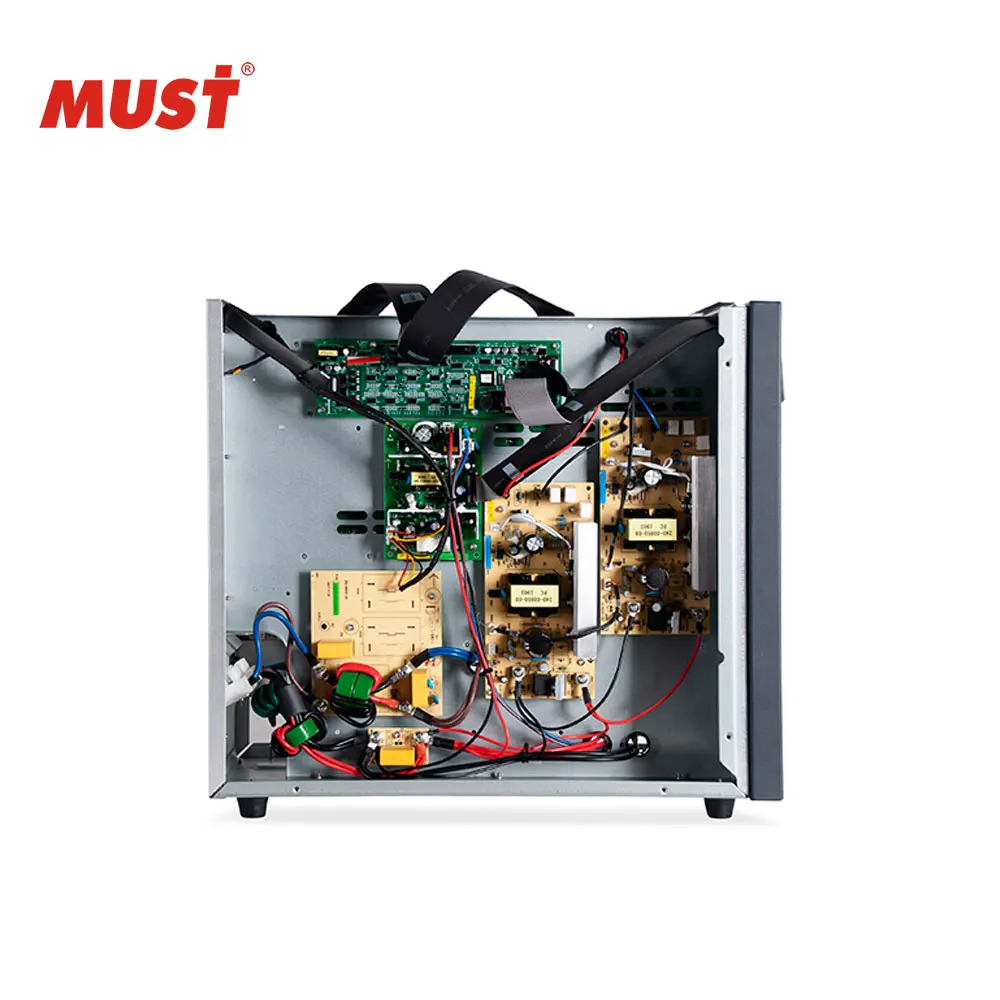

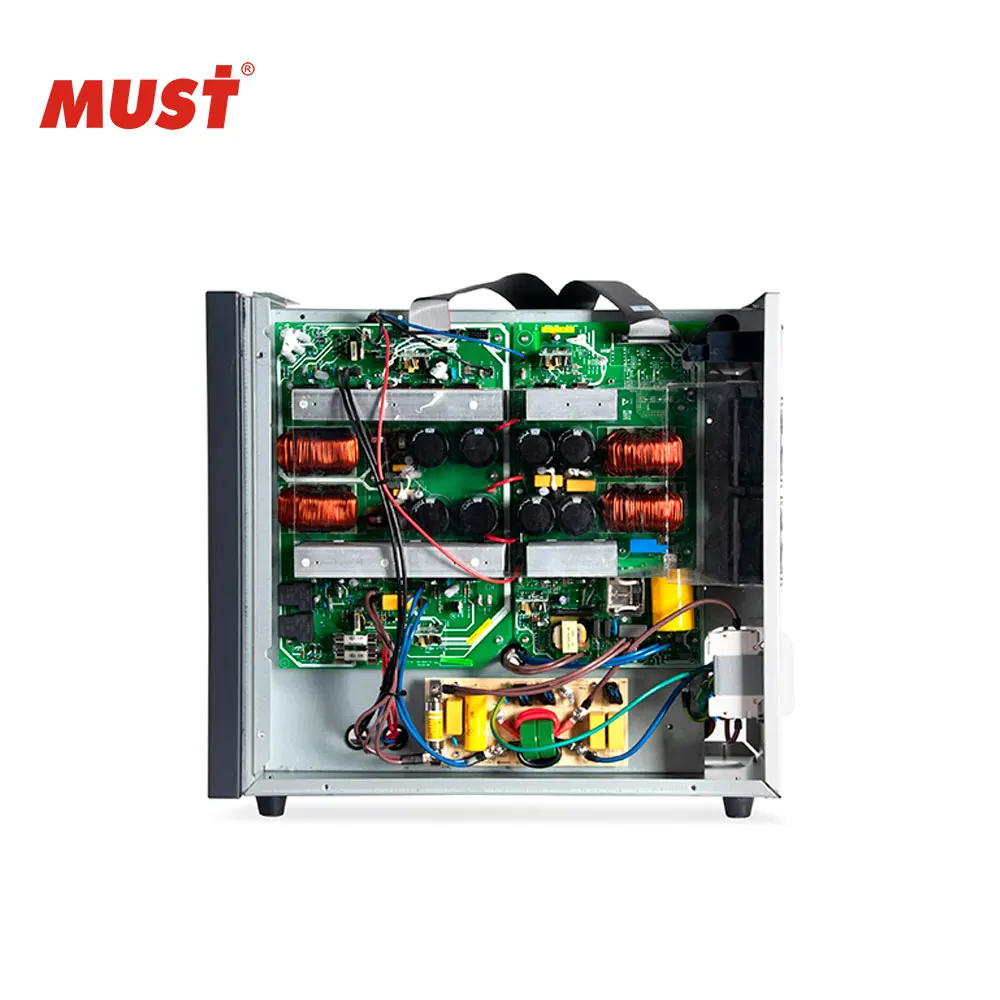

Internal structure.
EH5000 Series High Frequency Online UPS (10-20KVA) features
* Uninterruptible power supply incorporating conversion technology;
* Overload, over voltage ,over current ,over temperature protection;
* Specifically for computer equipment, communication systems to computerized instruments;
* Double-conversion principle eliminates all mains power disturbances. A rectifier converts the alternating current from the utility power to direct current;
* This direct current charges the batteries and powers the inverter. On the basis of this DC voltage.The inverter generates a sinusoidal AC voltage which is constantly powering the loads;
* In the event of power failure, the maintenance-free batteries power the inverter.
SPECIFICATION
| Model | 3HC10KS | 3HC15KS | 3HC20KS |
|---|---|---|---|
| Capacity(VA/W) | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW |
| INPUT | |||
| Phase | 3PH 4W+G | ||
| Voltage Range | 210 ~ 475VAC | ||
| Frequency | 46~64Hz; 50~60Hz Autoadaptation | ||
| Power Factor | >0.95 | ||
| OUTPUT | |||
| Voltage Range | 220/ 230/240* (1±1%) VAC | ||
| Frequency Range | Main Mode: (46 ~ 54)Hz/(56 ~ 64)Hz; Battery Mode: 50 Hz(± 0.1%) Hz or 60 Hz(± 0.1%) Hz | ||
| Crest Ratio | 3:1 | ||
| Power Factor | 0.8 | ||
| Wave Form | Pure Sine wave | ||
| Outlet | Hard Wiring with Terminal Black | ||
| TRANSFER TIME | |||
| Transfer Time | Zero | ||
| Inverter To Bypass | Zero | ||
| INDICATOR | |||
| LED Panel | Load/ Battery Capacity/ Main Mode/ Bypass Mode/ Fault | ||
| LCD Panel | Load/ Battery/ Input/ Output/Operation Mode | ||
| ENVIRONMENT | |||
| Operating Environment | 0- 40°C | ||
| Humidity | 20-90 % (non-condensing) | ||
| Noise Level | < 60dB @ 1 Meter | ||
| Temperature | -25°C – 55°C(no battery) | ||
| OTHER | |||
| Protection | Load<105%, Keeping working; 105% 1min; 125% 30sec | ||
| Efficiency | Up to 90% | ||
| Battery Inbuilt | External battery | ||
| Battery DC Voltage | DC192V | ||
| PHYSICAL | |||
| Dimension W*H*D(mm) | 248*500*616 | ||
| Net Weight(kgs) | 27 | 35 | 35 |
| MANAGEMENT | |||
| Smart RS-232/USB | Supports Windows®98/2000/2003/XP/Vista/2008,Windows®7,Linux,and MAC | ||
| Optional SNMP | Power management from SNMP manager and web browser | ||
Packaging & Shipping
Our Services
Samples and OEM, Warranty and After-Sale Service:
- Welcome Solar Power Inverter Sample Test
- OEM Welcomed
- Warranty:1 Year
- After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
How To Ask for Support if products broken in warrenty?
1. email us about PI number, Product number, most importantly, is the
description of broken products, to the best, show us more detailed pictures or video.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.

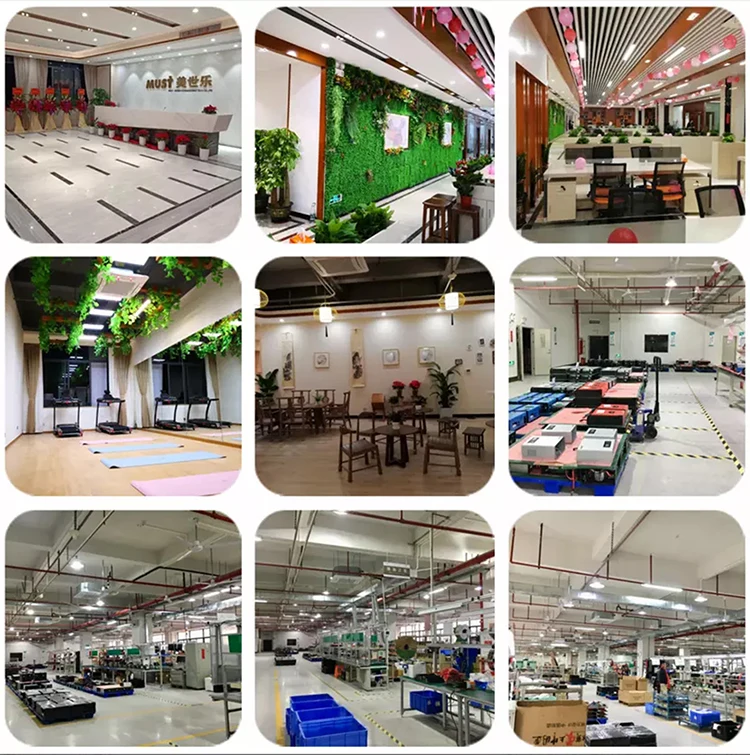

Company Information
| Must Company Information |
| Headquarter & Factory Location | In HongKong & Foshan,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 15000 Square Meters, 420 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
FAQ
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
