AC220V AC24V DC24V 4 20mA actuator UPVC Plastic butterfly valve electric pvc valve
- Category: >>>
- Supplier: Guangzhou Rotk Valve Technology Co. Ltd.
Share on (1600249285274):
Product Overview
Description
Specification
Specification of Electric Actuator | ||||||||||||||||
Items Parameter | RTKD-05 | RTKD-10 | RTKD-16 | RTKD-30 | RTKD-60 | RTKD-125 | RTKD-250 | RTKD-400 | ||||||||
Output torque | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm | ||||||||
Rated travel time | 5S/10S/20S | 15S/30S | 30S/60S | 100S | 100S | 100S | ||||||||||
Rotation angle | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | ||||||||
Working current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A | ||||||||
Starting power | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A | ||||||||
Motor power | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F | ||||||||
Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg | ||||||||
Power | AC220V, AC24V, AC110V , AC220 , AC380, DC24V (choose options) | |||||||||||||||
Input signal | 4-20mA (Modulating type) | |||||||||||||||
Output signal | 4-20mA (Modulating type) | |||||||||||||||
Insulation resistance | 100M/500VDC | |||||||||||||||
Pressure withstanding | 1500 VAC , one minutes | |||||||||||||||
Inbreaking protection | IP65/IP67 | |||||||||||||||
Installation angle | 360° any angle | |||||||||||||||
Electrical Interperation | one G1/2 CNCO,one Power cord connection port,one signal wire connection port | |||||||||||||||
Ambient humidity | -30°C to +60°C | |||||||||||||||
Pilot circuit options | A:with limit position switch style (standard) | |||||||||||||||
B: with neutral position switch style ( passive contact) | ||||||||||||||||
C:with potentiometer style | ||||||||||||||||
D: both potentiometer and neutral position switch style | ||||||||||||||||
E: with control module style ( Modulating Applications) | ||||||||||||||||
F: DC motor control circuit style | ||||||||||||||||
G:Three-phase current 380V control circuits style | ||||||||||||||||
H:Three-phase current 380V, both neutral position switch and potentiometer style | ||||||||||||||||

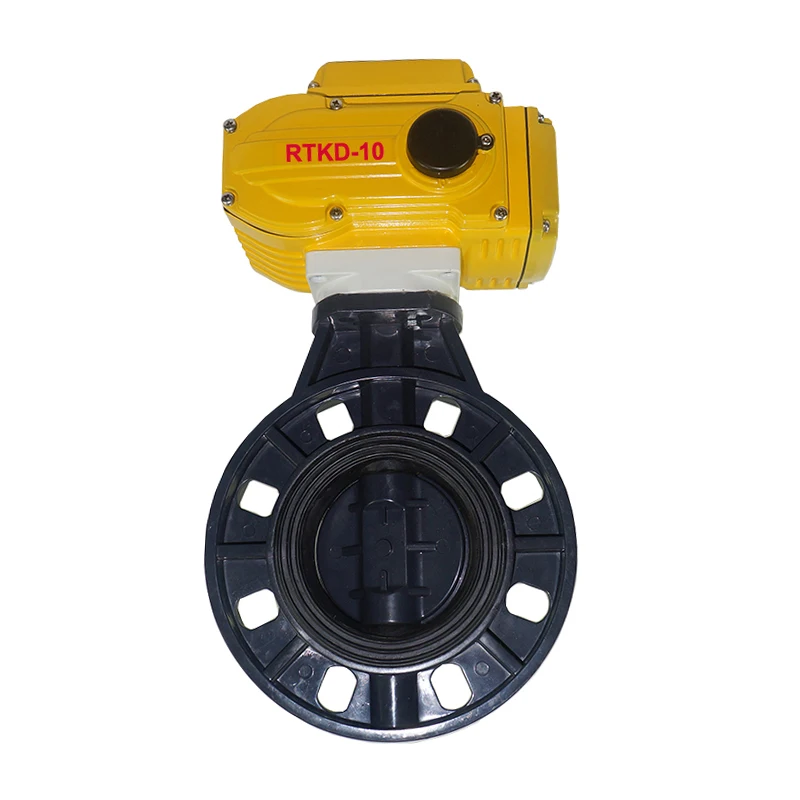

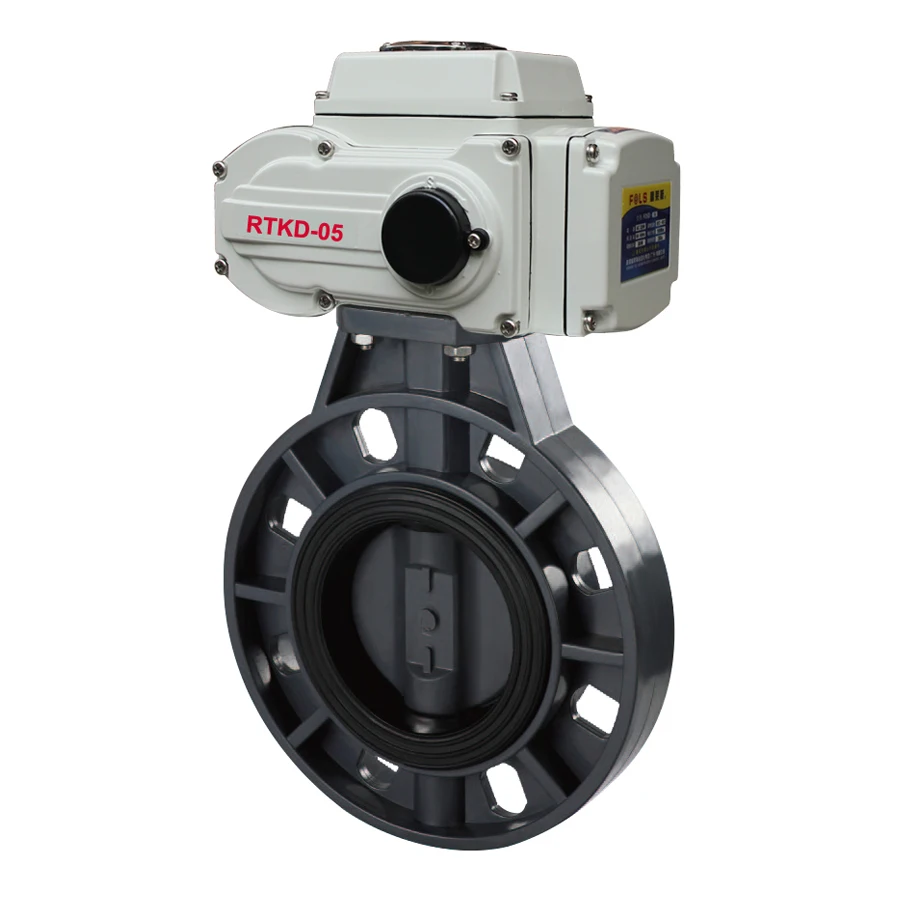

Product Picture
More type of electric actuator
Explosion-proof Type With handwheel Type Multiturn Type Small Type

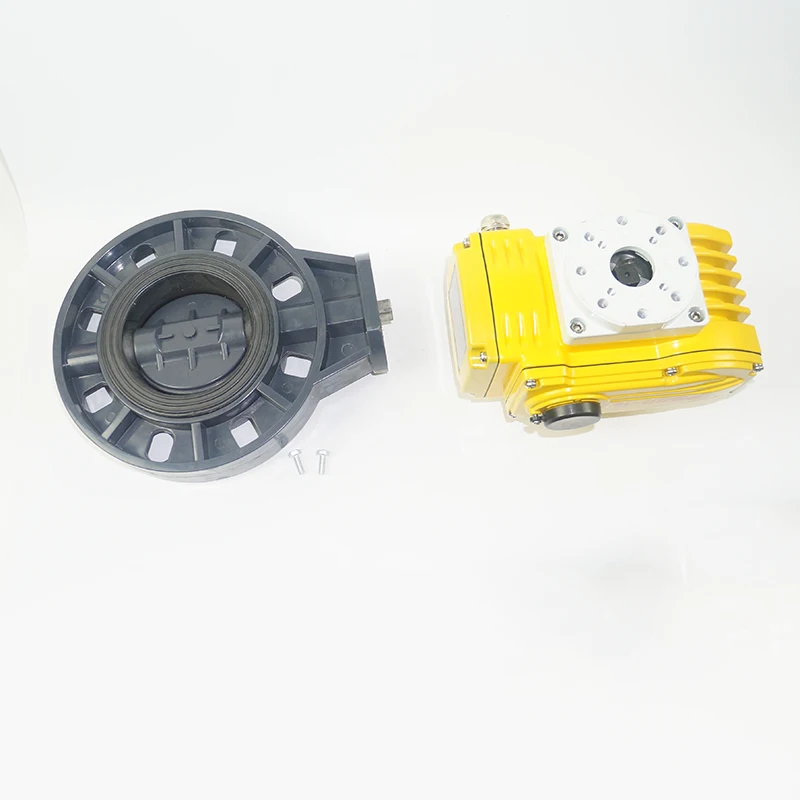

ISO 5211 Mounting
Electric actuator ( Optional)
Type | Control type | Function |
Electric actuator (optional) | ON-OFF type | Feedback: the active signal, passive contact signal, resistance, 4-20mA |
Regulation type | Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus | |
Filed operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus | |

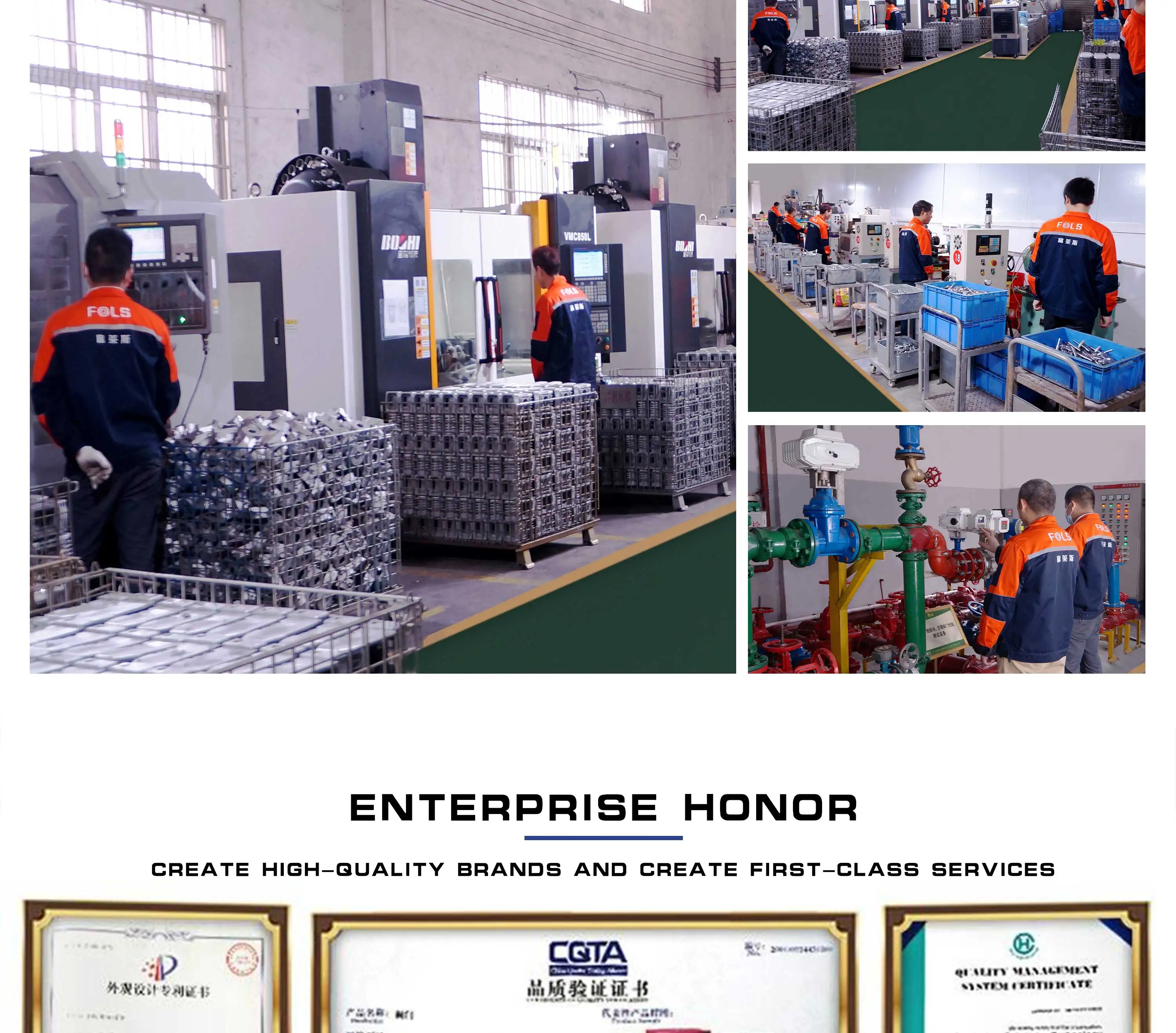

Production Flow
Packing & Delivery
Packing: Electric Actuators packed with foam in Carton or in Wooden box.
Delivery Time: 7-15 working days after payment confirmed.
Delivery Time: 7-15 working days after payment confirmed.
Related Products
Company Profile
Guangzhou Rotk Valve Technology Co., Ltd. is a manufacturer which has been specializing in electric,
pneumatic valve actuator, and in the research, development, production, sale and service of automatic
control system
Our main products the ROTK series of electric actuator are elaborately designed and manufactured by the
most advanced technology according to the practical situation.The ROTK series of electric actuator are
characterized by driving device and transmission gear in one, small volume, light weight,good-looking
appearance, and remarkable performance. They have been widely used in various fields, such as paper
making, pharmaceuticals, food, chemical, petroleum, electricity, fire protection, air-condition, water supply
and industrial automation and so on.
pneumatic valve actuator, and in the research, development, production, sale and service of automatic
control system
Our main products the ROTK series of electric actuator are elaborately designed and manufactured by the
most advanced technology according to the practical situation.The ROTK series of electric actuator are
characterized by driving device and transmission gear in one, small volume, light weight,good-looking
appearance, and remarkable performance. They have been widely used in various fields, such as paper
making, pharmaceuticals, food, chemical, petroleum, electricity, fire protection, air-condition, water supply
and industrial automation and so on.
Certifications
FAQ
1.How can i get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
