Parquet and Engineering Wood Flooring Hydraulic Press Clamp Carrier Machine

Product Overview

Description

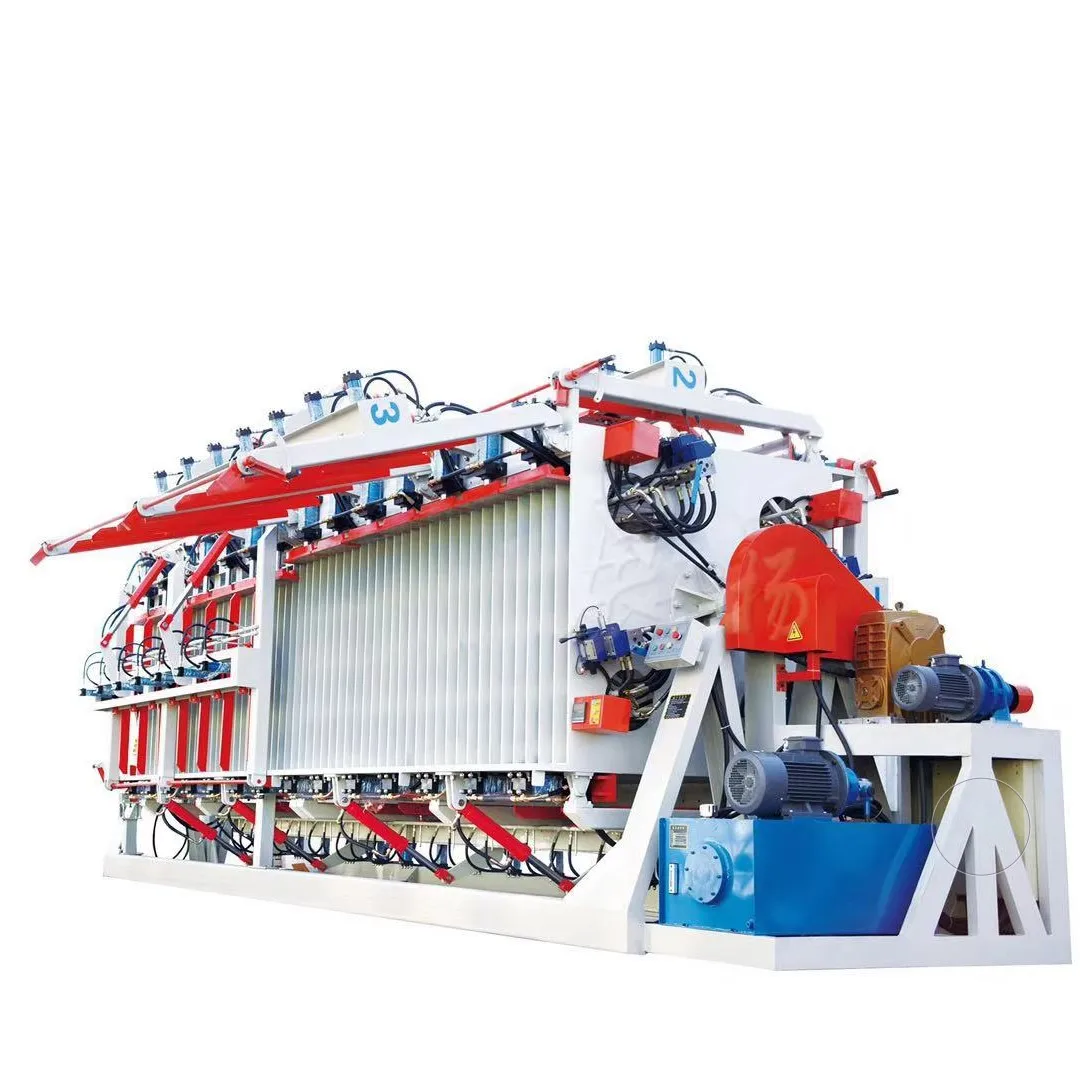

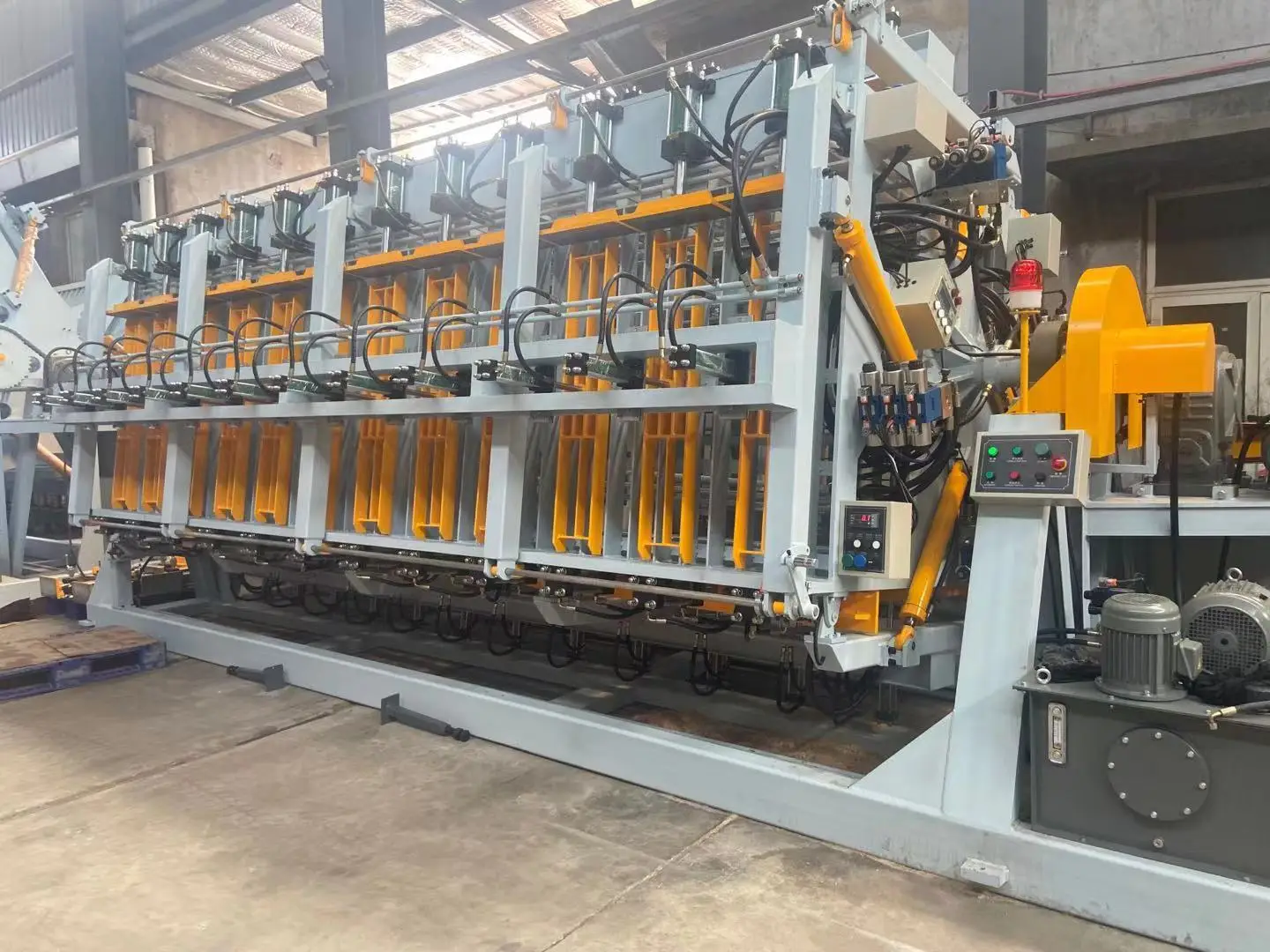

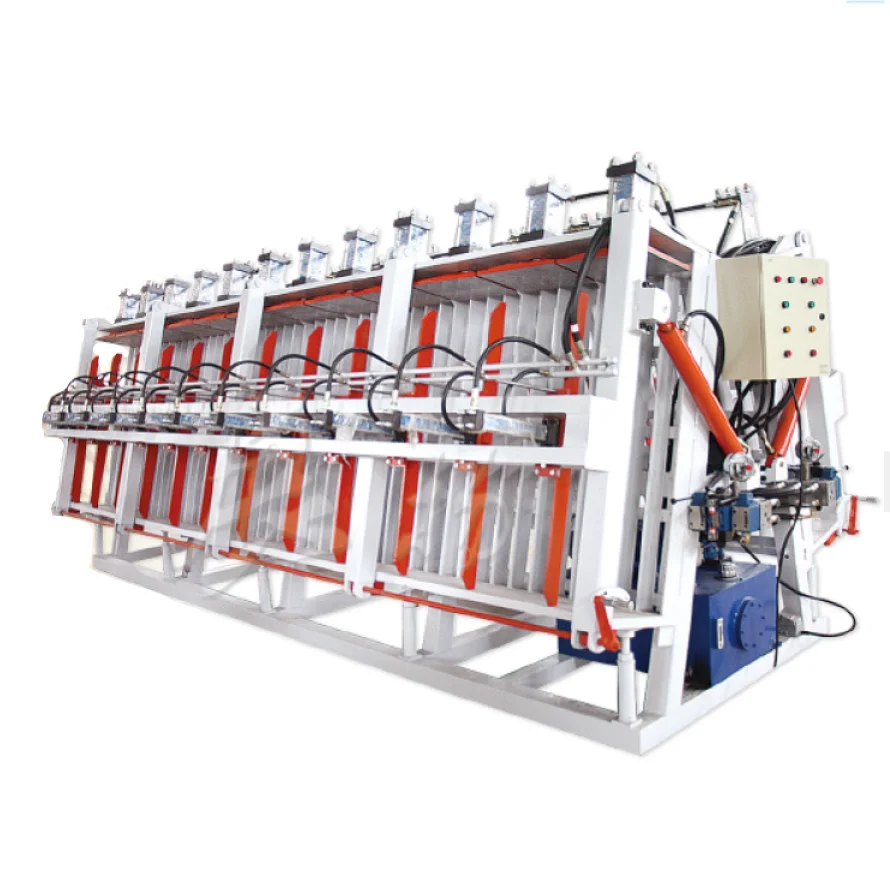

Parquet and Engineering Wood Flooring Hydraulic Press Clamp Carrier Machine



Specification



1. MZ1362-4 medium four-side hydraulic rotary board compresser adopts the hydraulic system for propelling force, that is with the high pressure hydraulic oil cylilnder to realize every kinds of functions of solid wood and panel jointing processing equipment for using four-side rotary structure, when operating, the equipment only needs one working position, four faces sequencely .With big press area and high efficient in processing solid wood, save working space, so its the best choice to select. Moreover due to unstable pressure phenomenon occurs in processing integrated wood, we apply auto raise pressure system to make a stable pressure when working and to achieve perfect impression.



2. Hydraulic drive, featuring stable movement speed, high pressure and uniform pressure.the workpiece when it is pressed.



3. Applying pressure sideways can prevent the bending and deformation of the firewood and greatly ensure the flatness of the finished plate. At the same time, it effectively reduces the subsequent sanding and improves the yield.



4. Depending on the size of the workpiece to be processed, the required pressure is different, the system pressure can be adjusted, and automatic pressure compensation can be achieved to ensure that the required pressure and pressure are constant during workpiece processing.



5. Each station can perform multi-layer imposition at the same time according to the different wood materials. The processing range is wide and the efficiency is high, which is suitable for the processing requirements of different orders.



Parameters

Model	MZ1325-4S	MZ1346-4S	-MZ1352-4S	MZ1362-4S
Max Jointing Length	2600mm	4600mm	5200mm	6200mm
Max Jointing Width	1300mm
Max Jointing Thickness	150mm
Upper Cylinder Diameter	80mm
Max Pressure	64 Ton	96 Ton	112 Ton	128 Ton
Side Cylinder Diameter	40mm
Max Pressure	16 Ton	24 Ton	28 Ton	32 Ton
Side Lift Cylinder Diameter	63mm
Hydraulic Power Supply	220V/380V/415V/440V/600V 50Hz/60Hz 3Phases
Hydraulic Pump Motor Power	5.5kW	7.5kW
Rotary Motor Power	3kW
Worktable Rotery Speed	180°/min
Rated Pressure of Hydraulic System	16MPa
Overall Size	L:4100mm  W:2970mm  H:3050mm	L:6200mm  W:2970mm  H:3050mm	L:6800mm W:2970mm H:3050mm	L:7800mm W:2970mm H:3050mm
Weight	8000kgs	8000kgs	13500kgs14000kgs	16000kgs
