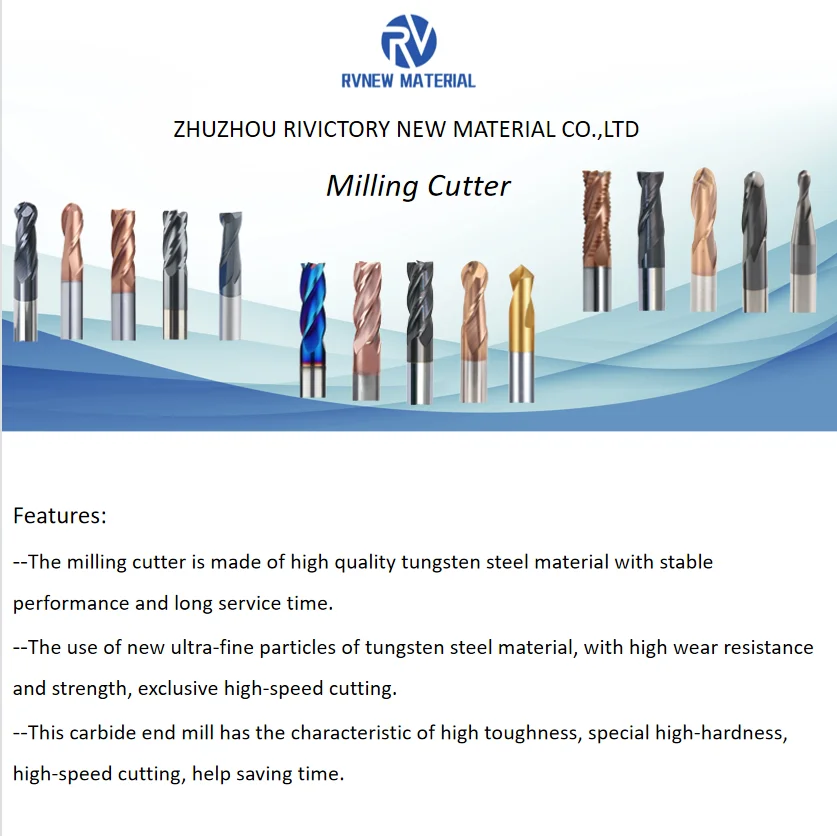

2Flutes 45HRC solid carbide milling cutter ball nose end mill tungsten carbide milling tool
- Category: >>>
- Supplier: Zhuzhou Rivictory New Material Co. Ltd.
Share on (1600249367277):
Product Overview
Description
Specification
R0.5*2Lc*D4*50L |
D0.75*3Lc*D4*50L |
R1*4Lc*D4*50L |
R1.25*5Lc*D4*50L |
R1.5*6Lc*D4*50L |
R1.5*6Lc*D3*50L |
R1.5*6Lc*D3*75L |
R1.5*6Lc*D3*100L |
R1.75*7Lc*D4*50L |
R2*8Lc*D4*50L |
R2*8Lc*D4*75L |
R2*8Lc*D4*100L |
R2.5*10Lc*D6*50L |
R2.5*10Lc*D5*50L |
R2.5*10Lc*D5*75L |
R2.5*10Lc*D5*100L |
R3*12Lc*D6*50L |
R3*12Lc*D6*75L |
R3*12Lc*D6*100L |
R4*16Lc*D8*60L |
R4*16Lc*D8*75L |
R4*16Lc*D8*100L |
R5*20Lc*D10*75L |
R5*20Lc*D10*100L |
R6*24Lc*D12*75L |
R6*24Lc*D12*100L |
R7*28Lc*D14*100L |
R8*32Lc*D16*100L |
R9*36Lc*D18*100L |
R10*40Lc*D20*100L |
R3*12Lc*D6*150L |
R4*16Lc*D8*150L |
R5*20Lc*D10*150L |
R6*24Lc*D12*150L |
R7*28Lc*D14*150L |
R8*32Lc*D16*150L |
R9*36Lc*D18*150L |
R10*40Lc*D20*150L |
Raw material description
Grade | ISO Range | WC+Co(%) | WC grain size(um) | Density(g/cm3) | Hardness | Properties&Application | ||
Hv30 | HRA | |||||||
RV06U | K05-K10 | 93.5+6.5 | 0.6 | 14.85 | 1890 | 93.5 | High cutting speed milling. For drilling, milling of plastic composites, PCB, ceramics, woods, and MDF. | |
RV09U | K10-K20 | 91+9 | 0.4 | 14.50 | 1890 | 93.5 | High cutting speed milling, finishing Hardness steel, plastics, fiber-reinforced materials, HRC55-65. | |
RV10S | K20-K40 | 90+10 | 0.8 | 14.42 | 1600 | 91.5 | High cutting speed milling, and drilling For general usage, suitable for all kinds of material below HRC45. | |
RV12S | K20-K40 | 88+12 | 0.6 | 14.12 | 1580 | 91.2 | Specially designed for machining stainless steel. For use on stainless steel, nickel-based alloys, titanium alloy, and special alloy. | |
RV25S | K20-K40 | 88+12 | 0.4 | 14.10 | 1750 | 92.5 | Suitable for finishing processing, and roughing of steels with hardness between 45 and 55HRC, steels for surface treatments, nickel alloys. | |
RV30S | K20-K40 | 88+12 | 0.6 | 14.10 | 1680 | 92.0 | Perfect balance for hardness and toughness. For general usage and can provide an extremely long life. | |
Coating description
Coating item | AlTiN | TiAlN | TiSiN | Naco |
Haedness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
Thickness(um) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper | Blue |
Product packaging

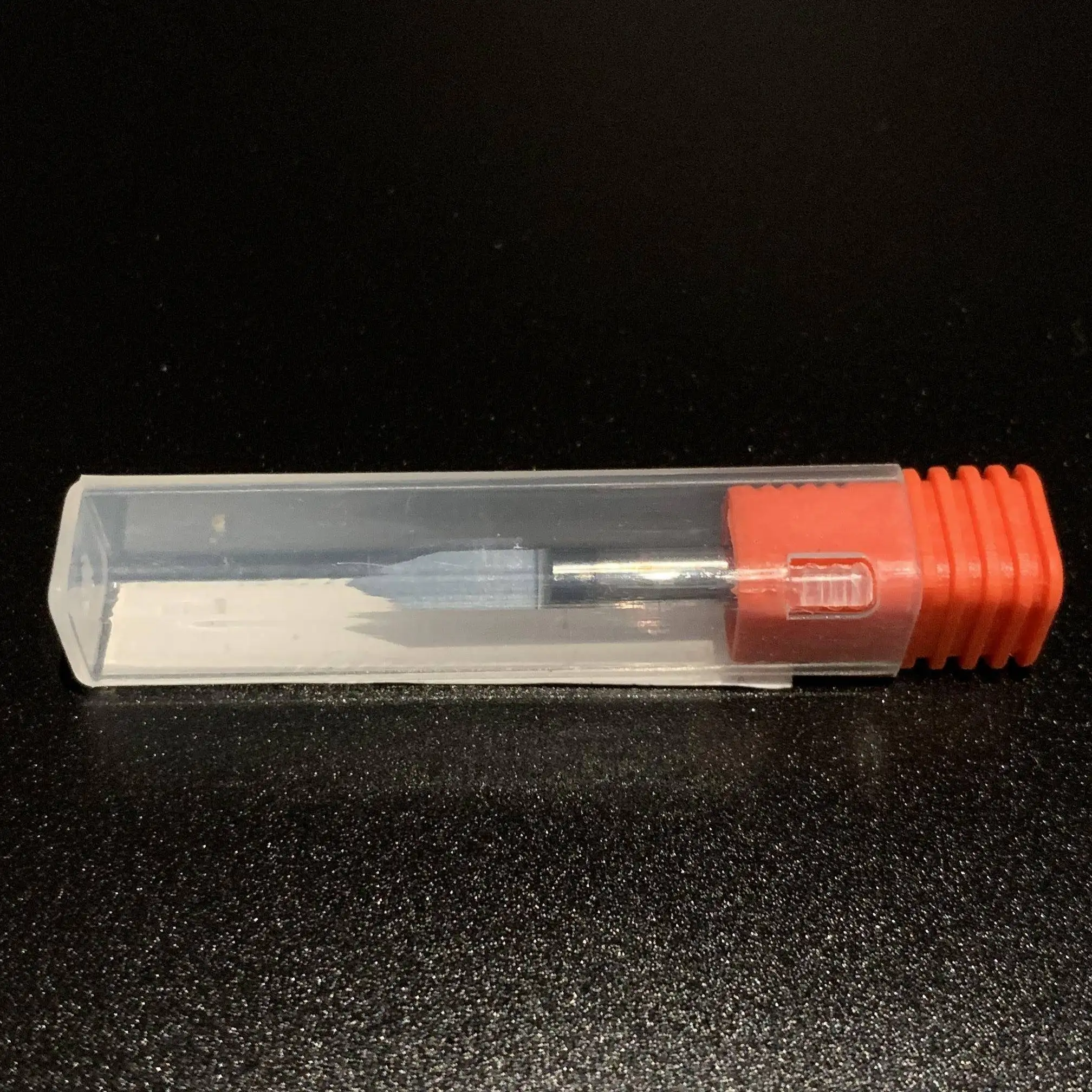

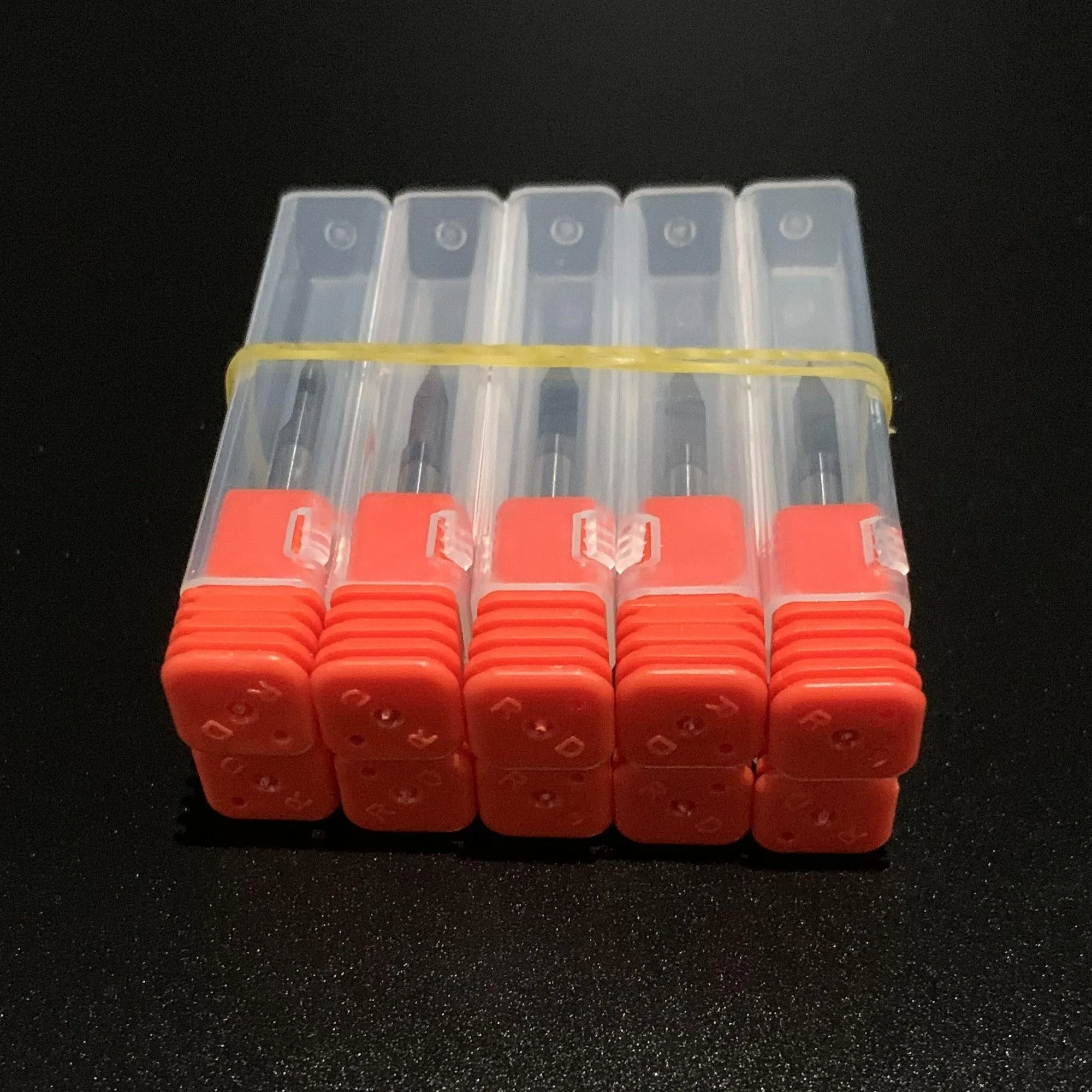

1 PCS in a plastic tube, 10 PCS per group. Packed in a carton, protected with bubble film.
Company Profile
We are professional tungsten carbide end mills, rods and carbide blanks manufacturer with experience more than 15 years. We start online sales in July 2020. The company has introduced dozens of internationally advanced CNC five-axis CNC tool grinders, and a variety of size and performance testing equipment, and has advanced PVD coating technology. Apart from the standard size tungsten carbide products, we can also produce the non-standard size carbide products according to your required size or drawing paper. All the products with ISO approved.

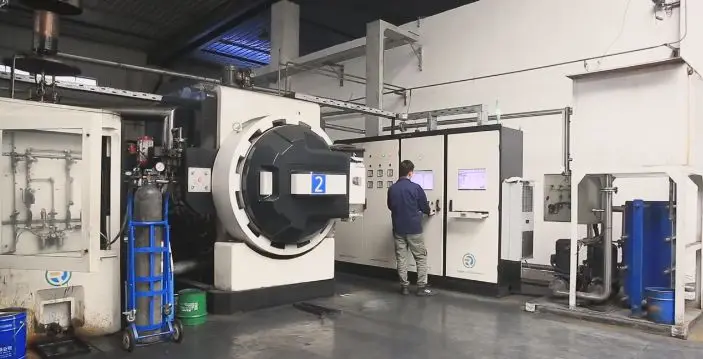

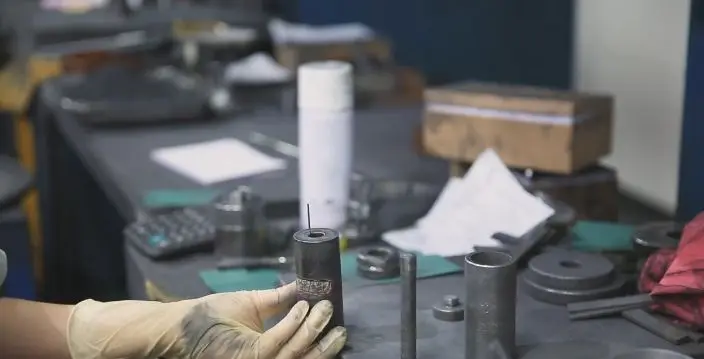

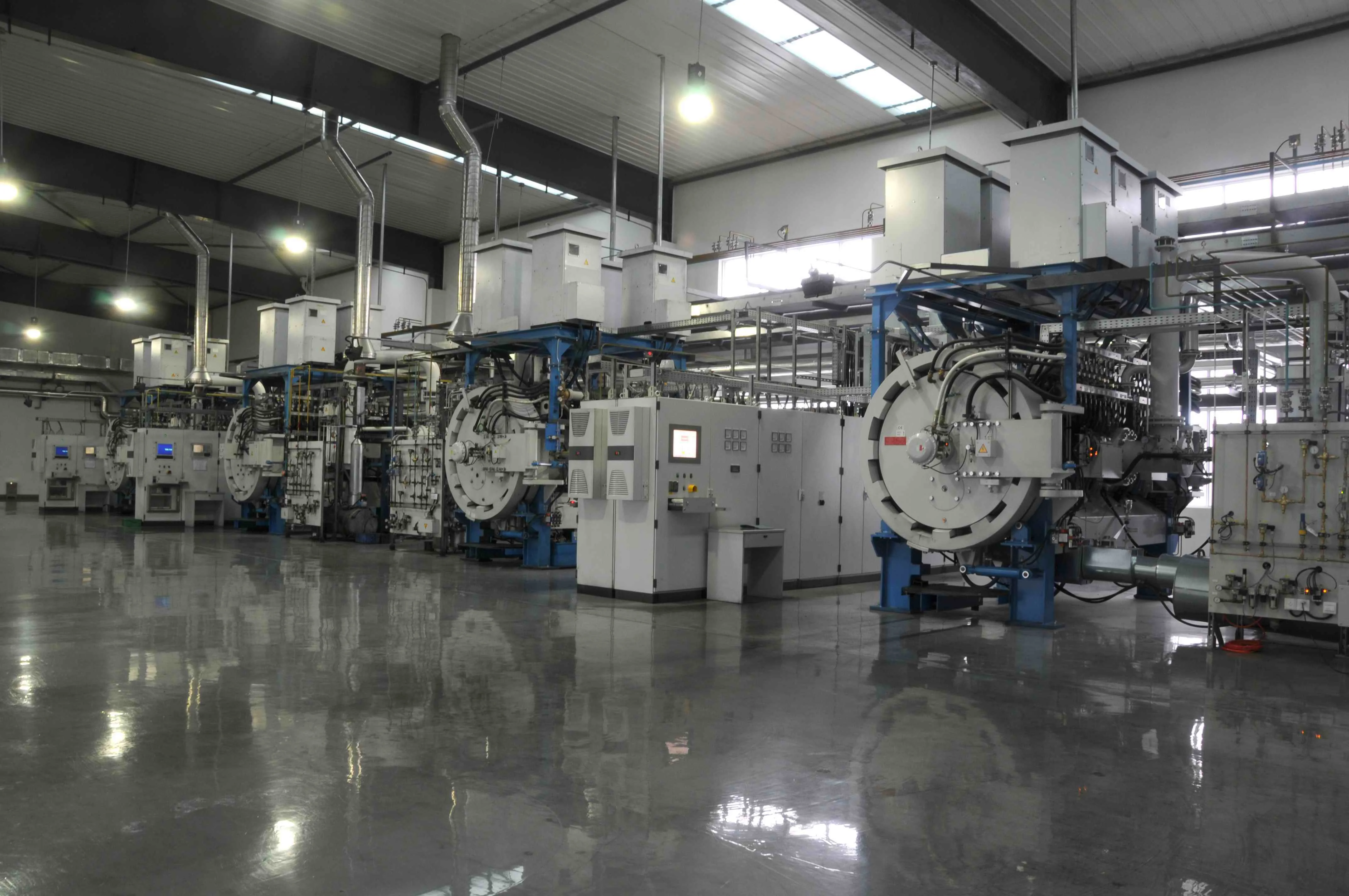

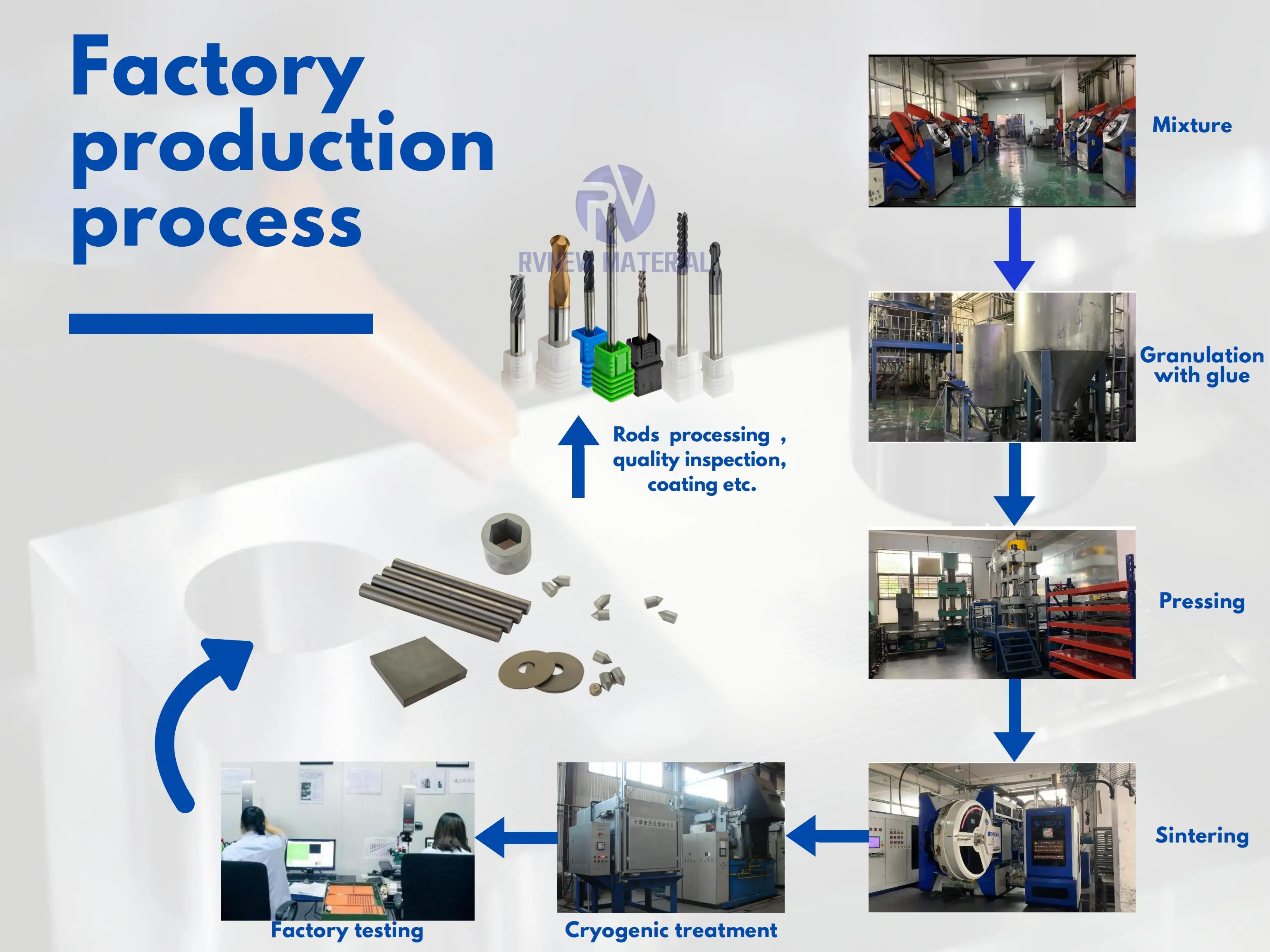

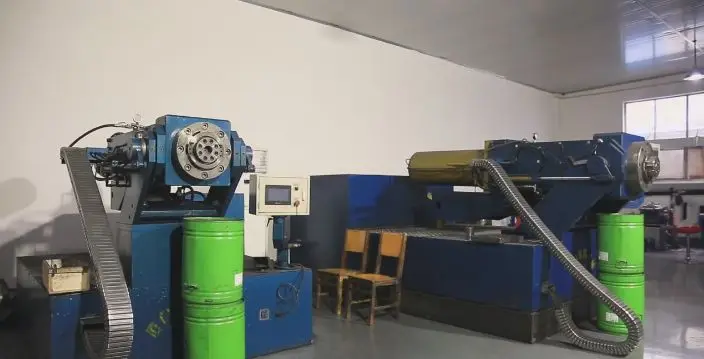

Factory production process
Contact us for more information
Whether you know exactly what type of carbide end mill is required or need to discuss the options with an expert. we are here to help.
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.What can you I from you?
Tungsten Carbide Rod,Carbide End Mill,Epoxy Resin Insulator
4. Why should you buy from us not from other suppliers?
Our company is located in Zhuzhou city, the capital of non-ferrous metals and high-speed railway. Has a completely industrial chain,design and research team. Our high quality products and services are welcomed all over the world.
5. What services can you provide?
Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU,Express Delivery；
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
