circuit pcba inverter board pcb assembly double sided pcb
- Category: Double-Sided PCB >>>
- Supplier: Shenzhen DYC Electronic Technology Co. Ltd.
Share on (1600249397653):
Product Overview
Description
About DYC
DYC 2007-2021, 14 YEARS PCB PCBA ONE STOP SERVICE

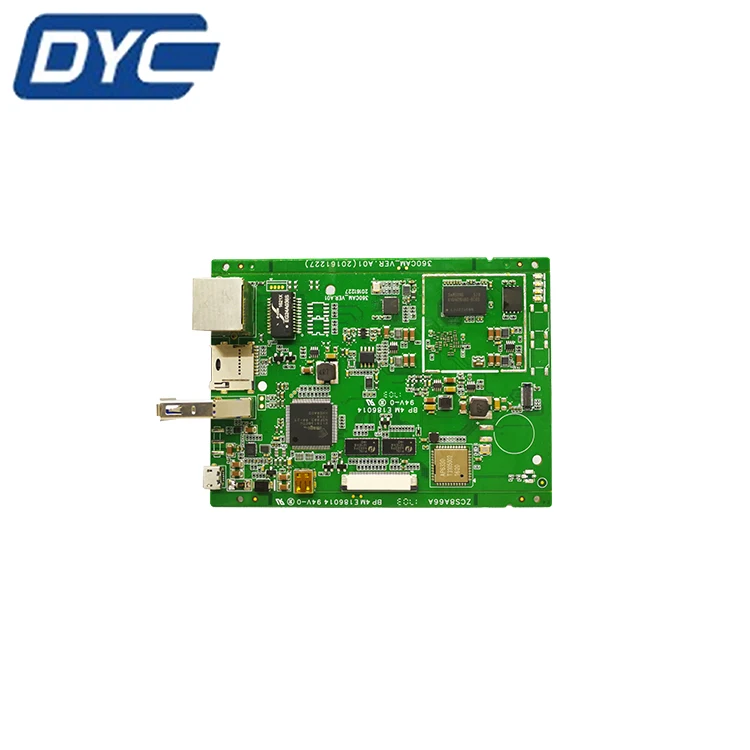

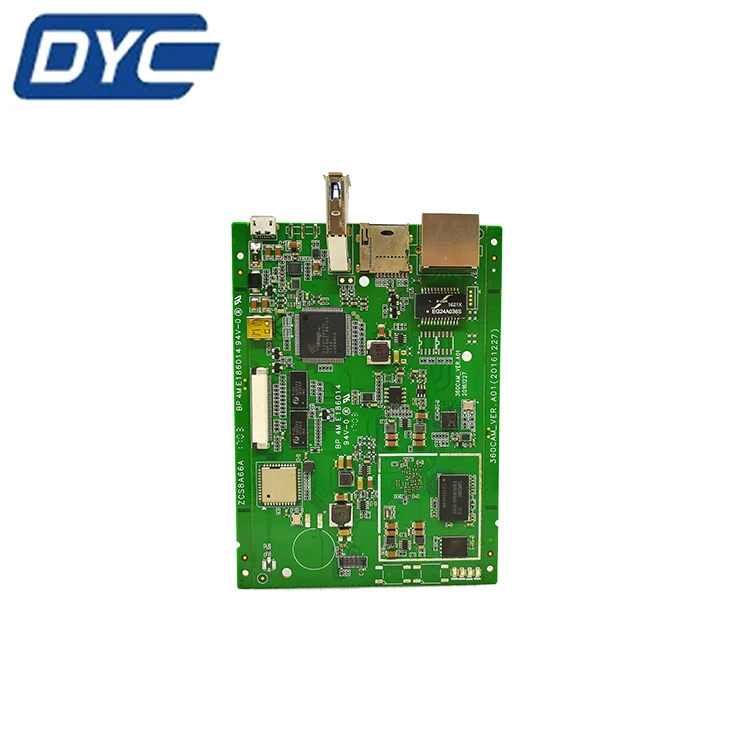

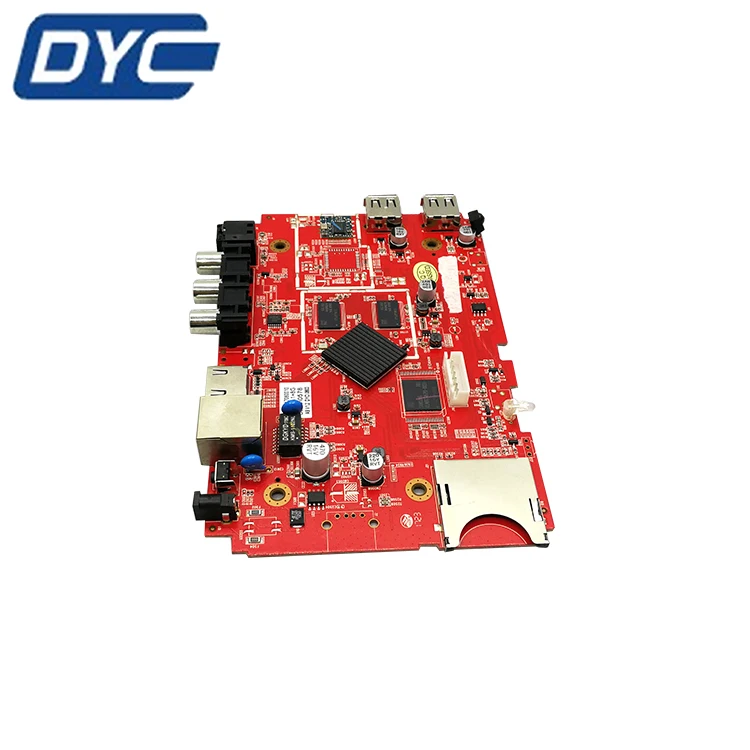

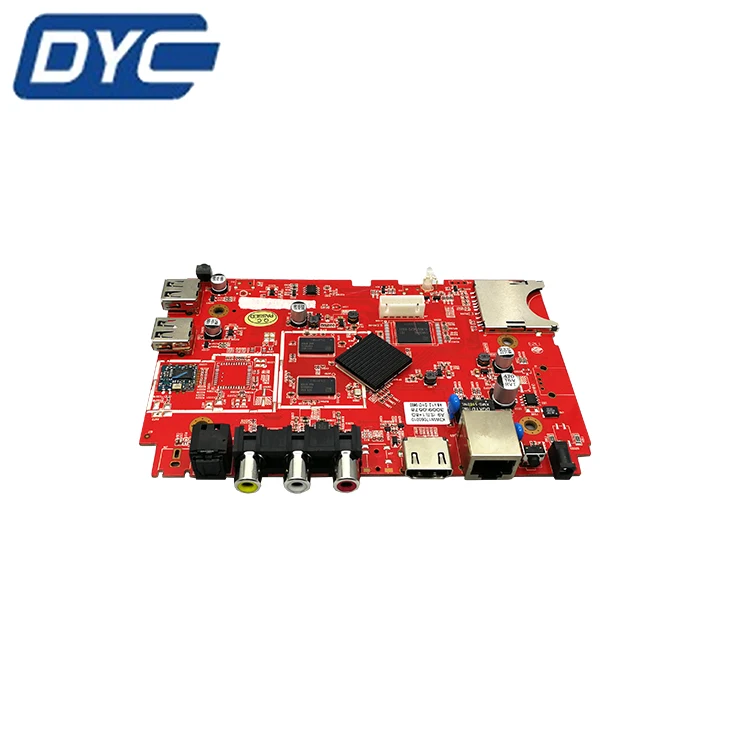

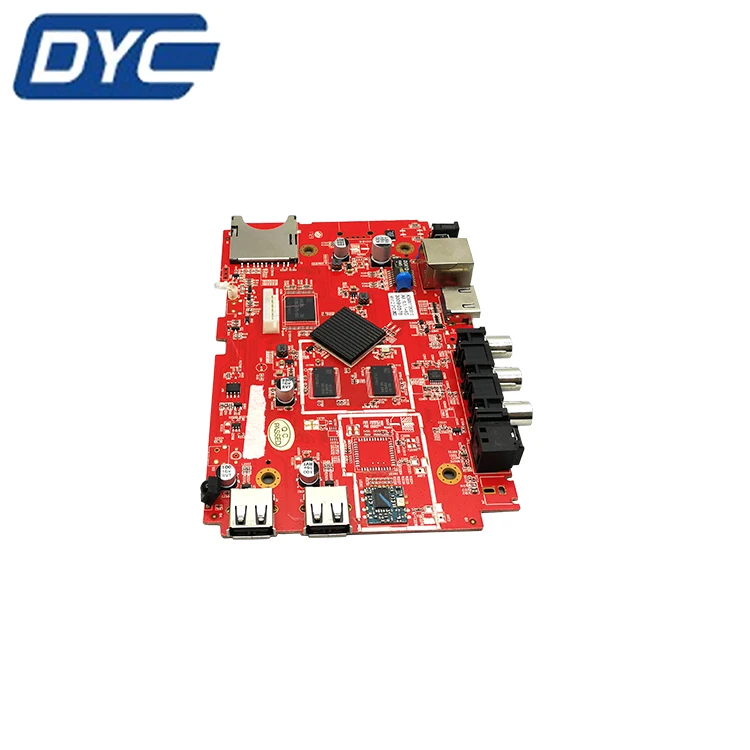

circuit pcba inverter board pcb assembly double-sided pcb
| Established time | Aug 2007 |
| Number of emplooyes | 250 |
| Factory area | 15,000 sqm |
Location: 6,7 floor, Yuxing Second7 floor, Yuxing Second industrial park, xixiang, Bao'an district, Shenzhen. | Near by shenzhen airport, 15 minutes. |
| Near by Hongkong airport, 74 km. | |
| Near by shekou terminal, 22 km. | |
| Fabrication | 8 million spot SMT/day. |
| Certification | ISO9001-2008, CE, RoHS. |
| Sales avenue | 0.3 billion |
6 SMT Lines, 2 DIP lines, 2 end-products assembly lines
DYC services

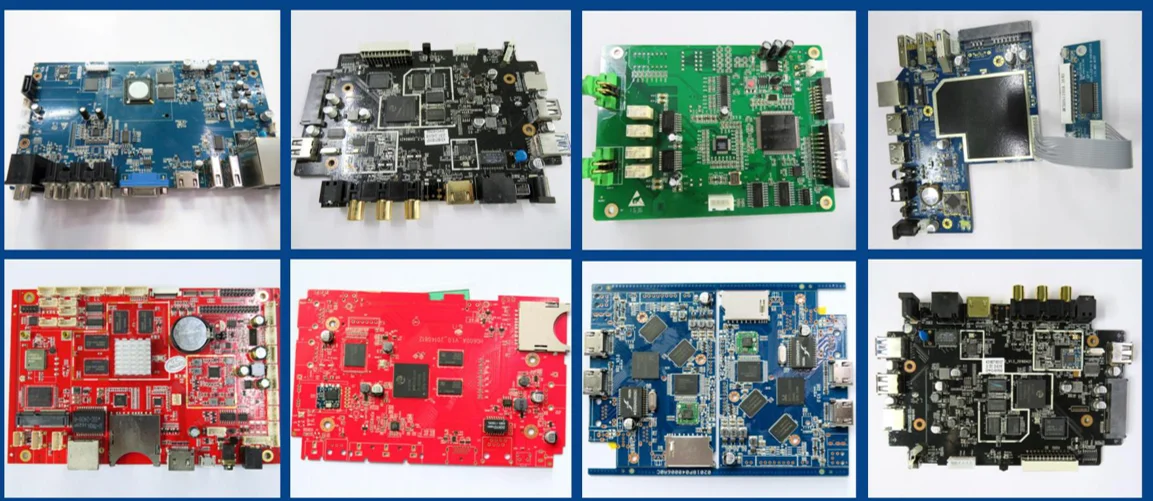

3C Products Mother board

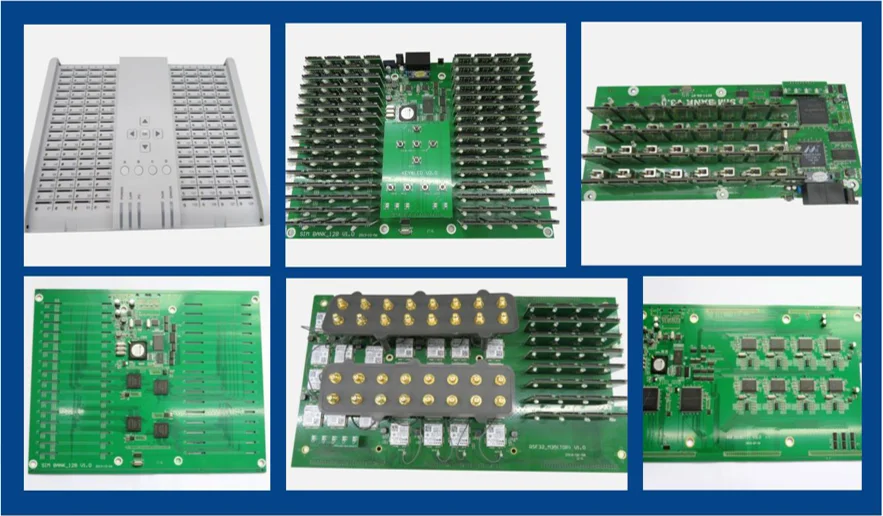

Communication products
PCBA manufacture
PCBA CAPACITY
| Max size of pcb board | 500* 400mm |
| Max thickness | 3mm |
| Min thickness | 0.5mm |
| Min chip | 1005 |
| Max SMD components weight | 100g |
| Max part height | 25 mm |
| Max part size | 150*150 mm |
| Min pin space | 0.3mm |
| Max BGA components space | 0.3mm |
| Max BGA components space | 0.3mm |
| Max SMD accuracy | 25um@ IPC |
| SMD capacity | 8 Million point/day |
How to make your PCBA
PCBA flow:
Strength of PCBA manufacture
FAQ:
Q: What should i provide to get one PCB quotation?
A: Gerber file, PCB technical, quantity and bom list.
Q: Will you check my files before production?
A: Yes, our engineer will check your gerber file and BOM list to avoid any mistake.
Q: What's the lead time for PCBA?
A: 8-10 days for sample, 15-20 days for bulk order.
Q: My budget is limited, can you provide solutions to save cost ?
A: Yes, we can. For example: Replace the DIP components with SMD components, so it can narrow the PCB board size to save cost. Relayout the pcb to reduce the size, it can save cost, Also we can recommend you alternative components.
Q: Do you have any other special discount ?
A: Yes, we provide free panel, free test and free packaging.
