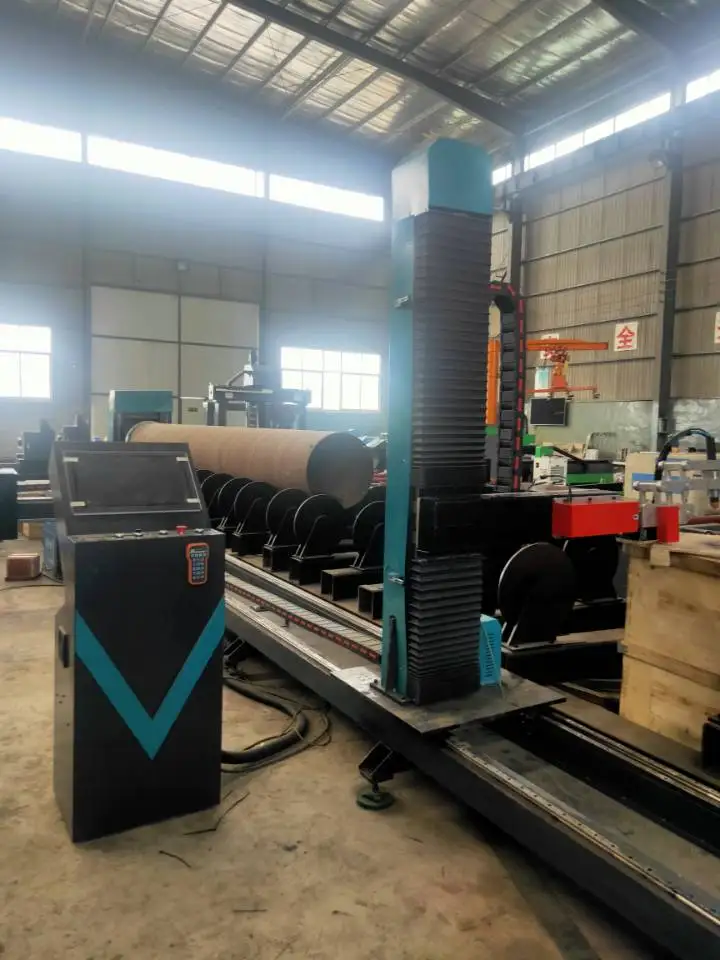

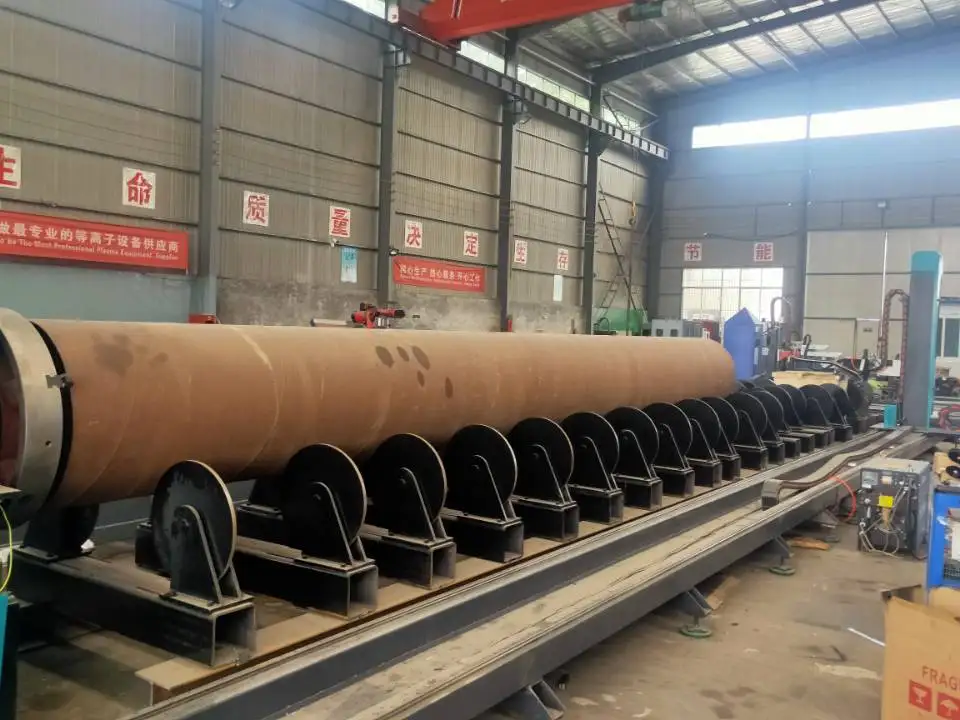

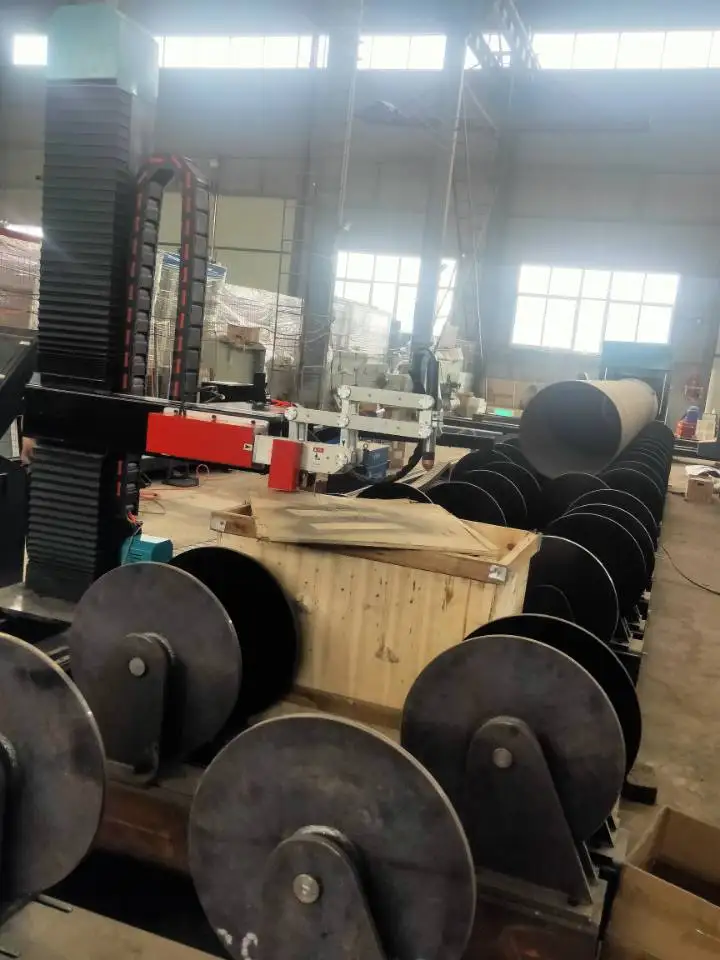

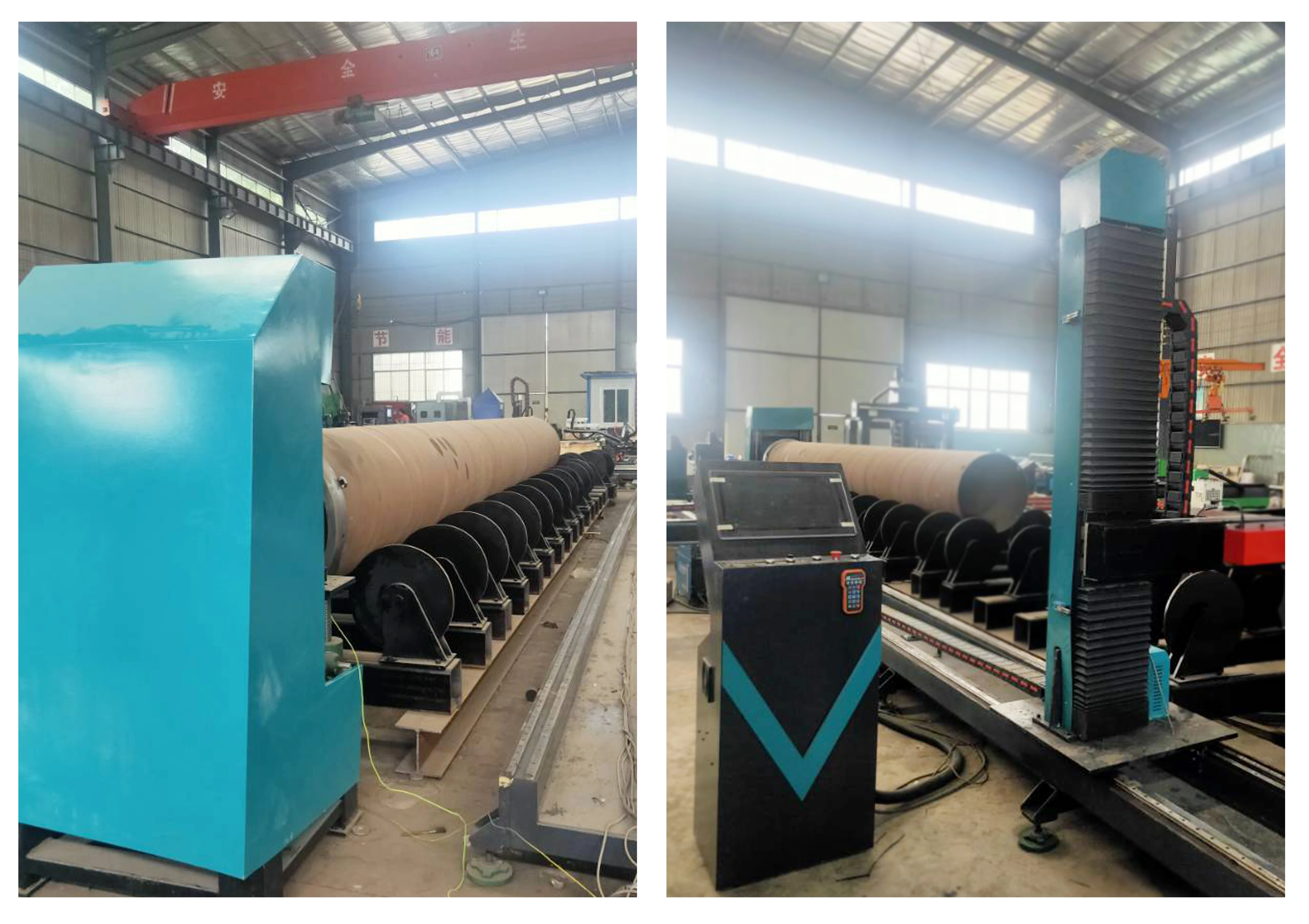

Big Metal Round Pipe Profile CNC Plasma Beveling Cutting Machine

Diameter of pipe

50-12000mm

Thickness of pipe wall

Plasma 40mm, OXY-fuel: 200mm

Length of pipe

12000mm/15000mm

Moving axis

Choose cutting axis

Range of activities

X axis:

Pipe rotation axis

360 ° freedom of rotation

Y Axis:

The torch moving along the pipe axial horizontal axis

Maximum stroke (customers cut pipe length)

A axis :

The torch along the pipe radial plane swing axle

±45°

B axis:

The torch along the pipe axial plane swing axle

±45°

C axis

Cutting bench up and down

According to pipes diameter

Z axis:

The rise and fall along the tube axis

The axis does not participate in the joint
