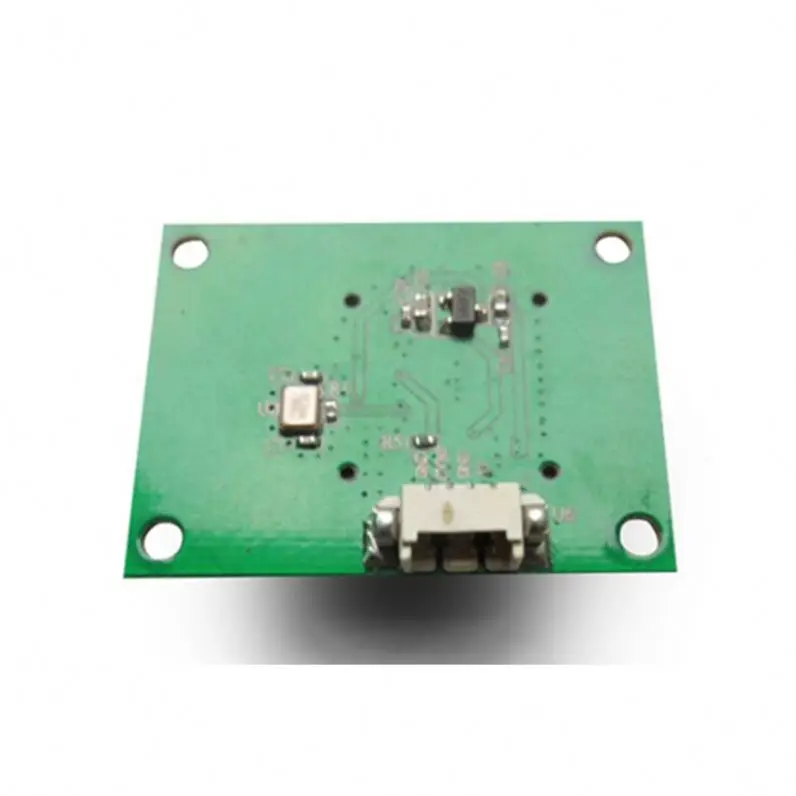

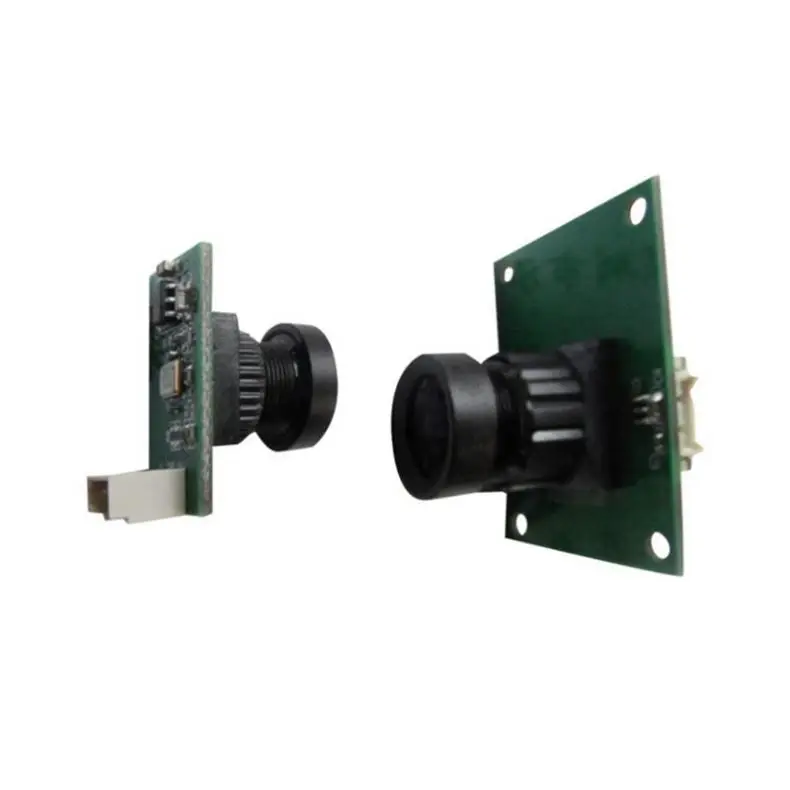

AR034 AV analog output car rear pull camera module

Module No.HDF139-AV

Module Size:10mm x18mm x 11mm

Temperature Operation):-20°C to 70°C

Temperature (Stable Image):0°C to 50°C

Assembly technique:SMT (ROSH)

Focus :Fix

Object distance:10CM

Resolution:TBD

PCB printing ink:Green

interface:TBD

Power:power(5V)

Operating system request:TBD

Package:Anti-electrostatic tray

Sensor Type:ASX340CS(MT9V139) 1/4"

Active Array Size:750*576

Sensitivity:TBD

Pixel Size:TBD

Maximum Image Transfer Rate
NTSC: 60 fields/sec
PAL: 50 fields/sec

S/N Ratio:46dB

Dynamic Range:74 .8dB

Package:CSP

Lens Type:1/4inch

Lens Construction:4P+IR

F/No:2.0

EFL:1.8 mm

BFL(Optical):TBD

FOV:120°

TV Distortion:<1%

Relative lumination (Sensor):70%

IR Filter:650+10nm

DSP Type:TBD

AGC/AECWhiter balance:TBD

Output Formats:TBD

Fixed Pattern Noise:TBD
