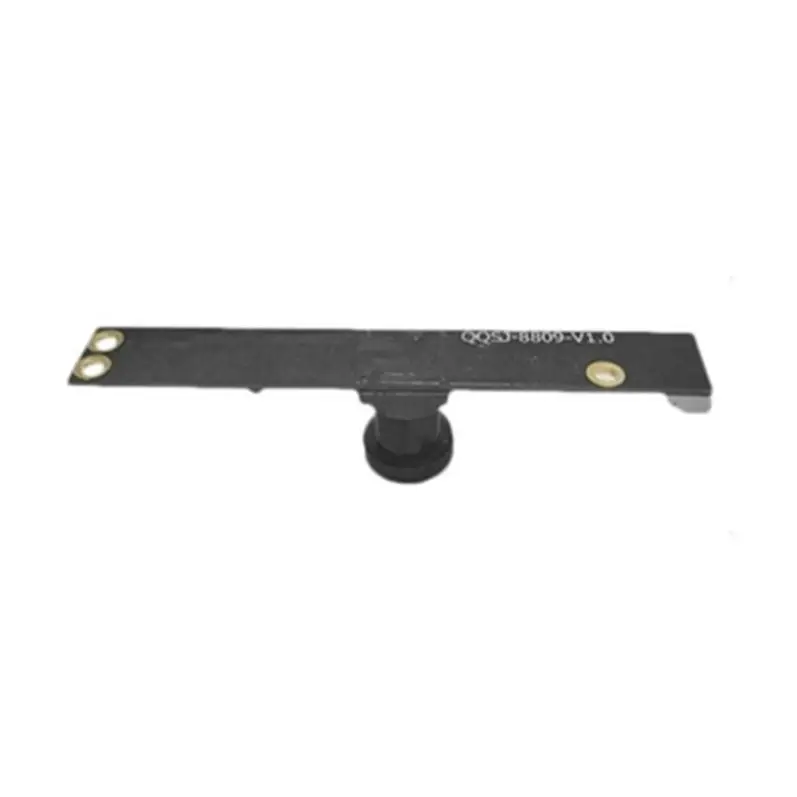

USB drive free camera monocular 500w focus face recognition camera module

Module Size:9mm x62mm x 1mm

Temperature Operation):-30°C to 70°C

Temperature (Stable Image):0°C to 50°C

Assembly technique:SMT (ROSH)

Focus:Auto

Object distance:10CM-∞

Resolution:TBD

PCB printing ink:Black

interface:USB 2.0

Power:USB bus power(5V)

Operating system request:Windows 2000 or Windows XP or Vistar

Package:Anti-electrostatic tray

Sensor Type:0V5648 1/4”

Active Array Size:2592*1944

Sensitivity:600mV/(lux•s)

Pixel Size:1.4um x 1.4um

Maximum Image Transfer Rate:15fps- 500W

S/N Ratio:34dB

Dynamic Range:67 dB

Package:CSP

Lens Type:1/4inch

Lens Construction:4P+IR

F/No:2.8

EFL:3.34 mm

BFL(Optical):TBD

FOV:70°

TV Distortion:1%

Relative llumination (Sensor):70%

IR Filter:650±10nm

DSP Type:HJ501

AGCIAECIWhiter balance:Auto

Output Formats:USB suspend out

Fixed Pattern Noise:< 0.03% of VPEAK-TO-PEAK

Package:TQFP
