Mechanical recovery sandblasting room and Pneumatic recovery sandblasting room

Product Overview

Description

Mechanical recovery sandblasting room and Pneumatic recovery sandblasting room

The fully automatic recycling blasting room is desigPneumatic recovery sandblasting roomccording to the production process and the characteristics of the product itself. It is suitable for surface descaling and rust removal of large casting forgings, welded steel structures, engineering machinery, industrial boilers, chemical machinery, shipbuilding and so on. Strengthen, improve the adhesion of paint and so on. Its structure and supporting equipment are mainly composed of six parts: shot blasting room, shot peening system, abrasive circulation system, ventilation and dust removal system, lighting and electrical control system.



Mechanical recovery sandblasting room:

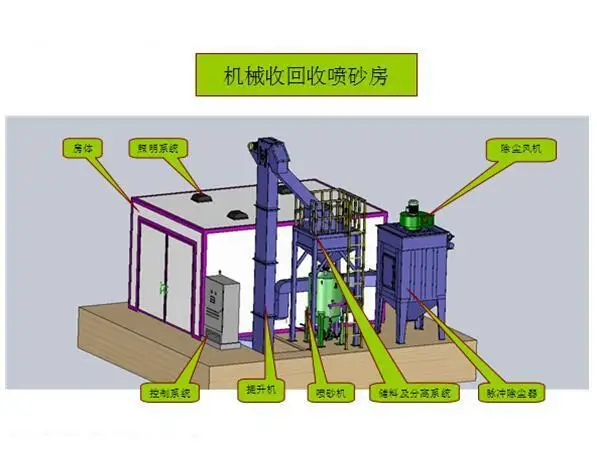

The mechanical recovery sandblasting room mainly includes the room part, funnel grille, pellet recycling system (including belt conveyor or screw conveyor, elevator, separator, storage bin, recovery charging valve), dust removal system, bearing system, lighting system, electrical control system, three-dimensional lifting platform, etc.
Its characteristics are as follows
1. The pellet conveying system has the advantages of simple and reliable structure, strong overload capacity and not easy to block.
2. It is suitable for sand blasting of large workpieces( Large sandblasting room)
3. Mechanical maintenance is simpler and easier to operate than pneumatic maintenance.

Pneumatic recovery sandblasting room:

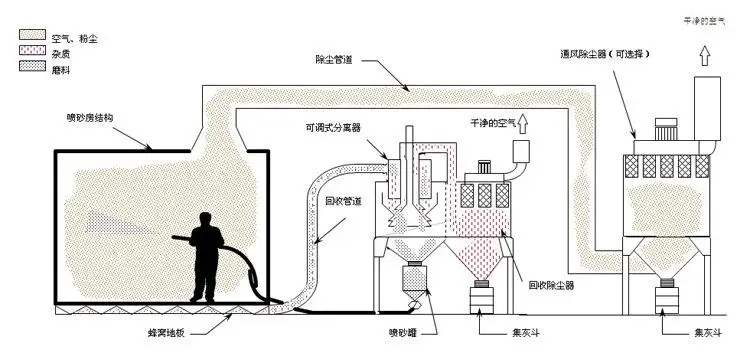

The pneumatic recovery sandblasting room mainly includes the room part, honeycomb sand suction funnel, grid floor, pellet recycling system (including sand suction pipe, venturi type sand dust separator, dust collector, medium and high pressure fan, storage bin, recovery charging valve), sandblasting system, dust removal system, bearing system, lighting system, power control system, three position lifting platform, etc.
Its characteristics are as follows
1. There is no need for deep pit, saving capital construction cost and short construction period.
2. Quick change of different abrasives, strong adaptability, easy to achieve different process requirements.
3. High abrasive recovery.
4. The key wear parts are standardized to facilitate maintenance and replacement and avoid tedious maintenance tasks.

Size of Blasting Room	Size of work pieces	Blasting Gun Qty
6000×6000×5000mm	3000×3000×2500mm	2
6000×6000×6000mm	3000×3000×3500mm	2
8000×6000×5000mm	5000×3000×2500mm	2
8000×6000×6000mm	5000×3000×3500mm	2
10000×6000×6000mm	7000×3000×3500mm	2
15000×6000×6000mm	12000×3000×3500mm	2
15000×8000×6000mm	12000×5000×3500mm	2
18000×8000×6000mm	15000×5000×3500mm	4
18000×10000×8000mm	15000×7000×5500mm	4
