pac chemical dosing device polymer dosing system machine for effluent treatment
- Category: >>>
- Supplier: Wuxi Ewater Water Treatment Co. Ltd.
Share on (1600249774375):
Product Overview
Description
Product Details
Excellent at collision resistant, Intensive vibration resistant, and is perfect at algae control, Easy cleaning, Rodent prevention a Termite prevention.
1. Major Material: LLDPE food-grade raw plastic
2. Process: Rotational Molding
3. Common color: White, black, red, orange, blue, and yellow
4. Uniform wall thickness.
5. Thickness and weight can be varied for extra strength requirements.
6. Excellent material guarantee the long period of useful life.
7. Performance:
One-piece rotomolding product,
No welds or joints to fail.
2. Process: Rotational Molding
3. Common color: White, black, red, orange, blue, and yellow
4. Uniform wall thickness.
5. Thickness and weight can be varied for extra strength requirements.
6. Excellent material guarantee the long period of useful life.
7. Performance:
One-piece rotomolding product,
No welds or joints to fail.

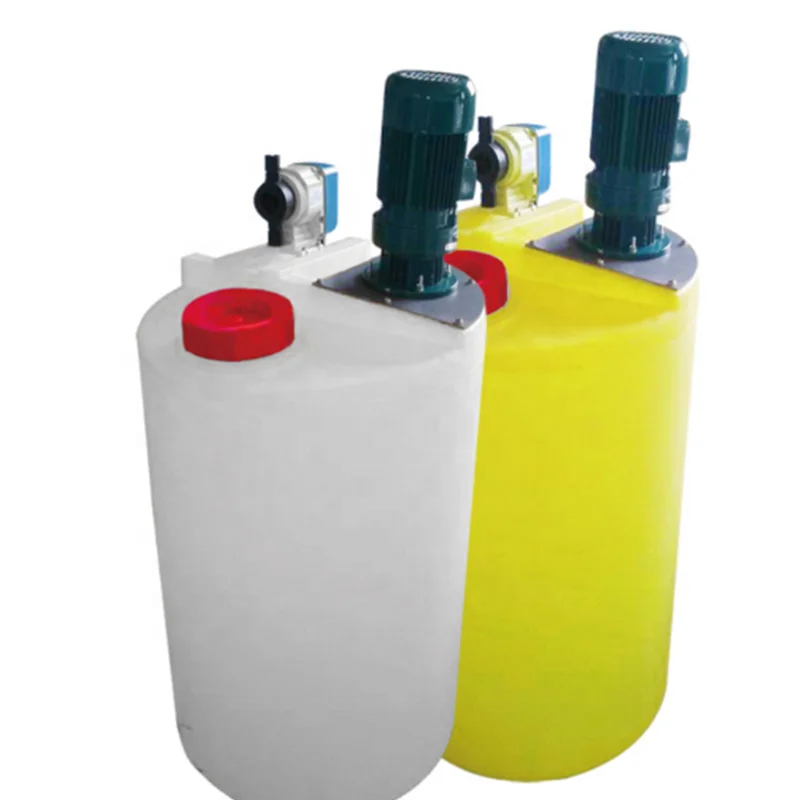

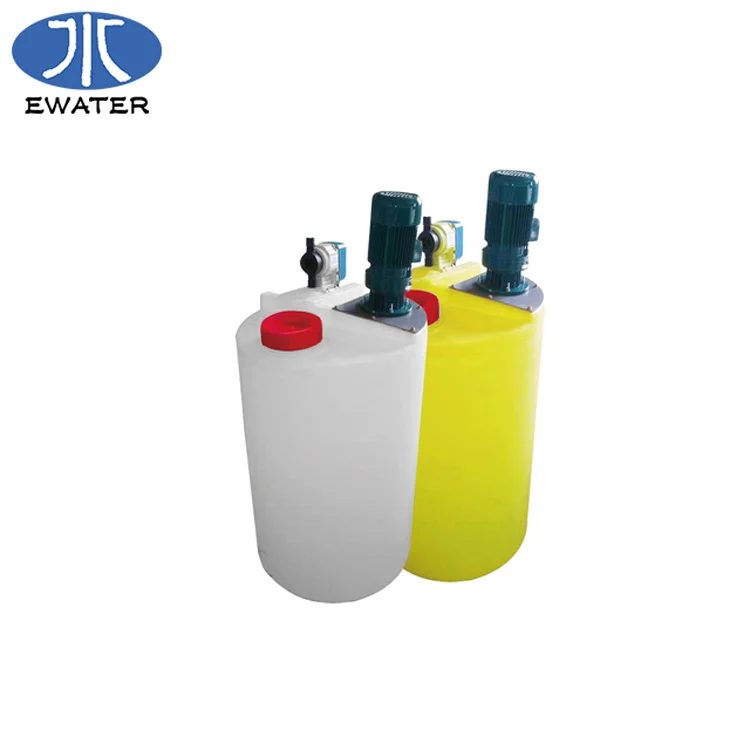

Apply scope:
In water treatment mainly used in all kinds of agentia mixing,dissolve,storage, then pass by metering pump to dose solution .
Main components:
1.Metering pump
-Mechanical actuated diaphragm, no-leakage structure
-PVC,PTFE, PVDF,304,316 is available as the pump head material
-flow can be adjusted during operation, the range is 0.5~500L/h Pressure range:0.2~1 Mpa
-Automatic control who can accpet4~20mA is available (JWM-AD series)
-Motor: standard 220V/380V,50Hz Regulating mode: manual / automatic
2.Mixer
Rated power: 0.18~11kW;
mixer diameter: 0.4~3m
mixing speed: 60~200rpm

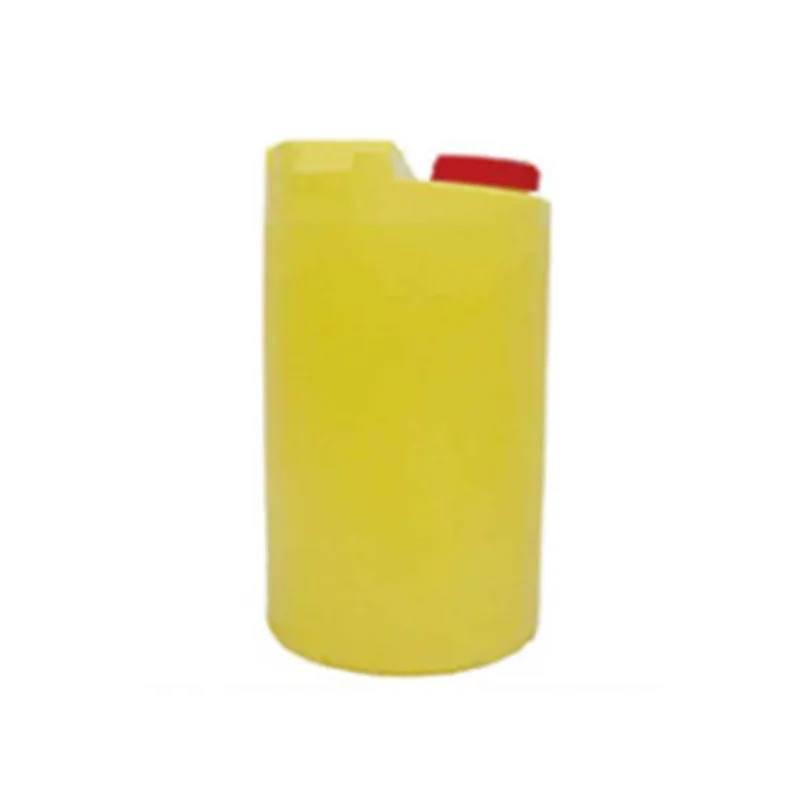

3.Solution dosing tank
Material: LLDPE
Volume :40L to 2000L
Mixer power:
0.18KW/0.37KW/0.55KW/0.75KW/1.1KW/1.5KW/2.2KW/3KW/4KW/5.5KW
1.Metering pump
-Mechanical actuated diaphragm, no-leakage structure
-PVC,PTFE, PVDF,304,316 is available as the pump head material
-flow can be adjusted during operation, the range is 0.5~500L/h Pressure range:0.2~1 Mpa
-Automatic control who can accpet4~20mA is available (JWM-AD series)
-Motor: standard 220V/380V,50Hz Regulating mode: manual / automatic
2.Mixer
Rated power: 0.18~11kW;
mixer diameter: 0.4~3m
mixing speed: 60~200rpm
3.Solution dosing tank
Material: LLDPE
Volume :40L to 2000L
Mixer power:
0.18KW/0.37KW/0.55KW/0.75KW/1.1KW/1.5KW/2.2KW/3KW/4KW/5.5KW

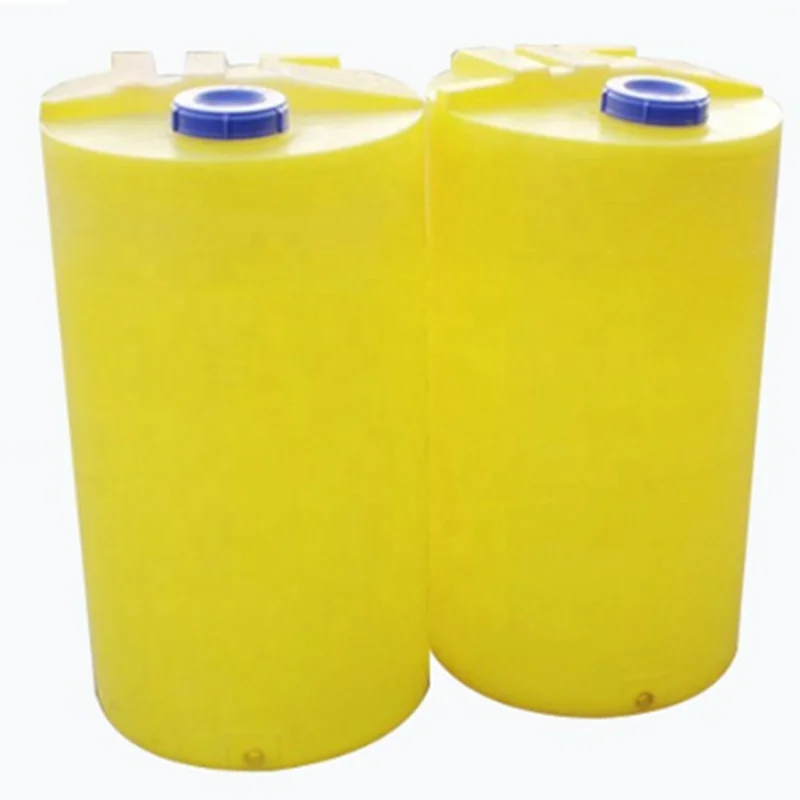

PE Chemical Tank | |||||||||||||
ltem NO | capacit | Dlametor(mm) | Vertical Height(mm) | Total HeIght(mm) | Total HeIght(mm) | Thickness(mm) | Thicken(mm) | ||||||
MC40L | 0.04T | 450 | 250 | 320 | 135 | 3 | 4 | ||||||
MC60L | 0.06T | 450 | 400 | 440 | 135 | 3 | 4 | ||||||
MC80L | 0.08T | 450 | 540 | 550 | 135 | 3 | 4 | ||||||
MC100L | 0.1T | 450 | 675 | 720 | 135 | 3 | 5 | ||||||
MC200L | 0.2T | 558 | 830 | 870 | 135 | 3 | 5 | ||||||
MC300L | 0.3T | 666 | 880 | 1120 | 135 | 5 | 6 | ||||||
MC500L | 0.5T | 770 | 990 | 1120 | 200 | 5 | 7 | ||||||
MC1000L | 1T | 1050 | 1080 | 1250 | 340 | 6 | 8 | ||||||
MC1500L | 1.5T | 1130 | 1250 | 1420 | 340 | 7 | 8 | ||||||
MC2000L | 2T | 1245 | 1440 | 1640 | 400 | 7 | 8 | ||||||
MC3000L | 3T | 1480 | 1610 | 1830 | 400 | 7 | 10 | ||||||
MC5000L | 5T | 1820 | 1840 | 2160 | 400 | 9 | 11 | ||||||
MC6000L | 6T | 1890 | 1980 | 2330 | 447 | 9 | 11 | ||||||
MC8000L | 8T | 2100 | 2230 | 2650 | 646 | 10 | 12 | ||||||
MC10000L | 10T | 2240 | 2420 | 2800 | 646 | 10 | 12 | ||||||
MC6000L(come bottom） | 6T | 1890 | 1980 | 2630 | 447 | 9.5 | 11 | ||||||
MC8000L(core bottom) | 8T | 2100 | 2230 | 2950 | 646 | 10 | 12 | ||||||
MC10000L(core bottom) | 10T | 2240 | 2420 | 3100 | 646 | 10 | 12 | ||||||
Advantages
The product is tough, flexible, anti-impact and corrosion-resistant. The matching mixer is divided of direct stir and side stir,the direct mixer requires matched strengthening board and tanks, while the side mixer can be equip with fixed mount to improve its stir effect and tank body service life. The types of stirrer material is stainless steel.
Details Images

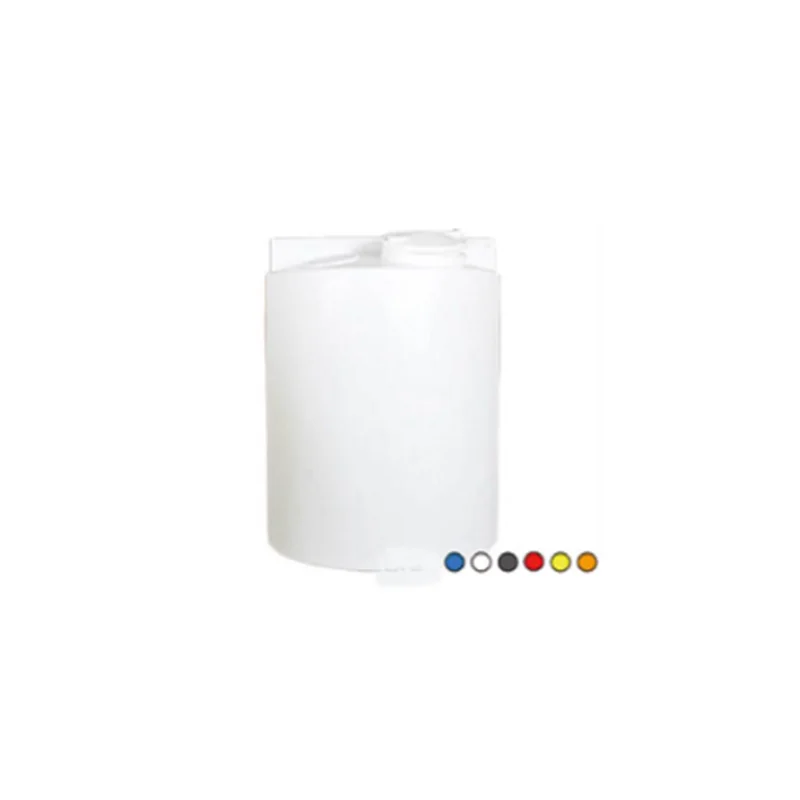

Color customizable
Recommend Products
Dosing Pump
Mixer
Product Packing&Delivery
Package
wooden case and PP.
Delivery
7-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Our Service
1.OEM acceptable
2.Sample order
3.100% QC inspection before shipping
4.We will reply you in 24hours
5.180 days guarantee time
6.Best after-sale tracking service
2.Sample order
3.100% QC inspection before shipping
4.We will reply you in 24hours
5.180 days guarantee time
6.Best after-sale tracking service
Company Profile
Wuxi EWATER Water Treatment Co.Ltd. is a one-stop purchasing, exporting, delivering service provider in Water industry field, located in International Environmental Protection Zone,Yixing,China.
Facilitated with the largest manufacturer of FRP Tank---Canature Huayu Environmental Products Co,.Ltd (the founder’s co-owned factory), and plentiful manufacturers of water treatment products in China, we provide the most cost- effective products and considerately customized service for our customers like Engineering Company /Water treatment product distributor and Users in water treatment industry all over the world.
We are proud of our Partner/Customer’s success, as the success of our Partner/Customer "Jieming International Trading Dubai" in the Middle East. We want much more "Jieming" successes all over the world with our support, THAT ONLY IS OUR SUCCESS!
Facilitated with the largest manufacturer of FRP Tank---Canature Huayu Environmental Products Co,.Ltd (the founder’s co-owned factory), and plentiful manufacturers of water treatment products in China, we provide the most cost- effective products and considerately customized service for our customers like Engineering Company /Water treatment product distributor and Users in water treatment industry all over the world.
We are proud of our Partner/Customer’s success, as the success of our Partner/Customer "Jieming International Trading Dubai" in the Middle East. We want much more "Jieming" successes all over the world with our support, THAT ONLY IS OUR SUCCESS!
FAQ
Q1:What is your terms of delivery?
A1:EXW/CIF/CFR/FOB.
A1:EXW/CIF/CFR/FOB.
Q2: What's your MOQ?
A2: There's no MOQ limits, 1 piece for test at first is acceptable.
A2: There's no MOQ limits, 1 piece for test at first is acceptable.
Q3:What is your price?
A3:We can provide our high quality products with reasonable price.
A3:We can provide our high quality products with reasonable price.
Q4: What about your quality?
A4: We guarantee that our pressure gauges are 100% inspection before ship to our client.
A4: We guarantee that our pressure gauges are 100% inspection before ship to our client.
Q5: Can we print our logo on the goods?
A5: Yes, we can print logo as customer requirement.
A5: Yes, we can print logo as customer requirement.
Q6:How about your delivery time?
A6:Generally speaking,it takes7-60days after receive your payment,but it also depends on product model and quantity.
A6:Generally speaking,it takes7-60days after receive your payment,but it also depends on product model and quantity.
