High Performance Handheld Infrared Camera Handheld Thermal Cameras
- Category: >>>
- Supplier: Beijing Radifeel Technology Co. Ltd.
Share on (1600249923397):
Product Overview
Description
Products Description

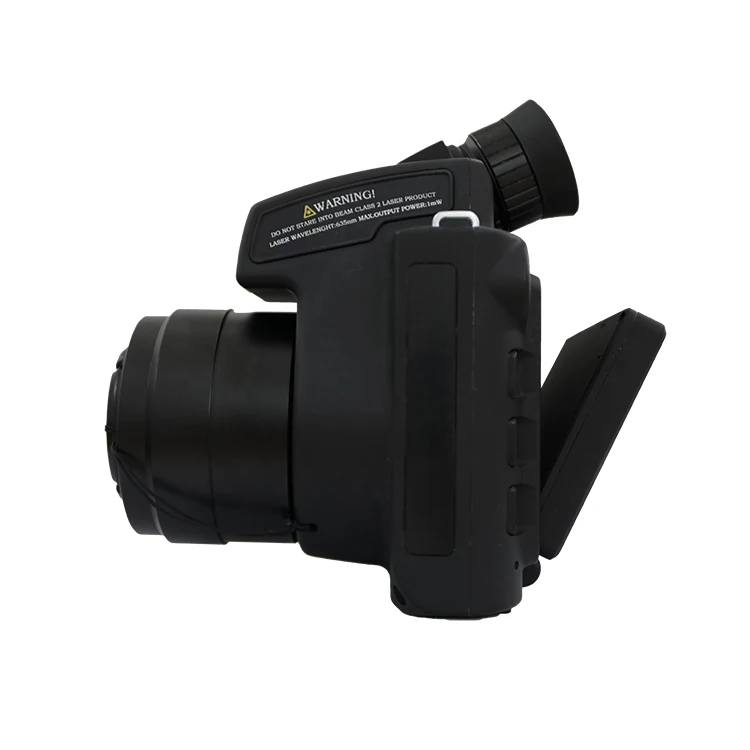

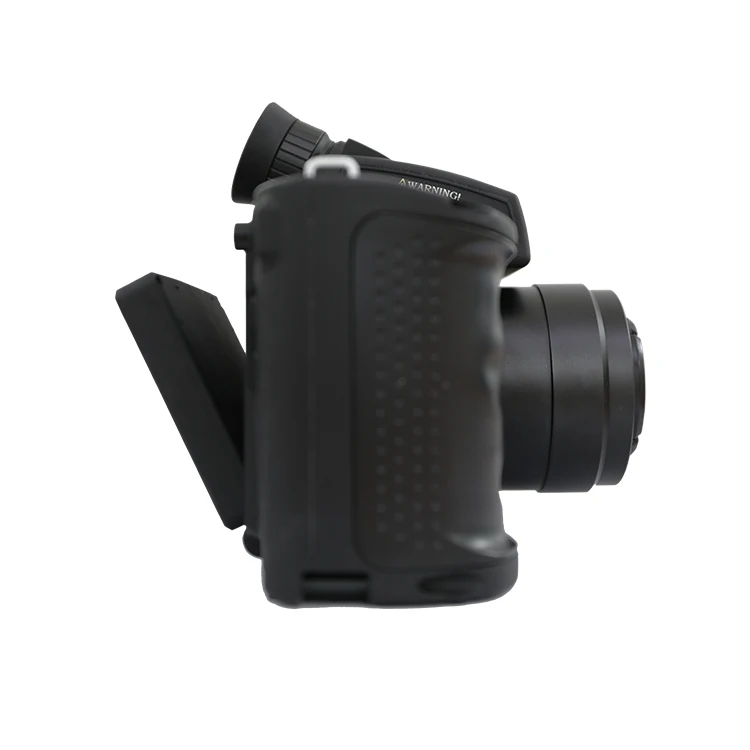

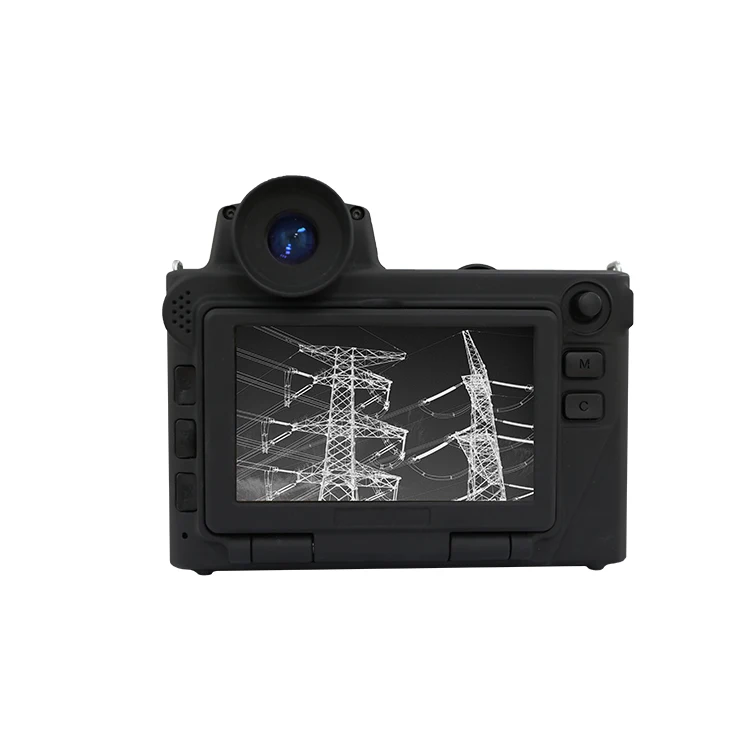

High-Performance Handheld Infrared Camera Handheld Thermal Cameras
RFT series thermal imaging camera can visualize the temperature details in super definition display, the function of various temperature measurement analysis makes an efficient inspection in the field of electric, mechanical industry and etc.
Product Paramenters
Detector and lens | ||
Resolution | 640×512 | |
Detector pitch | 17µm | |
Spectral range | 7-14 µm | |
Thermal sensitivity | ≤40mK@30℃ | |
Temperature accuracy | ±2℃ or ±2% | |
Temperature range | -20 °C ~ +150 °C | |
+100°C ~ +650 °C | ||
Image display | ||
Display | 5”Touch LCD，1024×600 Pixels | |
Viewfinder | OLED，1024×600 Pixels | |
Color palettes | 10+1 customization | |
Zoom | 1–16×continuous, Digital zoom | |
Measurement analysis | ||
Spot meter | 10 | |
Area | 10+10 area (10 frames, 10 circles) | |
Profile | Yes | |
Isotherm | Yes | |
Difference temperature | Yes | |
Alarm | Audio or Color | |
Emissivity correction | Variable from 0.01 to 1.0 | |
Storage of images | ||
IR image format | Standard JPEG, including digital image and measurement data | |
IR video format | H.264 | |
Visual image format | JPEG | |
Voice annotation | 60 seconds voice | |
Storage media | 32G Removable TF memory card, extension available | |
Interface | ||
Video out | HDMI | |
Digital interface | USB，WIFI, HDMI | |
Others | ||
Laser pointer | Class 2, Semiconductor diode laser, 1 mW, 635nm (red) | |
Battery | Rechargeable Li-ion battery， operating time≥3 hours | |
Environmental data | ||
Operating temperature range | -15℃~+50℃ | |
Storage temperature range | -40℃~+70℃ | |
Encapsulation | IP54 | |
Physical data | ||
Camera weight | < 1.7kg（including battery） | |
Camera size | 180 mm × 143 mm × 150 mm（including standard lens） | |
Tripod mounting | UNC ¼"-20 | |
Above data are for reference only. The specification of the marketed products shall prevail.
Company Profile
Beijing Radifeel Technology Co., Ltd, is the integrated supplier of thermal imaging products with the capability of design, R&D and manufacture.
200 more staff work in six office buildings (cover an area of 9,000 sqm), 50% of the staff are the experts in the concerning fields, a team of experienced senior engineers, independent intellectual technology and professional product lines, support the production capacity of thermal imaging products and IR lenses assembling & debugging, our products are widely used in the field of outdoor observation，petrochemical, power supply industry, perimeter security, emergency rescue, body temperature screening,smart home and consumer electronics and more.
With the ISO 9001 QC management system, professional QC control laboratory and personnel team, Radifeel enables each component from the lines are in qualified and best condition.
Our criterion is to guarantee the quality of the products, meeting the requirements of the clients, and offering the cost-efficient solution of thermal imaging products.
200 more staff work in six office buildings (cover an area of 9,000 sqm), 50% of the staff are the experts in the concerning fields, a team of experienced senior engineers, independent intellectual technology and professional product lines, support the production capacity of thermal imaging products and IR lenses assembling & debugging, our products are widely used in the field of outdoor observation，petrochemical, power supply industry, perimeter security, emergency rescue, body temperature screening,smart home and consumer electronics and more.
With the ISO 9001 QC management system, professional QC control laboratory and personnel team, Radifeel enables each component from the lines are in qualified and best condition.
Our criterion is to guarantee the quality of the products, meeting the requirements of the clients, and offering the cost-efficient solution of thermal imaging products.
Certifications
ISO9001 CE EAC Explosive Atmospheres Certificate

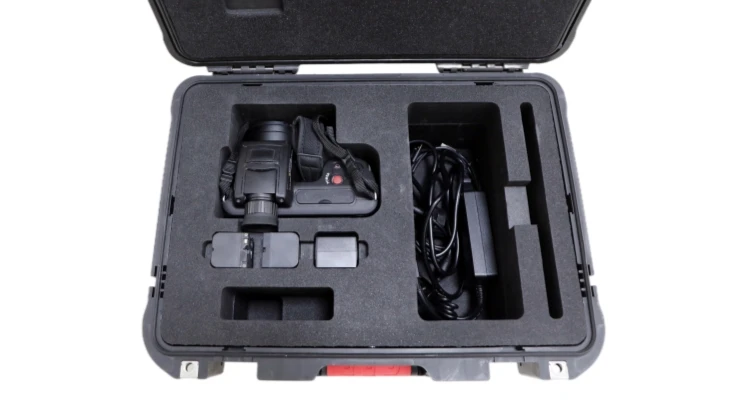

Packing & Shipping
