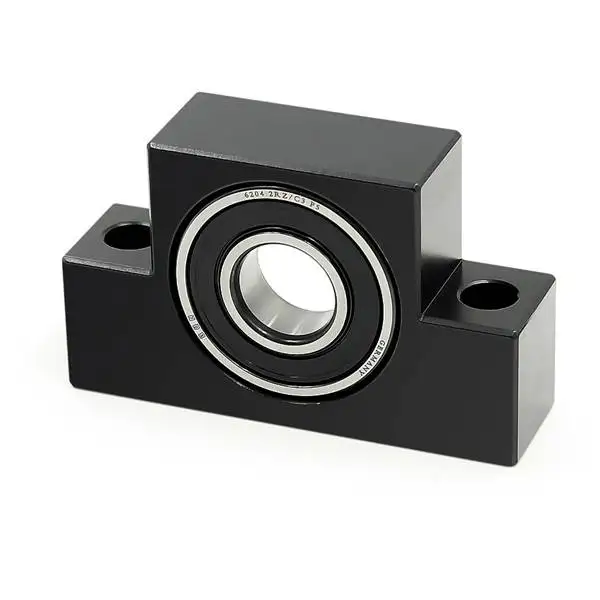

BUN EF Bearing SUPPORT UNIT precision rating c3,c5 c7 FIXED SIDE RECTANGULAR TYPE
- Category: Pillow Block Bearing >>>
- Supplier: Shenzhen Zhongjing Electric Engineering Limited
Share on (1600249989263):
Product Overview
Description
Structure and Features
The Support Unit comes in six types: models EK, FK, EF, and FF, which are standardized for standard-stock Ball Screws provided with finished shaft ends, and models BK and BF, which are standardized for ball screws in general.
The Support Unit on the fixed side contains a JIS Class 5-compliant angular bearing provided with an adjusted preload. The miniature type Support Unit models EK/FK 4, 5, 6 and 8, in particular, incorporate a miniature bearing with a contact angle of 45゜developed exclusively for miniature Ball Screws. This provides stable rotation performance with high rigidity and accuracy. The Support Unit on the supported side uses a deep-groove ball bearing. The internal bearings of Support Unit models EK, FK and BK contain an appropriate amount of
lithium soap-group grease that is sealed with a special seal. Thus, these models are capable of
operating over a long period.
lithium soap-group grease that is sealed with a special seal. Thus, these models are capable of
operating over a long period.
Uses the Optimal Bearing
To ensure rigidity balance with the Ball Screw, the Support Unit uses an angular bearing (contact angle: 30゜; DF configuration)
with high rigidity and low torque. Miniature Support Unit models EK/FK 4, 5, 6 and 8 are incorporated with a miniature angular bearing with a contact angle of 45゜developed exclusively for miniature Ball Screws. This bearing has a greater contact angle of 45゜and an increased number of balls with a smaller diameter. The high rigidity
and accuracy of the miniature angular bearing provides stable rotation performance.
with high rigidity and low torque. Miniature Support Unit models EK/FK 4, 5, 6 and 8 are incorporated with a miniature angular bearing with a contact angle of 45゜developed exclusively for miniature Ball Screws. This bearing has a greater contact angle of 45゜and an increased number of balls with a smaller diameter. The high rigidity
and accuracy of the miniature angular bearing provides stable rotation performance.
Support Unit Shapes
Square and round shapes are available for the Support Unit to allow selection according to the intended use.
Compact and Easy Installation
The Support Unit is compactly designed to accommodate the space in the installation site. As the bearing is provided with an appropriately adjusted preload, the Support Unit can be assembled with a Ball Screw unit with no further machining. Accordingly, the required man-hours in assembly can be reduced and the assembly accuracy can be increased.
Packing & Delivery
Company Profile
Shenzhen Zhongjing Electric Engineering Limited (ZEE) was founded in 2014 but with more than 10 years of Traffic Light industry experience, a profound background in international business and specializes in LED Traffic Light technologies.
ZEE is located in Shenzhen, China. With years of local expertise, ZEE specializes in OMR LED Traffic Light Kits, LED Traffic Light Module, High Power LED Traffic Light Kits, High Power LED Traffic Light Module, Traffic Count-down Timer and Traffic Controller.
Currently ZEE is represented by approx. 20 employees in 5places all over China. Combined with our flexibility philosophy, this ensures optimum reaction times for debugging or the removal of damages caused by road accidents
Since December 2014 ZEE has been committed to road safety with innovative quality products and systems for over 8 years. LED-based signaling technology for traffic lights and variable message signs as well as high-tech solutions for traffic telematics are the core competencies of ZEE.
ZEE offers a wide-variety of Traffic Light and Service forms to meet the needs of our customers. You can not only choose from our finished products but also request to customize according to the customer demand.
ZEE is located in Shenzhen, China. With years of local expertise, ZEE specializes in OMR LED Traffic Light Kits, LED Traffic Light Module, High Power LED Traffic Light Kits, High Power LED Traffic Light Module, Traffic Count-down Timer and Traffic Controller.
Currently ZEE is represented by approx. 20 employees in 5places all over China. Combined with our flexibility philosophy, this ensures optimum reaction times for debugging or the removal of damages caused by road accidents
Since December 2014 ZEE has been committed to road safety with innovative quality products and systems for over 8 years. LED-based signaling technology for traffic lights and variable message signs as well as high-tech solutions for traffic telematics are the core competencies of ZEE.
ZEE offers a wide-variety of Traffic Light and Service forms to meet the needs of our customers. You can not only choose from our finished products but also request to customize according to the customer demand.
FAQ
1. Are we manufacturer ?
Yes ,but we mainly make traffic light system ,as BUN is one of our another factory make only bearing support units . And we are
authorized to be in charge of the over sales for BUN brand products.
2. what is C7,C5 and C3 ?
It is Precision class : C7 is ±50/300mm ,C5 is ±0.0018mm ,C3 is ±0.001mm
3.what brings do you use?
For C7 items we use C&U bearings, for C5, we buy from taiwan top brand bearings, for C3, we use German brand TPI bearings.
4. why should you buy from us not from other suppliers?
BUN is a brand registed in Germany ,and it is top brand in China, because of our quality control and good service.
Yes ,but we mainly make traffic light system ,as BUN is one of our another factory make only bearing support units . And we are
authorized to be in charge of the over sales for BUN brand products.
2. what is C7,C5 and C3 ?
It is Precision class : C7 is ±50/300mm ,C5 is ±0.0018mm ,C3 is ±0.001mm
3.what brings do you use?
For C7 items we use C&U bearings, for C5, we buy from taiwan top brand bearings, for C3, we use German brand TPI bearings.
4. why should you buy from us not from other suppliers?
BUN is a brand registed in Germany ,and it is top brand in China, because of our quality control and good service.
