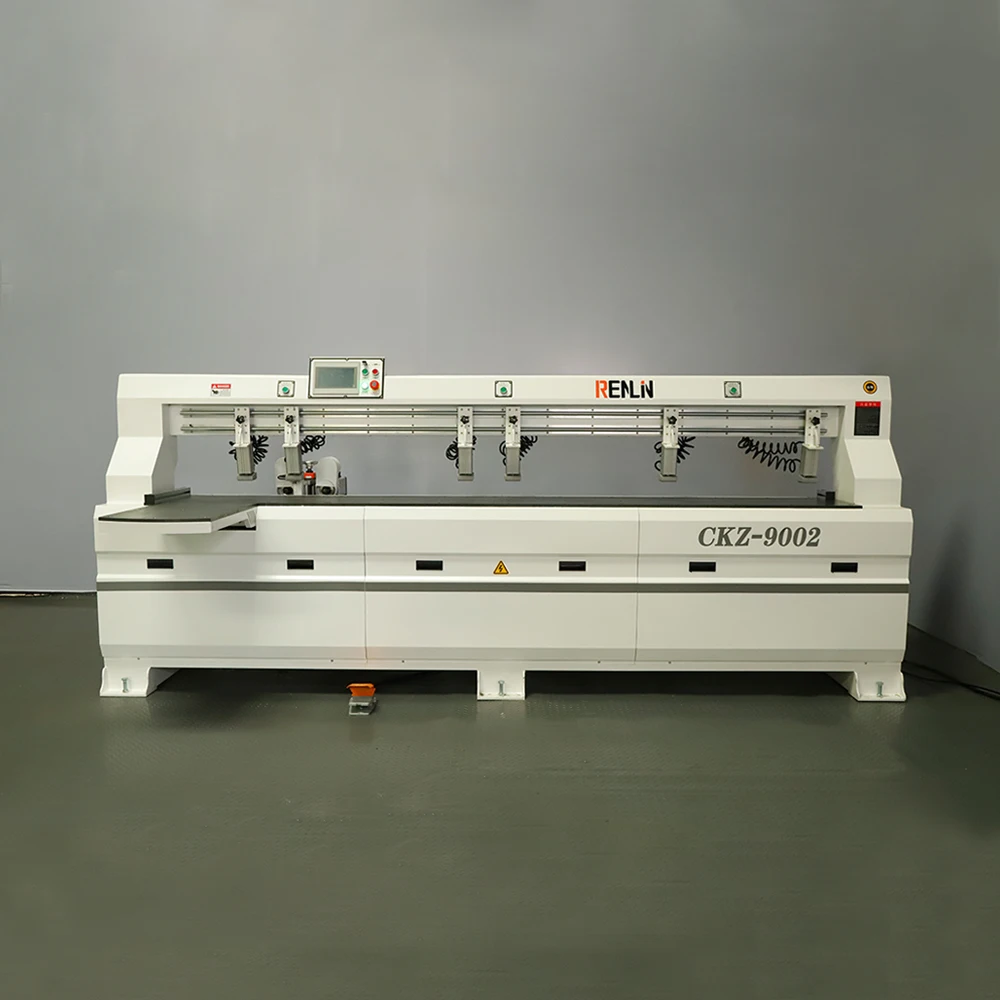

High Speed CNC Wood Side Hole Drilling Machine For Furniture
- Category: Wood Boring Machines >>>
- Supplier: Dongguan Kindlytech Technology Co. Ltd.
Share on (1600250018682):
Product Overview
Description
Products Description

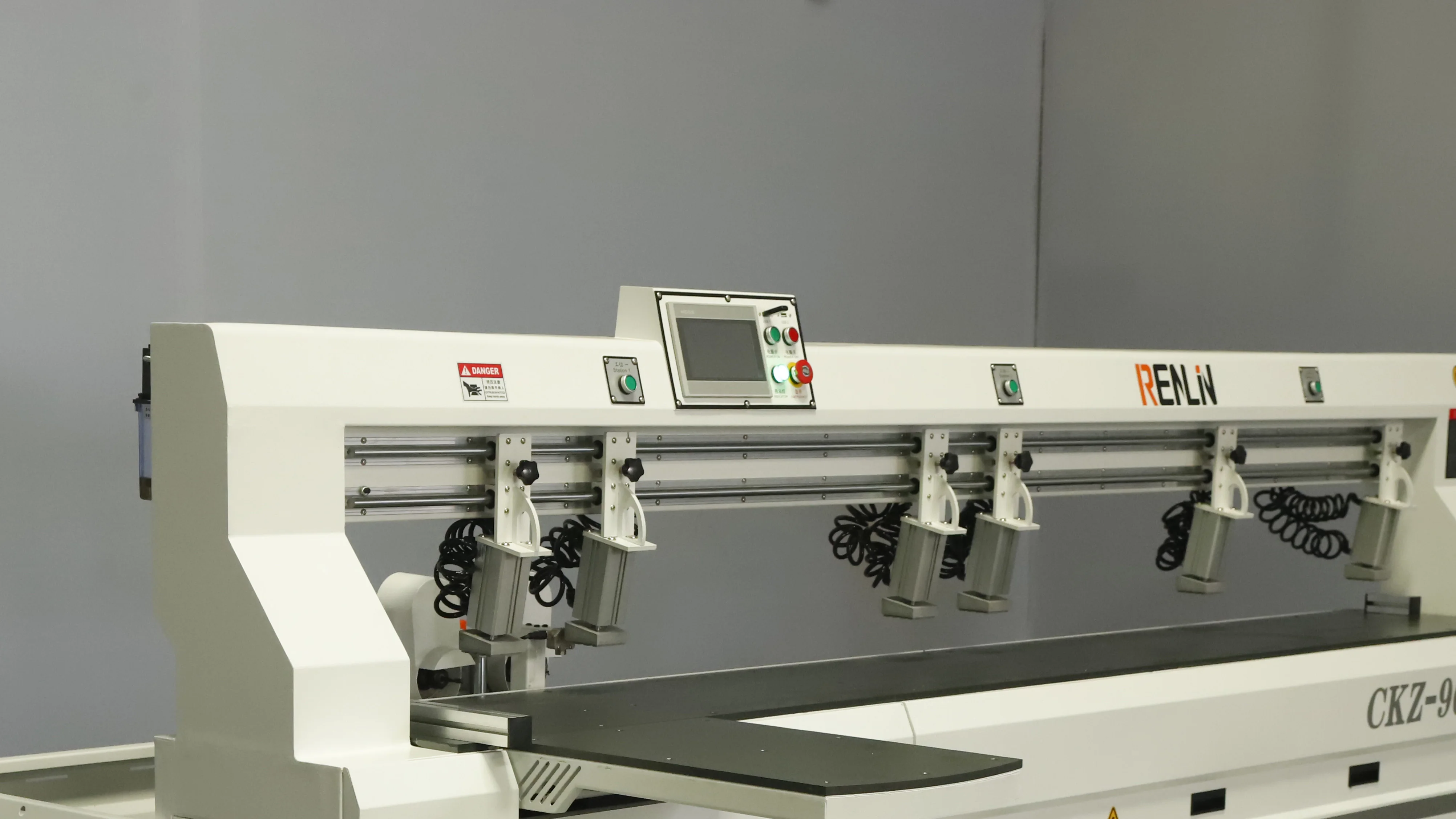

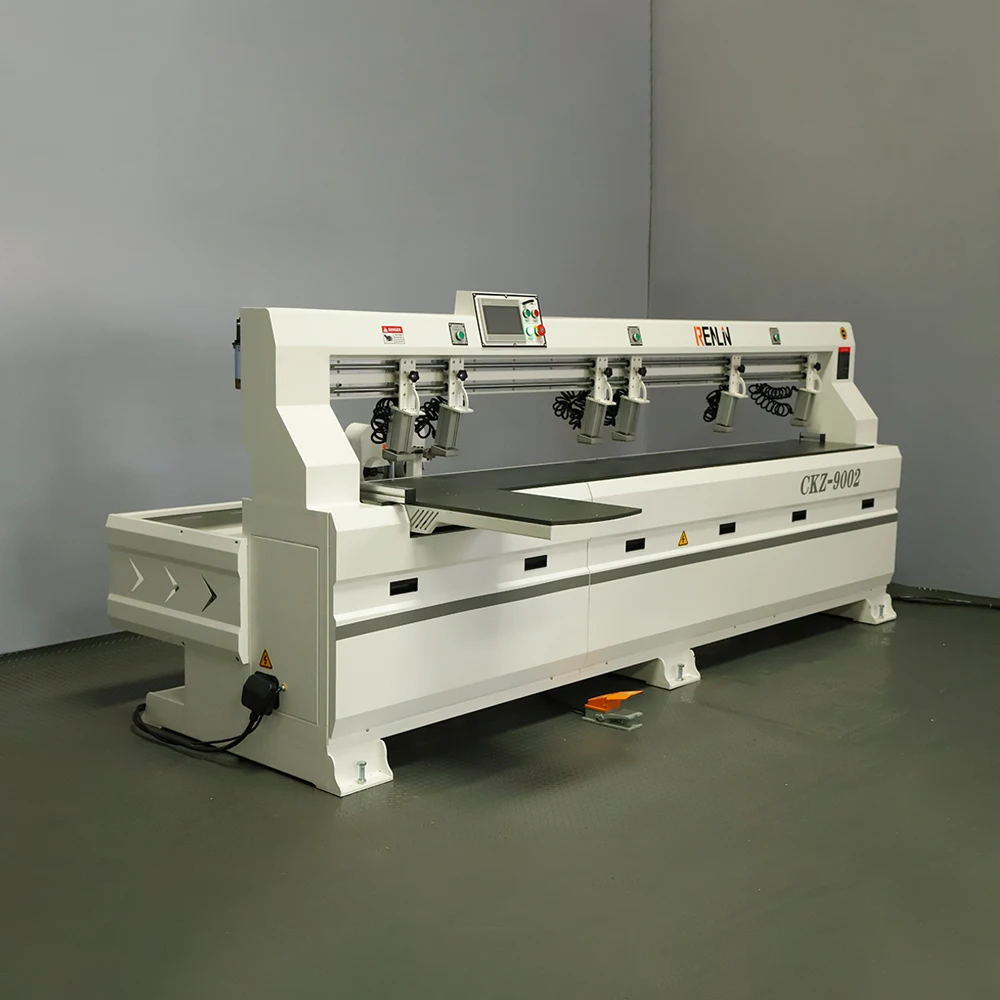

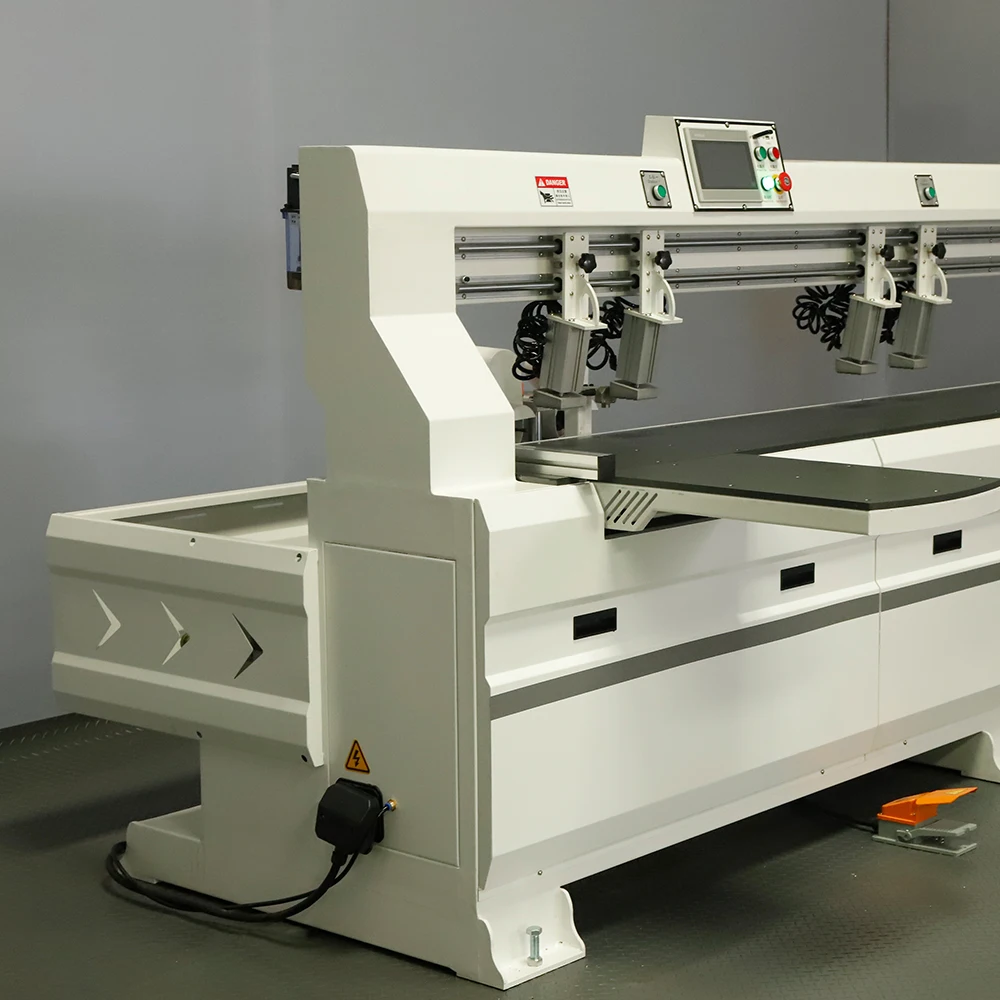

High Speed CNC Wood Side Hole Drilling Machine For Furniture
The Side CNC Boring Machine for Wood Furniture Making, or side drilling machine is a practical numerical control equipment for plate furniture. It is mainly used to solve the problem that the CNC nesting machine cannot punch or boring side holes, and the precision of ordinary pneumatic row drills is not high, and needs repeated positioning.
Product Paramenters
No. | Configuration | specification |
1 | RENLIN AC Servo Drive | AC220V750W*2 sets |
2 | BANNER Laser Sensor | DC24V |
3 | RENLIN professional three-axis side slot machine control system | CKZ-9002 |
4 | KUNLUNTONGTAI 7-inch touch screen | DC24V |
5 | RENLIN High-Performance Inverter | XD3001.5G1380V3.5KW |
6 | High-speed spindle 2 sets | 380V 3.5KW |
7 | High precision reducer | 90-80Nm |
8 | Square linear guide,slider | HGH25 |
9 | High-strength heavy-duty body | CKZ3000 |
10 | Specific cylinder Baroclinic | YLQG-5080D3 |
11 | Automatic lubrication oiling device | 220V-1.2L |

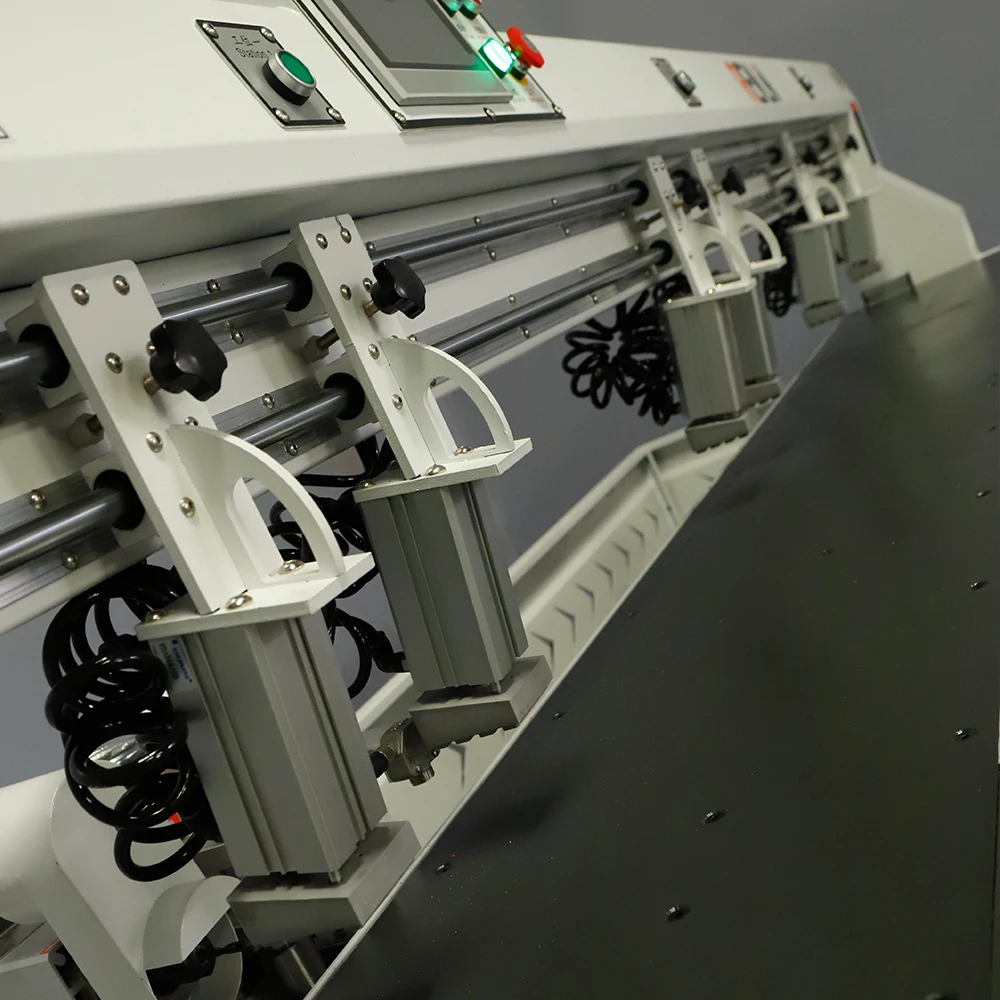

Product Details
Quickly and accurately,can drill multi kinds of hole and there is no limit to the board width.

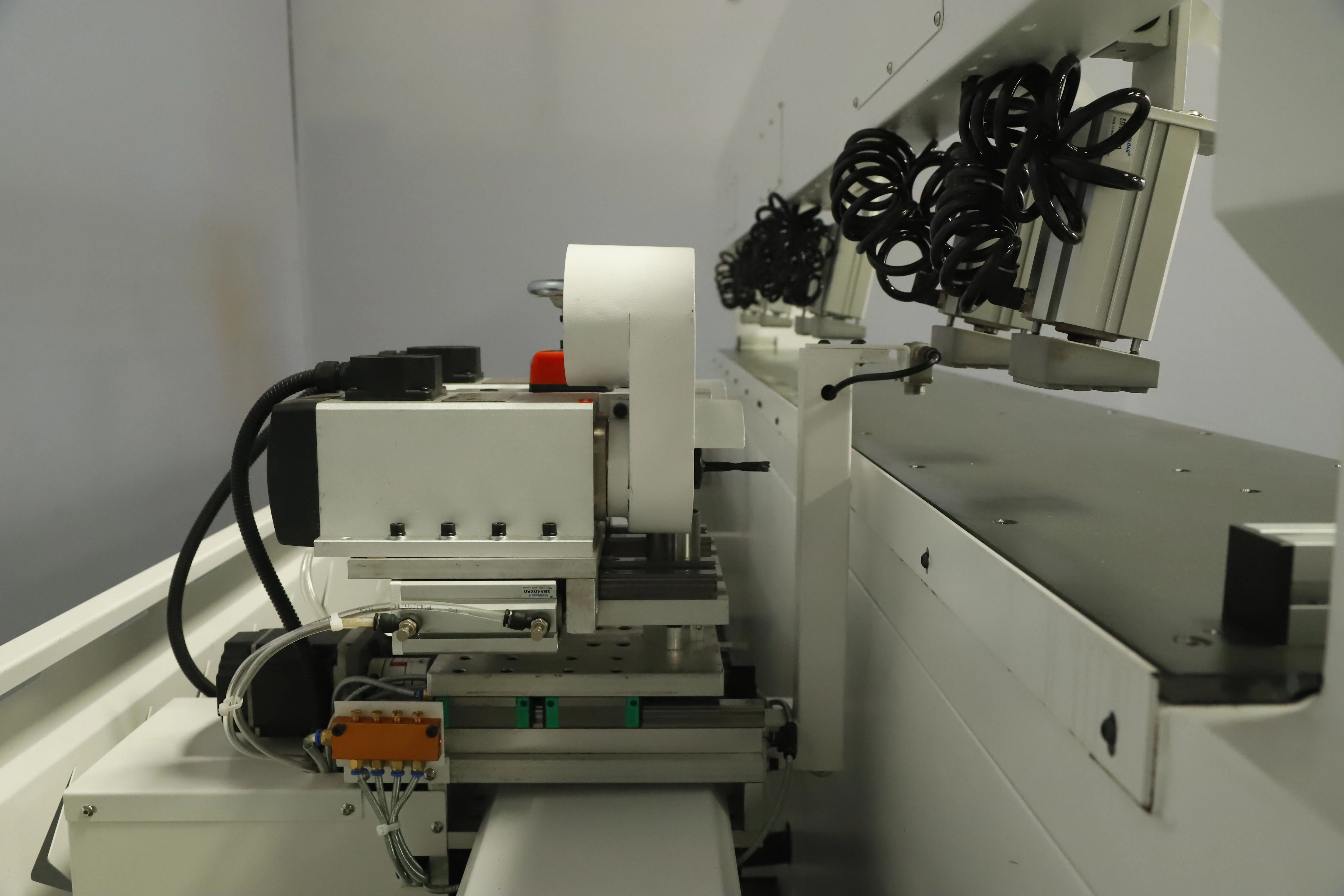

Drive motor adopts servo motor equipped with reducer easily ensure machine run fast and smooth.
Touch screen control systerm.

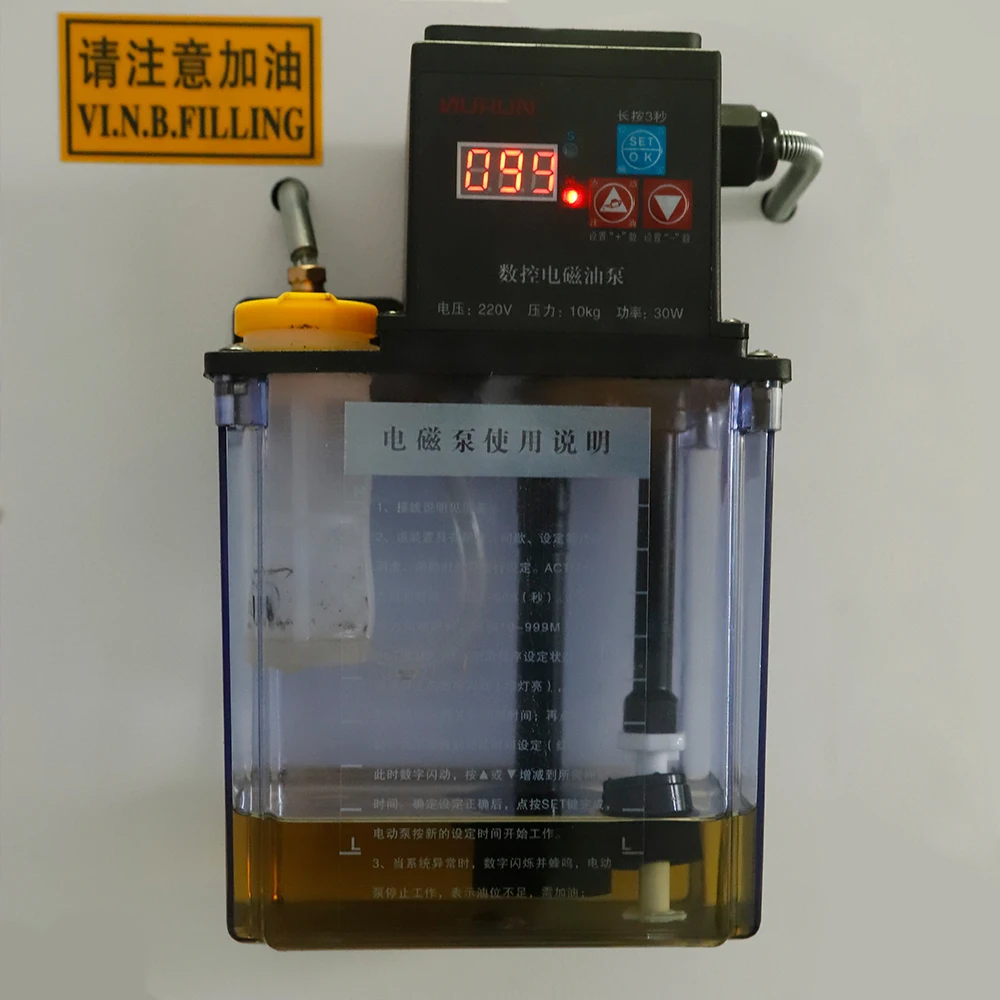

Perfect automatic oil lubrication systerm,prolong the service life of the machine

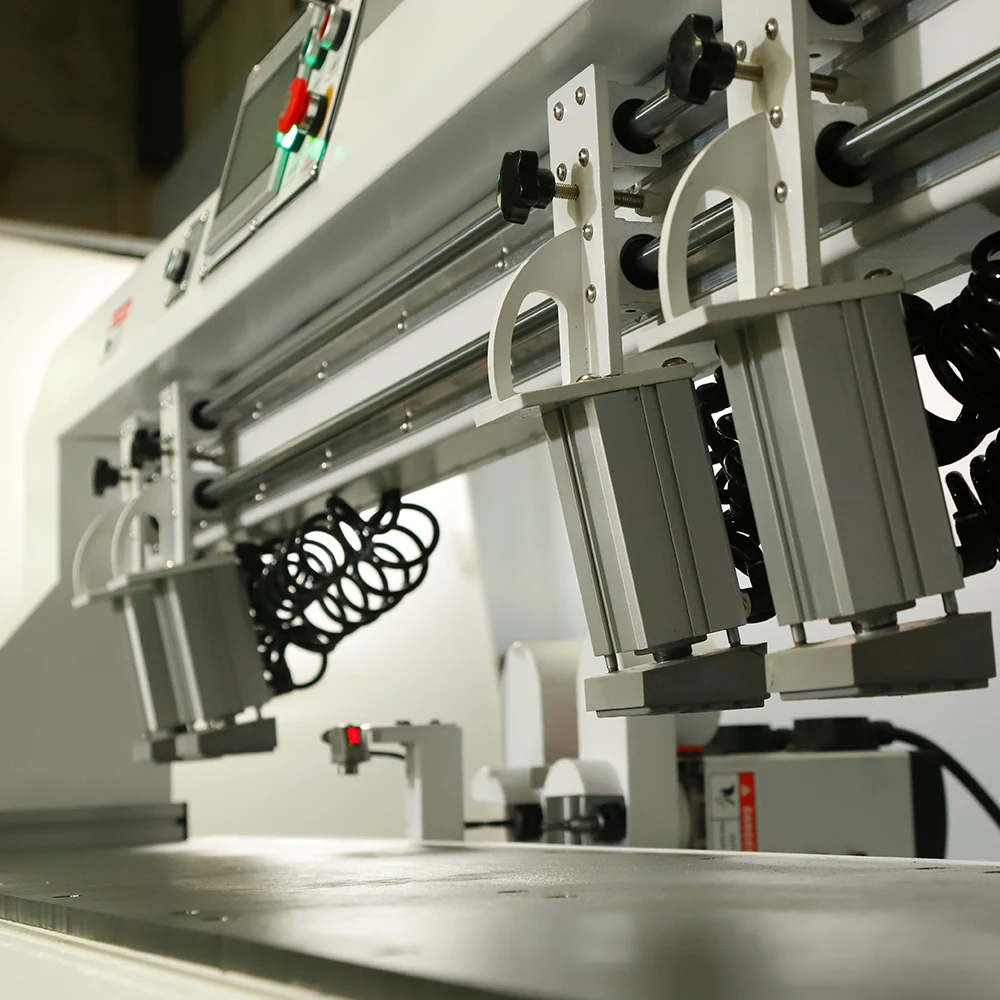

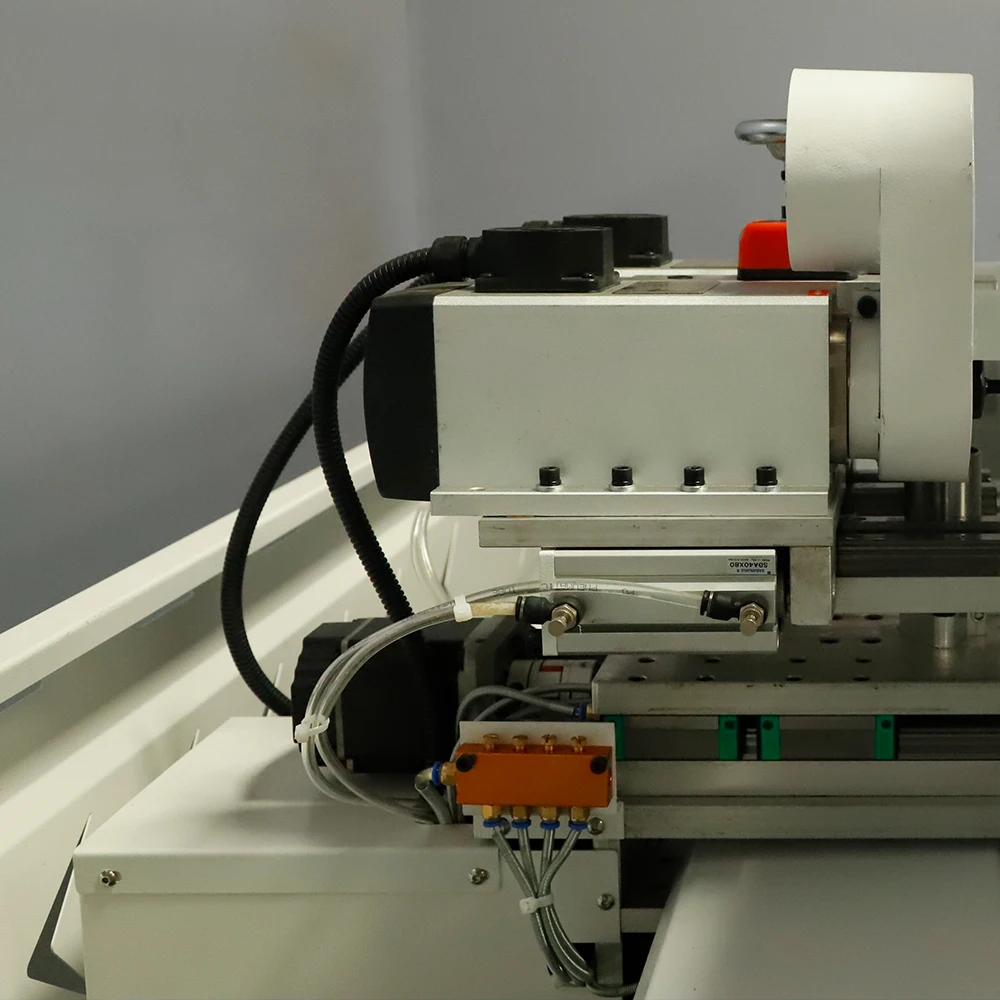

1. Dual servo system, Y axis servo drive laser sensor scanning hole, Z axis servo drive tool drilling and grooving.
The professional side hole drilling control system has high precision of repeated drilling.
2. It is not affected by the color of the plate, and the plate of 15mm to 25mm does not need to adjust the laser.
3. Fast running speed, air speed of 50 m/min, scanning speed of 40 m/min, drilling speed of 40 m/min.
4. Scanning mode, which can connect with many kinds of wardrobe and cabinet software on the market.
After setting the parameters, do not need to sweep the code gun sweep the code gun. Reduce workload and improve processing efficiency.
After setting the parameters, do not need to sweep the code gun sweep the code gun. Reduce workload and improve processing efficiency.

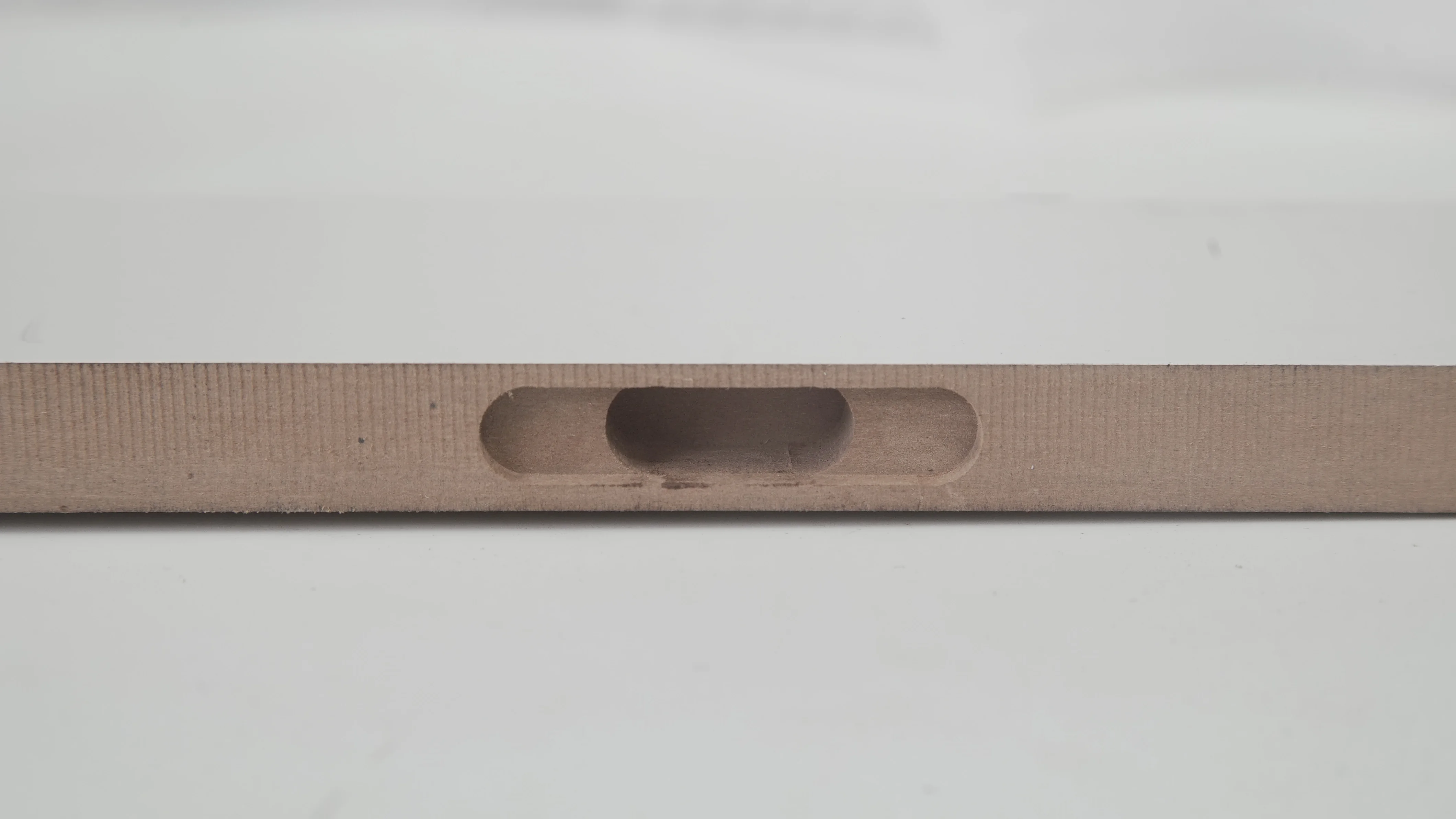

Sample & Application

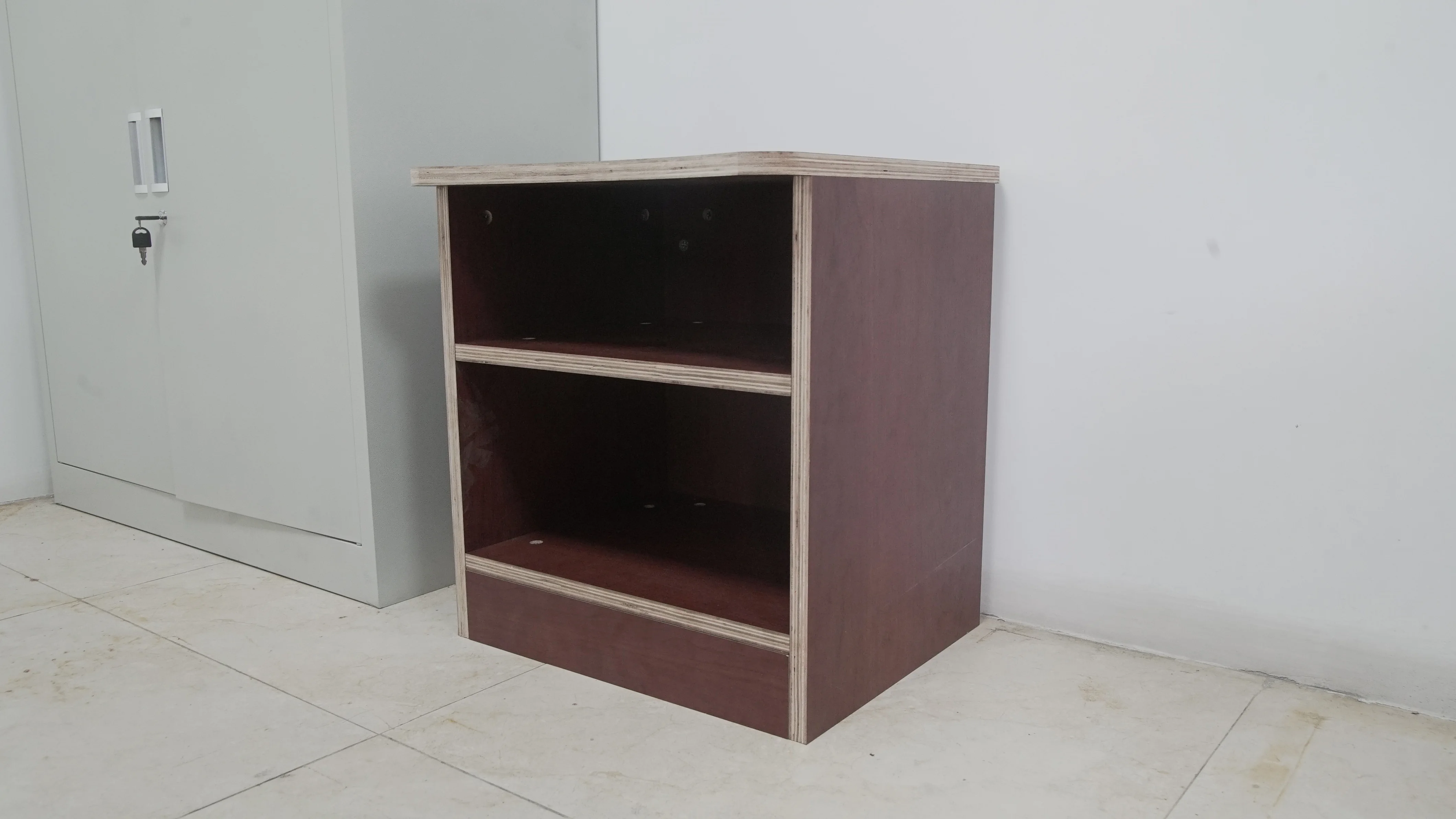

Panel furniture industry
wood furniture,solid wood doors,decorative materials,cabinets doors, computer tables,mahjong table,office furniture,wooden sound box, kitchenware,etc , all kinds of board type furniture, wooden doors, cabinets.
Packing and Shipping
FAQ
Q:I knew nothing about this machine, what kindof machine i should choose?
A:Just tell us what you want to do byusing CNC machine, then let us give you perfectsolutions and suggestions.
Q:What technical services can you provide?
A:We will send video and English manual with the machine. And 24-hour professional technicians online training and problem solving. It provide detailed installation courses.
Q:If some problems happen to this machineduring warranty period, what should I do?
A:We will supply free parts during machine warranty periodif machine have some problems. While we also supplyfree life long after-sales service. So any doubts, just let usknow, we will give you solutions.
A:Just tell us what you want to do byusing CNC machine, then let us give you perfectsolutions and suggestions.
Q:What technical services can you provide?
A:We will send video and English manual with the machine. And 24-hour professional technicians online training and problem solving. It provide detailed installation courses.
Q:If some problems happen to this machineduring warranty period, what should I do?
A:We will supply free parts during machine warranty periodif machine have some problems. While we also supplyfree life long after-sales service. So any doubts, just let usknow, we will give you solutions.
