Bath Oil Factory Direct Supply Water Bath Or Oil Bath Laboratory Equipment

Product Overview

Description

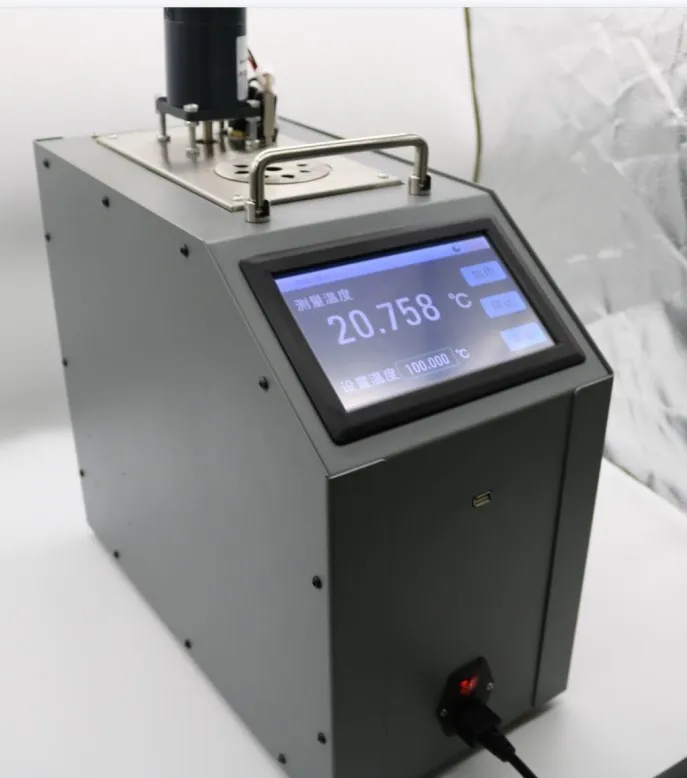

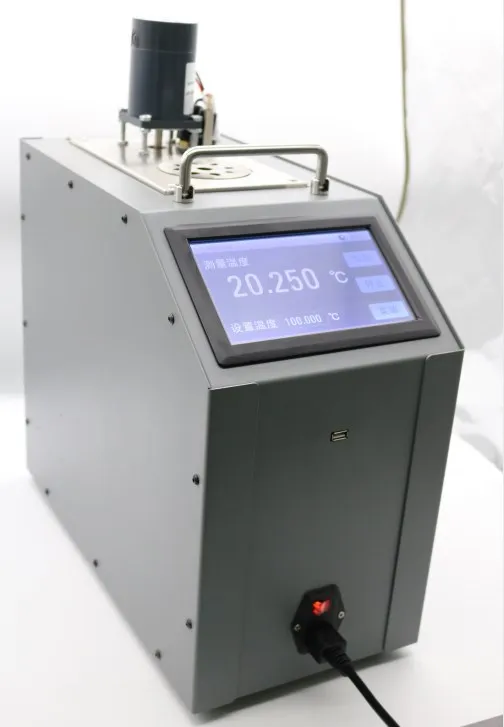

This product adopts a touch screen design, the operation process is simple and intuitive, and the temperature of the working area is displayed in real time. The device is equipped with serial communication, which can be used to collect temperature information. The portable constant temperature oil tank uses a self-developed precision temperature control module, with appropriate heating components and stirring devices, so that the working environment of the oil tank can be stabilized within 0.01 ℃. The use of a high-precision temperature sensor in the portable tank can make the system's resolution reach 0.001°C.

Features

1. Fast heating, strong anti-interference ability

The portable tank adopts the optimized PID control algorithm, and the temperature rises quickly, and the temperature difference stabilization time of 100°C only takes 15 minutes. It takes about 5 minutes for a temperature change of 10°C to stabilize. So when the load changes, the system can quickly reach a stable working environment again

2.Intelligent parameter setting, simple operation

The system has a self-tuning algorithm, only need to set the temperature value when using



Model Technical index	ET3960
range of working temperature	Room temperature +30℃~300℃
Temperature fluctuation	±0.01℃
Temperature uniformity	±0.01℃
Work area size	Φ80×250(mm)
Working medium	Methyl silicone oil
power	220V/50Hz
Ambient temperature	Below  35℃
Dimensions	420×210×370mm
power	1200W
weight	15kg
