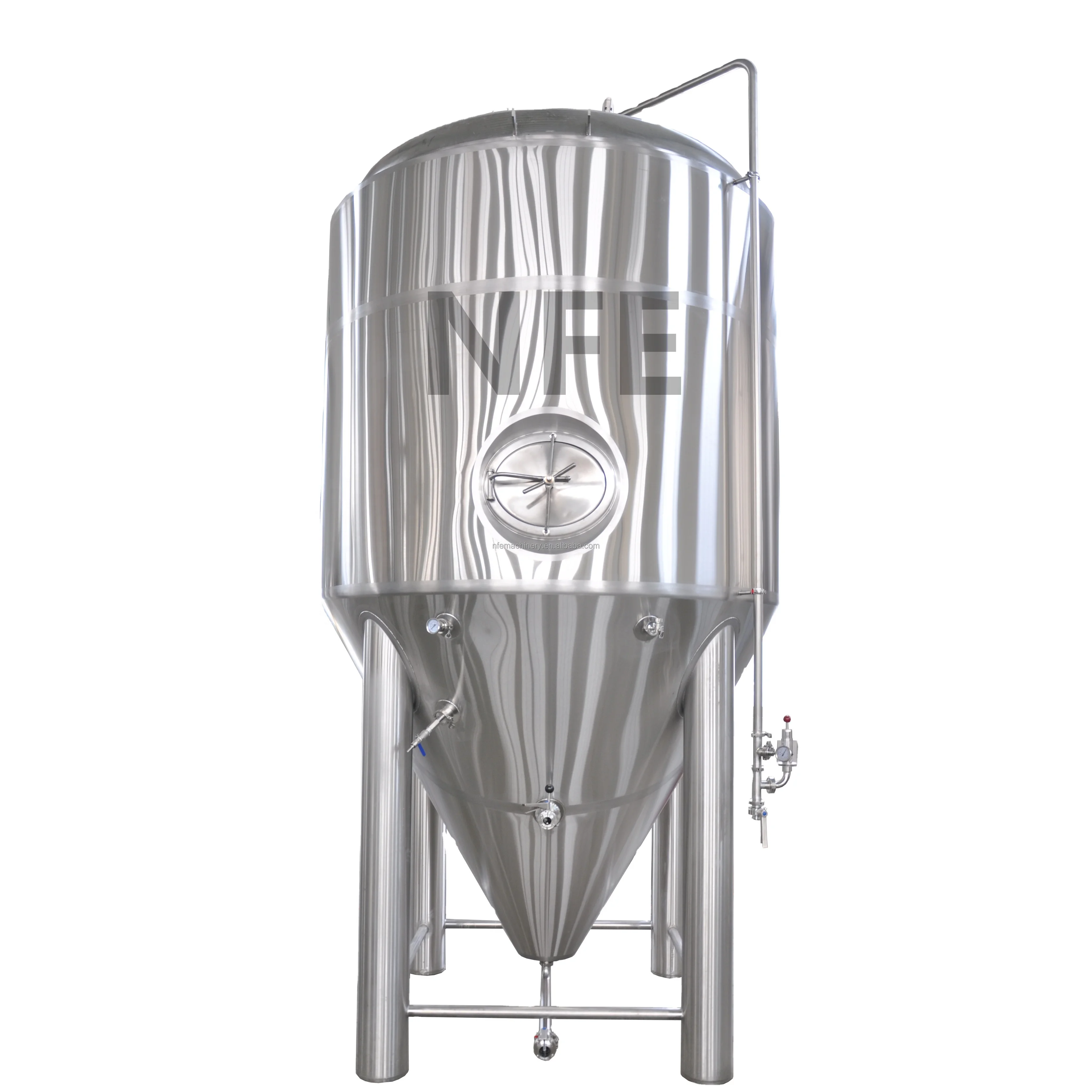

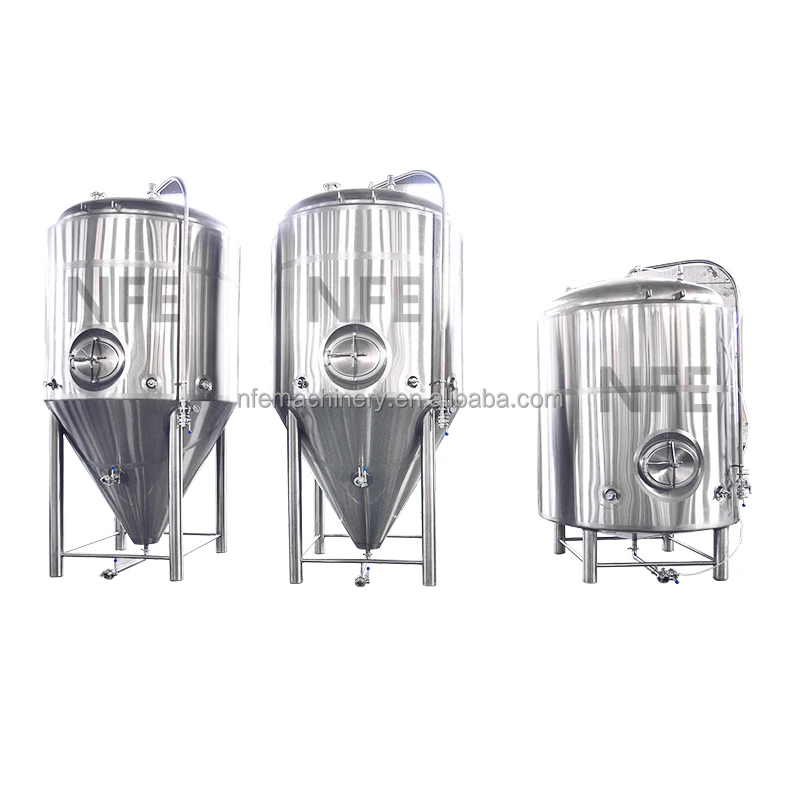

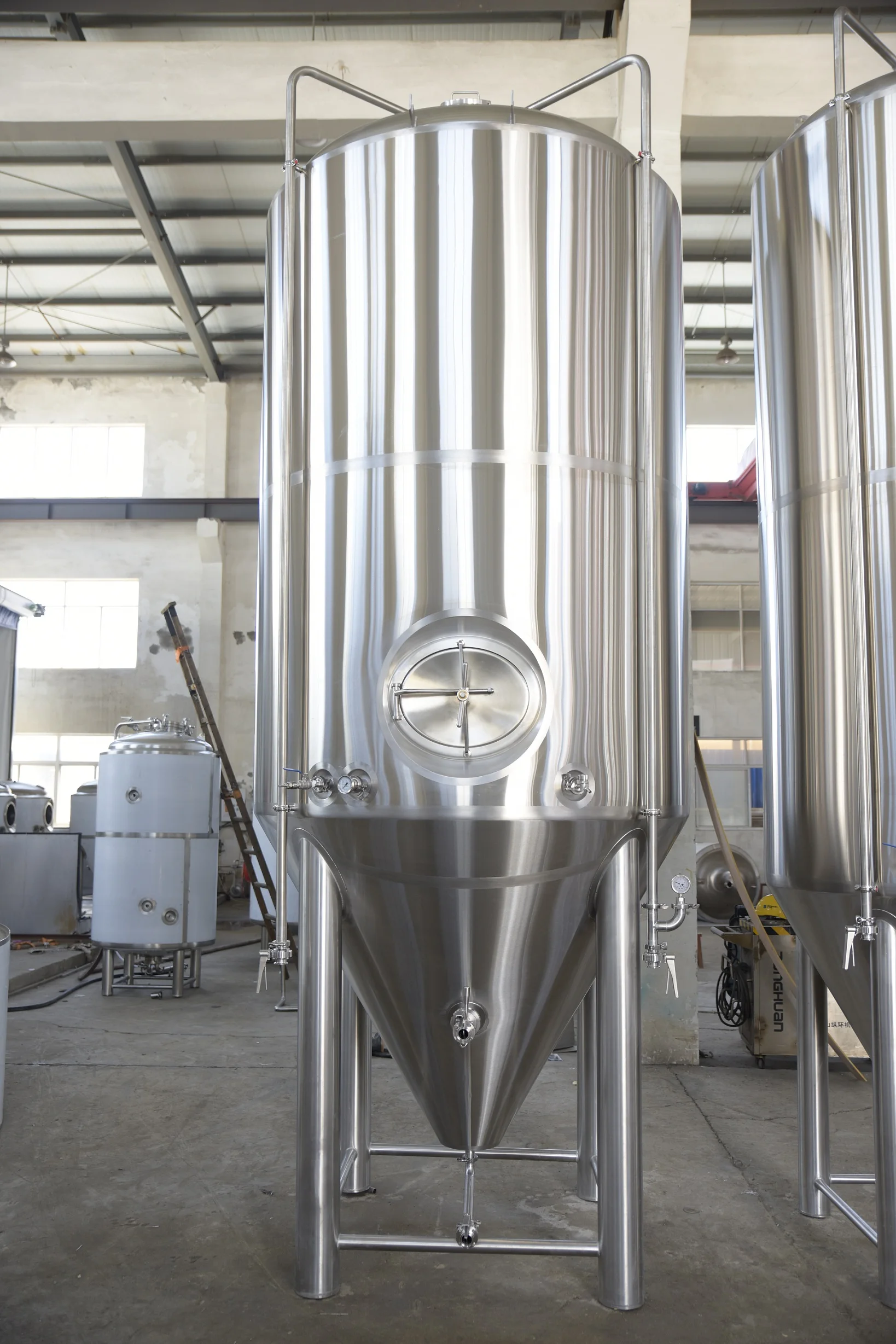

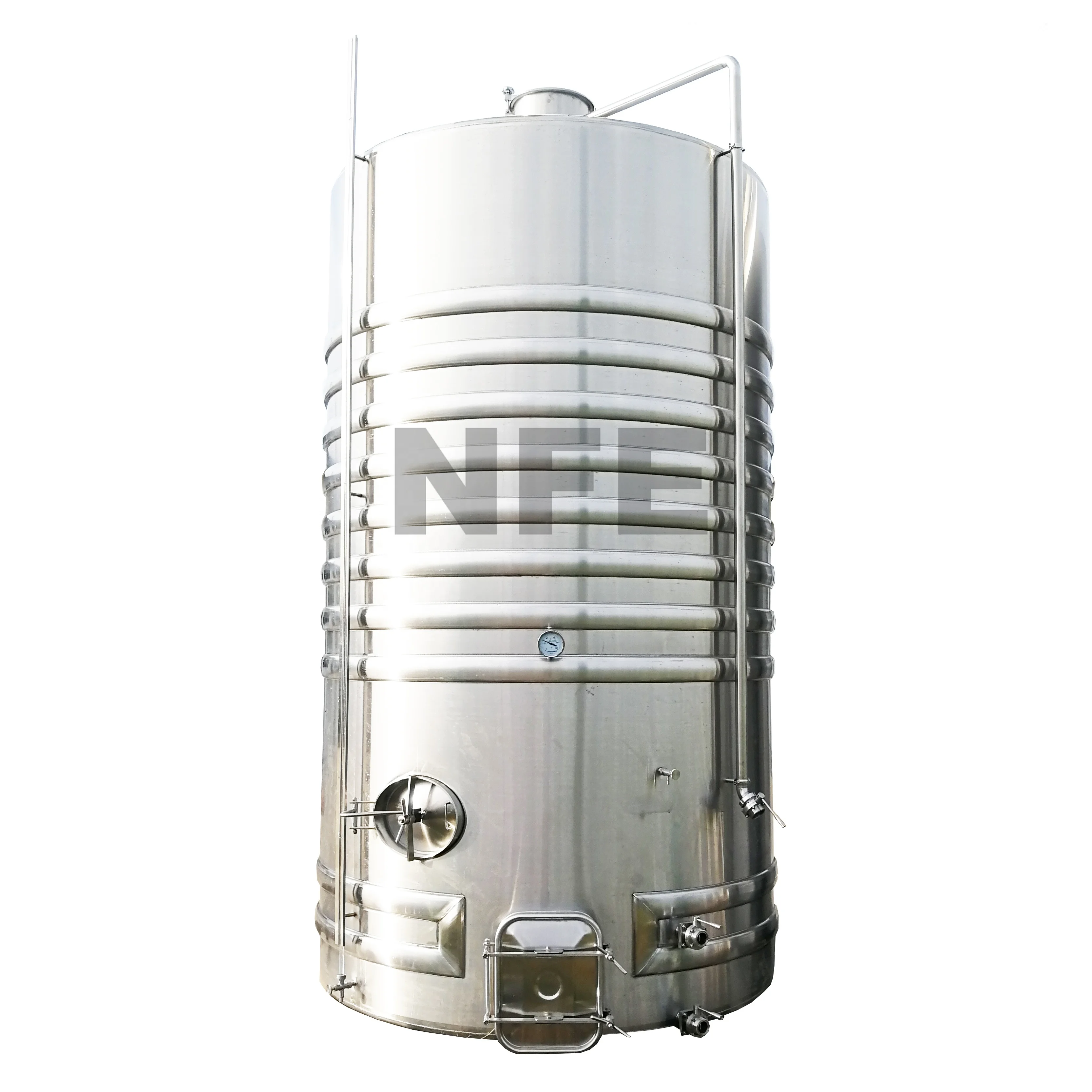

1500L 15HL Micro Winery Equipment 304 Stainless Steel Cooling Jacketed Wine Fermentation Tank
- Category: >>>
- Supplier: Jinan NFE Machinery Co. Ltd.
Share on (1600250130656):
Product Overview
Description
Product Description
1000L 2000L 3000L 5000L 6000L 8000L 10000L 15000L 20000L Winery tank fermenter Wine tank Grape wine fermenter cider fermentation tank
As a leading designer and manufacturer of stainless steel vessels, NFE professionally makes high quality brewing equipment for brewery, winery and cidery. NFE designs and mamufactures different volume turnkey winery fermentation solutions from 500L to 200HL including wine fermentation tanks, wine conditioning tanks, Glycol chilling system, wine storage tanks, wine cooling tanks,control system for temperature control, pipelines,etc. With an excellent technical and engineering team, NFE can customize the tanks and solutions by the special requirement of different wineries and cideries. NFE will help you build your winery and cidery with high quality tanks and affordable price!
Main Features
1) UL & CE Rated Controls and Components.
2) Tanks conform to all ASME pressure vessel ratings and standards.
3) 100% leaking test of cooling jacket and tanks, internal pickling passivation before shipment.Roughness is less than 0.4um . All the necessary fittings such as breath valve, sample valve, manway, thermowell, pressure gauge,CIP ball,etc are all included.
4) Material is sanitary grade SS304 or 316L. TIG welded.
5) All control panels are pre-wired and pre-tested.
6)PLC Siemens color touch screens control system or button type.
7)Complete mechanical engineering support, on-site installation, start-up and training support for all systems.
8)Insulation or no-insulation design by customer's requirement.
9) Sloping bottom, Conical bottom, internal filtration net design by customer's requirement;

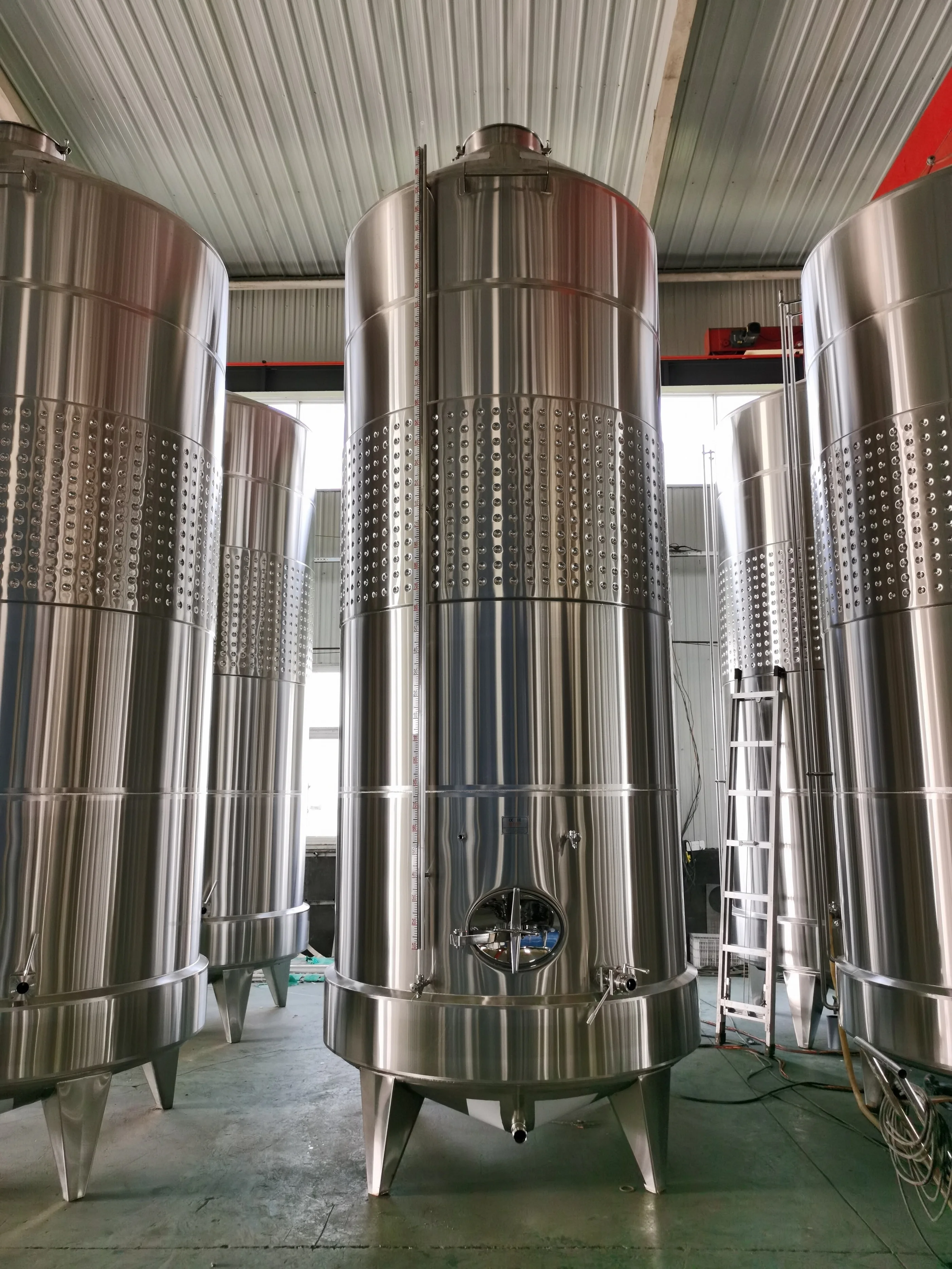

10) Dimple or coil tube type cooling jacket;
11) Customized design for red wine, white wine, cider.
Certifications
Detailed Images

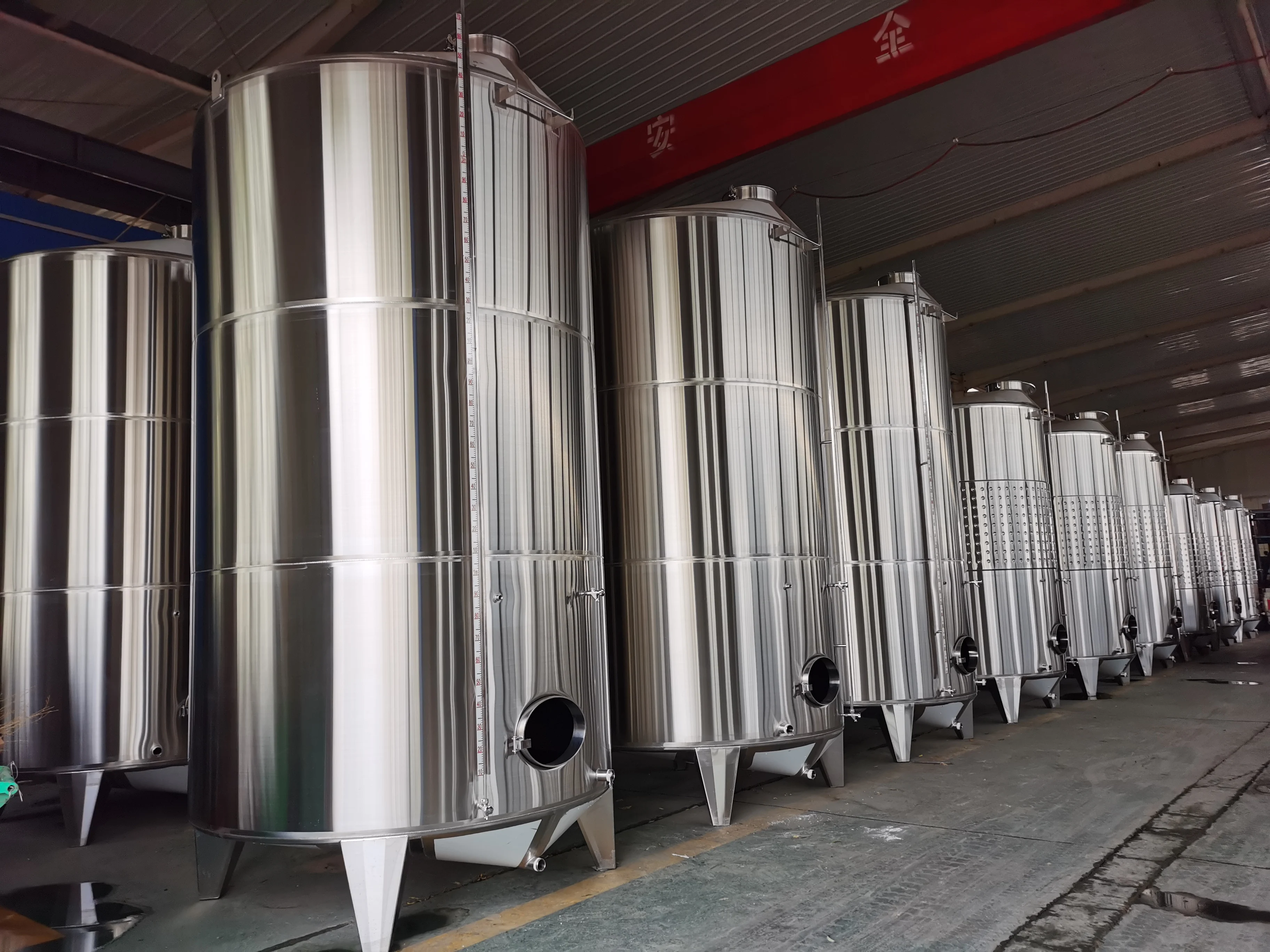

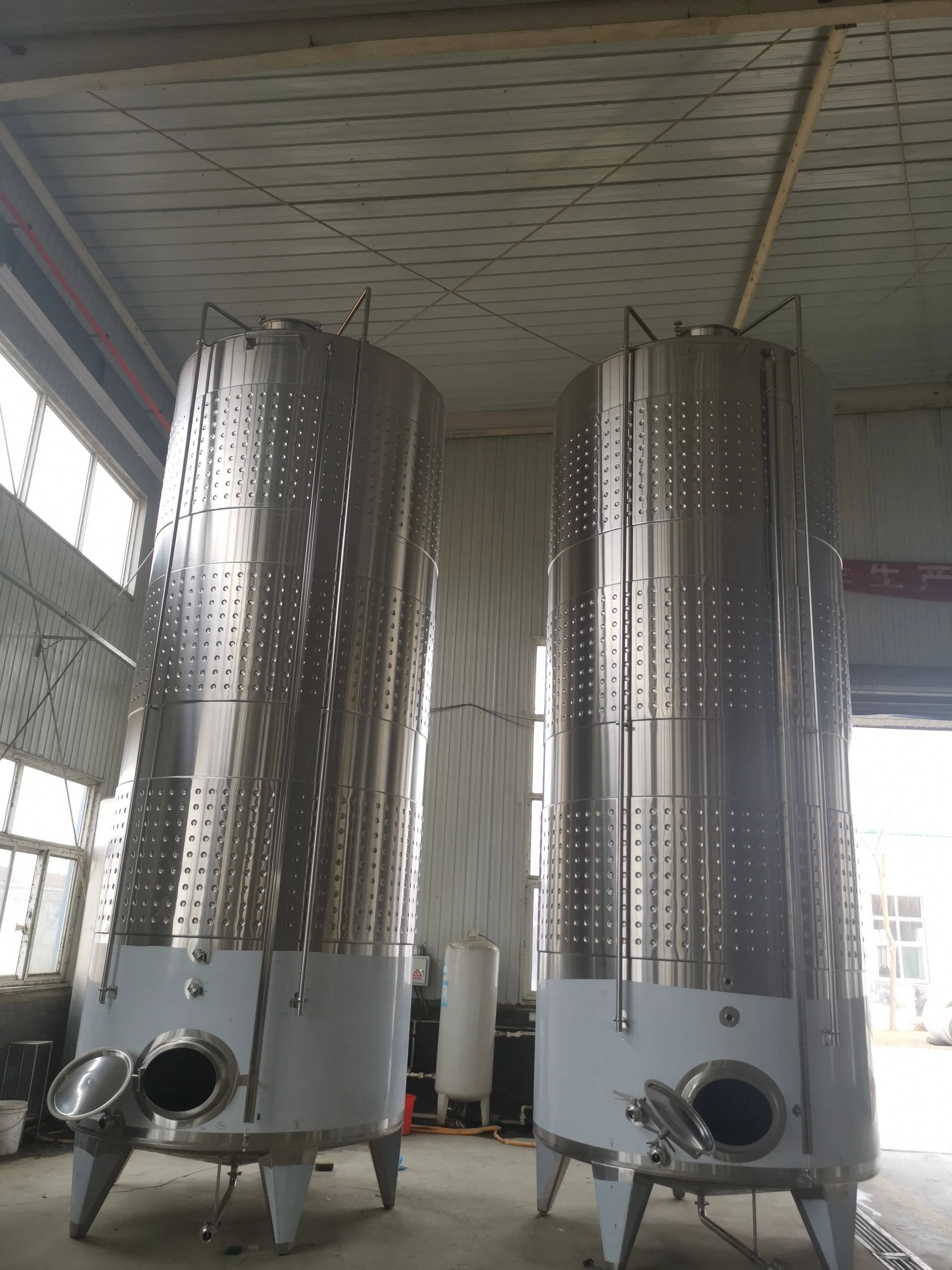

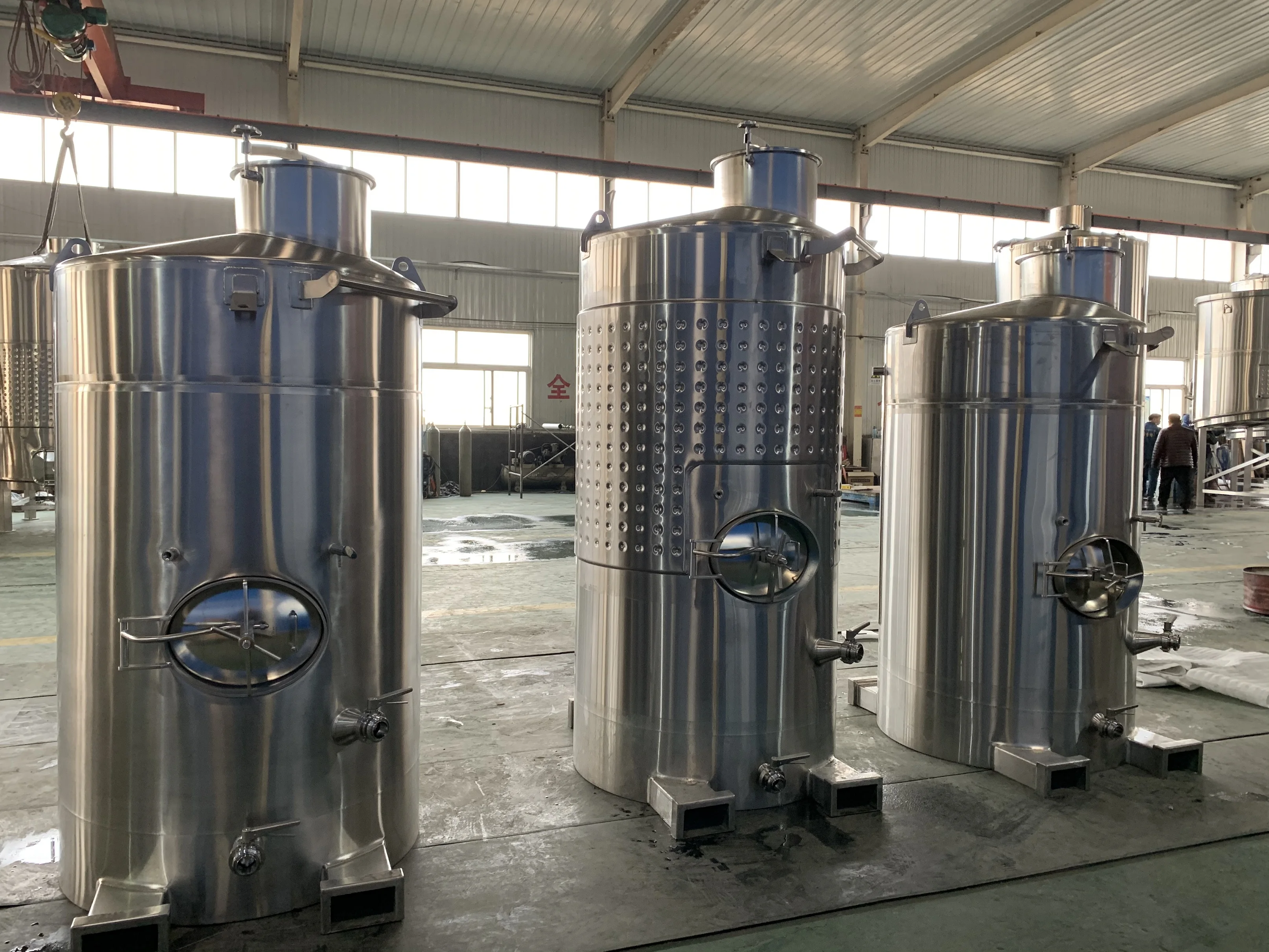

Name | Wine fermenters/Winery fermentation tank |
Material | SUS314/316L |
Function | For making Red Wine |
Volume | 1000L-200HL,10BBL-180BBL |
Cooling jacket | Dimple type Coil tube type |
Bottom type | Sloping bottom |
Internal structure | With filtration net |
Manway | Top round manway and Side square manway |
Liquid level tube | Yes |
Fittings | With all the necessary fittings |
Name | Wine fermenter/Winery fermentation tank |
Function | For making White wine |
Volume | 1000L-200HL,10BBL-180BBL |
Material | SUS304/316L |
Cooling Jacket | Dimple type Coil Tube type |
Bottom | Conical Bottom |
Inside | No filtration net, treated by pickling passivation,less than 0.4um |
Manway | Top and side round manway |

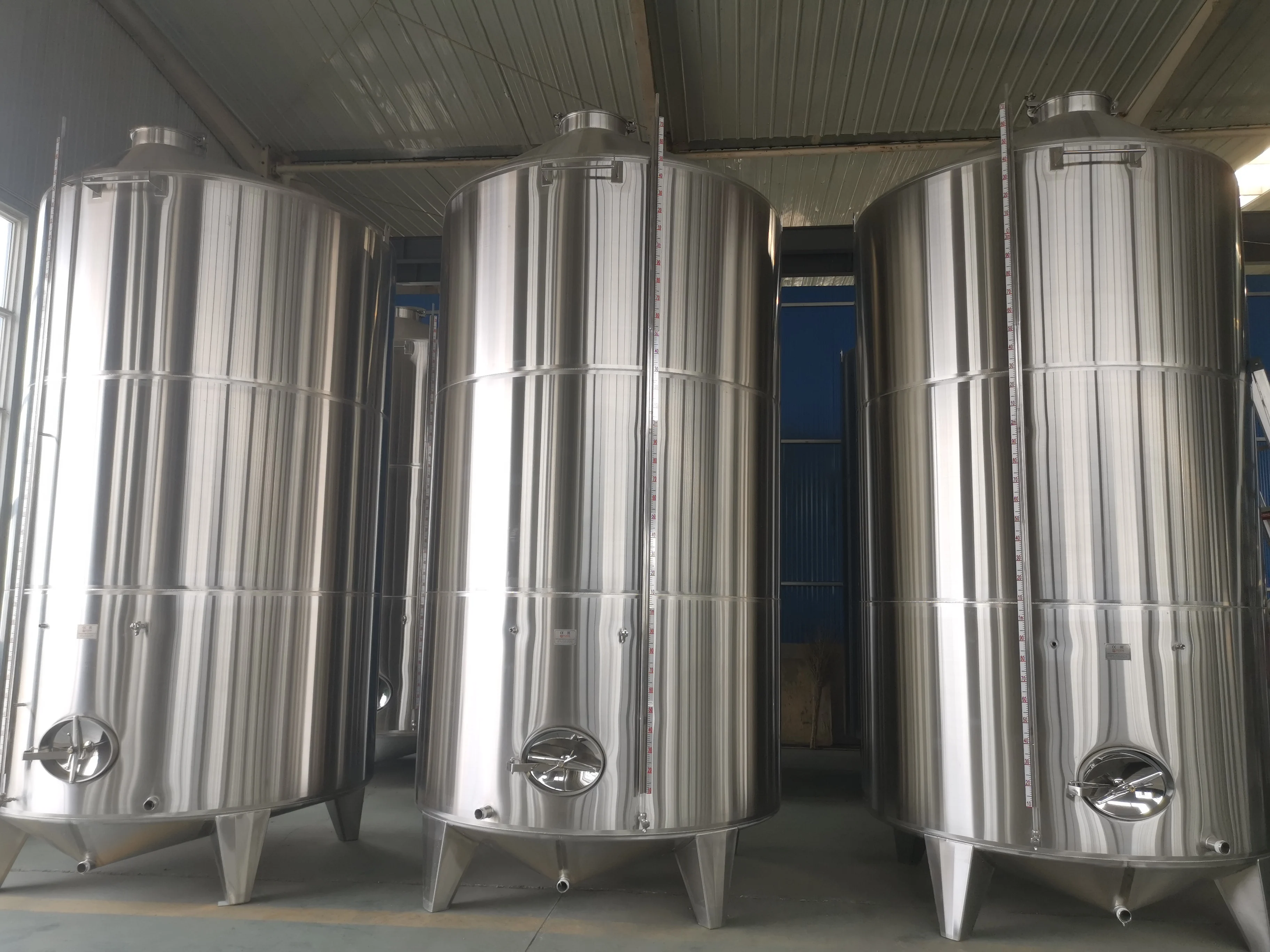

Name | Wine storage tank/Wine conditioning tank/Wine brite tank |
Function | For storing Wine/cider |
Volume | 1000L-200HL, 10BBL-180BBL |
Structure | Single wall or with cooling jacket Can be customized |
Material | SUS304/316L |
Bottom | Conical Bottom |
Manway | Top and side round manway |
Liquid level tube | Yes |
Thermowell | Yes |
Inside treatment | Pickling passivation Welded joints are polished |
Internal roughness | Less than 0.4um |
Assembly | Including all the necessary fittings |

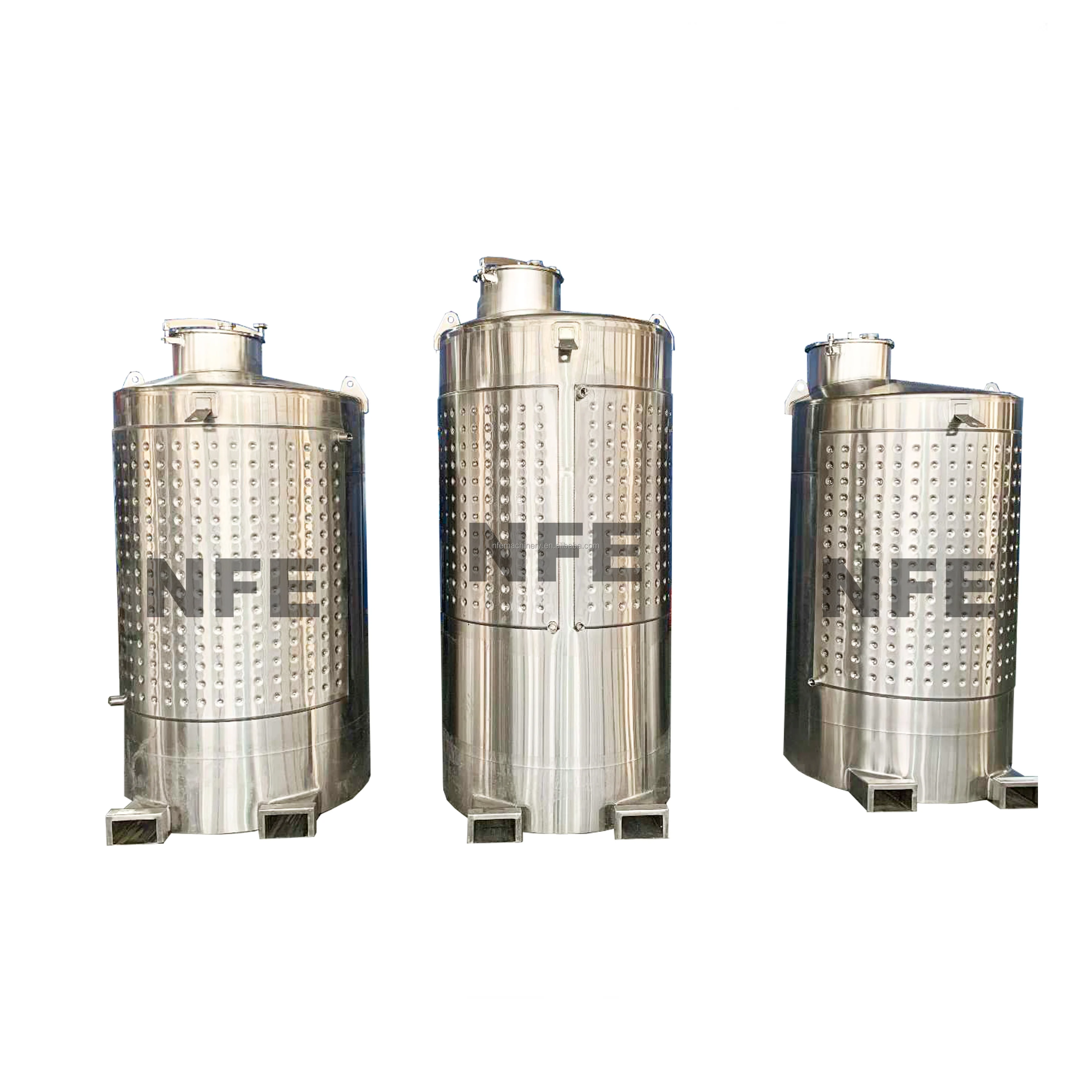

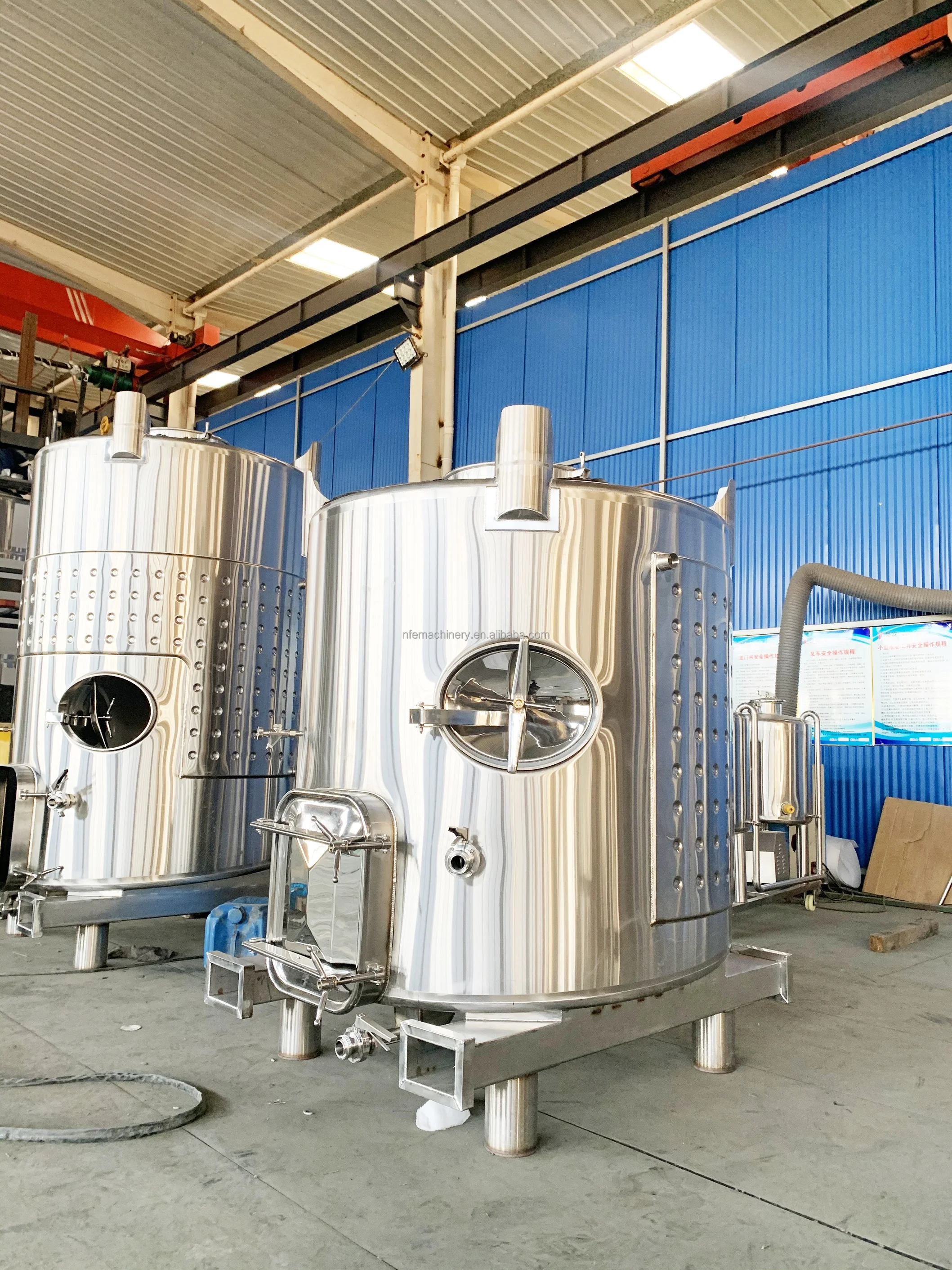

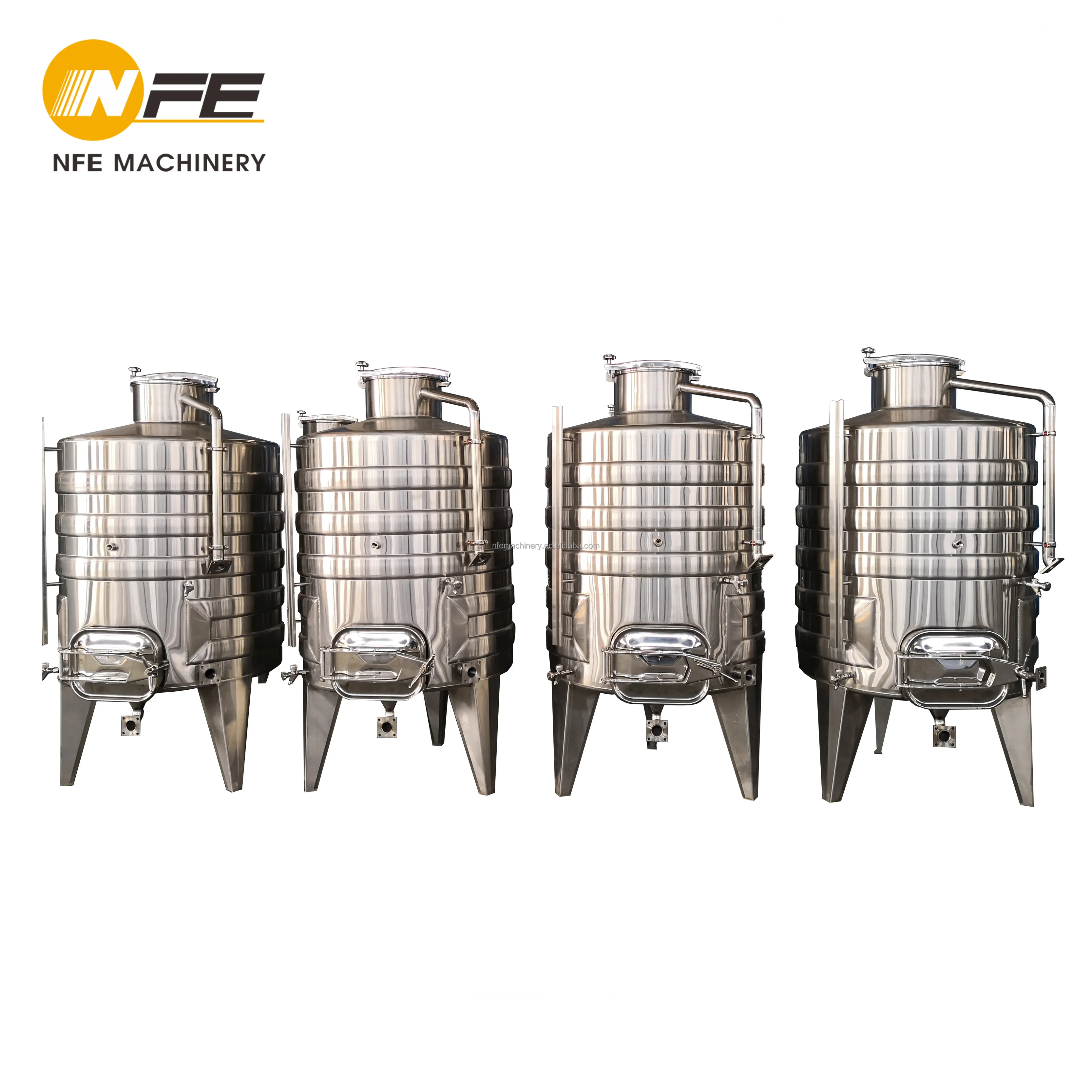

Wine fermener and storage tank with fork truck pockets
1. Materials: wine contacting parts are stainless steel 316, other parts are stainless steel 304
2. Effective volume: 1000L-200HL;
3. Single wall without insulation
4. Tank wall thickness: 2.5mm; jacket thickness: 1.5mm
5. Sloping bottom
6. With forklift pockets
7. Dimple plate cooling jacket, on tank wall, with 1” glycol inlet and outlet
8. With top manway and two side manways;
9. With 1.5” RJT thread butterfly valves on bright wine port and drain port;
10. With sample valve
11. With 4 stackable legs
12. Manufacture according to the tank drawing confirmed by buyer
2. Effective volume: 1000L-200HL;
3. Single wall without insulation
4. Tank wall thickness: 2.5mm; jacket thickness: 1.5mm
5. Sloping bottom
6. With forklift pockets
7. Dimple plate cooling jacket, on tank wall, with 1” glycol inlet and outlet
8. With top manway and two side manways;
9. With 1.5” RJT thread butterfly valves on bright wine port and drain port;
10. With sample valve
11. With 4 stackable legs
12. Manufacture according to the tank drawing confirmed by buyer
Other equipment for winery and cidery
We also supply high quality associated equipment for winery, such as chiller, glycol tank, CIP, pipelines,control system,etc.
All the associated equipment are customized by the production capacity of your winery or cidery.
Glycol chiller
Name: Glycol Chiller
Cooling way: Air-cooled
Original: China
Original: China
It is used to cool down the wine fermenters and cooling tank, storage tanks by glycol. It can be used with glycol tank. The chiller is fit for CE or CSA or UL certficate by customer's demands.
Cooling way: Air-Cooled
Cooling Medium:R404/407/410
Running way: Automatic
CIP Unit
Name: CIP cart
Brand: NFE
Original: China
Brand: NFE
Original: China
It is used to wash tanks and pipes. We can also customize the big CIP station by your need.
Sterilization tank;
Alkali liquor tank;
Sterilize vehicle;
CIP pump;
Pipes and valves;
Control box.
Control Unit
Name: Control panel
Brand: NFE
Original: China
Manual button control or PLC control;
Control fermenters temperature automatically
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
* All tanks will be packaged with soft protection material and mounted on strong carbon steel frame.
* All accessories and spare parts will be packaged with seperated box.
* After loaded into containers, all equipments will be well fixed to the containers.
Company Information
Customers visiting
we are welcome to visit our factory, and our Brew Pub is ready to feeling the brewing.
Our Exhibition
CBC Shanghai
October,2016
CBC BrewExpo in Washtington DC, USA
April,2017
Drinktec in Munich, German
September,2017
