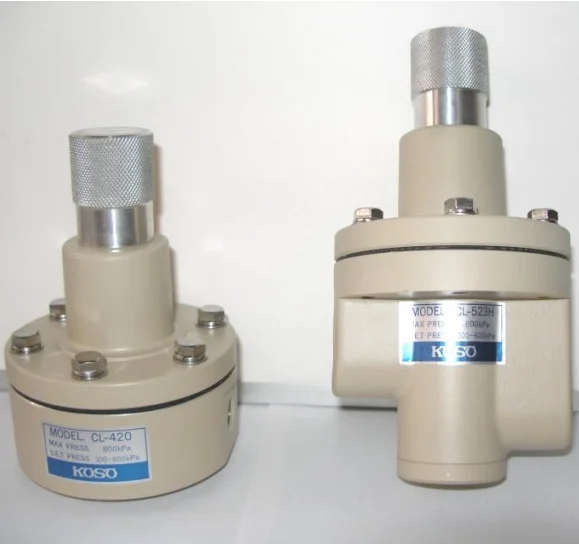

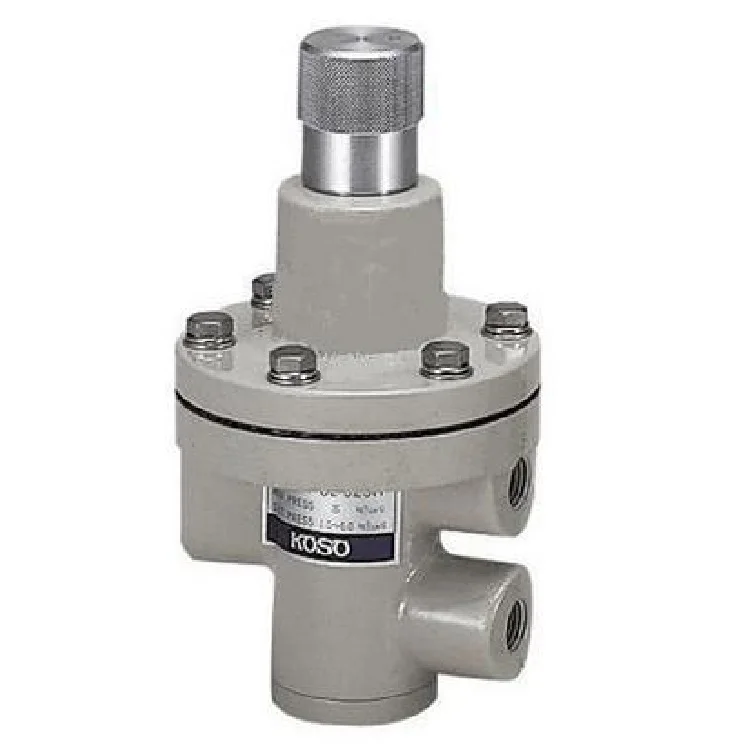

lockup valve KOSO CL 420 CL 520H lock valve
- Category: Other Valve Parts >>>
- Supplier: Xiangjing (Shanghai) M&E Technology Co. Ltd.
Share on (1600250210648):
Product Overview
Description
Product Description
Introduction This valve is used for switching control of pneumatic circuits. Available in two types shown below, it is designed to
provide various control circuits as desired through combination.
provide various control circuits as desired through combination.
In using these valves, it is suggested that this manual be carefully read for proper and adequate knowledge of operation and
maintenance so as enable the valves to per from as they should..
maintenance so as enable the valves to per from as they should..
Specification
Series | EP800 |
Model | EPA801 |
Input signal | 4～20mA analog signal or digit signal |
Input impedance | 250 ± 5% at 25℃ |
Characteristic | Linear |
Brand Name | KOSO |
Pilot valve | avaNon-bleeding type/Single acting and double acting types are available |
Air supply | Output air pressure 50% Single acting type : 5Nl / min at 140 Kpa air supply Double acting type : 15Nl / min at 400 Kpa air supply |
Max. capacity | Capacity when output is atmospheric venting. Single acting type : 175Nl / min at 140 Kpa air supply Double acting type :400Nl / min at 400 Kpa air supply |
Performance | For single acting actuator Linearity 1.0% of Full stroke Hysteresis 0.5% of Full stroke Response level 0.1% of Full stroke Repeatability 0.2% of Full stroke Supply pressure effect 0.1%/10 Kpa For double acting actuator Linearity 1.5% of Full stroke Hysteresis 0.8% of Full stroke Response level 0.2% of Full stroke Repeatability 0.3% of Full stroke Supply pressure effect 0.4%/50 Kpa KOSO The above represents the performance of the positioner on an actuator without a valve.For the performance of the complete unit with a valve and an actuator, see KOSO STANDARD SPECIFICATION. |
Air connection | Rc 1/4 |
Wiring connection | G 1/2 |
Ambient temperature | Standard type 20 80 High temperature service (option) 0 100 Low temperature service (option) 50 60 |
Ambient humidity range | 10 90% RH |
Enclosure | Weather proof type ( IP65 ) Explosion proof type ( Ex md CT6 ) 01171 Intrinsically safe explosion proof type ( Exia CT6 ) 01172 |
Standard anicillary | Auto-Manual change |
FEATURES USABLE WITH LOW TO HIGH CAPACITY ACTUATORS By adjusting the built-in capacity control spring, the positioner can be made
optimum to the given actuator. A LOW AIR CONSUMPTION The pilot valve is low in air consumption and high in capacity. OUTPUT CHARACTERISTICS SELECTABLE Having a cam within the feedback construction, choices other than the standard linear characteristic are available. COMPATIBLE WITH VARIOUS FEEDBACK TYPES Applicable to the following types by simply exchanging the cam block. * For
Linear type actuator : Feedback for Standard lever type EP 8 1 * For Rotary type actuator : Feedback for lever type EP 8 2 * For
Rotary type actuator : Feedback for direct connection to driving shaft EP 8 4 REVERSE ACTION PILOT VALVE EASILY AVAILABLE The positioner for double acting actuators can be used as a reverse action pilot valve when combined with a spring return actuator that requires a reverse action pilot. ANTI-PRESSURE AND EXPLOSION PROOF STRUCTURE MARKING ON-SITE ADJUSTMENT POSSIBLE The anti-pressure and explosion proof construction, with the terminal and coil blocks enclosed together in one package, makes it possible to remove the positioner cover for inside inspection or span adjustment even in an explosive ambient. INTRINSICALLY SAFE
CONSTRUCTION FOR A WIDE SCOPE OF APPLICATIONS The intrinsically safe construction (torque-coil type: EP82) cover terminals and coil as one package. This, combined with The adoption of the specified zener barrier, makes the unit applicable in all hazardous gas location ( including Class 0 area) ranging from low ( 40 ) to high ( 60 ) temperature environment.
optimum to the given actuator. A LOW AIR CONSUMPTION The pilot valve is low in air consumption and high in capacity. OUTPUT CHARACTERISTICS SELECTABLE Having a cam within the feedback construction, choices other than the standard linear characteristic are available. COMPATIBLE WITH VARIOUS FEEDBACK TYPES Applicable to the following types by simply exchanging the cam block. * For
Linear type actuator : Feedback for Standard lever type EP 8 1 * For Rotary type actuator : Feedback for lever type EP 8 2 * For
Rotary type actuator : Feedback for direct connection to driving shaft EP 8 4 REVERSE ACTION PILOT VALVE EASILY AVAILABLE The positioner for double acting actuators can be used as a reverse action pilot valve when combined with a spring return actuator that requires a reverse action pilot. ANTI-PRESSURE AND EXPLOSION PROOF STRUCTURE MARKING ON-SITE ADJUSTMENT POSSIBLE The anti-pressure and explosion proof construction, with the terminal and coil blocks enclosed together in one package, makes it possible to remove the positioner cover for inside inspection or span adjustment even in an explosive ambient. INTRINSICALLY SAFE
CONSTRUCTION FOR A WIDE SCOPE OF APPLICATIONS The intrinsically safe construction (torque-coil type: EP82) cover terminals and coil as one package. This, combined with The adoption of the specified zener barrier, makes the unit applicable in all hazardous gas location ( including Class 0 area) ranging from low ( 40 ) to high ( 60 ) temperature environment.
