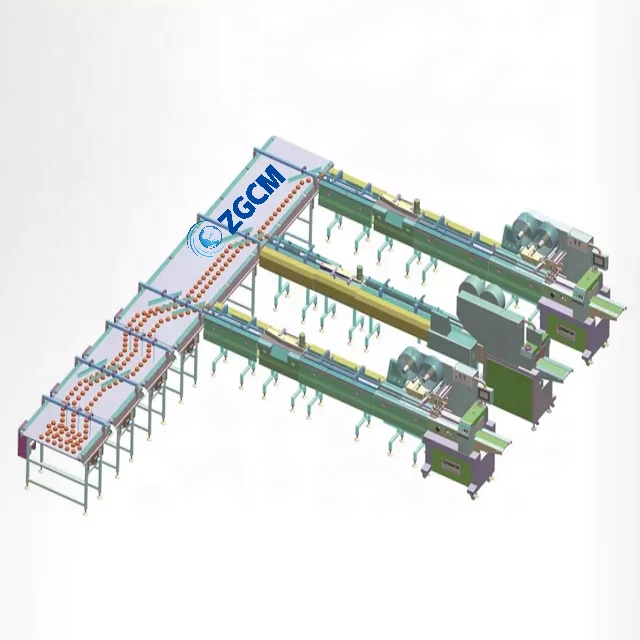

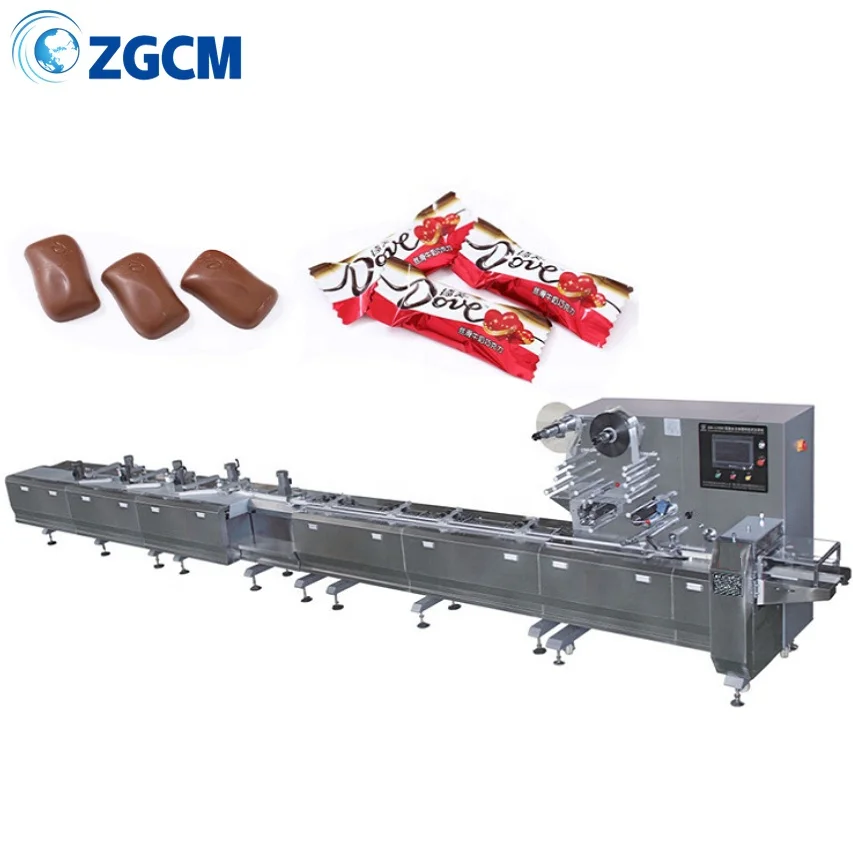

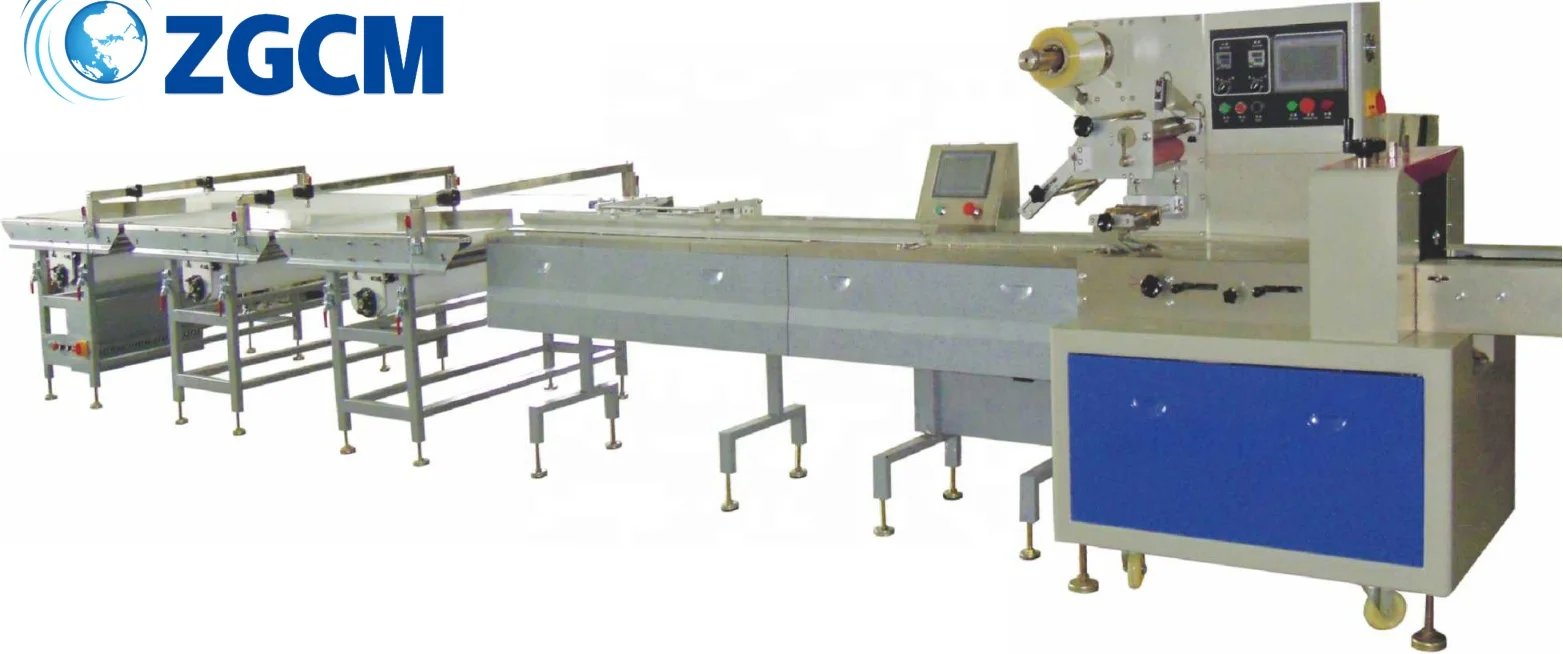

Automatic feeding chocolate candy packing machine Automatic horizontal pillow tray feeding packaging machine
- Category: >>>
- Supplier: Henan Zgcm Machinery Co. ltd.
Share on (1600250221592):
Product Overview
Description
Technical specifications
Model | ZG250 | ZG320 | ZG350 | ZG400 | |||
Film Roll Width | Max,250mm | Max.320mm | Max.350mm | Max.400mm | |||
Bag Length | 45-330mm | 65-330mm | 65-330mm | Max.400mm | |||
Bag Width | 30- 110mm | 50 ~ 150mm | 50 ~ 165mm | Max.l90mm | |||
Product height | Max.70mm | Max.70mm | Max.70mm | Max.l20mm | |||
Packing speed | 40- 230 Bags/Min | 30- 180 Bags/Min | |||||
Power | 220V,50/60HZ 2.4KVA | ||||||
Machine Size | (L)3770x(W)670 x(H)1450mm | (L)3770x(W)720 x(H)1450mm | (L)4020x(W)745 x(H)1450mm | (L)4020x(W)770 x(H)1450mm | |||
Machine Weight | 440KG | 454KG | 527KG | 580KG | |||
Optional Device | Date Printer | Gas Filling System | Hole Punching Device | ||||
Machine Wrapping | Standard Export Wooden Case | ||||||
Model | ZG450 | ZG600 | ZG700 | ZG800 | |||
Film Roll Width | Max,450mm | Max.600mm | Max.700mm | Max,800mm | |||
Bag Length | Max.450mm | Max.450mm | Max.550mm | Max.650mm | |||
Bag Width | Max.215mm | Max.290mm | Max.340mm | Max.390mm | |||
Product height | Max,120mm | Max.150mm | |||||
Film Roll | Max.320mm | ||||||
Packing speed | 30- 180 Bags/Min | 30~ 150 Bags/ Min | 1~ 60 Bags/ Min | ||||
Power | 220V.50/60H Z .2.4KVA | ||||||
Machine Size | (L)4020x(W)900 x(H)1468mm | (L)4020x(W)1000 x(H)1468mm | (L)4300x(W)1150 x(H)1468mm | (L)4300x(W)1300 x(H)1468mm | |||
Machine Weight | 730KG | 750KG | 830KG | 950KG | |||
Optional Device | Date Printer | Gas Filling System | Hole Punching Device | ||||
Machine Wrapping | Standard Export Wooden Case | ||||||
Application products
Suitable for regular shapes. Bar-shaped products with a certain hardness and toughness on the surface.Block products. Rice crackers, candies, biscuits, rice crackers, melon seed cakes, French bread, beef balls, fish balls, granular medicines, etc.
If you have special needs, you can contact us at any time. Customize your exclusive equipment
Machine advantage
Energy saving, full intelligence, preventing empty packaging, preventing material cutting, memory storage, motion control, precise positioning, three-axis servo, low-carbon environmental protection, seamless docking,automatic film connection, digital temperature control
Machine features
1. Double frequency conversion control, bag length can be set and cut in one step, saving time and films.
2. Adopt PLC & HMI programming software, easy operating and setting.
3. Digital self-failure diagnosis function, clear failure display.
4. Packing speed and bag length adopt dual frequency conversion control, digital sealing and cutting position input, which is precise, beautiful, and solid.
5. High sensitivity photocell tracing, input cutting & sealing position digitally, extra accuracy.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. PID control temperature independently which is more suitable for packing different materials.
9.All control Is realized through software, It can Install Intermittent air device and spray alcohol device, which realize the adjustment at any time, and technical upgrade
2. Adopt PLC & HMI programming software, easy operating and setting.
3. Digital self-failure diagnosis function, clear failure display.
4. Packing speed and bag length adopt dual frequency conversion control, digital sealing and cutting position input, which is precise, beautiful, and solid.
5. High sensitivity photocell tracing, input cutting & sealing position digitally, extra accuracy.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. PID control temperature independently which is more suitable for packing different materials.
9.All control Is realized through software, It can Install Intermittent air device and spray alcohol device, which realize the adjustment at any time, and technical upgrade

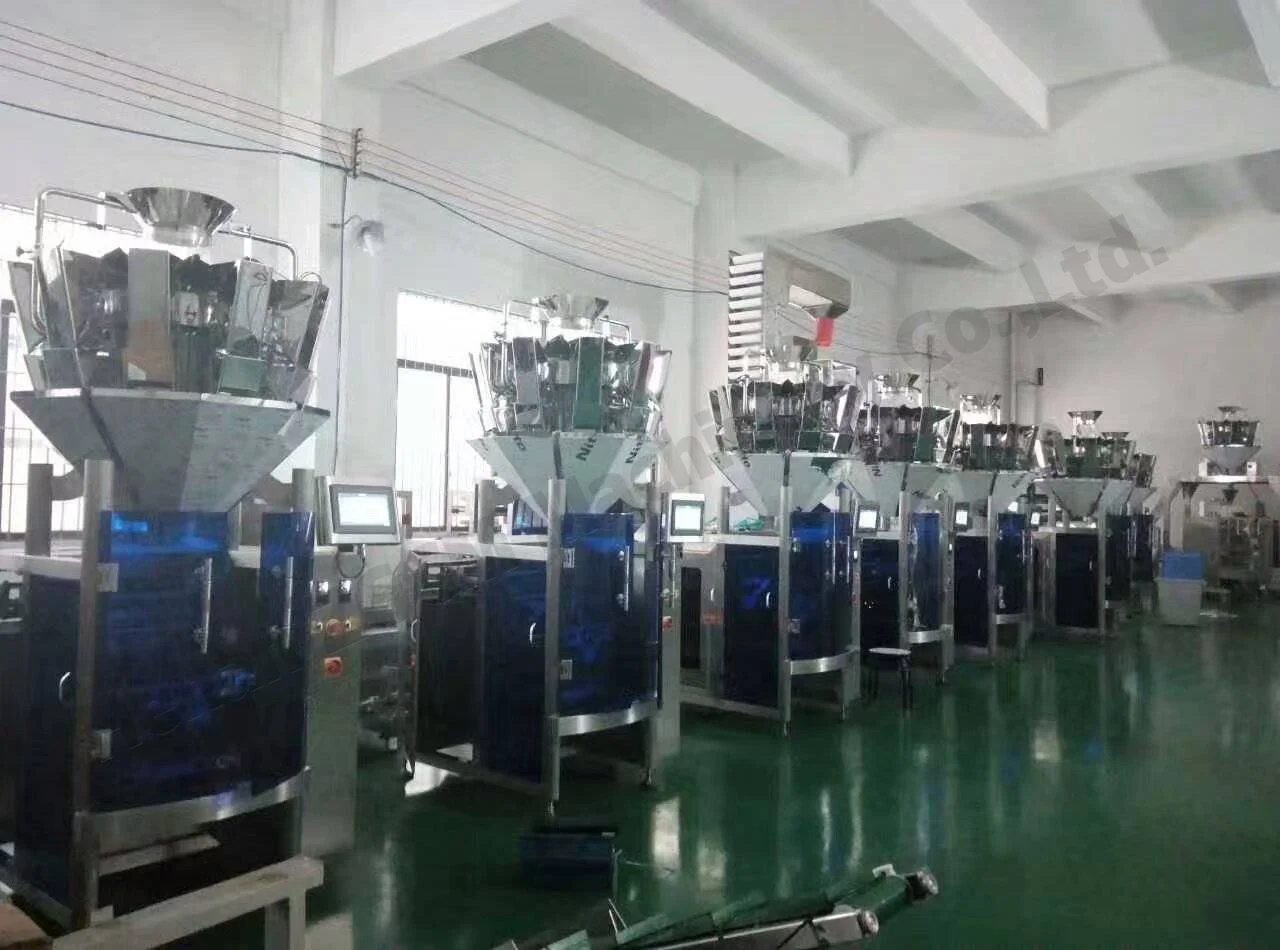

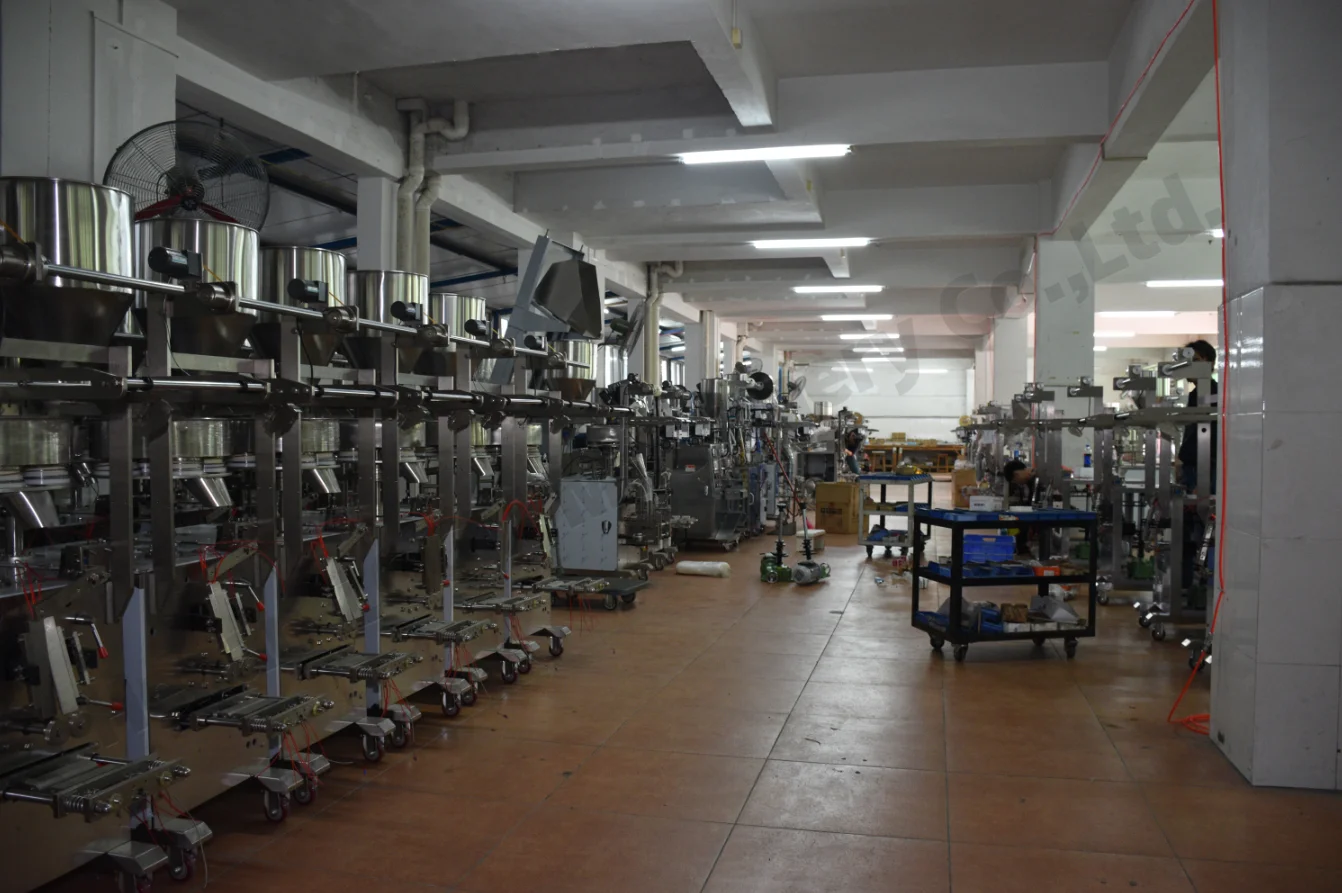

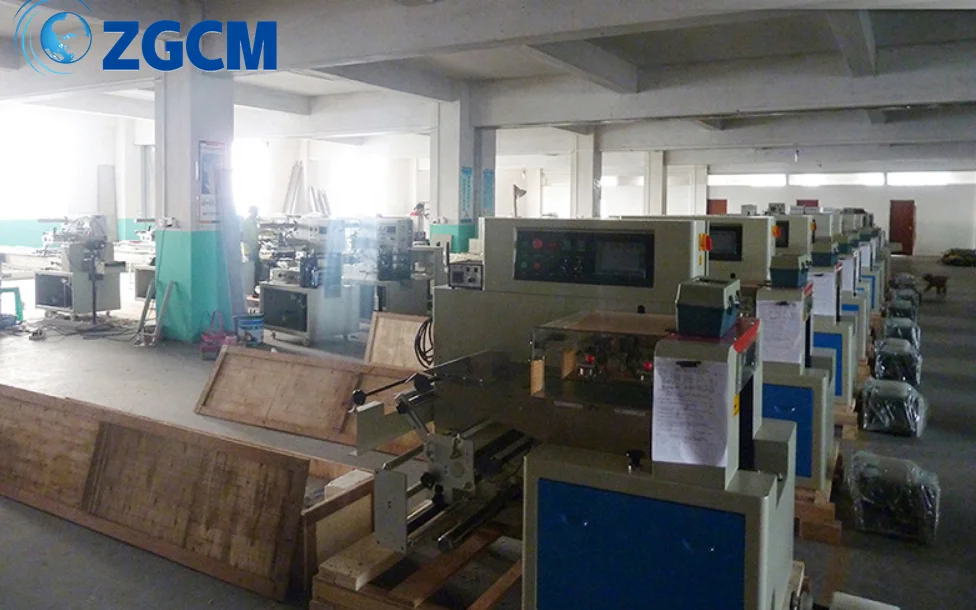

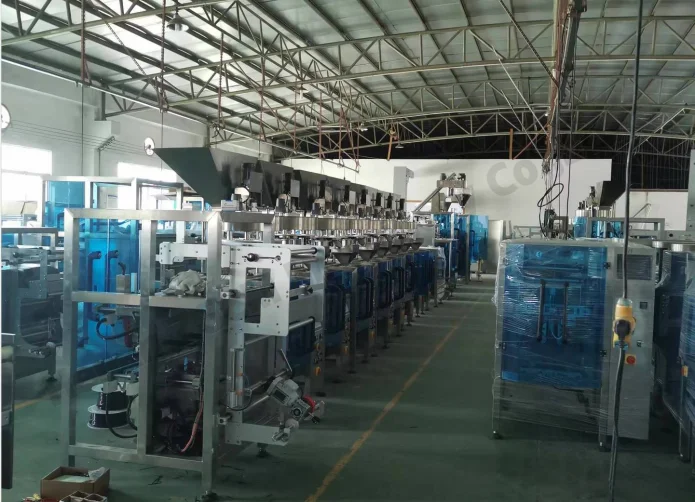

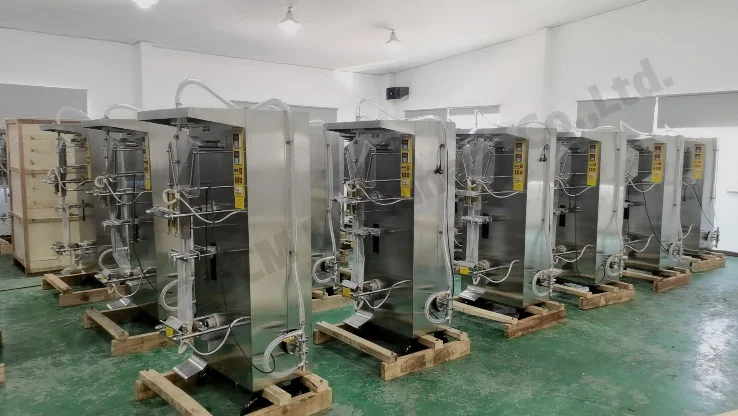

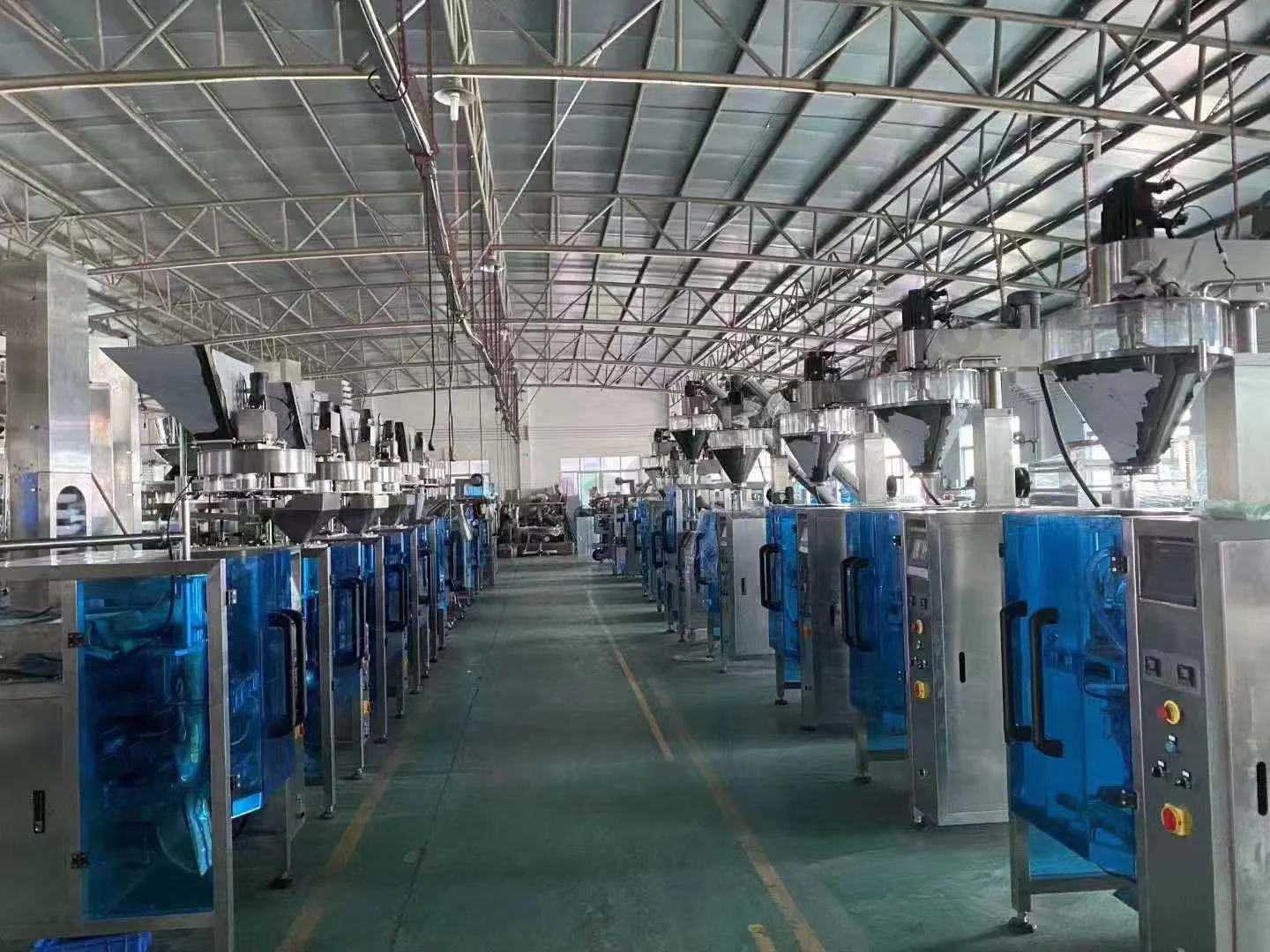

Our workshop

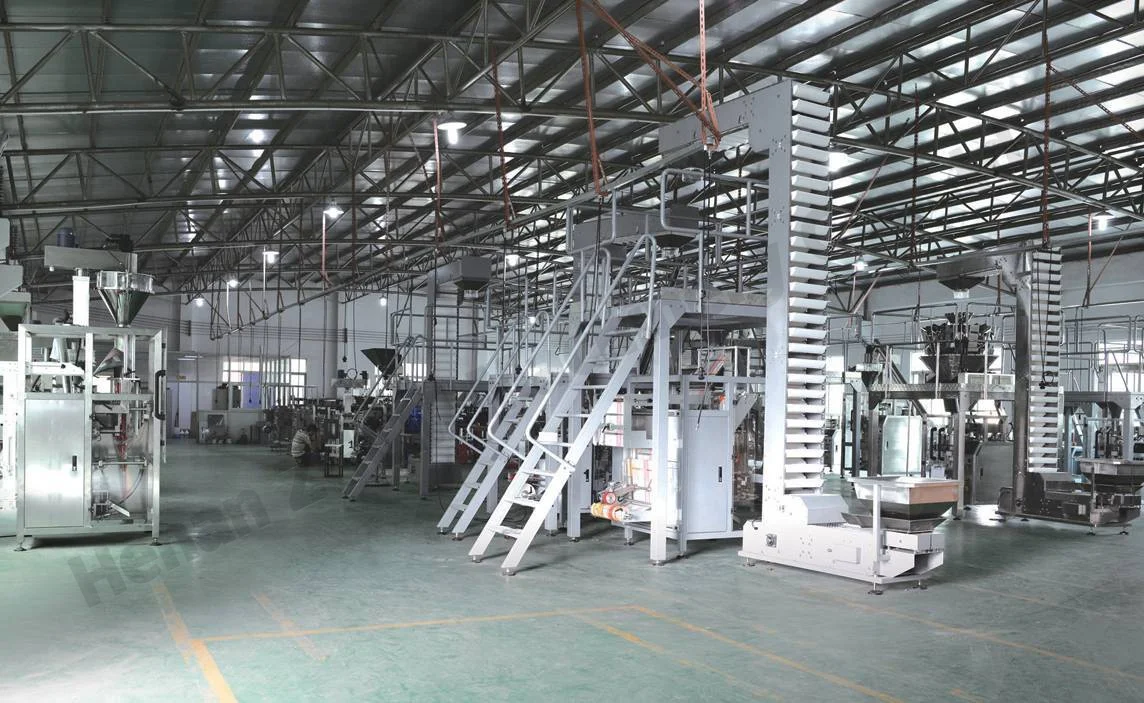

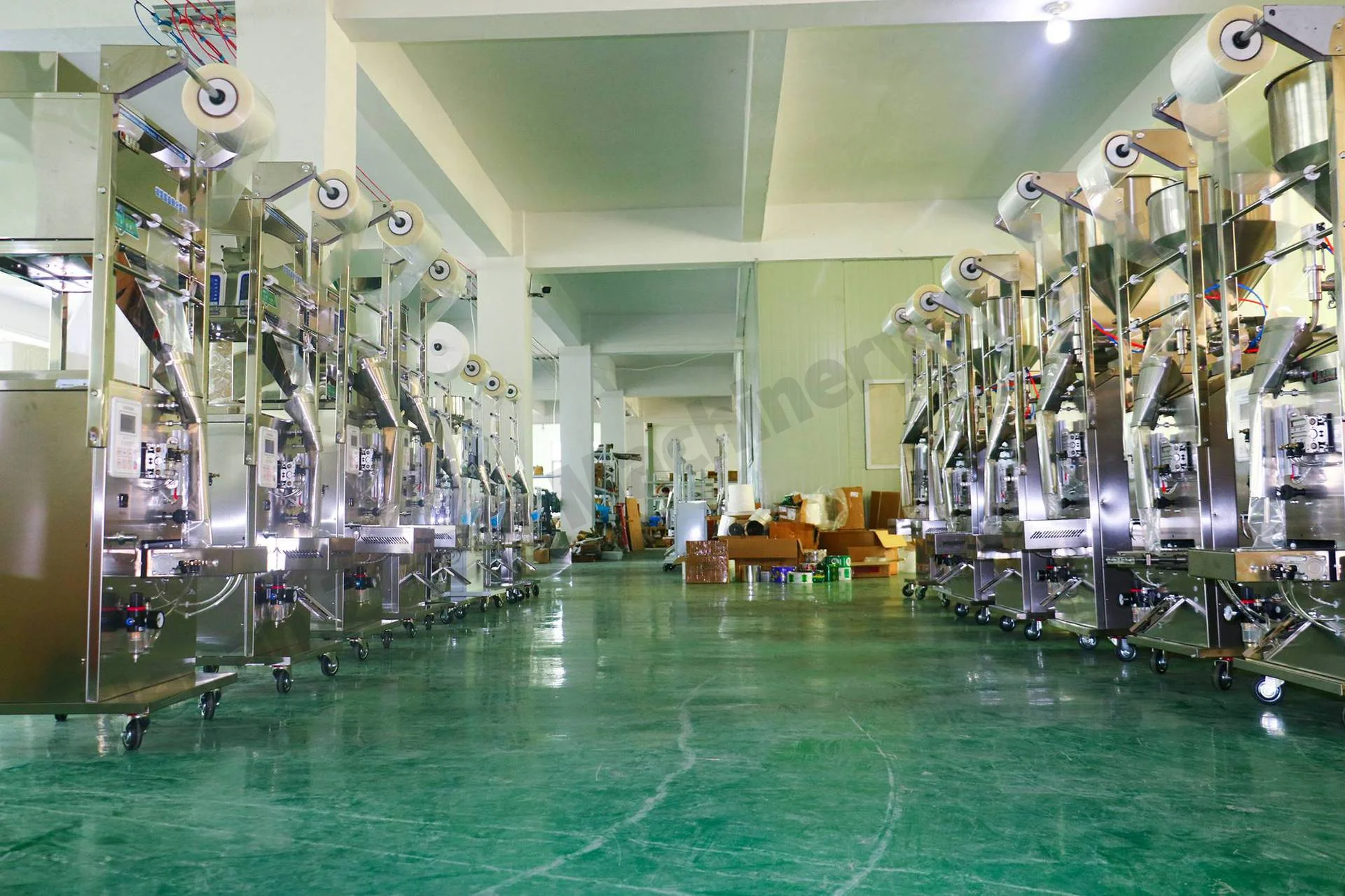

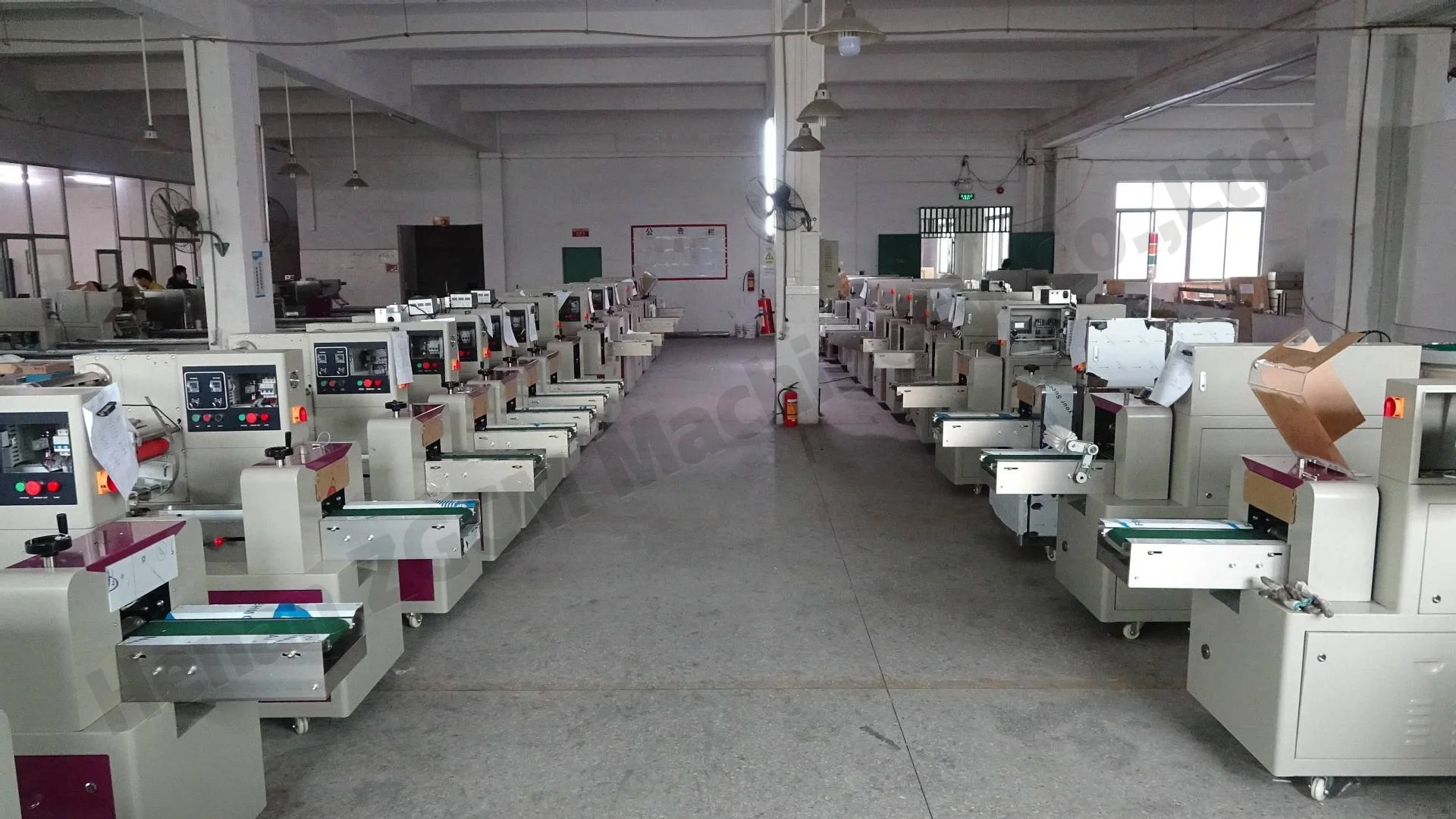

Our factory
Henan ZGCM Machinery Co.,Ltd. has a plant area of more than 10,000 square meters, which produces vertical packaging machines, automatic material sorting lines, pillow packaging machines, filling machines, etc. Among them, granule packaging machine, powder packaging machine, liquid packaging machine, sauce packaging machine, food packaging machine, multi-head weighing machine, hardware packaging machine, counting packaging machine, medical supplies packaging machine, fresh fruit and vegetable packaging machine, filling machine, Capping series, unscramble bottle washing series, filling production line, etc. are the company's main products, which are exported to hundreds of countries and regions in Southeast Asia, Europe, America, Africa, the Middle East, etc., and are well received by users from all over the world! The company always adheres to the development strategy of "customer first, worry-free after-sales", pays attention to the reserve and training of talents, and has long-term exchanges of talents and technology with famous enterprises at home and abroad. The factory currently has more than 180 employees, including 35 in the R&D department, who are responsible for the R&D and design of non-standard equipment and advanced technology in the industry. The after-sales department has 30 masters with more than 20 years of after-sales experience, who are responsible for the installation of equipment sold at home and abroad. Commissioning, operation training and technical maintenance. We aim to realize enterprise packaging intelligence, liberate people from heavy packaging production, let machines replace manual work, reduce production costs, and improve production efficiency
Company history
Cooperation Case
Our client
transport
Frequently Asked Questions and Answers
1. Q: Do you have a finished machine to see?
Yes, we have standard machine inventory.
2. Q: Will you check before leaving the factory?
Yes it is. Every step of production and completion will be checked by QC department before shipment.
3. Q: Can overseas services be provided?
Yes, engineers can go abroad to train workers, install and debug machines for free
4. Q: How long is the warranty period?
One year machine warranty.
5. Q: What is the delivery time?
15-25 days after receiving the deposit.
Yes, we have standard machine inventory.
2. Q: Will you check before leaving the factory?
Yes it is. Every step of production and completion will be checked by QC department before shipment.
3. Q: Can overseas services be provided?
Yes, engineers can go abroad to train workers, install and debug machines for free
4. Q: How long is the warranty period?
One year machine warranty.
5. Q: What is the delivery time?
15-25 days after receiving the deposit.
