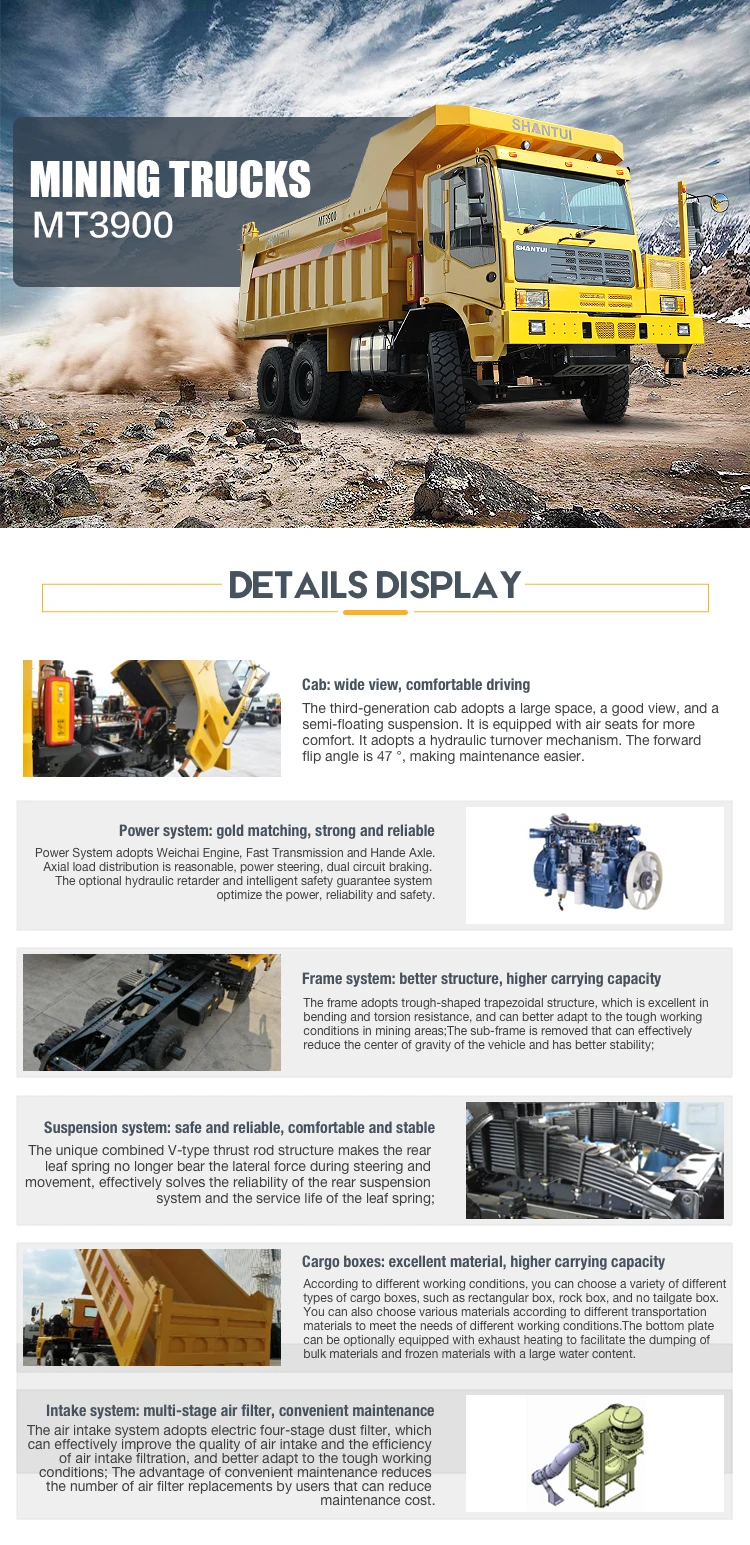

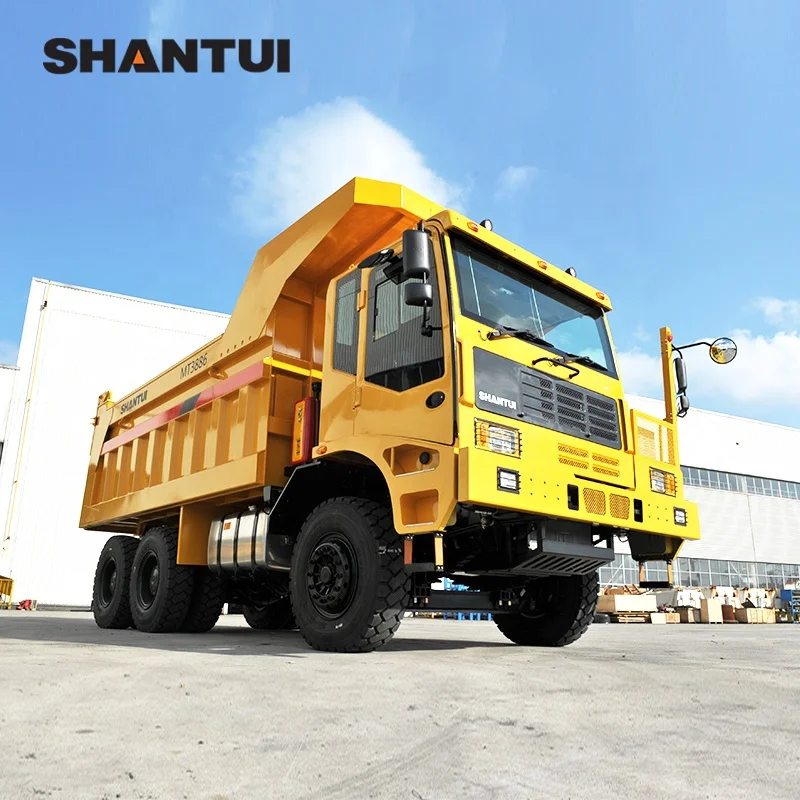

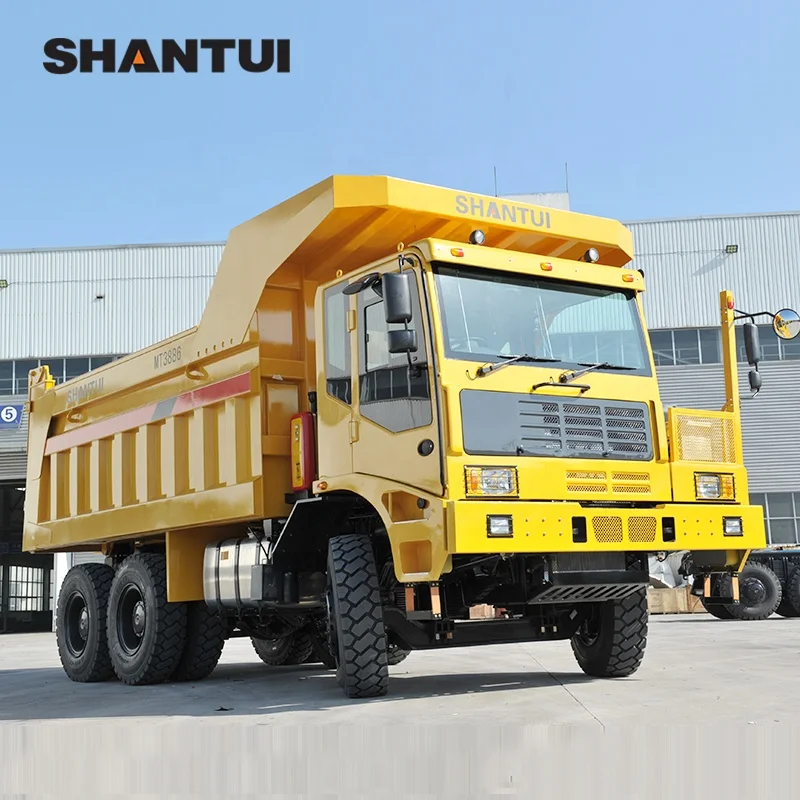

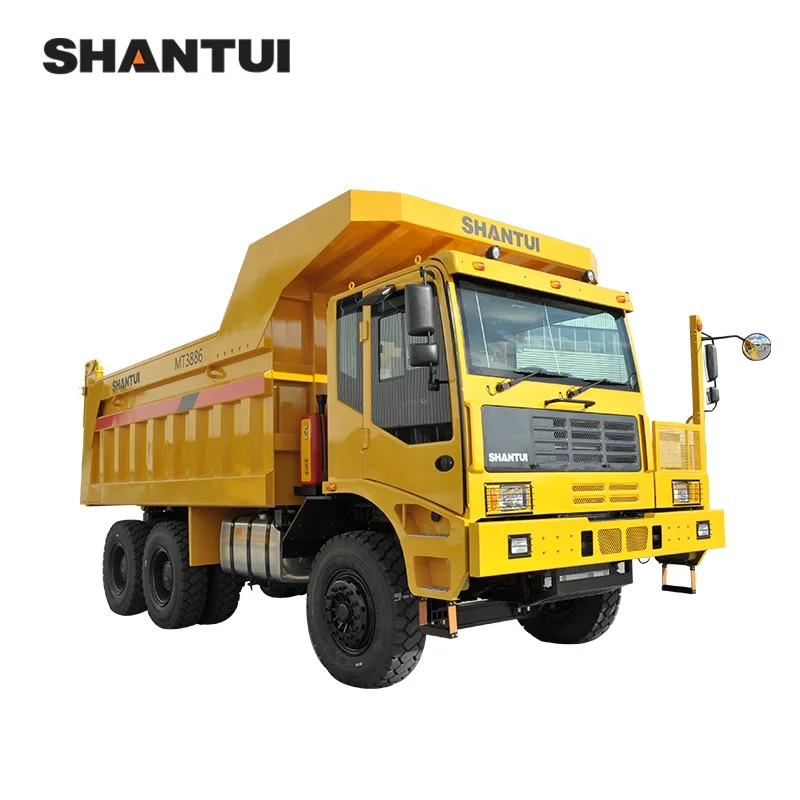

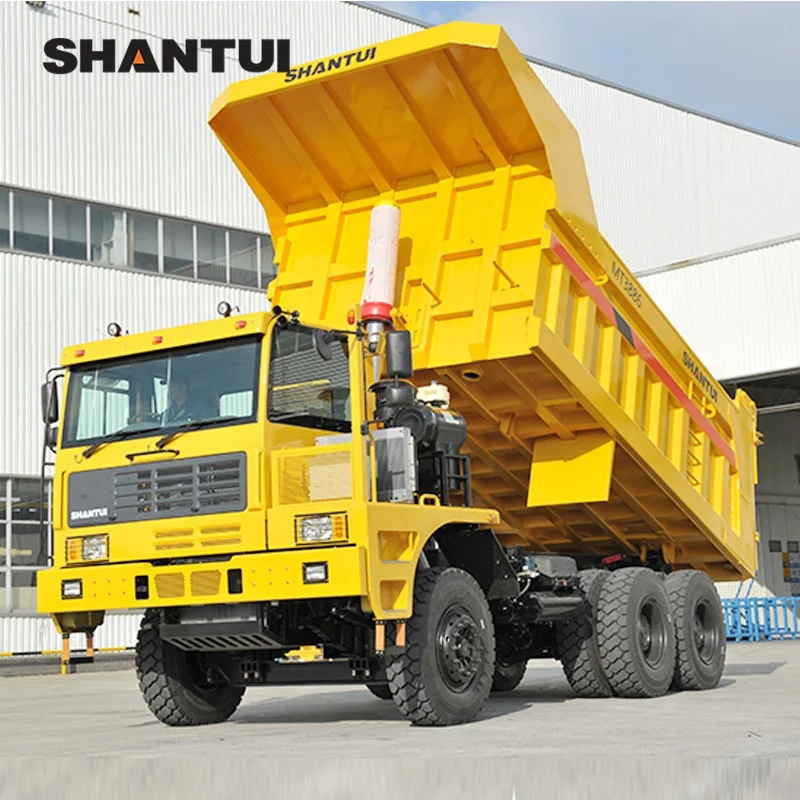

Cheap Shantui New Mining Truck MT3900 32CBM 460HP 90Ton Manual Large Articulated Dump Trucks Tipper Truck for sale
- Category: >>>
- Supplier: Shandong Shantui Construction Machinery Import And Export Co. Ltd.
Share on (1600250224188):
Product Overview
Description
Products Description
Technical Specifications
Product Description | ||||||
Vehicle parameters | model | MT3906T3WL38430 | MT3906T3WL38460 | |||
Total mass（kg） | 90000 | 90000 | ||||
Vehicle mass （kg） | 30000 | 30000 | ||||
Load capacity （kg） | 60000 | 60000 | ||||

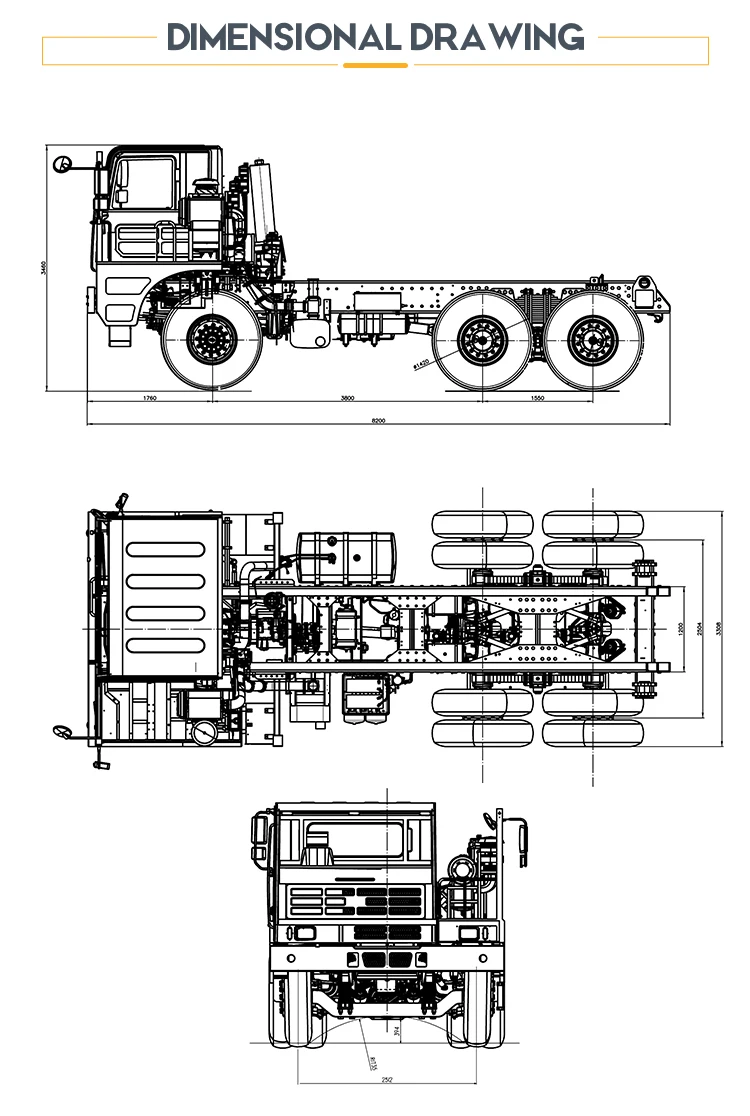

Dimensions（mm） | 9050×3550×4050 | 9050×3550×4050 | ||||
Drive type | 6×4 | 6×4 | ||||
volume (m³)(SAE2：1) | 32/40 | 32/40 | ||||
Axle distance（mm） | 3800+1550 | 3800+1550 | ||||
Wheelbase（mm） | 2606（front2712） | 2606（front2712） | ||||
Max-speed（km/h） | 40 | 45 | ||||
Gradeability（%） | 30 | 30 | ||||
Turning diameter（m） | 22 | 22 | ||||
Ground clearance（mm） | 380 | 380 | ||||
Axle load | Fully loaded（t） | 20/35/35 | 20/35/35 | |||
Engine | modle | WP12G430E310（Three stages） | WP12G460E310（Three stages） | |||
Power（kW）/speed（r/min） | 316/2100 | 338/2100 | ||||
Torque（N*m）/speed（rpm） | 1870/（1200-1600） | 2000/（1200-1600） | ||||
Clutch | modle | 430 single piece pull type, hydraulic and pneumatic assist | ||||
Gearbox | modle | 7DS200K | 8DS240A | |||
Drive axle | type | Central and wheel side planetary double-stage speed reduction with inter-axis differential lock | ||||
Rated axle load（kg） | 35000 | 35000 | ||||
Air filter | type | Electric multi-stage dust air filter | ||||
Radiator | structure | Plate-fin radiator | ||||
Fuel System | capacity（L） | 600L | 600L | |||
Steering system | Power steering | Hydraulic power steering, hydraulic cylinder assist | ||||
System pressure（MPa） | 17 | 17 | ||||
flow（L/min） | 25 | 25 | ||||
Braking System | Service brake | Double circuit drum air brake | ||||
Parking brake | Spring energy-storage shut-off brake and emergency brake | |||||
Auxiliary brake | Engine exhaust brake + WEVB | |||||
System pressure（bar） | 10 | 10 | ||||
Standing slope（°） | 30(Uphill)/20(downhill) | 30(Uphill)/20(downhill) | ||||
Uspension | Front suspension | Longitudinal leaf spring | ||||
Leaf spring thickness/width/number | 20/100/13 | 20/100/13 | ||||
Rear suspension | Leaf spring balanced suspension | |||||
Leaf spring thickness/width/number | 29/100/15 | 29/100/15 | ||||
Dump lifting mechanism | Cylinder diameter | 196 | 196 | |||
CAB | type | 46° Single side left, semi-floating, forward 46° | ||||
Damping seat | Adjustable up and down, front and rear, adjustable backrest angle | |||||
Frame | High-strength steel flexible frame | （12+12） | （12+12） | |||
Wheel | Tyre model | 14.00-25 ★★★ | 14.00-25 ★★★ | |||
Rim model | 10.00-25 | 10.00-25 | ||||
Other | Optional device | Optional steel tire, aluminum alloy fuel tank, hydraulic retarder, dual-chamber fuel tank, blowback air conditioner, oil filter, floor heating, full hydraulic steering, spray device | ||||

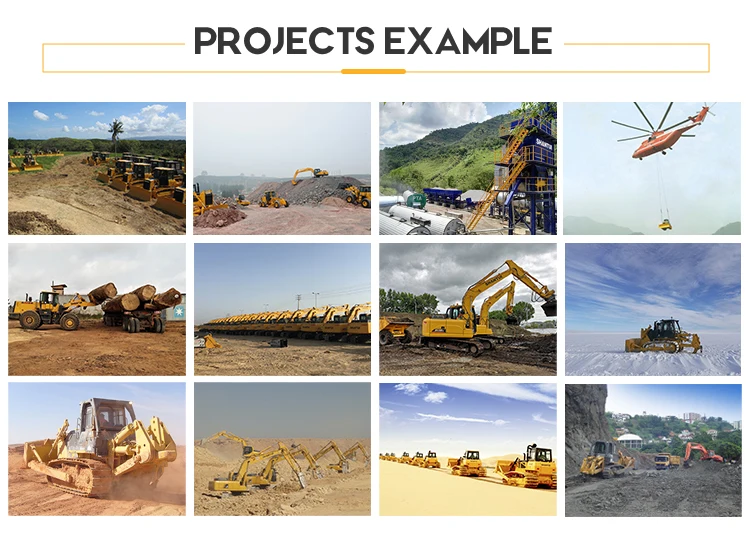

Projects Example
