HC CL042 90GM High Speed 4096 Pixels CMOS GigE Line Scan Camera For Rotating Objects Imaging
- Category: >>>
- Supplier: Hangzhou Huicui Intelligent Technology Co. Ltd.
Share on (1600250229124):
Product Overview
Description
Product Description
CL Series – Line Scan Level
As a line scan camera series, the CL series cover pixels from 2K-8K and can output images by the high-quality CMOS chip. Using GigE or Camera Link interface, the CL series can fulfill the market application needs of various resolutions and line frequencies.
Generate images by lines and output with high-precision
Equipped with a high-quality performance CMOS linear array sensor, it supports various pixel formats such as Mono, Bayer, RGB true color, and the multi-line sensor can support a variety of capture scene applications such as single-line/tdi/HDR, with higher image accuracy and better image quality.

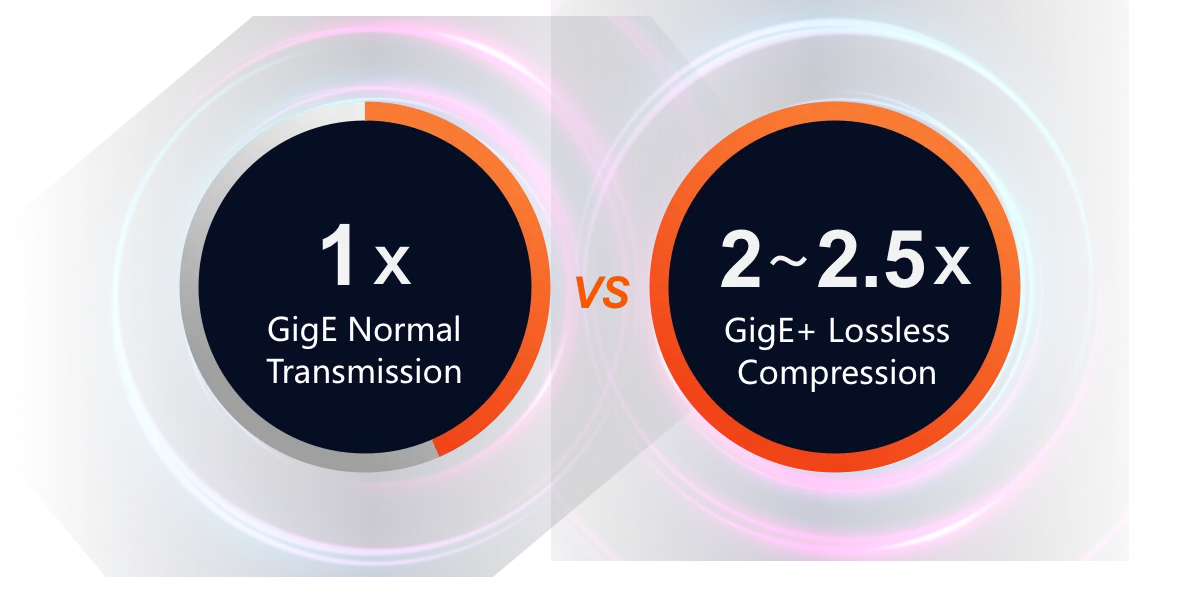

Lossless compression, high line frequency transmission
Lossless compression function is now equipped in the new version of the network port line scan camera. Under the GigE interface, it can make full use of bandwidth, remove redundant data compression, increase the line frequency to 2-2.5 times, improve the bandwidth of the Gigabit network port, and improve the advantage of the network port application.
Diversified processing, flexible for collection

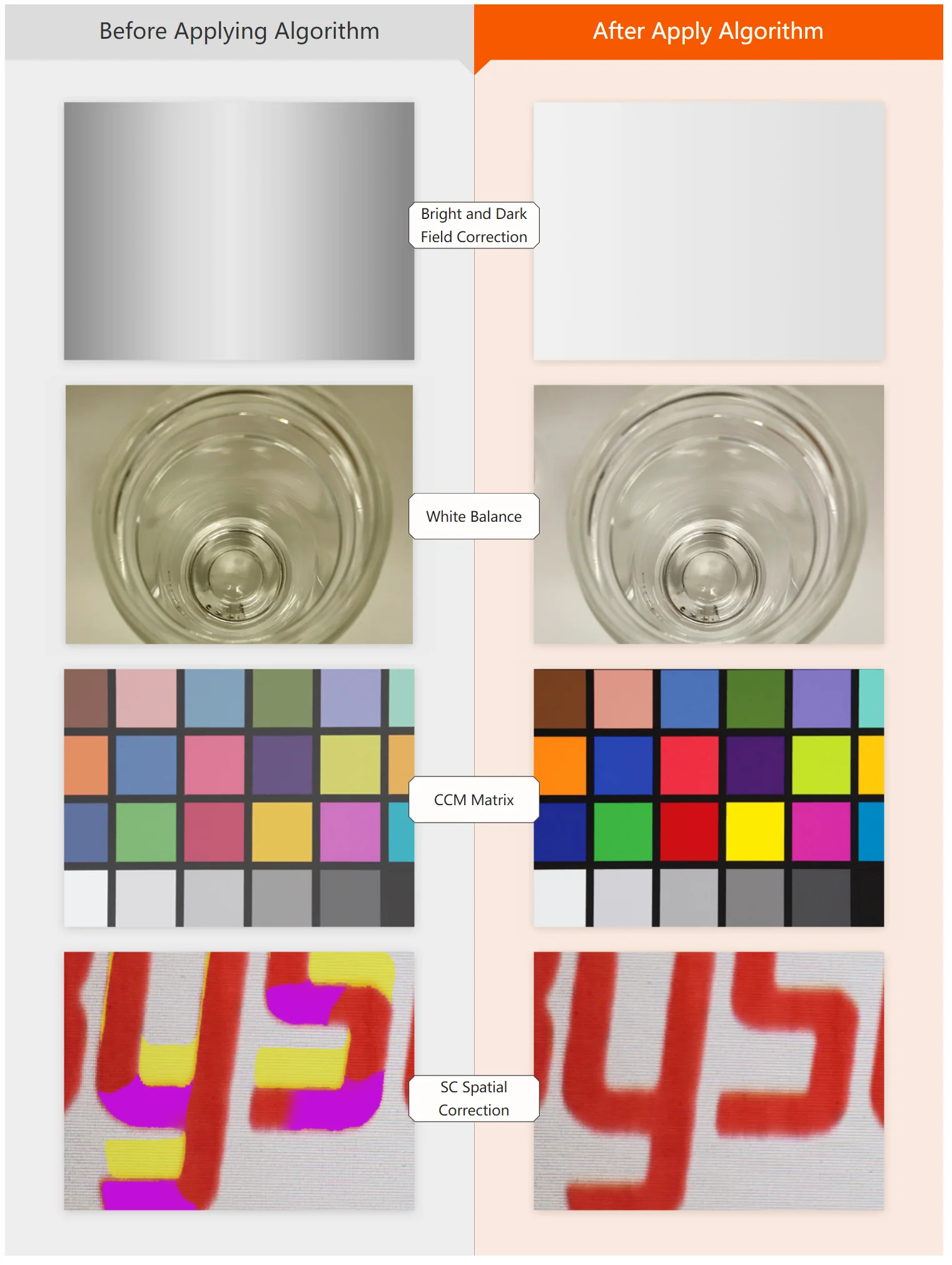

The camera supports various ISP functions such as bright/dark field correction, Gamma, LUT, white balance, CCM, SC, etc., to help users obtain higher quality image data; at the same time, in addition to timing exposure, a new acquisition method of pulse width control exposure is added. Cooperate with external (soft/hard) trigger signals to fulfill different requirements, such as external lighting conditions and exposure control.
CL Series
HC-CL042-90GM
4096 P CMOS GigE Line Scan Camera
HC-CL042-90GM/GC camera adopts Gpixel GL0402 sensor to provide high-quality image and uses GigE interface to transmit images in real-time. It adopts multiple ISP image algorithms and supports single-frame trigger, multiple-frame trigger, trigger-width exposure, etc.
Features
- Supports auto and manual adjustment for exposure time, and manual adjustment for Gamma correction, LUT, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without a relay.
- Supports high bandwidth image compression mode.
- Compact design and flexible installation.
- Compatible with GigE Vision Protocol V2.0 and GenlCam Standard
Applications:
Printing, textiles, railway, logistics, metallurgy, food, pharmaceutical manufacturing, material sorting, etc.

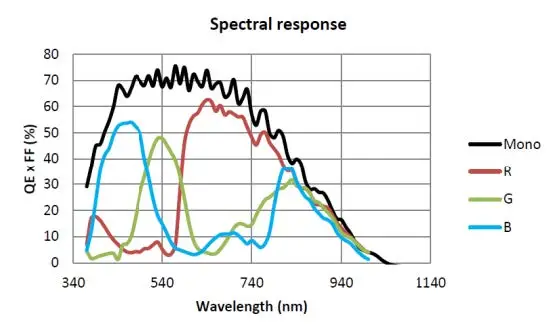

Spectral Response:
Specification:
| Model | Model | HC-CL042-90GM |
| Type | 4096 P CMOS GigE Line Scan Camera | |
| Camera | Sensor type | CMOS |
| Pixel Size | 7 μm | |
| Resolution | 4096×2 | |
| Image mode | Supports 1-line/2-TDI | |
| Max. Line Rate | 80 kHz | |
| Pixel format | Mono 8/10/12, mono 10/12 Packed | |
| Dynamic Range | 65.6 dB | |
| SNR | 40 dB | |
| Gain | Supports × 1.0/× 1.4/× 1.6/× 2.4/× 3.2 | |
| Exposure Time | 5 μs to 10 ms | |
| Exposure mode | Off/ Once/ Continuous, supports timed and trigger-width exposure | |
| Mono/Color | Mono | |
| Reverse image | Supports horizontal reverse image output | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| External trigger mode | Line trigger, frame trigger, etc. | |
| Trigger mode | Via external trigger, internal trigger | |
| Image Buffer | 512 MB | |
| Electrical features | Data Interface | GigE |
| Digital I/O | 12-pin Hirose connector provides power and I/O, including configurable differential input or single input × 2 (Line 0/3), bi-directional I/O × 1 (Line 2), and differential output × 2 (Line 1/4). | |
| Power supply | 12 VDC to 24 VDC, supports PoE | |
| Power consumption | < 6.3 W@12 VDC | |
| Mechanical | Lens mount | M42 × 1.0, back focal length: 12 mm (0.5"), applicable to F-mount, C-mount and lens of other types via lens adapter |
| Dimension | 62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6") | |
| Weight | Approx. 280 g (0.62 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -20 °C to 55 °C (-4 °F to 131 °F)Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F) | |
| Humidity | 5% to 95% RH, non-condensing | |
| General | Client software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, FCC, RoHS, KC |
Dimension:
