Hot selling BK7 K9 dia 1mm 2mm glass optical crystal ball lens
- Category: >>>
- Supplier: Sichuan Yasi Optics Co. Ltd.
Share on (1600250251920):
Product Overview
Description
This is a custom product, the price base on customer requirements and specifications.
Please be sure to contact customer service before placing an order!
Hot selling BK7 K9 dia 1mm 2mm glass optical crystal ball lens
Product Description
DESCRIPTION

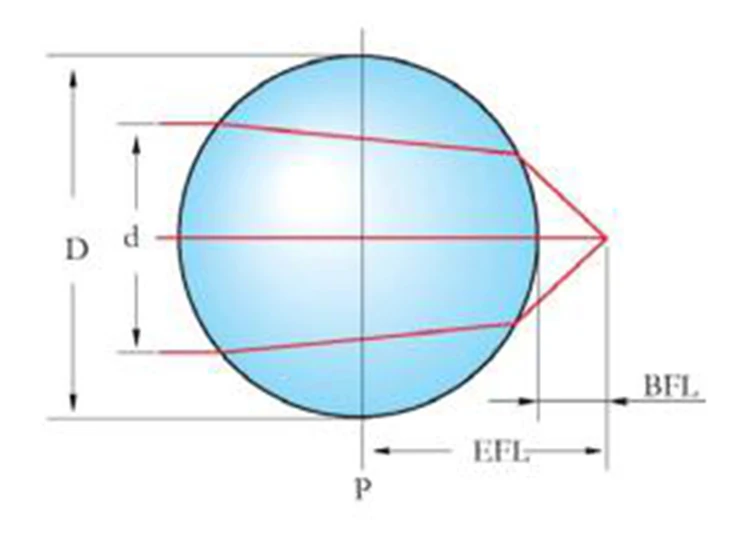

Ball lenses are a completely spherical lenses most commonly used for improving signal coupling between fibers, emitters and detectors. Aside from fibre coupling applications, ball lenses are also used as objective lenses in endoscopy, laser measurement systems and bar-code scanning. Ball lenses are manufactured from a single substrate of glass and can focus or collimate light, depending upon the geometry of the input source.
FEATURE
- Easily positioned
- High diameter tolerance and spherisity
- Excellent surface roughness
APPLICATION
- Optical Measurement Systems
- Projection Optics Systems
- Imaging Optics Systems
- Astronomical Optics
PARAMETER
Technical parameter | ||
Material | K9 (BK7), Optical sapphire(ruby) glass, fused silica, JGS1,ZnSe, Zns, Ge, Caf2, ect. | |
| Diameter | 1~150mm, 1mm,1.5mm, 2mm | |
diameter tolerance | +/-0.001mm | |
Roundness | 0.003-0.005 | |
surface quality | 40-20 scratch and dig | |
surface accuracy | <2λ | |
Clear aperture | >90% | |
Sphericity | Up to 0.6μm | |
Coating | Upon customer request | |
For custom size, pls click here to contact with us for quotation | ||

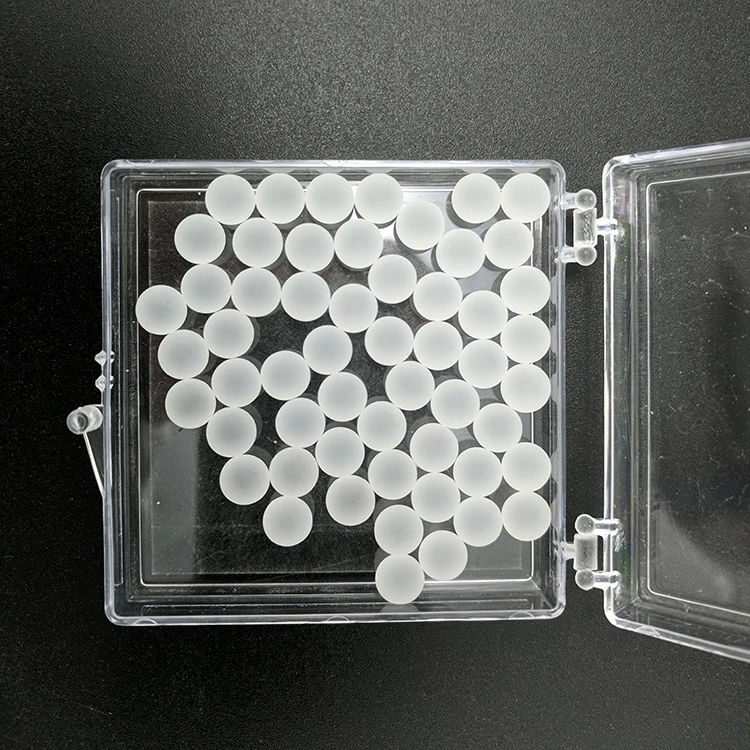

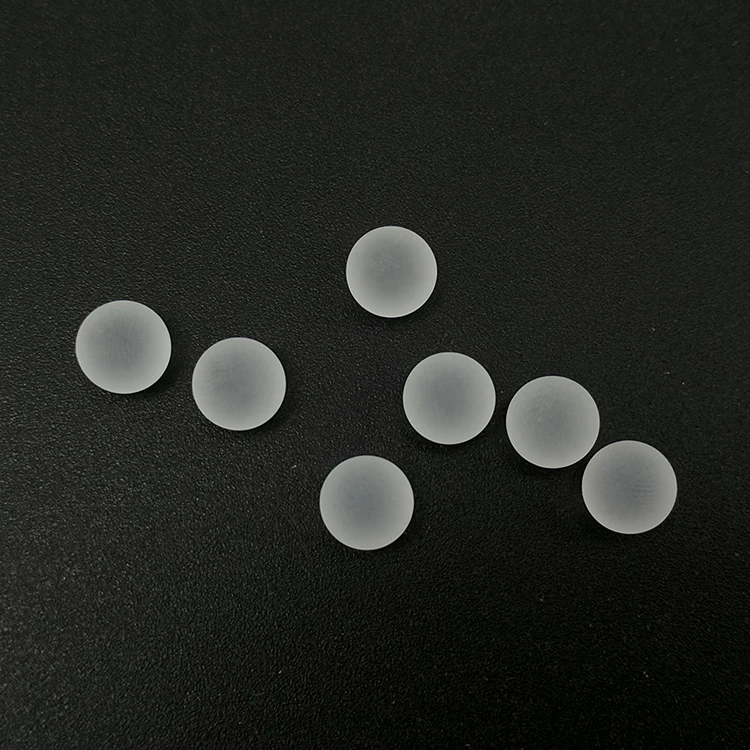

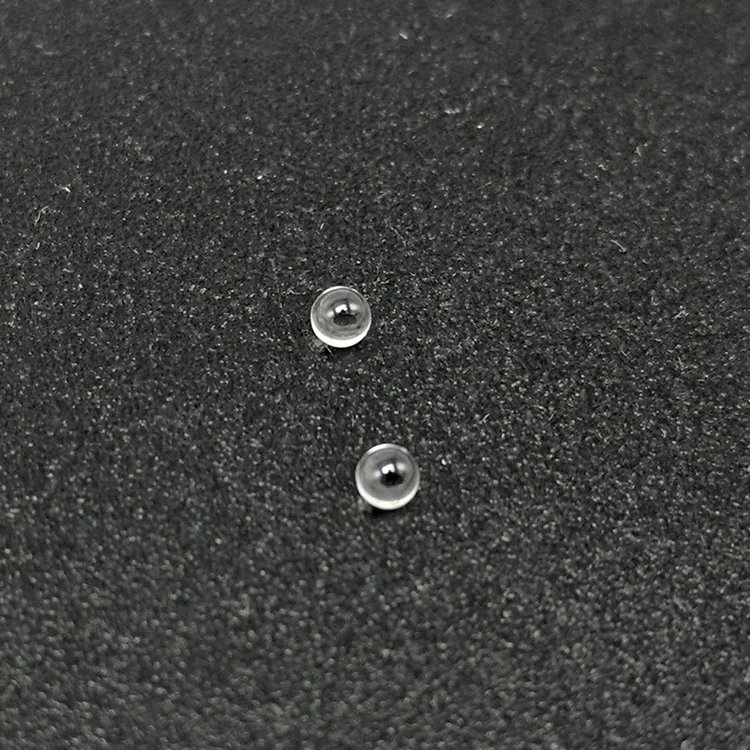

PRODUCT IMAGE
