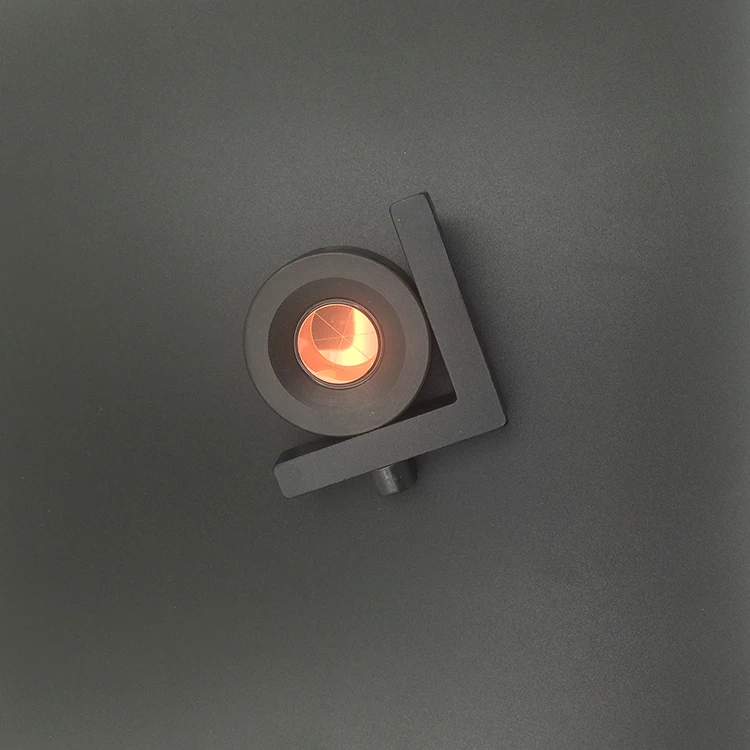

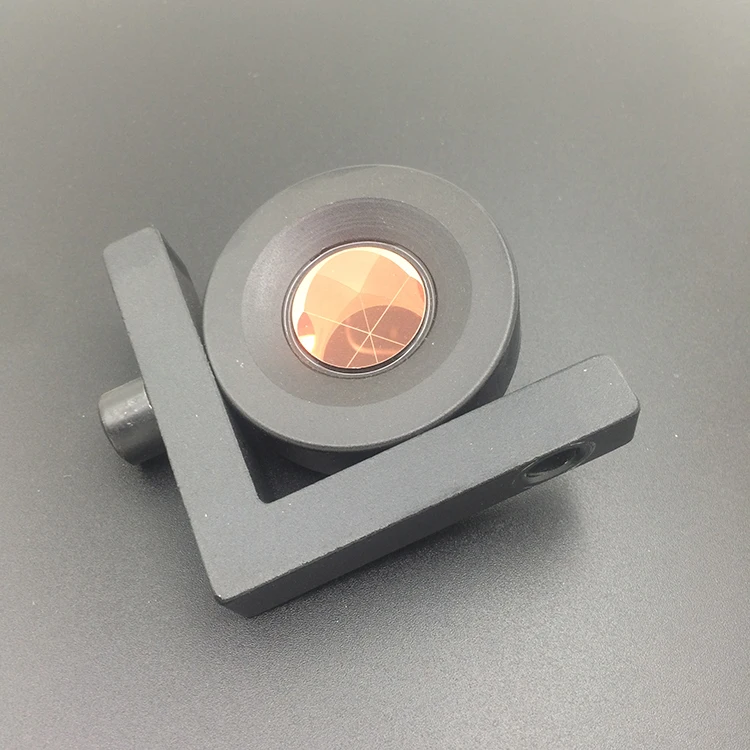

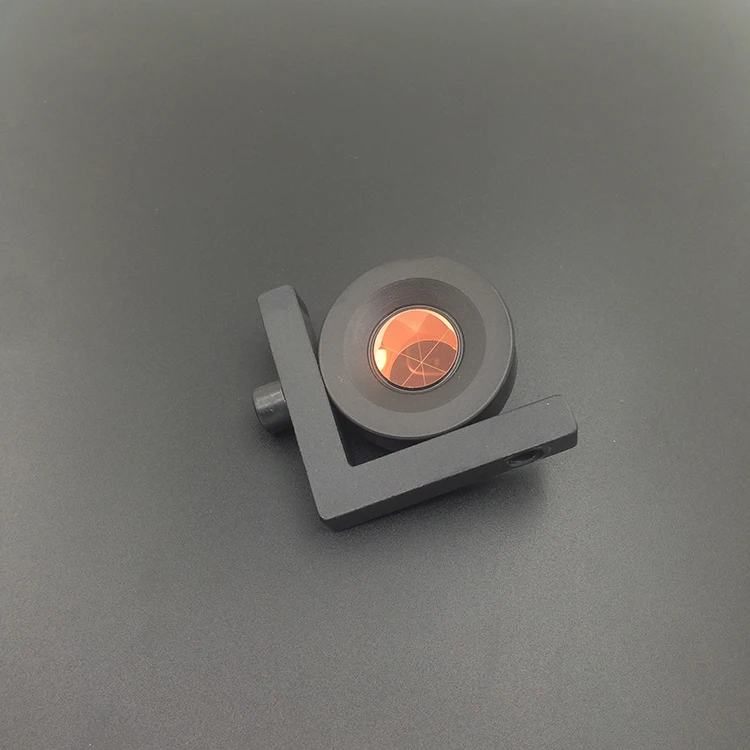

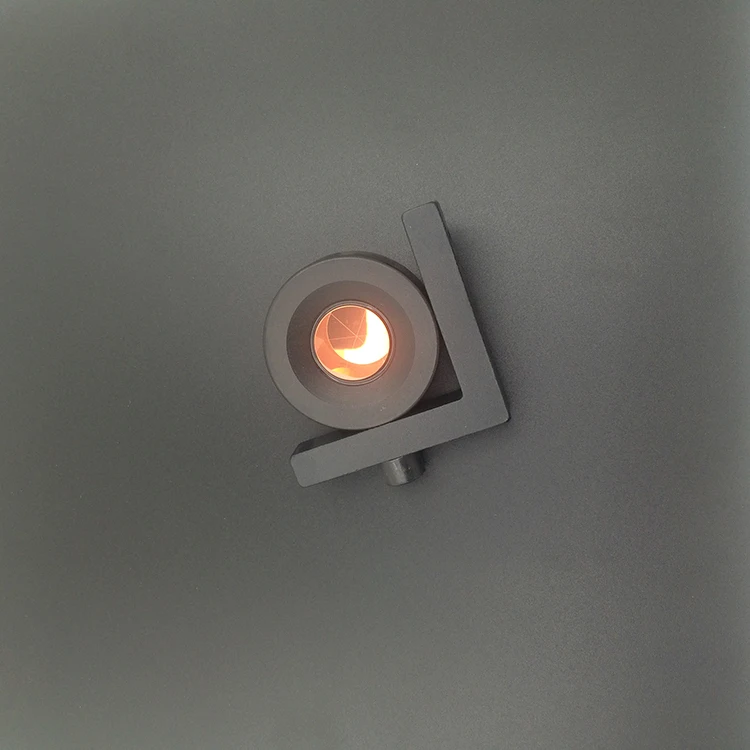

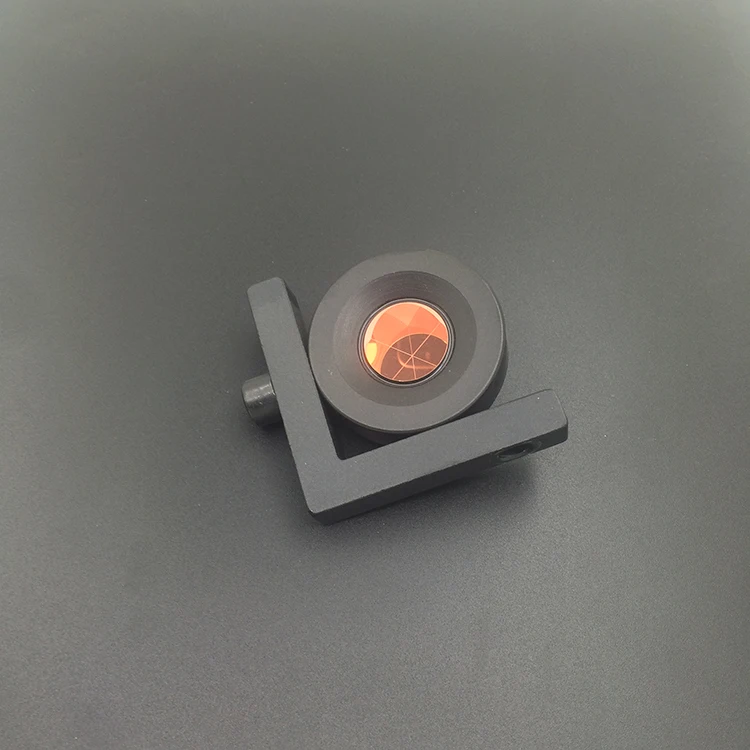

Chengdu L bar mini optical monitoring prism
Product show
Product Description
1.Feature of monitoring prism:
- Mini surveying prism mounted in metal holder
- Supplied with L bar for fix installations
- The prism offset is dependent on the mounting position range 800m
- Can be used in damp environment
2. Application:
Applied in total station surveying, tunnel, high speed rail way and metro monitoring ect
| Technical Parameter | |
| Material of prism | N-BK7 |
| Diameter of prism | 25.4mm (1") |
| 180° deviation tolerance | <5arc senconds |
| Dimension of metal holder | 80x80x12mm |
| Coating of prism | Three reflected surfaces coated with copper |
| Surface quality | 60-40 |
| Installation | can be set up to walls with 8mm setscrew |
| For custom size, pls inquire with us | |
