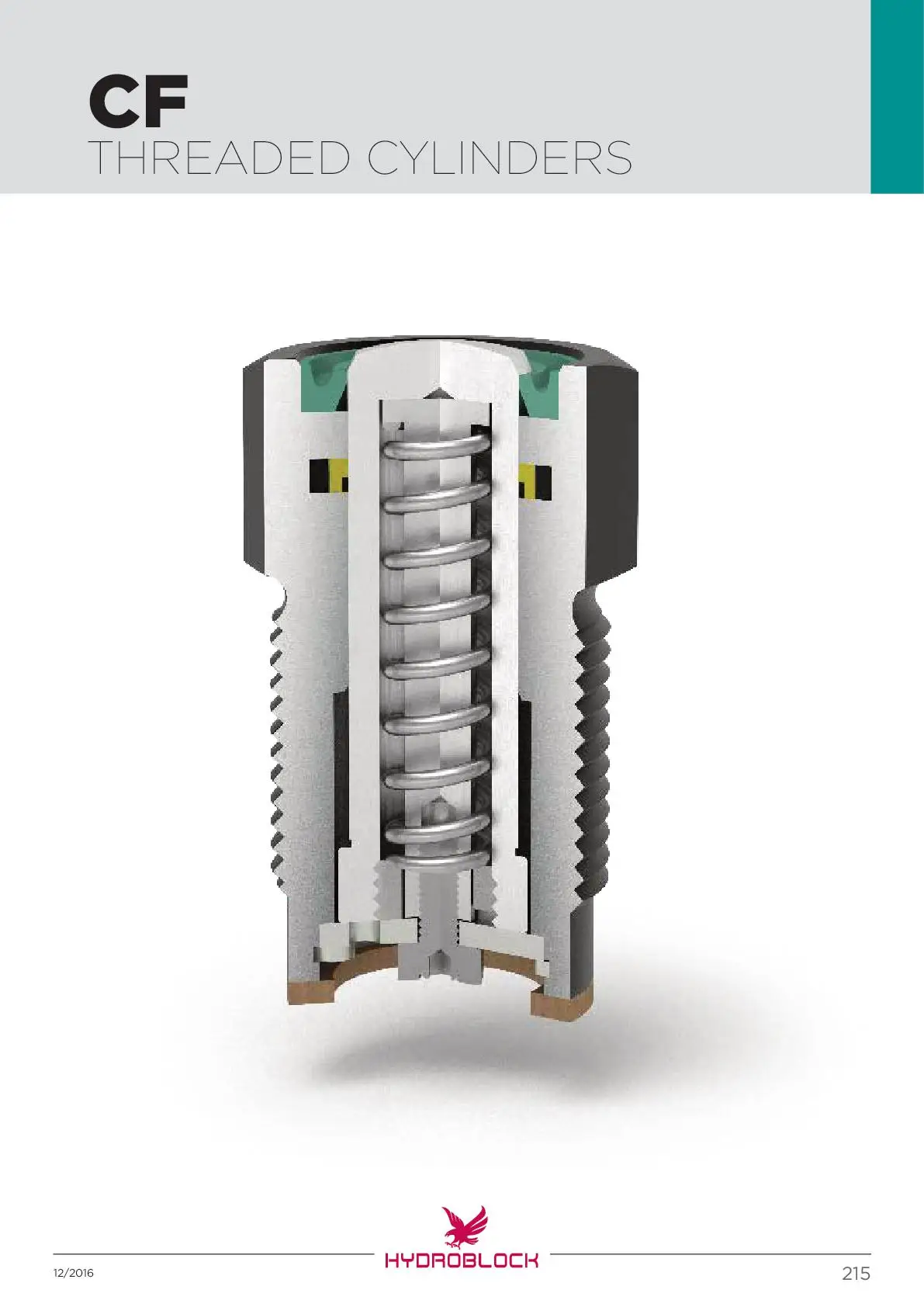

CF CR Hydraulic cylinders with threaded body
CF-CR Hydraulic cylinders with threaded body

CF CR Hydraulic cylinders with threaded body

Share on (1600250309633):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Warranty
1 Year
After Warranty Service
Video technical support, Field maintenance and repair service, Spare parts
Local Service Location
Brazil, Germany, India, Italy, Romania, Spain, China, Austria, Denmark
Showroom Location
Brazil, Germany, India, Italy, Romania, Spain, China, Austria, Denmark
Brand Name
Hydroblock
Place of Origin
Italy
Pressure
Max operating pressure (bar): from 400 to 500
Structure
Threaded type, projecting; Threaded type, flush
Certification
UNI EN ISO 9001:2015
Power
Hydraulic
After-sales Service Provided
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
Rod Diameter
from 5 mm to 32 mm
Maximum Stroke
Total cylinder stroke: from 3 mm to 32 mm
Outer Tube Diameter
from 10 mm to 44 mm
Inner Tube Diameter
from 8 mm to 38 mm
Version with crowned piston rod A

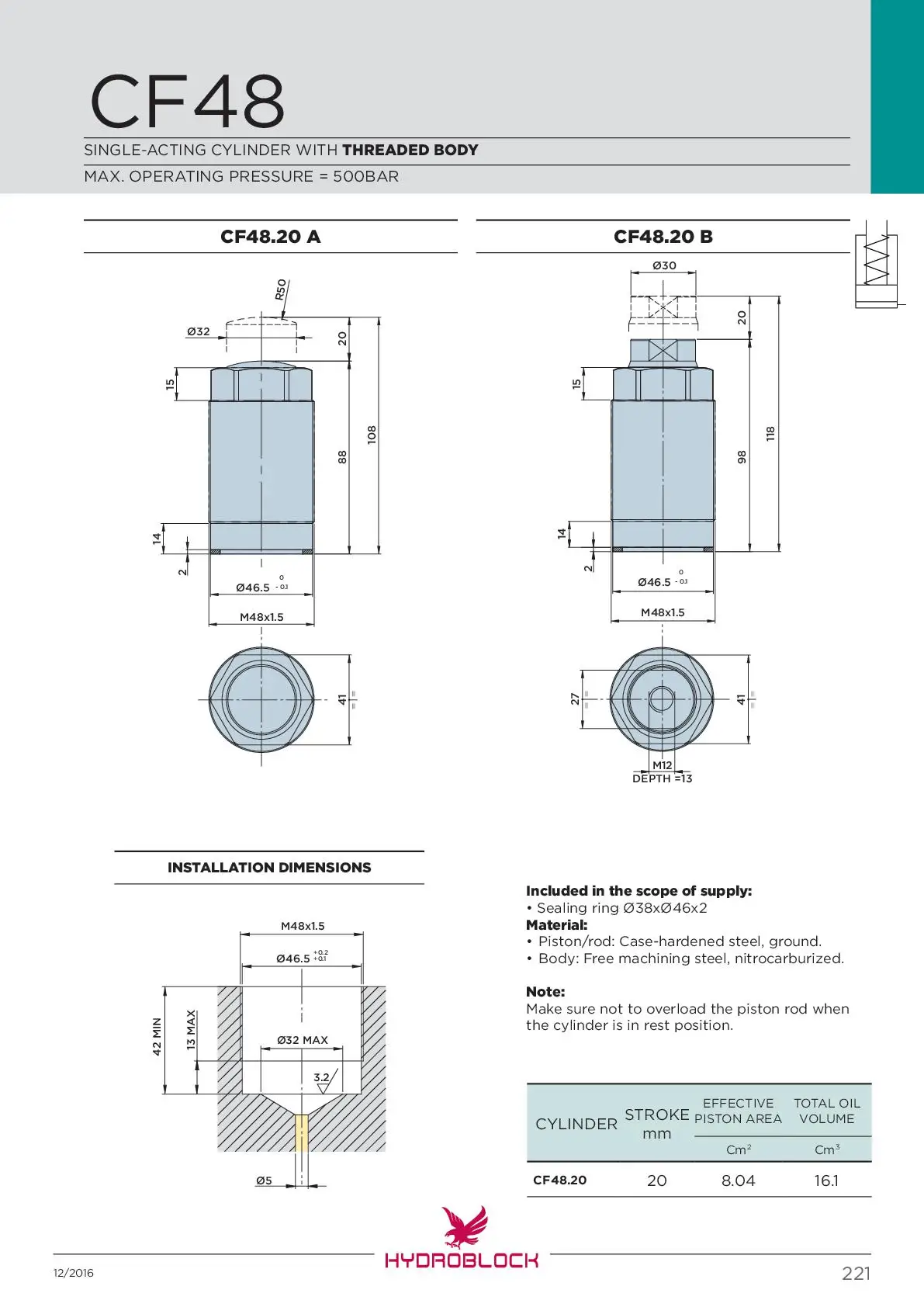

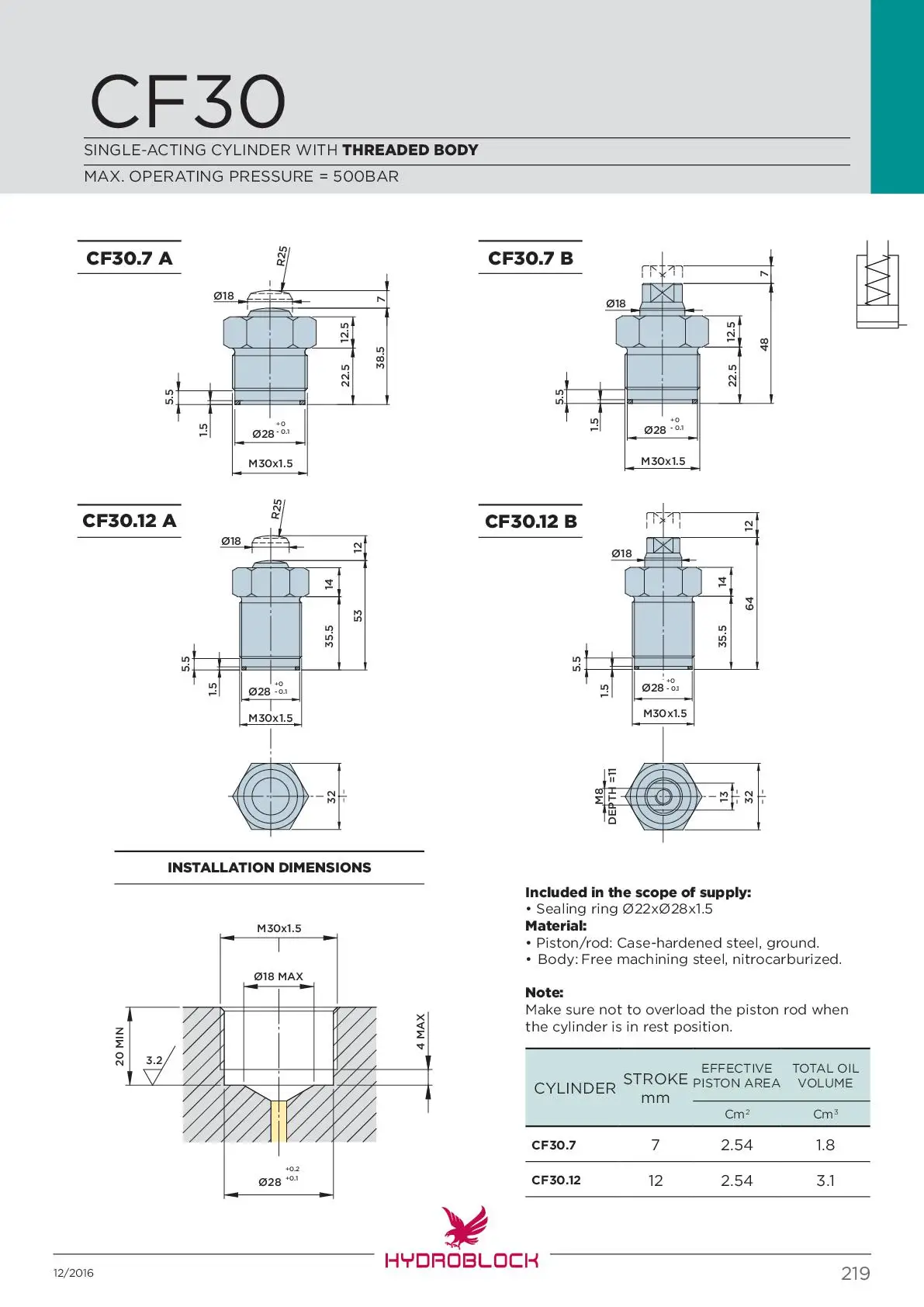

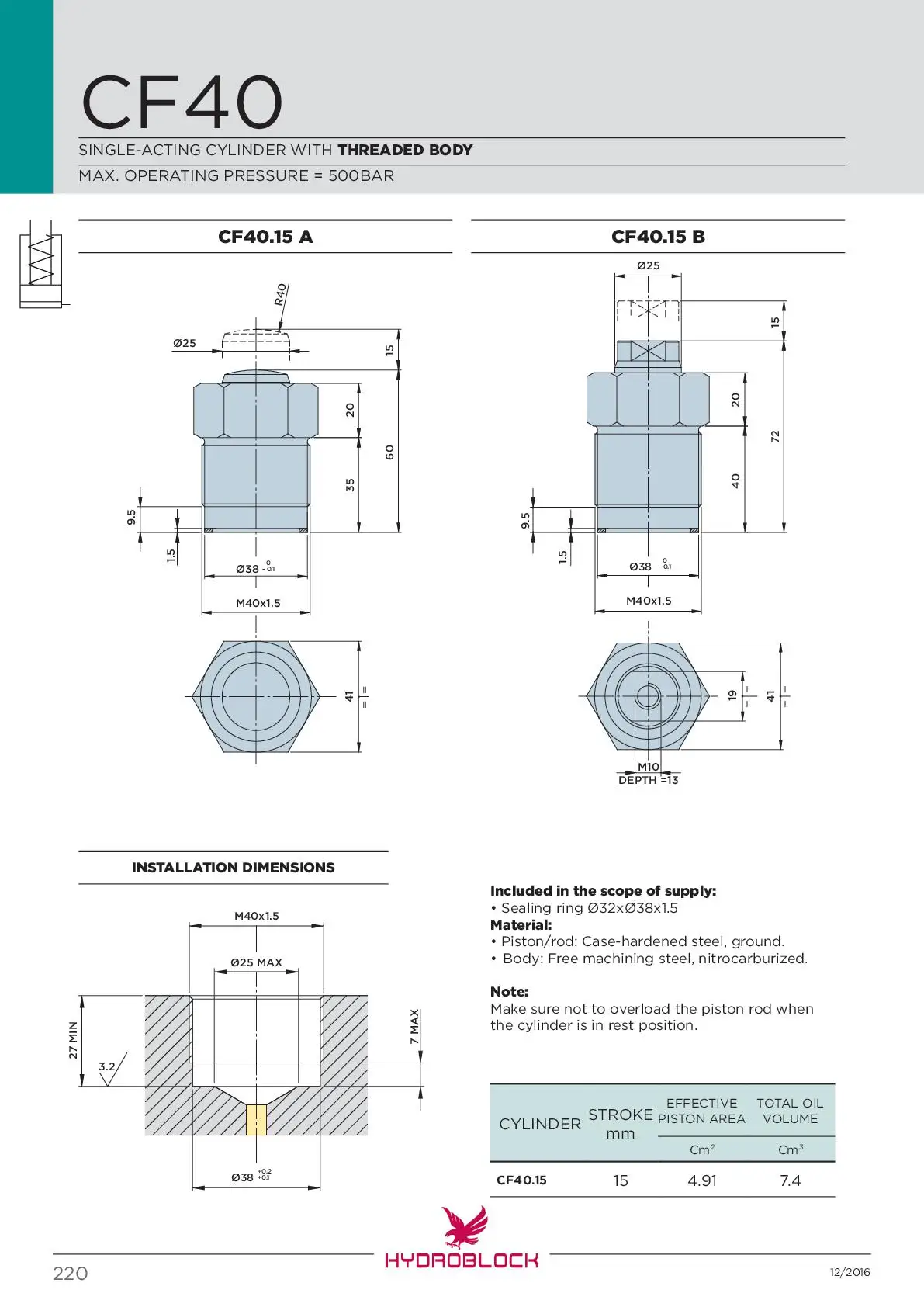

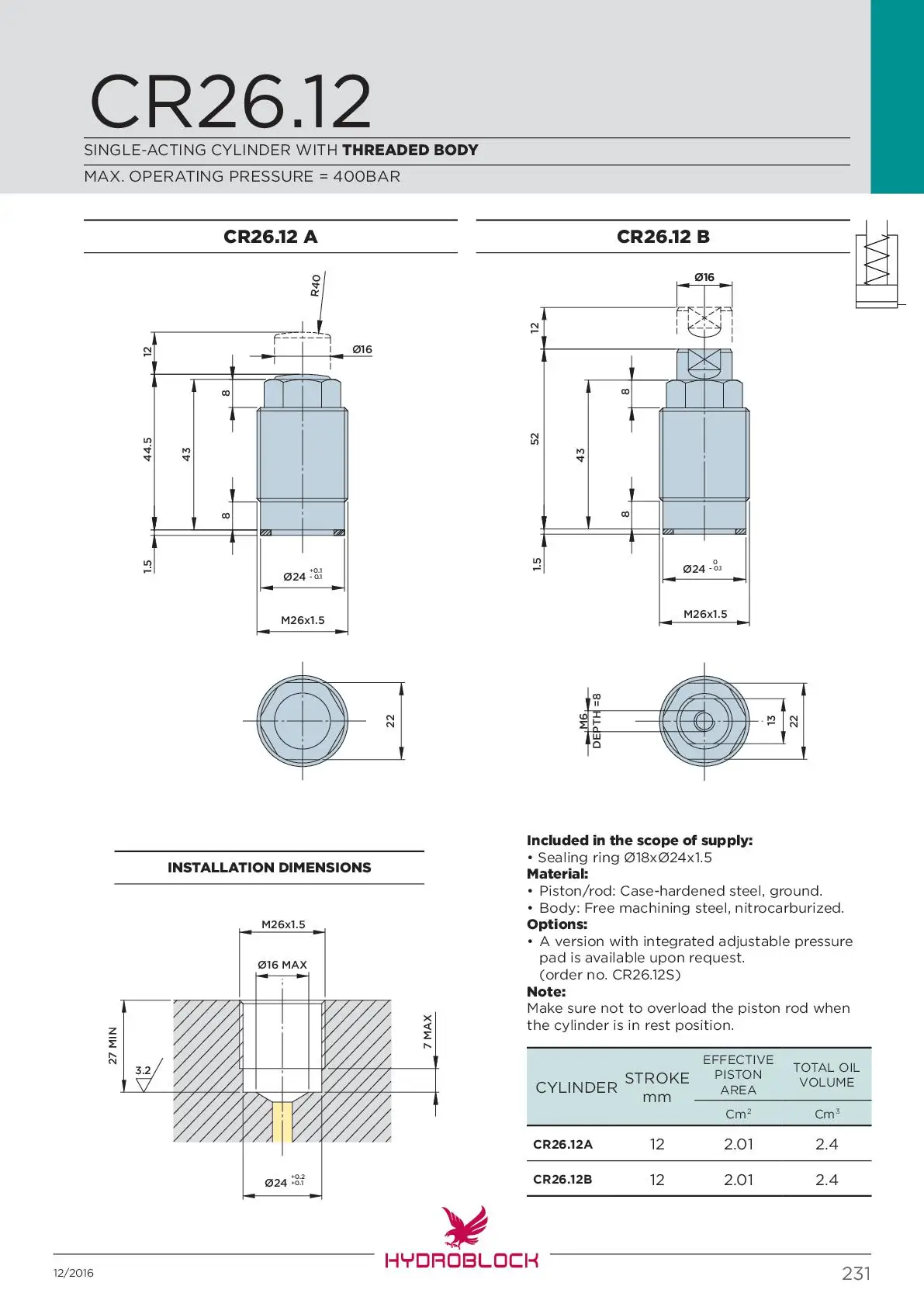

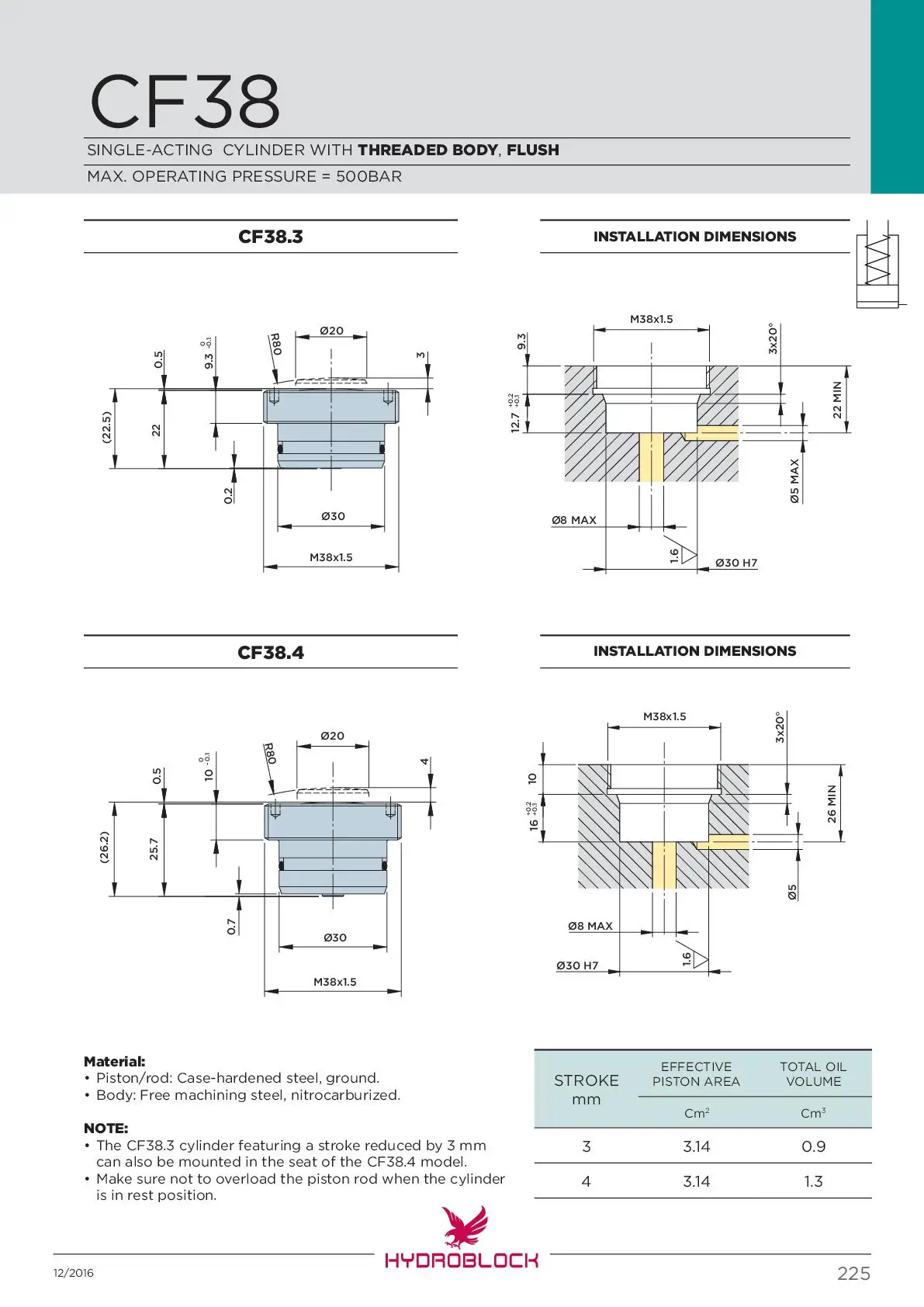

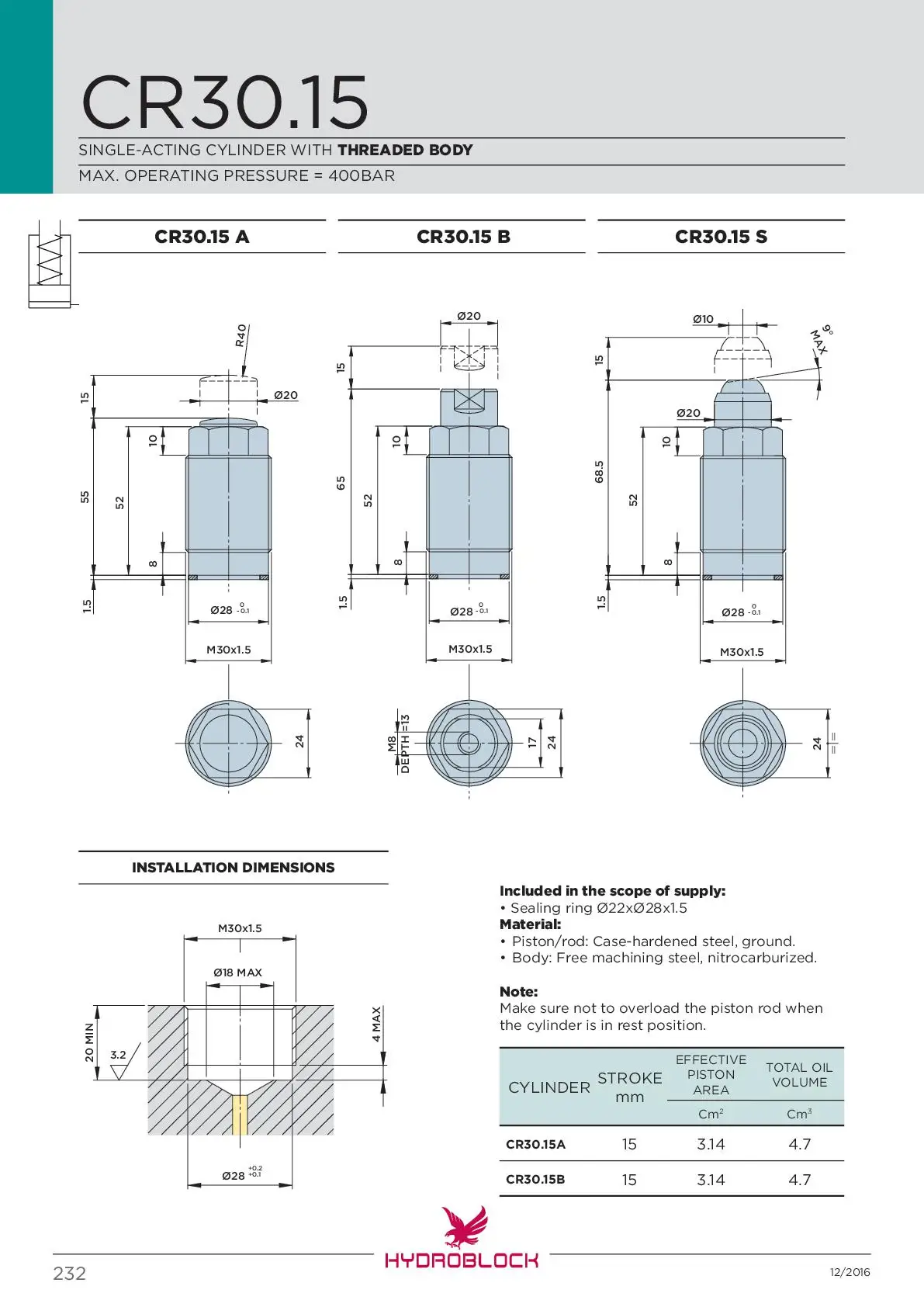

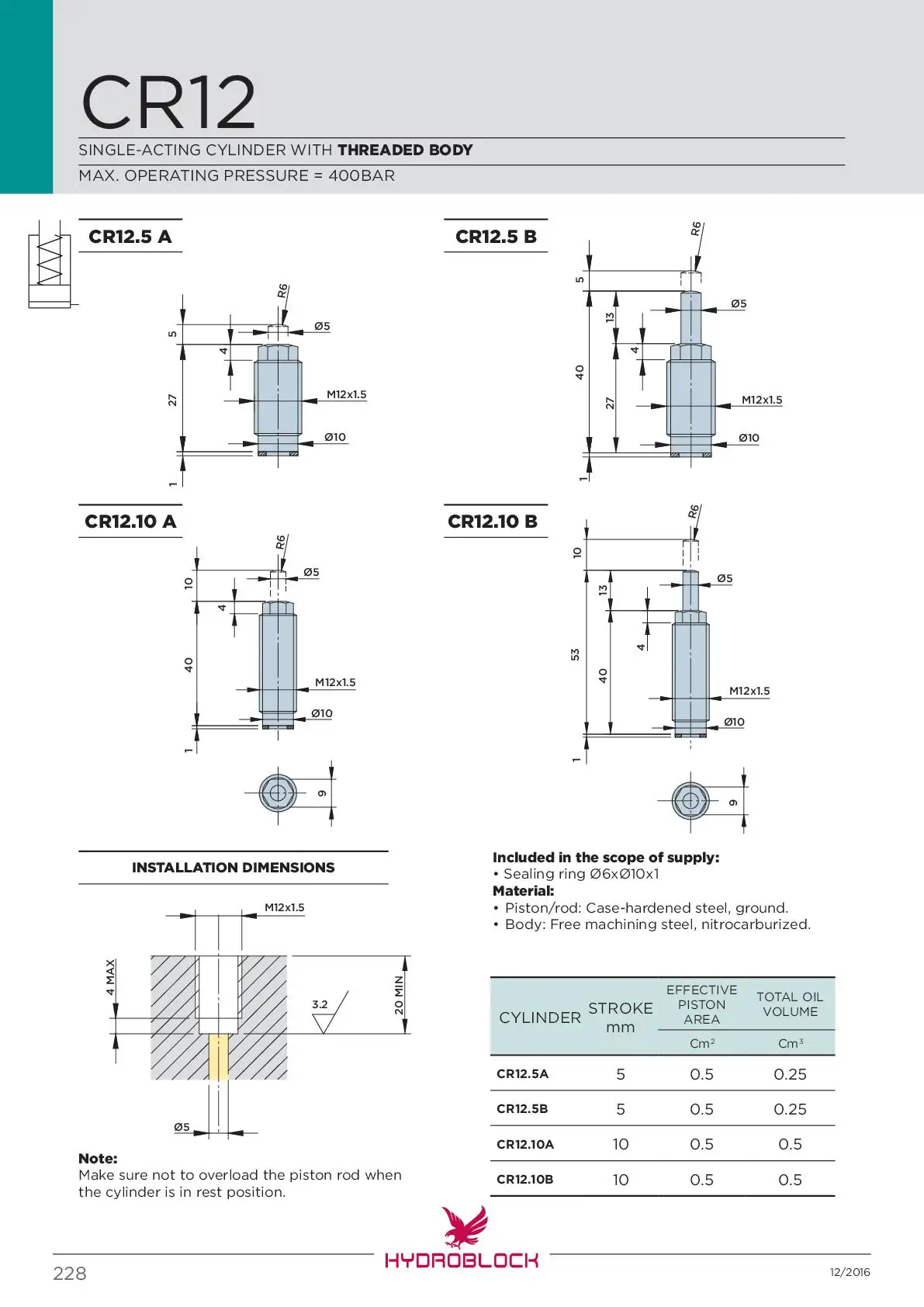

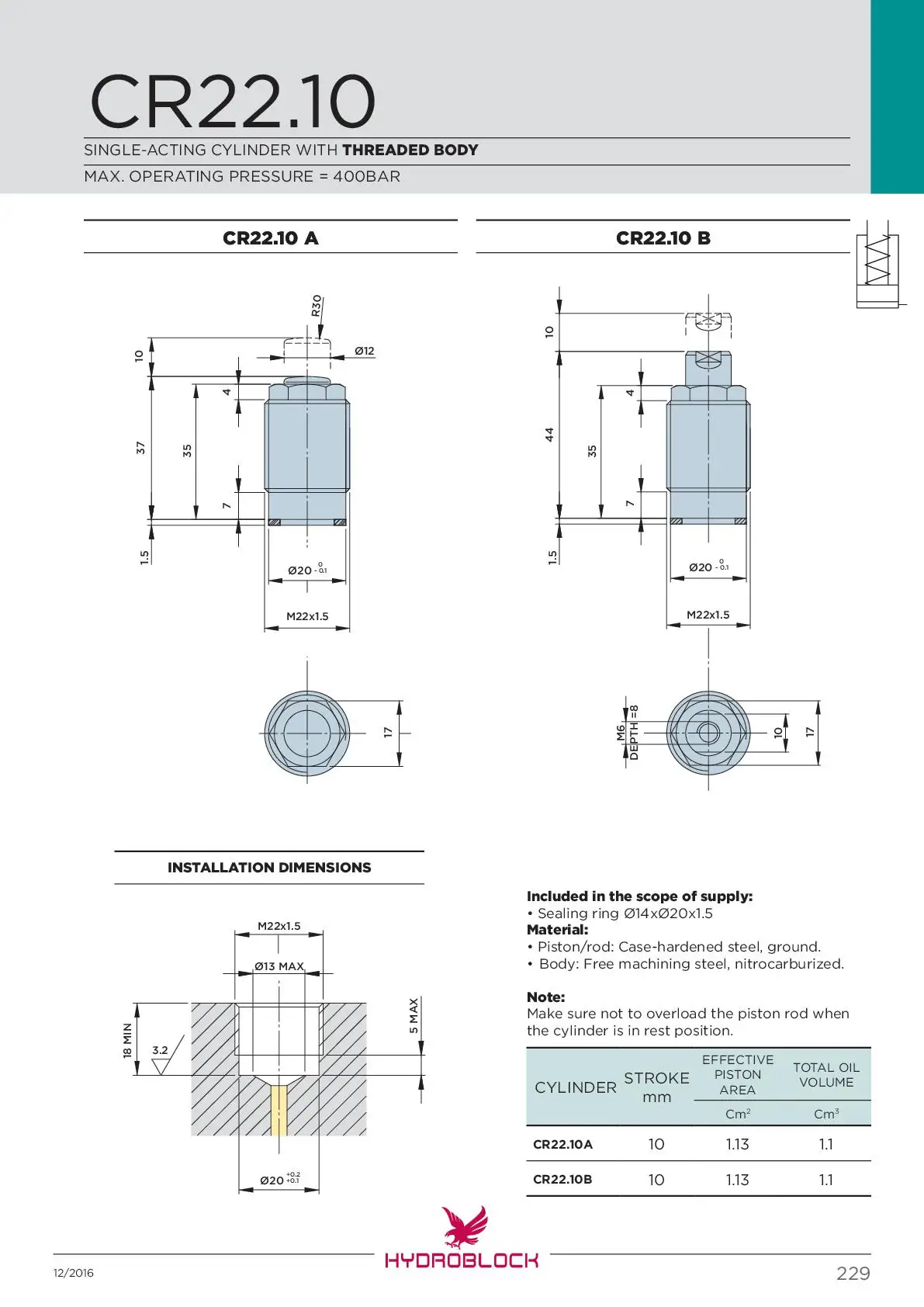

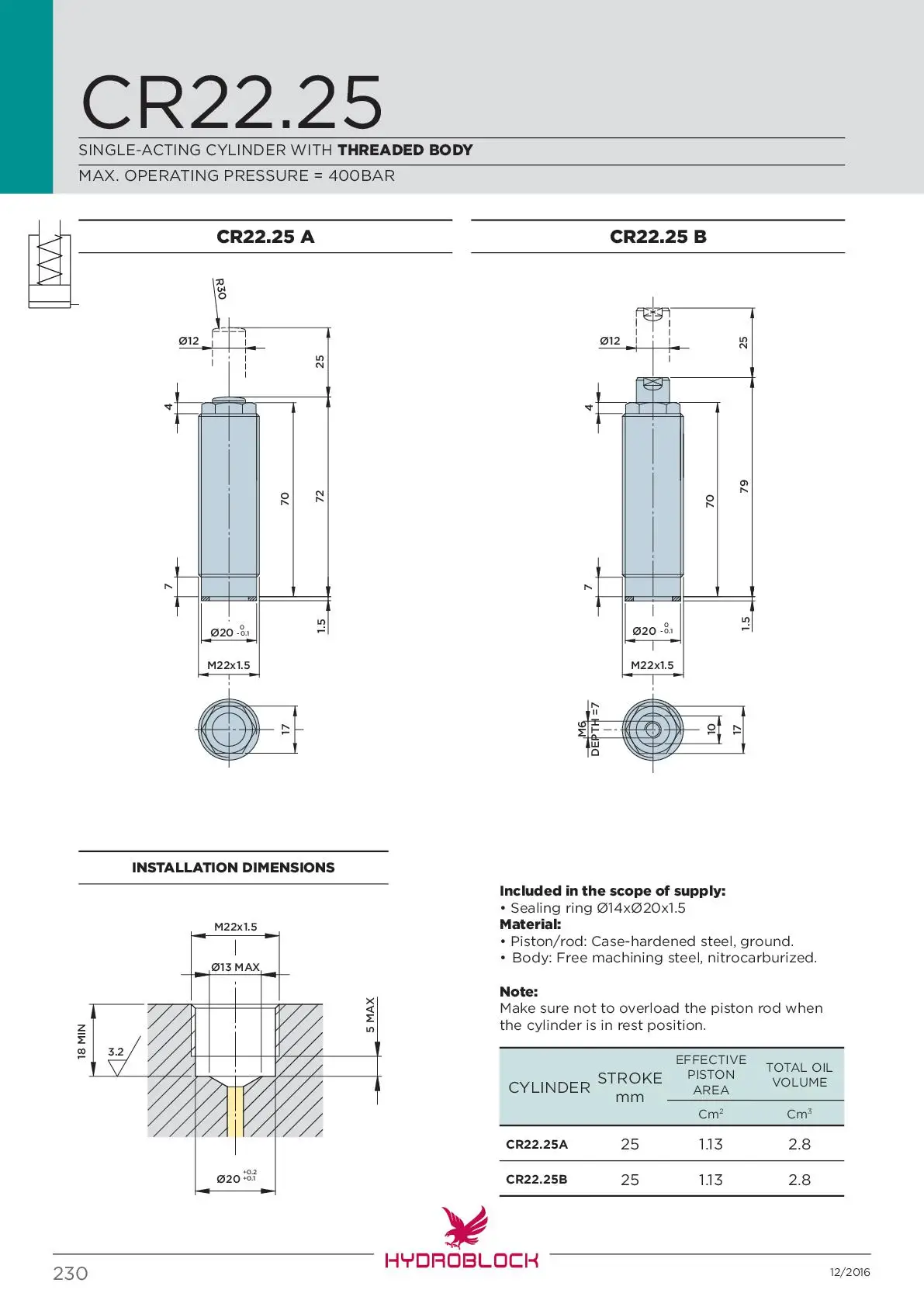

Only for these models: CF22, CF30, CF40, CF48.20, CF38, CR12, CR22, CR26, CR30
Piston rod with threaded bore B
All threaded cylinders excluding CF38 and CR12 models
Version with integrated adjustable pressure pad S

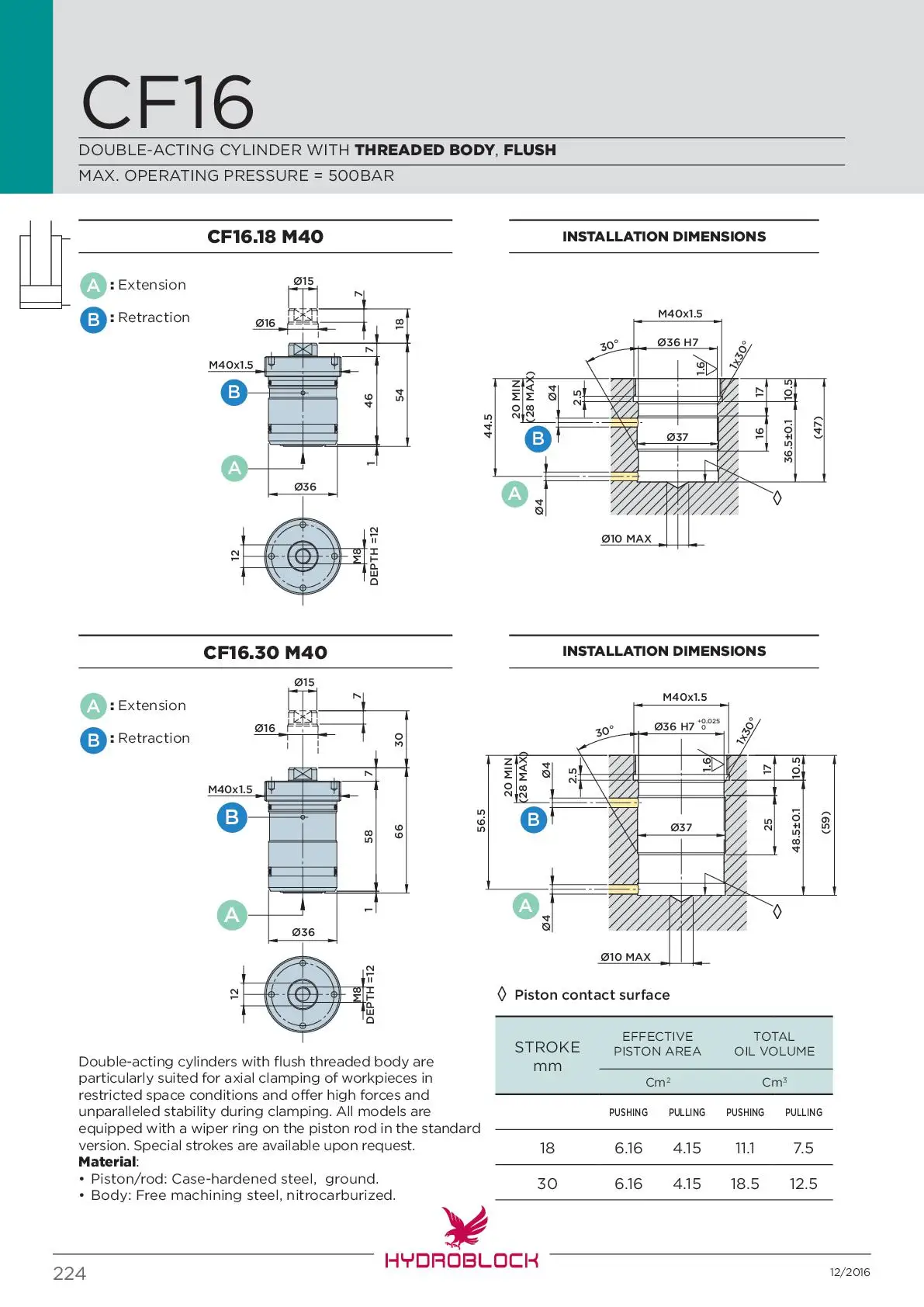

Just for CF16 model
Piston area/Pushing (cm2)
From 0.5 to 11.34
Piston area/Pulling (cm2)

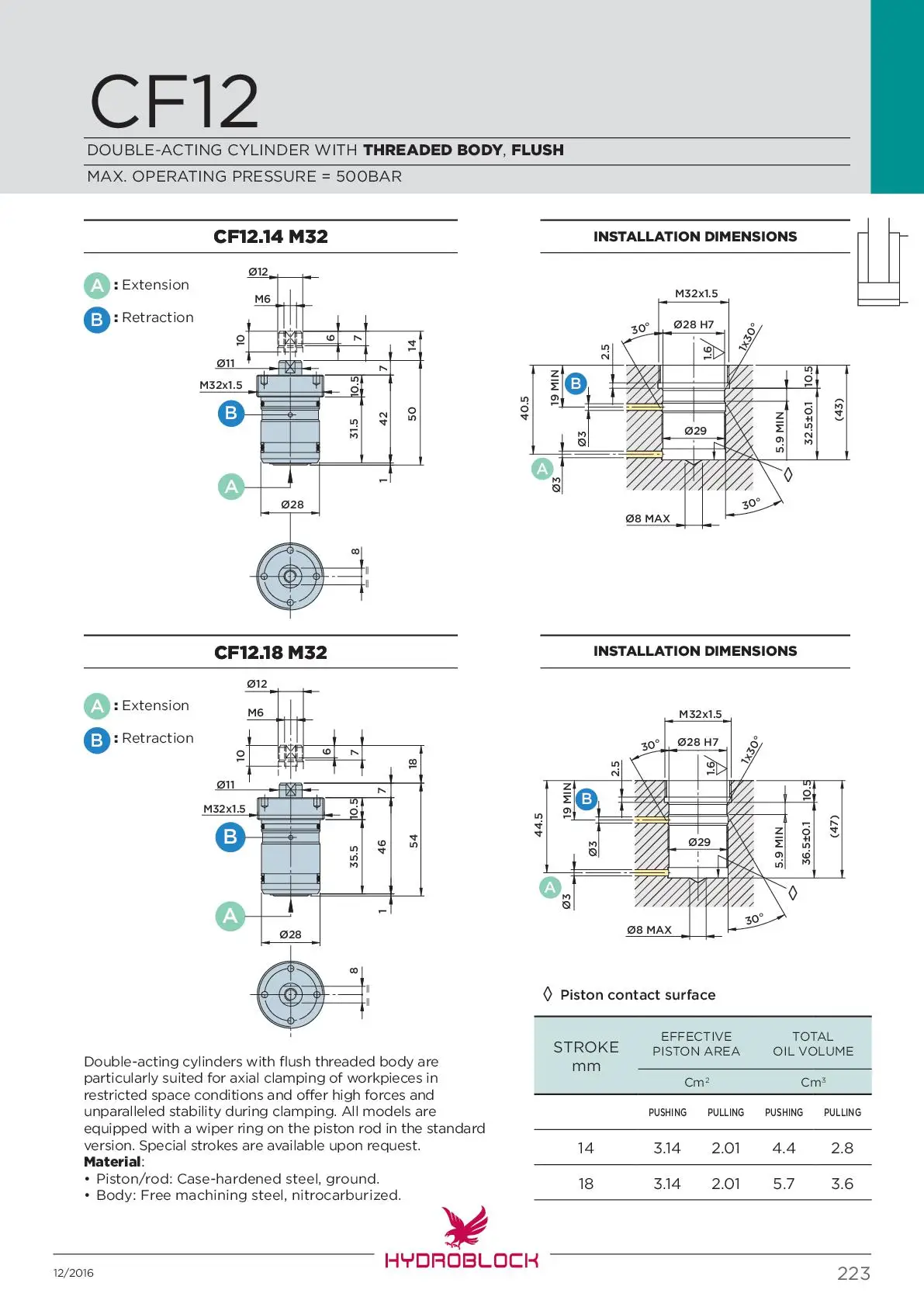

From 0.64 to 4.15 only for CF12M26,CF12M32, CF16 models
Oil volume/pushing (cm3)
From 0.25 to 26.3
Oil volume/pulling (cm3)
From 0.5 to 12.5 only for CF12M26,CF12M32, CF16 models


Packing & Delivery




Wooden cases, cardboard boxes, Special anticorrosive paper for metal protection.

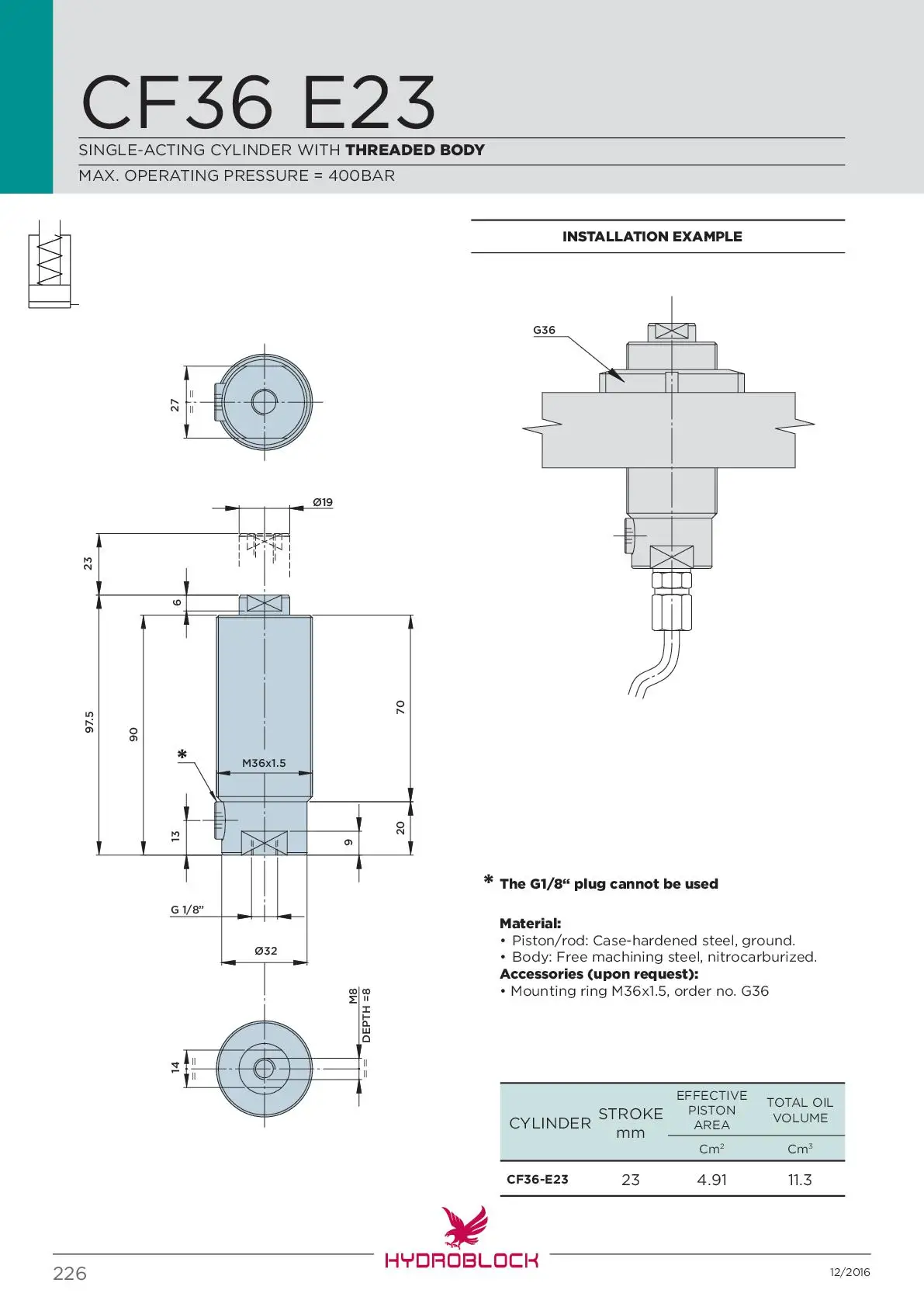

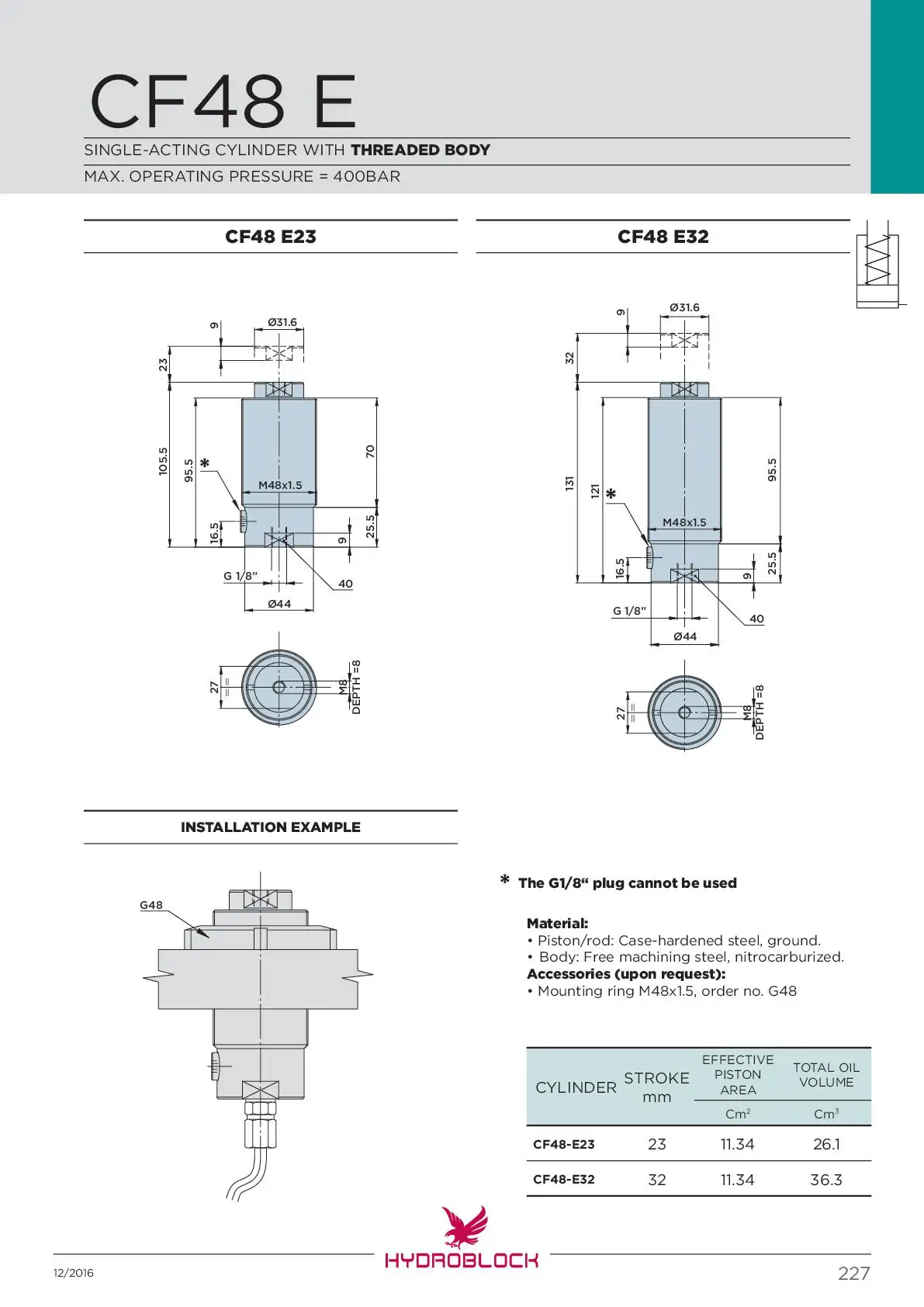

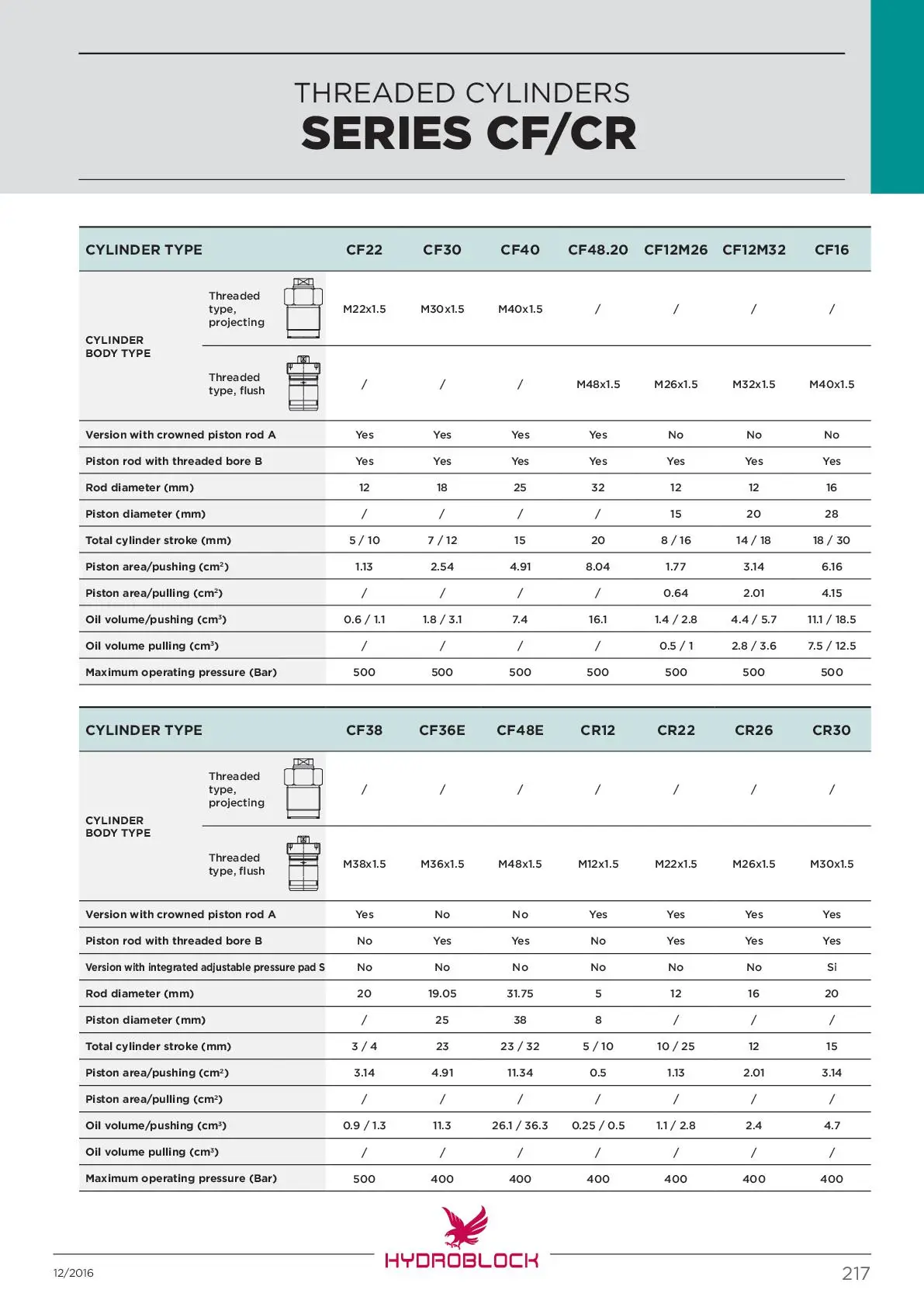

Catalogue






































Company Profile


Hydroblock: world's most precise hydraulic clamp cylinders
Since 2001 Hydroblock has been developing unparalleled high technological solution for the automotive industry and industrial applications in general.
Thanks to both our worldwide patented technical solutions and our unique internal compensation system we offer world’s most precise hydraulic clamp cylinders. Check our technical sheets for more information on this topic.
We can offer extremely reliable premium-quality hydraulic cylinders with outstanding clamping characteristics thanks to:
1.\tStrict quality control on every production process phases;
2.\tStrict computerized testing of 100% of our production.
We guarantee fast and on-time deliveries all over the world thanks to constant availability of products in our stocks.




FAQ


1. who are we?
We are based in Reggio Emilia, Italy.

2. how can we guarantee quality?
We cand guarantee extremely reliable premium-quality hydraulic cylinders with outstanding clamping characteristics thanks to:
1.\tStrict quality control on every production process phases
2.\tStrict computerized testing of 100% of our production

3.what can you buy from us?
You can buy from us world’s most precise hydraulic clamp cylinders with Hydroblock unique internal compensation system.

4. why should you buy from us not from other suppliers?
You shoul buy from us because we offer:
1. hydraulic cylinders with unparalleled clamping characteristics thanks to our unique internal compensation system and and high technical solutions, worldwide patented.
2. Customised technical solutions
3. Fast and on-time deliveries all over the world thanks to constant availability of products in our stocks.

5. what services can we provide?
Accepted Delivery Terms: Ex-works；
Accepted Payment Currency: Euros;
Accepted Payment Type: T/T;
Language Spoken: Italian, English
