China Factory Manufacturing 3528 PLCC4 SMD LED Red Yellow Bi-Color Two Die Double Colors Light Emitting Diode RoHS Free Samples
Products Description
Features
Package ( L/W/H ) : 3.5×2.8×1.9 mm
Color : Ultra High Bright Bi-Color Red/Yellow
Lens: Water Clear Flat Mold
EIA STD Package
Meet ROHS, Green Product
Compatible With SMT Automatic Equipment
Compatible With Infrared Reflow Solder Process

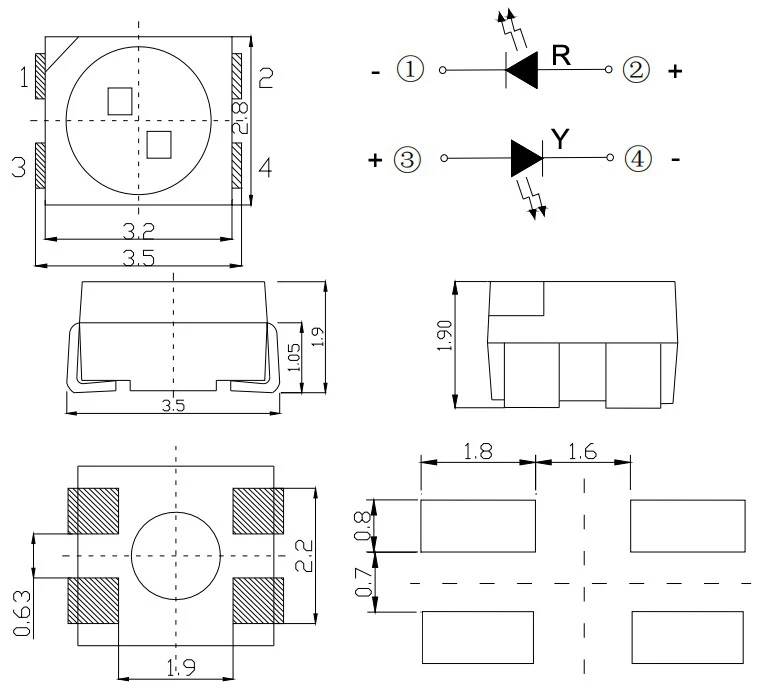

Package Profile & Soldering PAD Suggested
Absolute Maximum Ratings At Ta=25℃
Parameter | Symbol | Rating | Unit | |||
Power Dissipation | Pd | R | 90 | mW | ||
Y | 90 | |||||
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | R | 70 | mA | ||
Y | 70 | |||||
DC Forward Current | IF | R | 20 | mA | ||
Y | 20 | |||||
Reverse Voltage | VR | R | 5 | V | ||
Y | 5 | |||||
Operating Temperature Range | Topr | -30C ~ + 85C | ||||
Storage Temperature Range | Tstg | -40C ~ + 90C | ||||
Soldering Condition | Tsol | Reflow soldering : 260C For 5 Seconds Hand soldering: 300C For 3 Seconds | ||||
Electrical Optical Characteristics At Ta=25℃
Parameter | Symbol | Colors | Min. | Typ. | Max. | Unit | Test Condition |
Luminous Intensity | IV | R | 500 | mcd | IF=20mA | ||
Y | 600 | IF=20mA | |||||
Dominant Wavelength | λd | R | 620 | 630 | nm | IF=20mA | |
G | 586 | 592 | IF=20mA | ||||
Peak Wavelength | λp | R | 625 | IF=20mA | |||
G | 590 | IF=20mA | |||||
Spectral Line Half-Width | Δλ | R | 18 | nm | IF=20mA | ||
G | 20 | IF=20mA | |||||
Forward Voltage | VF | R | 1.8 | 2.6 | V | IF=20mA | |
G | 1.8 | 2.6 | IF=20mA | ||||
Reverse Current | IR | R | 5 | uA | VR=5V | ||
G | 5 | VR=5V | |||||
Viewing Angle | 2θ1/2 | 120 | deg | IF = 20mA |
