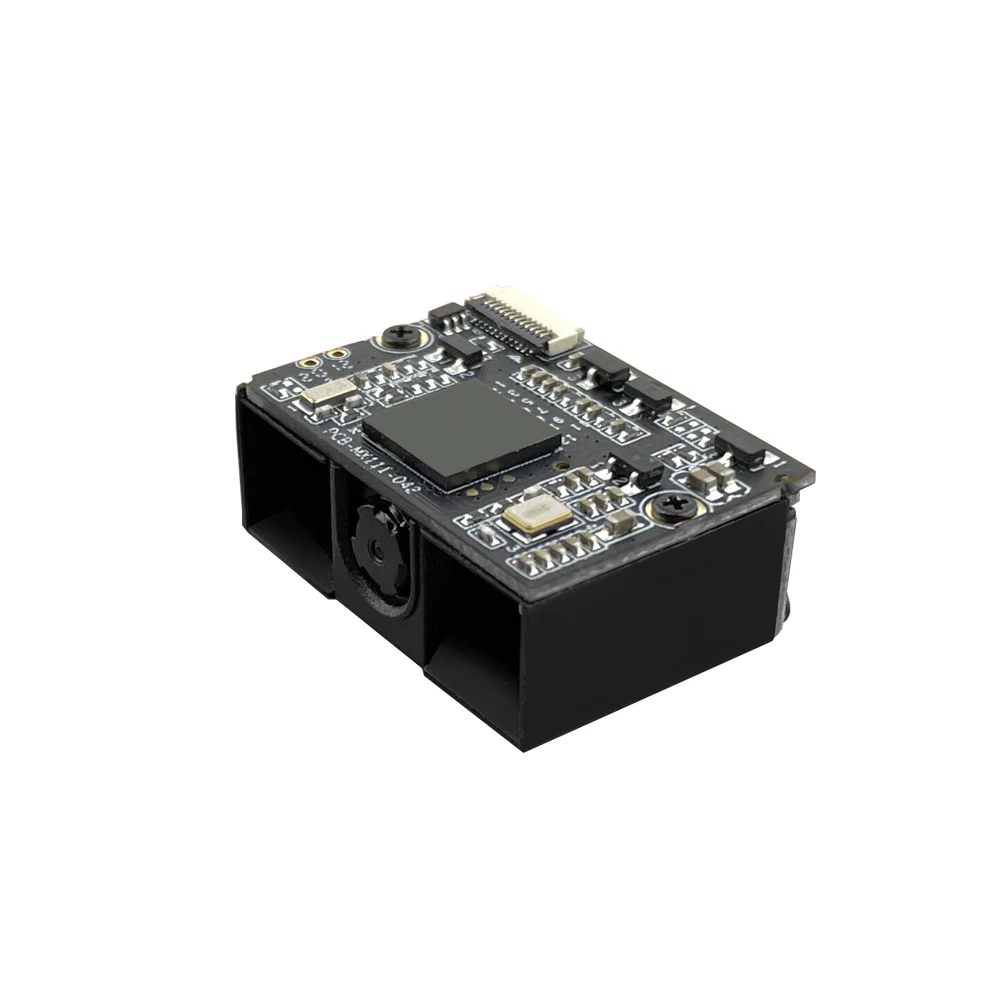

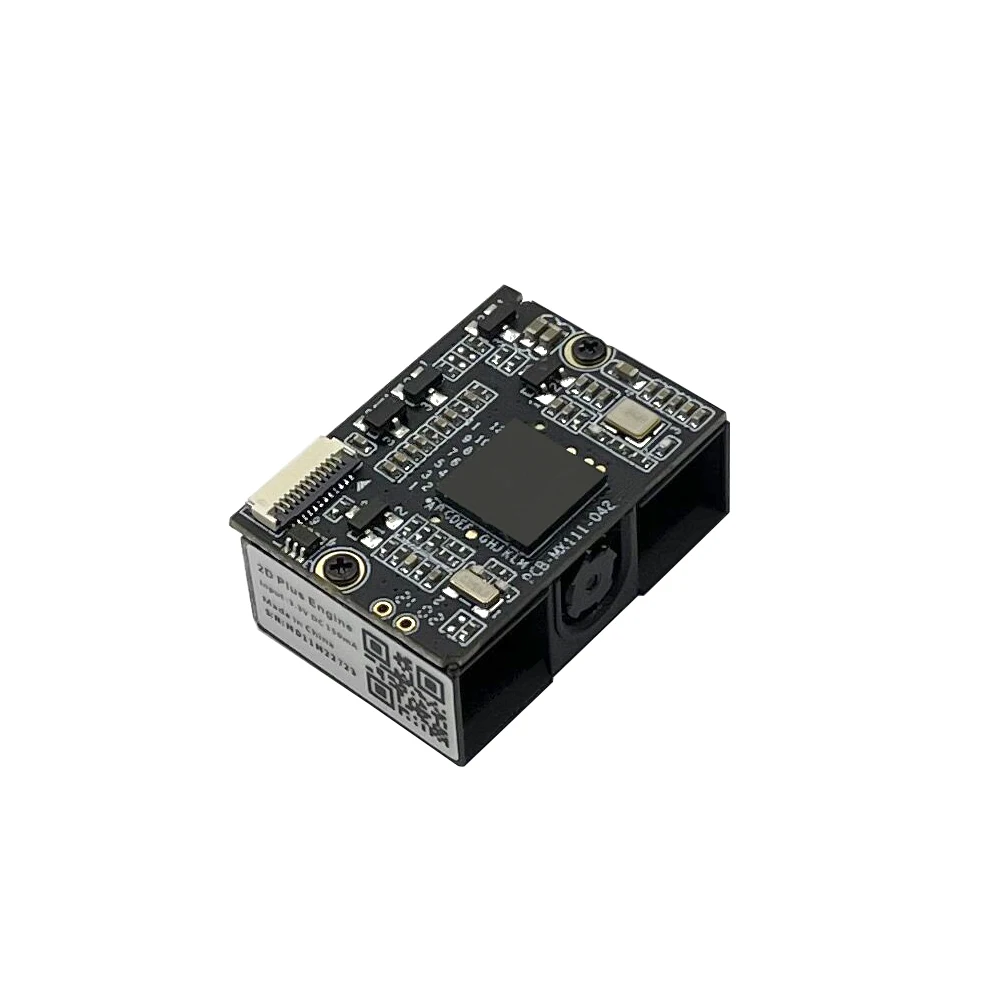

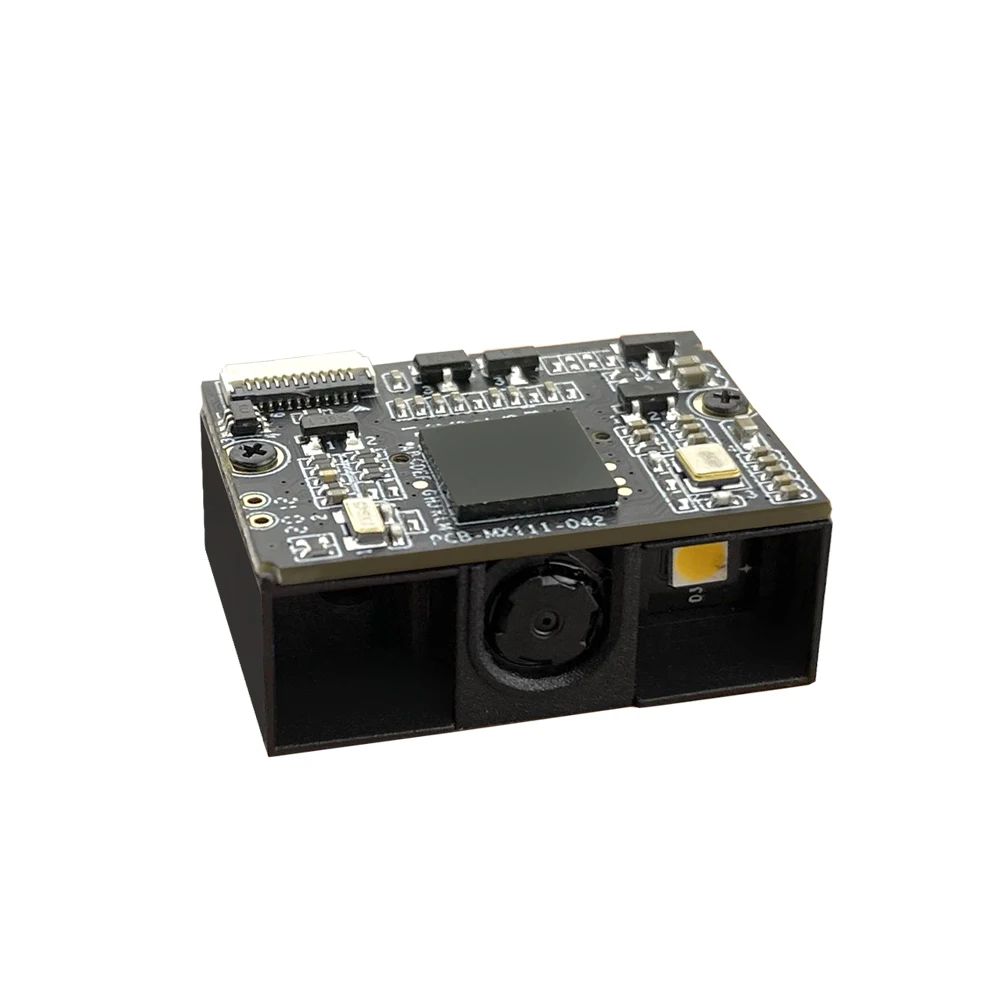

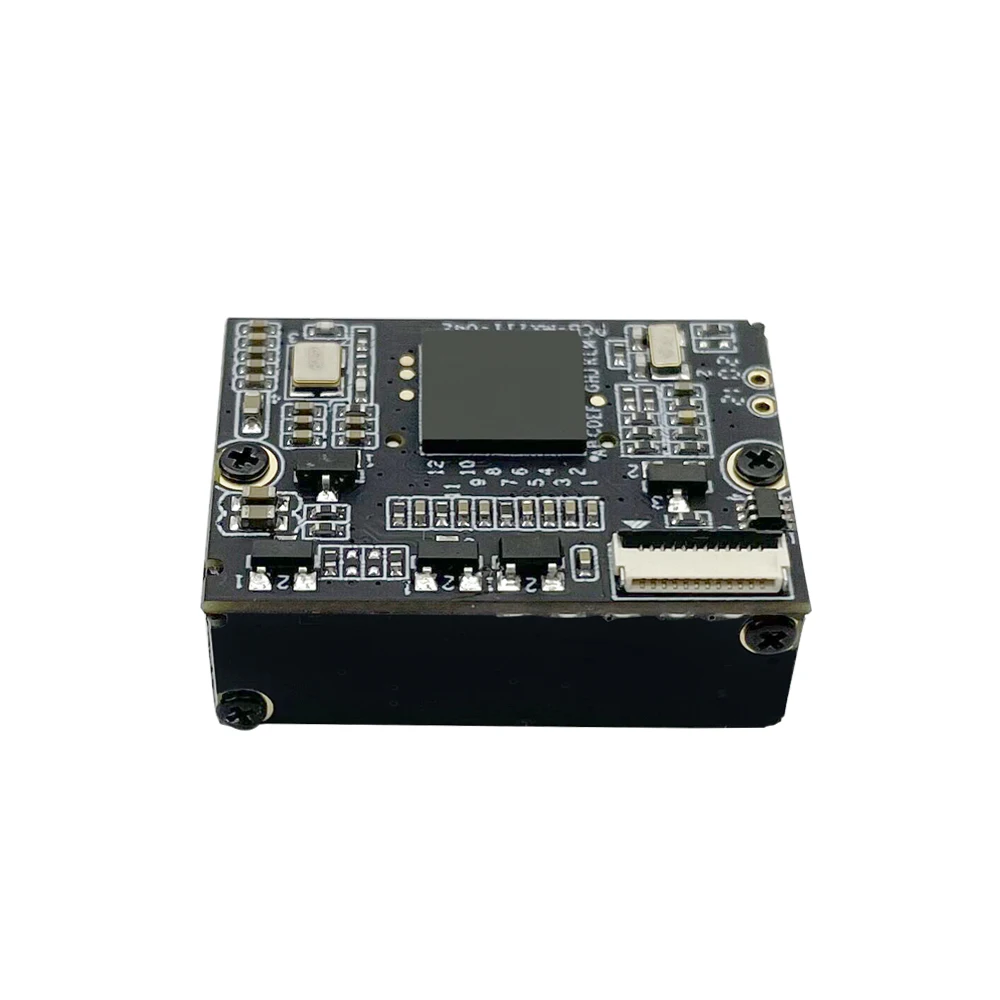

Mini CMOS 2D Scan Engine 2D Barcode Scanner Mount Fixed 2D QR Code Module
- Category: >>>
- Supplier: Shenzhen Rakinda Technologies Co. Ltd.
Share on (1600250371950):
Product Overview
Description
Mini CMOS 2D Scan Engine 2D Barcode Scanner Mount Fixed 2D QR Code Module 2d barcode scanner mount fixed 2d qr code module 2d scan engine
Product Description
Optical System | 640 pixels(H)x 480 pixels(V) |
Illumination Element | Aiming: 617nm LED; Illumination 3200K White LED |
Depth of Field | 40 mm - 280 mm @UPCA -13 mil 100 %,PCS 90% |
Scan Angle | 38° (H) x 25° (V) |
Min. Bar Width | 0.1mm(4mil)@Code 39, PCS=90% |
Scan Mode | Trigger mode, Auto-sensing, Continuous scan, Pulse mode |
Print Contrast | > 30%(UPC/EAN 100% , PCS 90%) |
System Interface | TTL232 (12pin), USB 1.1 (HID Keyboard、Virtual COM Port) |
Dimensions | 28.2mm x 20.5mm x 11.8mm |
Weight | About 5g |
Input Voltage | DC 3.3V±5% |
Operating Current | 130 mA ±5%（Typical）, 300 mA ±5%（Max.） |
Operating Temperature | -20℃~50℃ |
Humidity | 5%~95% (non-condensing) |
Storage Temperature | -40℃~+70℃ |
Light Level | 0~100,000Lux（fluorescence ） |
(1D 2D) | UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS14,RSS Limited, RSS Expanded PDF417 MicroPDF417 Data Matrix QR Code Micro QR Code Aztec Code Maxi Code Reads barcode reliably ofcell phone screens |
Mini CMOS 2D Scan Engine 2D Barcode Scanner Mount Fixed 2D QR Code Module 2d barcode scanner mount fixed 2d qr code module 2d scan engine
