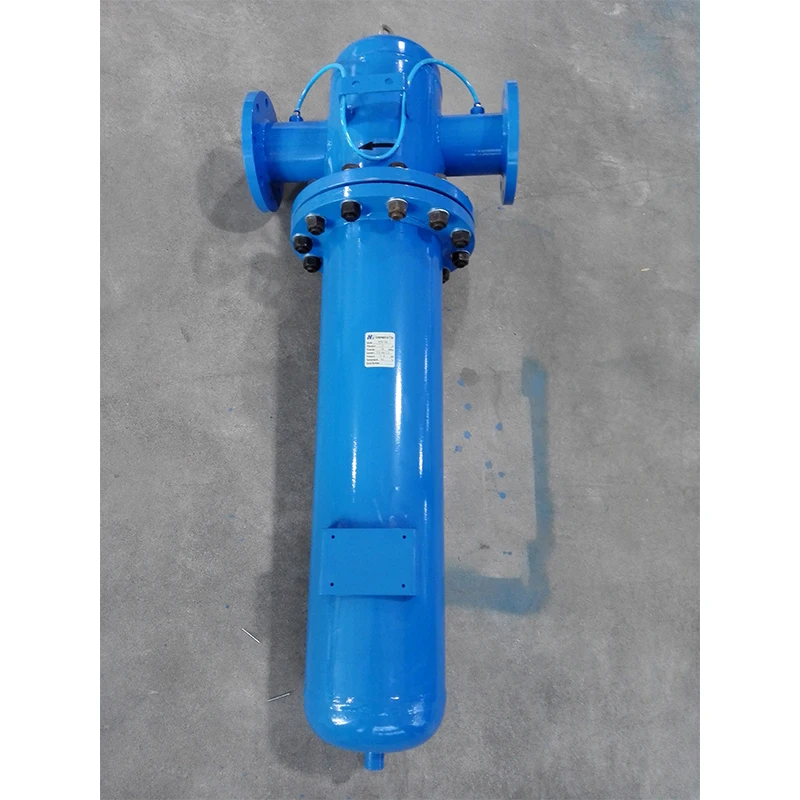

XF Series High efficient Precision Filter for Compressed Air Flange Type 5 micron filter
- Category: >>>
- Supplier: Wuxi Hualing Filter Equipment Co. Ltd.
Share on (1600250400750):
Product Overview
Description
Specification
Model Number | XF-16, 20, 24, 28, 32, 36, 40, 44, 48 |
Grade | 1, 3, 5, 7, 9 |
Type | Air Filter compressed air filter |
Material | Aluminium alloy, carbon steel |
Operating temperature | 65℃ |
Application | Removal of particles, liquid in air system |
Flow rate | 1~252 Nm3/min. |
Filtration rating | 0.01, 1, 3 Micron |
Residual oil content | 0.001, 0.01, 1, 5 ppm |
Color | Blue, customized |
Connection type | threaded, flanged |
Connection size | 1-2-1/2", DN65-DN150 |
Thread type | BSP, NPT |
Surface treatment | DACROMET, oxidation (corrosion resistance) |
Standard | ISO ISO 8573-2, ISO 12500-1 |
Lead time | 1~30 working days |
Product Description
Brief Introduction:
Hualing’s XF series compressed air filter complete in specifications can process 1~252Nm³/min of flow rate. There are five grades as XF9(3µ), XF7(1µ), XF5(0.01µ), XF3(0.01µ), XF1 (activated carbon) for your selection. The company has the most advanced testing equipment in the world imported from Germany. Also, we can specially make products according to requirements and overall installation dimensions supplied by customer, and provide the filter element replacement for Domnick Hunter,Hankison, Paker, Ultrafilter, Hiross, Zander, BEA, SMC and other precision filter in same quality.
Technical specifications:
a. There are five grades of filter element for XF series compressed air filters, allow you to design a system that delivers the air quality you require.
b. Flow rate/Capacity:1Nm³/min ~ 252Nm³/min at 7barg(100Psig),
c. Filtration grade:0.01 Micron ~ 3 Micron.
d. Max working pressure:16barg/232Psig
e. Max working teperature:66℃, and (120℃ is available also)
Features:
· Extension current route to slow pressure drop
· Filter housing is made of high-quality aluminium alloy and carbon steel.
· Surface is coated with epoxy resin powders so as to improve the durability and corrosion resistance.
· Threaded connection is used at inlet and outlet. Filter housing is marked with flow direction of air, with easy installation.
· Compact design is to reduce the space for maintenance.
· New pressure indicator can indicate the best time to change the filter.
· Level indicator can be convenient to monitor the liquid level and pay attention to the state of preventive maintenance so as to avoid downstream pollution.
· Reliable automatic drain
Hualing’s XF series compressed air filter complete in specifications can process 1~252Nm³/min of flow rate. There are five grades as XF9(3µ), XF7(1µ), XF5(0.01µ), XF3(0.01µ), XF1 (activated carbon) for your selection. The company has the most advanced testing equipment in the world imported from Germany. Also, we can specially make products according to requirements and overall installation dimensions supplied by customer, and provide the filter element replacement for Domnick Hunter,Hankison, Paker, Ultrafilter, Hiross, Zander, BEA, SMC and other precision filter in same quality.
Technical specifications:
a. There are five grades of filter element for XF series compressed air filters, allow you to design a system that delivers the air quality you require.
b. Flow rate/Capacity:1Nm³/min ~ 252Nm³/min at 7barg(100Psig),
c. Filtration grade:0.01 Micron ~ 3 Micron.
d. Max working pressure:16barg/232Psig
e. Max working teperature:66℃, and (120℃ is available also)
Features:
· Extension current route to slow pressure drop
· Filter housing is made of high-quality aluminium alloy and carbon steel.
· Surface is coated with epoxy resin powders so as to improve the durability and corrosion resistance.
· Threaded connection is used at inlet and outlet. Filter housing is marked with flow direction of air, with easy installation.
· Compact design is to reduce the space for maintenance.
· New pressure indicator can indicate the best time to change the filter.
· Level indicator can be convenient to monitor the liquid level and pay attention to the state of preventive maintenance so as to avoid downstream pollution.
· Reliable automatic drain

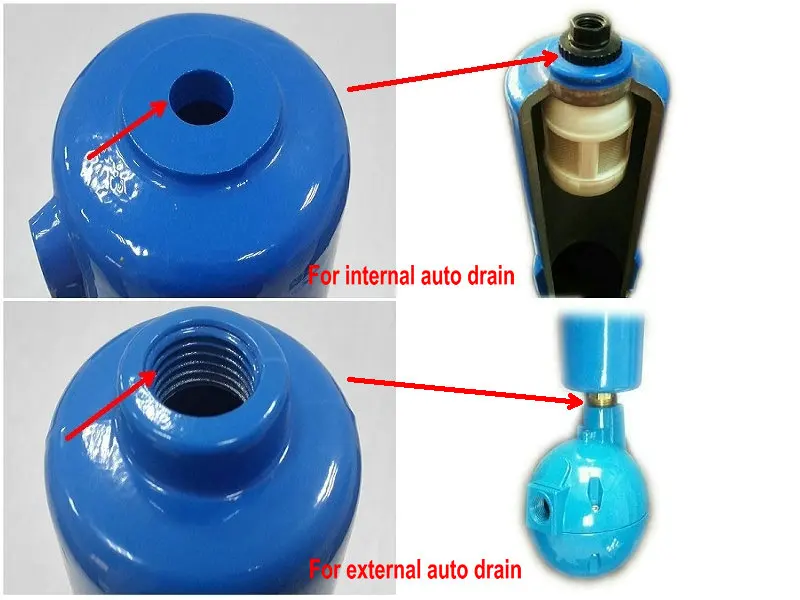

Note: There are two types of automatic drains, one is internal auto drain and the other is external auto drain (as shown in the above picture). It is optional and selected according to customer’s requirement.
Bottom construction:

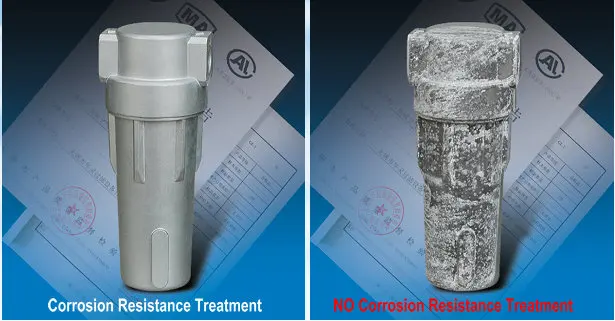

Surface Treatment Process:
Packing:
Company Profile
Wuxi Hualing Filter Equipment Co., Ltd, founded in 1992, specializes in manufacturing high-efficient precision filters for compressed air, filter elements, air oil separators for vacuum pump, lubrication station of centrifugal compressor and mechanical machining.
The company is one of the drafters for national standard GB/T 30475.1 & GB/T 30475.2, and possesses the most advanced test stand, imported from German GMN Company, which is in accordance with ISO 8573-2 and ISO 12500-1 standard, to guarantee the product quality.
It mainly supplies the filter products for such industries as machinery, textile, chemical, electronic, transportation, aviation and environmental protection etc. The products export to Europe and America, Asia, South Africa, accounting for around 30% of the overall business.
With good credit and rich practical experiences, the company provides you with advanced manufacturing and testing methods, high-quality products, reasonable prices and efficient service.
The company is one of the drafters for national standard GB/T 30475.1 & GB/T 30475.2, and possesses the most advanced test stand, imported from German GMN Company, which is in accordance with ISO 8573-2 and ISO 12500-1 standard, to guarantee the product quality.
It mainly supplies the filter products for such industries as machinery, textile, chemical, electronic, transportation, aviation and environmental protection etc. The products export to Europe and America, Asia, South Africa, accounting for around 30% of the overall business.
With good credit and rich practical experiences, the company provides you with advanced manufacturing and testing methods, high-quality products, reasonable prices and efficient service.
Our Advantages
Exhibition
Customer Photos
Packing & Delivery
Why Choose Us
a. 25 years’ practical experiences in design, development and manufacturing;
b. Strong technical force and advanced testing method;
c. Complete and perfect process documents and production lines;
d. Reliable and durable products with affordable prices;
e. High-quality and efficient service;
f. Sufficient inventory and timely delivery
b. Strong technical force and advanced testing method;
c. Complete and perfect process documents and production lines;
d. Reliable and durable products with affordable prices;
e. High-quality and efficient service;
f. Sufficient inventory and timely delivery
Our service
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
FAQ
Q1. What kind of your company is it?
We’re the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Q3. What is the delivery time?
Q4. Do you have a warranty?
Q5. Can you supply customized product?
Q2. How about your technical conditions and production capability?
Complete process documents and equipments, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 1-30 working days after 100% payment.
Q4. Do you have a warranty?
Yes, for filters, it is 1 year and for elements, it is 8000 hours at least.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
