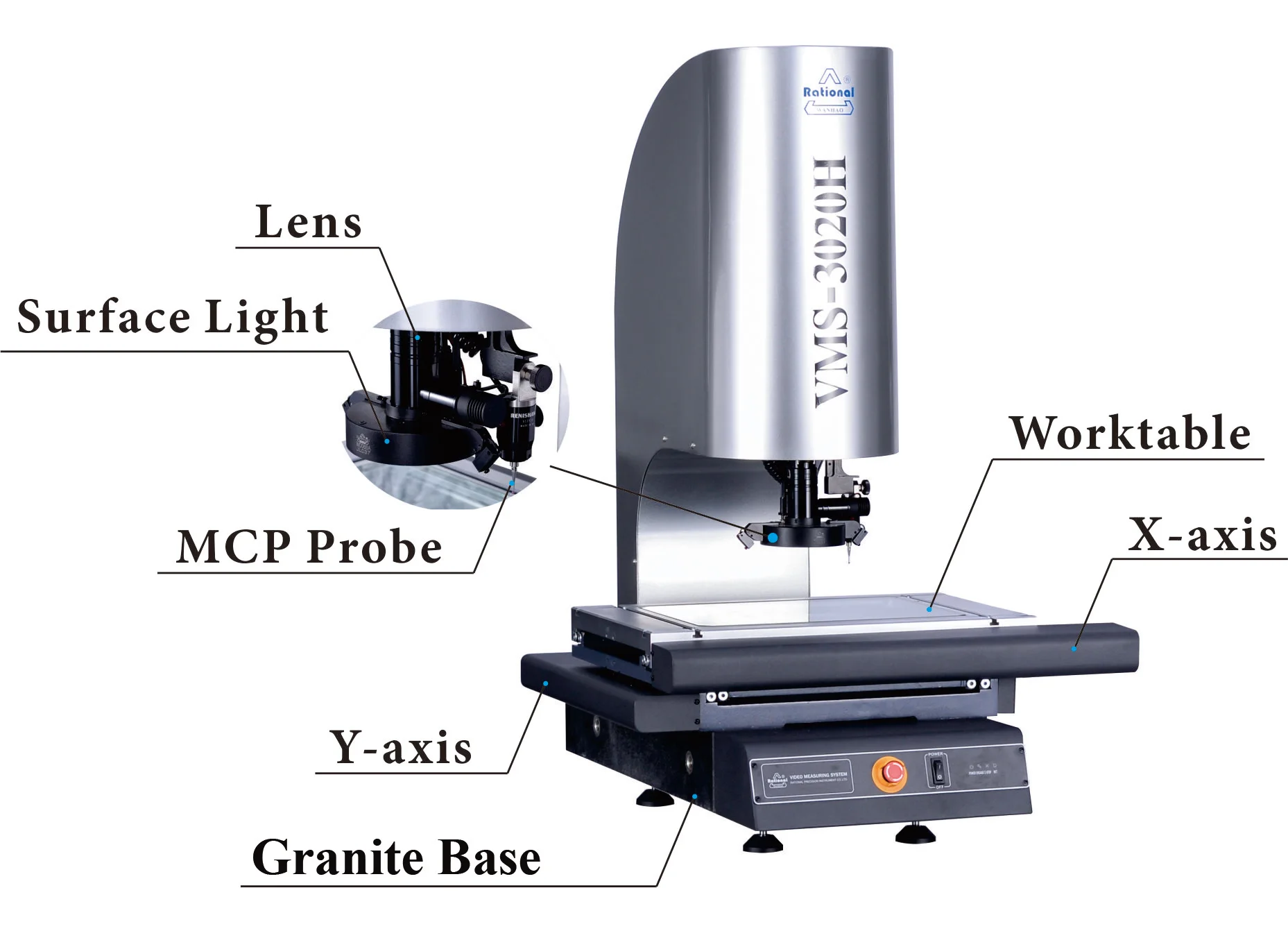

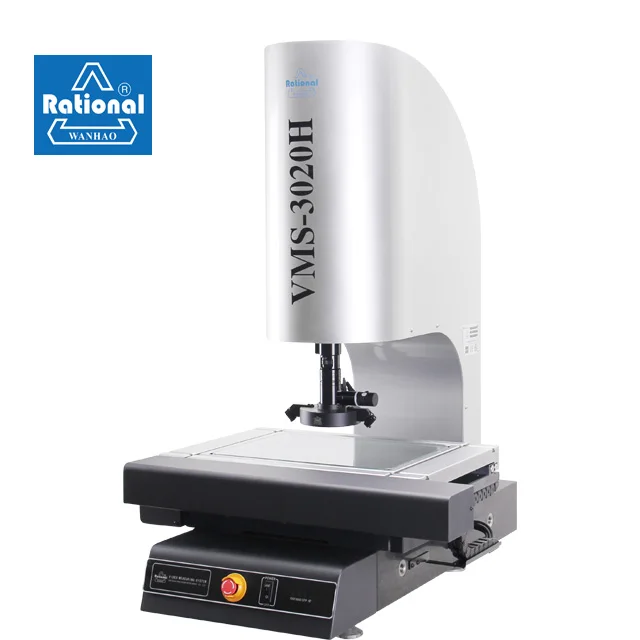

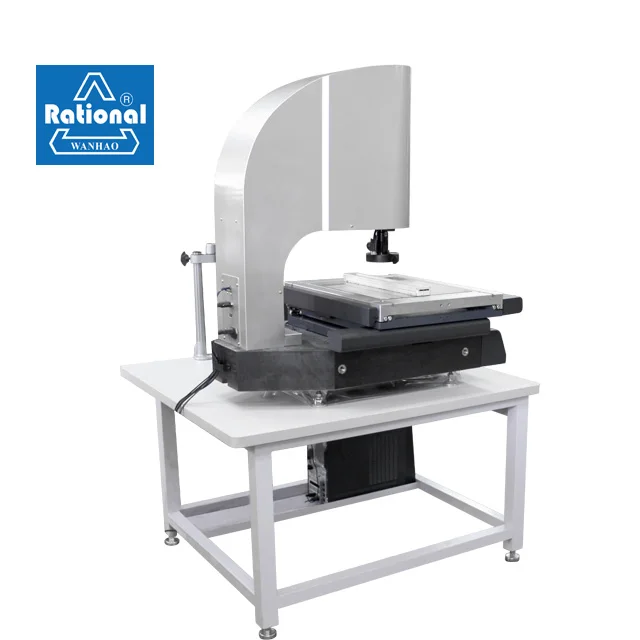

Product Overview
Description
Product Paramenters
Model | VMS-2515H | VMS-3020H | VMS-4030H | |||
Metal table size (mm) | 450×280 | 500×330 | 606×466 | |||
Glass table size (mm) | 306×196 | 350×250 | 450×350 | |||
Travel (mm) | 220×120 | 270×170 | 370×270 | |||
Axis X ,Y,Z Resolution | 0.5μm | |||||
Accuracy μm | E1XY=(2.5+L/100) | |||||
Dimension (mm) | 760×600×900 | 760×600×900 | 970×670×940 | |||
Weight (kg) | 146 | 168 | 266 | |||
Z-axis travel (mm) | 150 (Can be customized to 300mm) | |||||
Video system | Camera :1/2” color CCD Camera Zoom lens magnification :0.7X ~4.5X | |||||
Total Magnification: 20~128X | ||||||
Object view: 11.1mm ~ 1.7mm | ||||||
Power supply: AC 100-240V 50/60Hz. Power: 250W (excluding PC) | ||||||

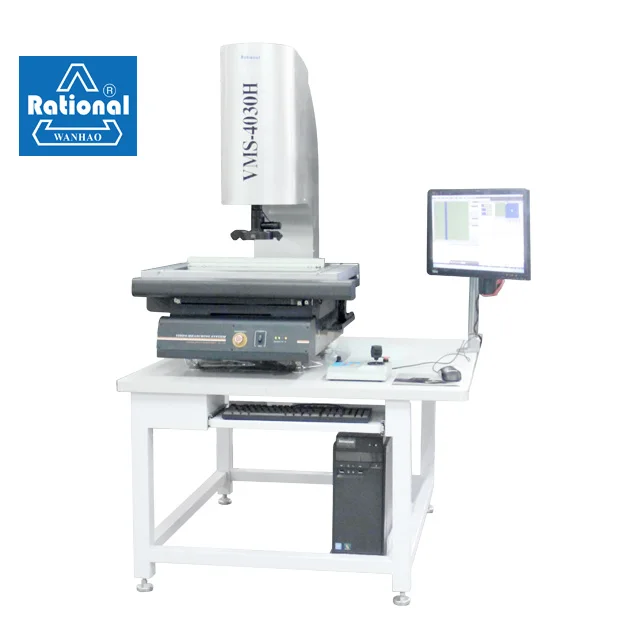

Rational VMS-4030H CNC Video Measuring systems for Optional Lens

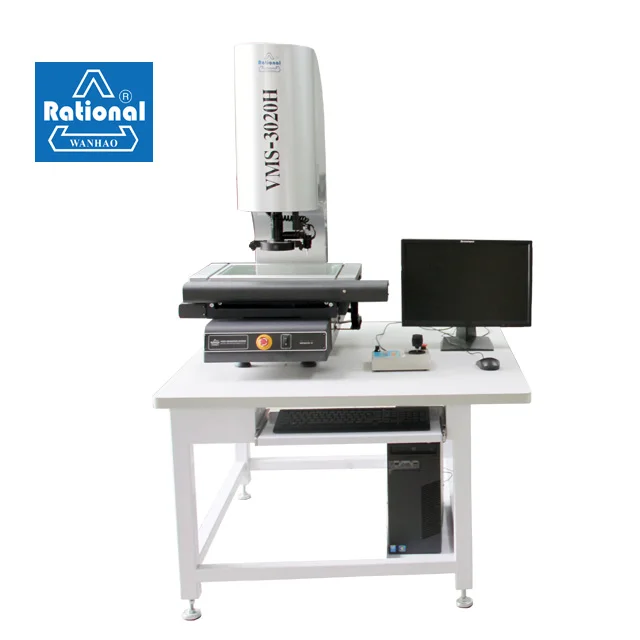

Optional | 1X lens tube (Standard) | 0.7X~4.5X | Working distance (mm) | |||||||
Zoom Lens | 0.7X~4.5X | 0.7-4.5X | ||||||||
Additional lens | Magnification | Field of view (mm) | Magnification | Field of view (mm) | ||||||
0.5X (Optional) | 10-64X | 22-3.4 | 5-32X | 44-6.8 | 175 | |||||
1X (Standard) | 20-128X | 11.1-1.7 | 10-64X | 22-3.4 | 92 | |||||
2X (Optional) | 40-256X | 5.5-0.9 | 20-128X | 11.1-1.7 | 36 | |||||
Brand computer (standard configuration) Joystick (standard configuration) | ||||||||||
Products Description
Features:
1. The powerful proprietary measuring software to meet various and specific requirements of customers.
2. Auto focusing, auto edge finding, powerful programming, and auto measuring.
3. Adopts subpixel subdivision technique to improve resolving power of boundary.
4. Installed with joystick, which is also able to be programmed by software.
5. SPC data processing system and large quantities of jig measurement.
6. X, Y, Z axes all adopt servo control system - Quick positioning with high precision, and stable operation.
7. Adopts self-developed sophisticated embedded module control system installed within the instrument, which ensures a more stable operation.

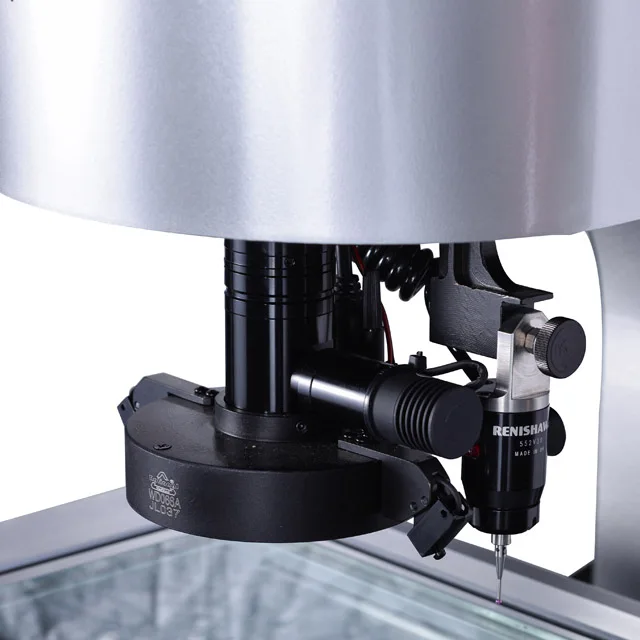

8. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for
sophisticatedworkpieces.
9. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
1. The powerful proprietary measuring software to meet various and specific requirements of customers.
2. Auto focusing, auto edge finding, powerful programming, and auto measuring.
3. Adopts subpixel subdivision technique to improve resolving power of boundary.
4. Installed with joystick, which is also able to be programmed by software.
5. SPC data processing system and large quantities of jig measurement.
6. X, Y, Z axes all adopt servo control system - Quick positioning with high precision, and stable operation.
7. Adopts self-developed sophisticated embedded module control system installed within the instrument, which ensures a more stable operation.
8. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for
sophisticatedworkpieces.
9. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
Application
Designed and manufactured by Rational Precision Instrument, a company with more than 20 years of history in precision measuring systems, H series Video measuring machines are superior CNC systems and are widely used in the field of machinery, electronics, instruments, plastic products, etc. The series of machines have been effectively modified with the practical application experiences and valuable feedbacks from clients since the initial model was launched 13 years ago, and won the admirations from customers worldwide. You cannot afford to miss this if you are looking for a reliable, efficient and cost-effective measuring system.
Company Profile
Product packaging
Certifications
FAQ
Q: Are you a trading company or a factory?
A: We are a China-based factory set up by technical guys from Taiwan in 1990s, and have now grown to be a dominating supplier for Video Measuring System, Profile Projector, Linear Scale&DRO in China, Korea and Vietnam and a main supplier in many other countries in Asia.
Q: How to choose the most suitable products?
A: Our professional team provides you the best suggestion after you advise us your specifications and technical requirements.
Q: How long is the lead time?
A:Generally speaking, we have in stock for hot selling items. Others, such as customized items, need to make upon the receipt of your order. Lead time varies according to the manufacturing conditions.
Q: Do you accept customization service?
A: Yes, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to advise us your requirements, we will do our best to meet your needs.
Q: Can we visit your factory before placing the order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will assist to reserve the hotel and pick up.
Q: How about your warranty?
A: Generally, we provide one year limited warranty.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirmation - Payment - Production - Testing and debugging -Packing - Dispatch.
Q: How to install and operate?
A: Our product is easy to install and operate. English manual is available, and technical assistance is available upon request. Besides, we have video instruction for your reference.
A: We are a China-based factory set up by technical guys from Taiwan in 1990s, and have now grown to be a dominating supplier for Video Measuring System, Profile Projector, Linear Scale&DRO in China, Korea and Vietnam and a main supplier in many other countries in Asia.
Q: How to choose the most suitable products?
A: Our professional team provides you the best suggestion after you advise us your specifications and technical requirements.
Q: How long is the lead time?
A:Generally speaking, we have in stock for hot selling items. Others, such as customized items, need to make upon the receipt of your order. Lead time varies according to the manufacturing conditions.
Q: Do you accept customization service?
A: Yes, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to advise us your requirements, we will do our best to meet your needs.
Q: Can we visit your factory before placing the order?
A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will assist to reserve the hotel and pick up.
Q: How about your warranty?
A: Generally, we provide one year limited warranty.
Q: What is the order process?
A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirmation - Payment - Production - Testing and debugging -Packing - Dispatch.
Q: How to install and operate?
A: Our product is easy to install and operate. English manual is available, and technical assistance is available upon request. Besides, we have video instruction for your reference.
After-sale service
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software, etc.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software, etc.
