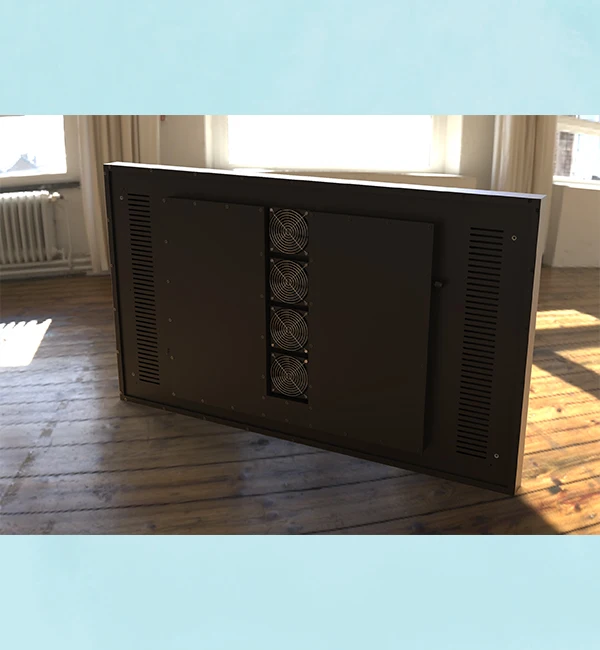

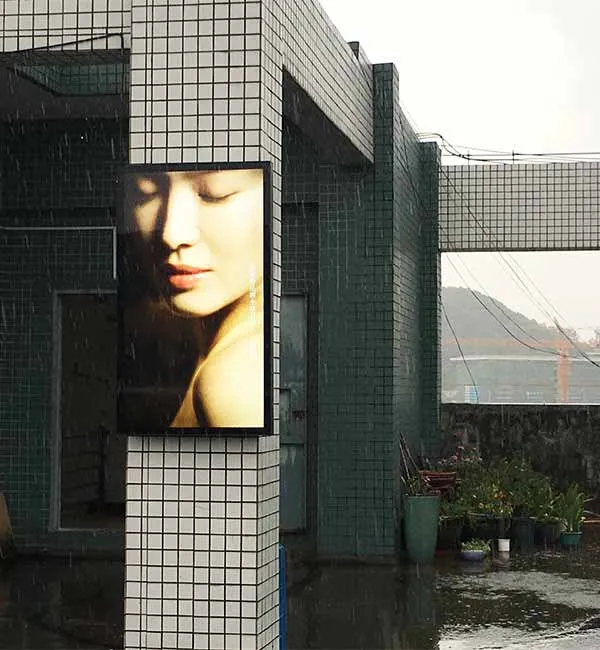

49 inch Custom Advertising Lcd Kiosk Outdoor tv Sunlight Readable High Brightness 3000nits TFT Color Monitor Lcd Displays
- Category: >>>
- Supplier: Shenzhen Fengshi Technology Co. Ltd.
Share on (1600250464806):
Product Overview
Description
49 inch lcd digital signage display advertising screen | ||||||
MODEL | OD490H30 | |||||
Panel | Diagonal Size | Class | 49 | |||
Measured | 48.5″ / 123.2cm | |||||
Resolution | 1920×1080 (16:9) | |||||
Pixel Pitch(mm) | 0.559 x 0.559 | |||||
Active Display Area(mm) | 1073.78(H) x 604.00(V) | |||||
Brightness(Typ.) | 3,000 cd/m2 | |||||
Contrast Ratio | 1,300:1 | |||||
Viewing Angle(H/V) | 178/178 | |||||
Display Colors | 8 bit – 16.7M | |||||
Color Gamut | 72% | |||||
Operation Hour | 7*24 | |||||
Haze | 2% | |||||
Display | Dynamic C/R | 100,000:1 | ||||
Sound | Speaker Type | N/A | ||||
Power | Power Supply | AC 100 – 240 V~ (+/- 10 %), | ||||
50/60 Hz | ||||||
Max[W/h] | 248 | |||||
Mechanical Spec | Dimension (mm) | Set | 1144.0 x 674.0 x 91.5 mm | |||
Package | 1245 x 925 x 240 mm | |||||
Weight (kg)Set | Set | 40.5 kg | ||||
Package | 70.0 kg | |||||
Mounting Hole | 1048 x 490 (Basic) | |||||
1000 x 400 (VESA Brack-et Option) | ||||||
Protection Glass | 5mm | |||||
Bezel Width (mm) | 33.8 / 33.8 / 33.8 / 33.8 mm | |||||
Operation | Operating Temperature | -30℃~ 50℃ | ||||
Humidity | 10~100% (Non-condensing) | |||||
IP Certificate | IP56 | |||||
Internal Player (Embedded H/W) | Processor Coretex | Rockchip RK3288 Coretex A17 1.8GHz | ||||
Memory Interface | HYNIX DDR3 2GB | |||||
Storage | 8GB | |||||
Operating System | Android 5.1 | |||||
Multimedia Video Decoder | MPEG-1/2/4, H.264, WMV,WKV,TS,FLV | |||||
JPEG, PNG, BMP, PNG,GIF | ||||||
MP3 | ||||||

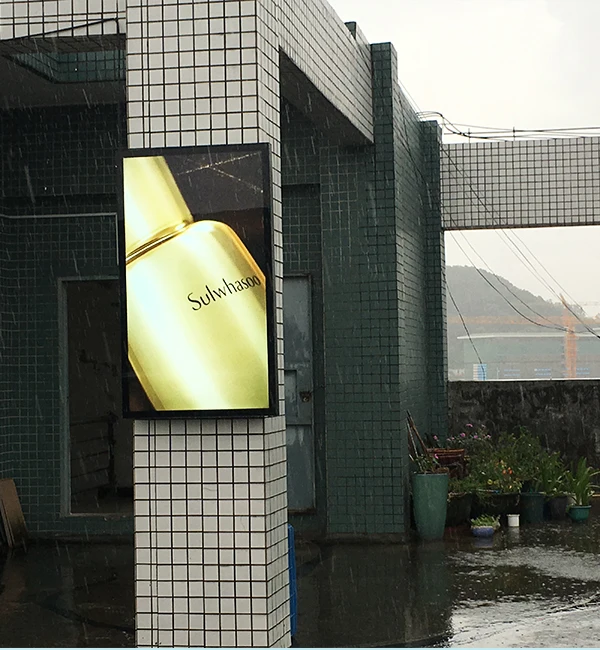

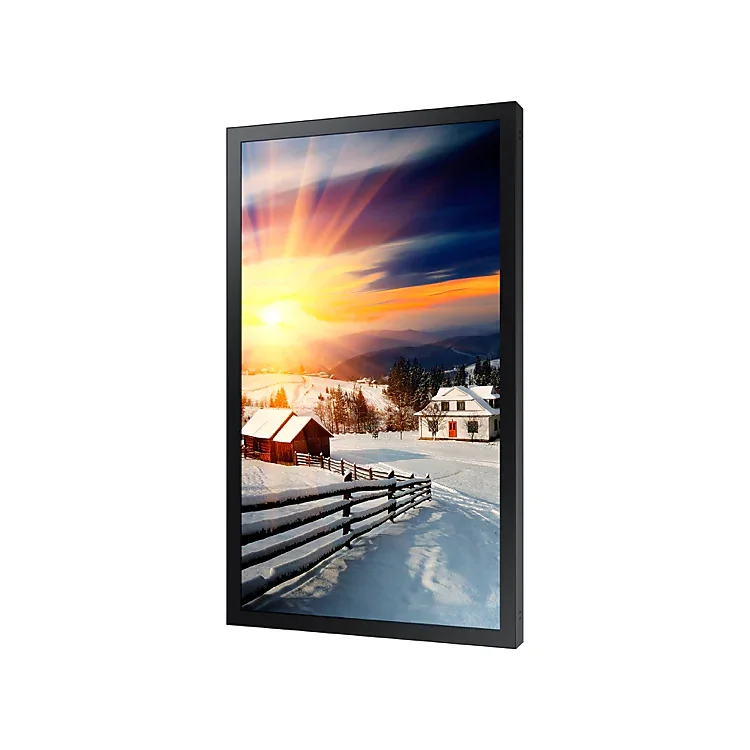

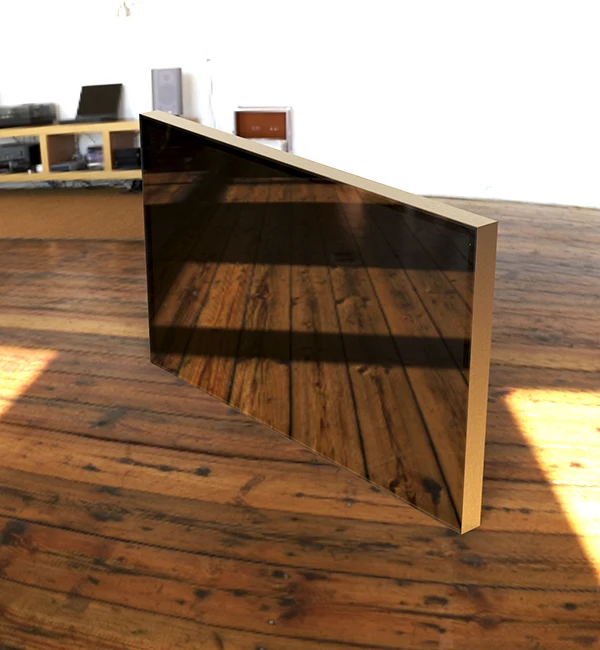

FENGSHI 49 inch custom advertising lcd kiosk outdoor tv sunlight readable high brightness 3000nits TFT color monitor lcd displays

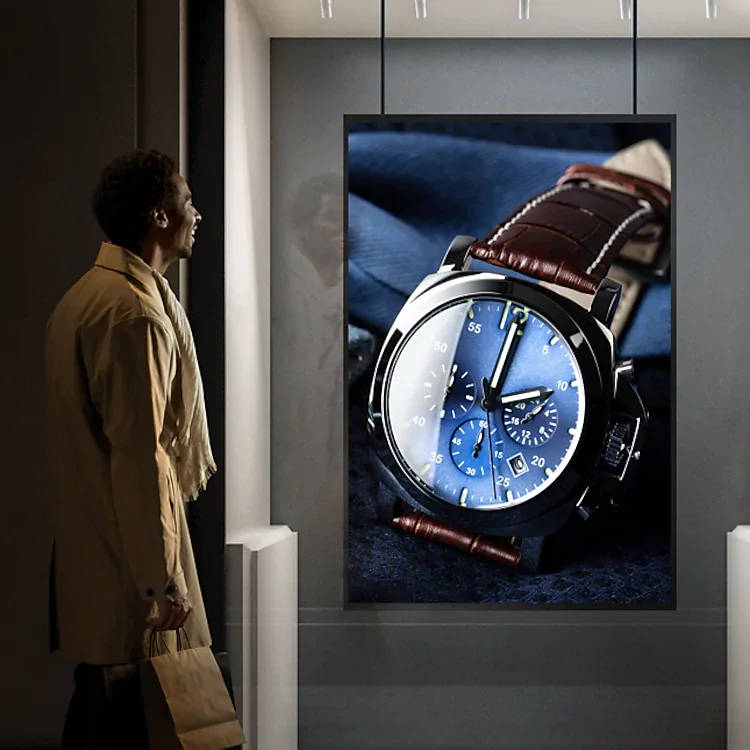

FSHD860-D 86 inch window facing dispaly adopts LG RGBW industrial grade OC and with Fengshi’s own design led backlight module which increased brightness of 3,000nit(typical), its Slim & Robust Design easliy installed in store windows, Fengshi’s HD series of advertising display lcd captivates customers with its vivid image quality and quiet operation. The 86 inch advertising digital machine helps business enhance their brand image while enriching the customers’ shipping experience.This 86 inch lcd advertising television customized brightness: 1,500nit 2,000nit 2,500nit 3,000nit
Product Description

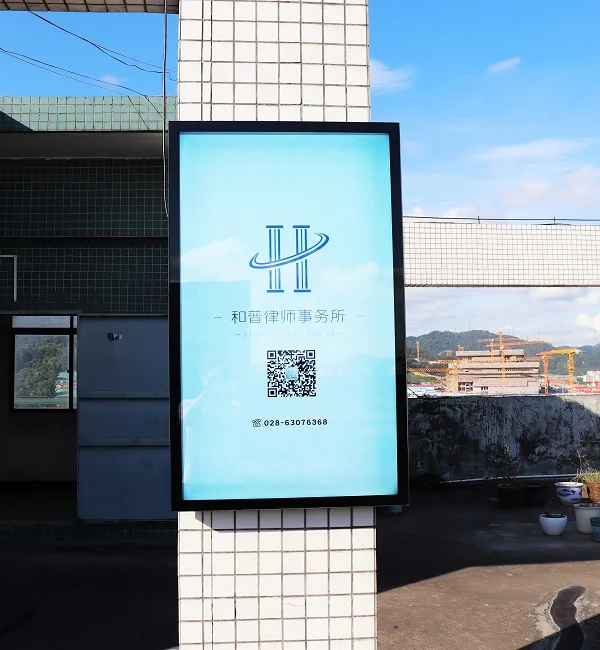

Applications
Hot sale
If you want to know more new products, please contact us >>
Company Profile
It is a high-tech enterpris specializing in the research and development of high brightness LCD modules.Has more than 10 years of experience in the design of LED high-brightness LCD modules and application experience of outdoor LCD displays.
With our own 10,000-class dust-free workshop(equipped with shower and cargo shower room),professional optical transmittant tester,color brightness meter Top-con BM-7,electrical safety integration tester,vibration test bench and so on.
Now we have 15”-98”LCD panel with brightness of 500-5000nits.We offering OEM/ODM service according to the size and brightness of customers’ needs.Special launch 4K high brightness LCD panel,ultra high brightness LCD panel.
Fengshi technology independently designed the full metal structure of the high brightness LCM with good thermal
conductivity,straight edge structure and better brightness uniformity. Combined with a new generation of high brightness and energy-saving backlight modules.Our products have been exported to more than 60 countries and regions in the world.
With our own 10,000-class dust-free workshop(equipped with shower and cargo shower room),professional optical transmittant tester,color brightness meter Top-con BM-7,electrical safety integration tester,vibration test bench and so on.
Now we have 15”-98”LCD panel with brightness of 500-5000nits.We offering OEM/ODM service according to the size and brightness of customers’ needs.Special launch 4K high brightness LCD panel,ultra high brightness LCD panel.
Fengshi technology independently designed the full metal structure of the high brightness LCM with good thermal
conductivity,straight edge structure and better brightness uniformity. Combined with a new generation of high brightness and energy-saving backlight modules.Our products have been exported to more than 60 countries and regions in the world.
Quality Control
Certifications
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty of 86 inch Window Display LCD Advertising Equipment for commercial display?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements. In order to support different
customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of screen do you use?
A: Original LG/SAMSUNG/AUO etc. screen, we can guarantee each display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity & the RLSM028BD report, ISO certification, FCC certification, UL certification.
6. Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 110℃.
7. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8. Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty of 86 inch Window Display LCD Advertising Equipment for commercial display?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements. In order to support different
customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI, USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+temperature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of screen do you use?
A: Original LG/SAMSUNG/AUO etc. screen, we can guarantee each display will pass through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity & the RLSM028BD report, ISO certification, FCC certification, UL certification.
6. Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 110℃.
7. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8. Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
