CE Approved Power Star LW Dc To Ac Inverter With Charger For Home
US $100.00-$350.00

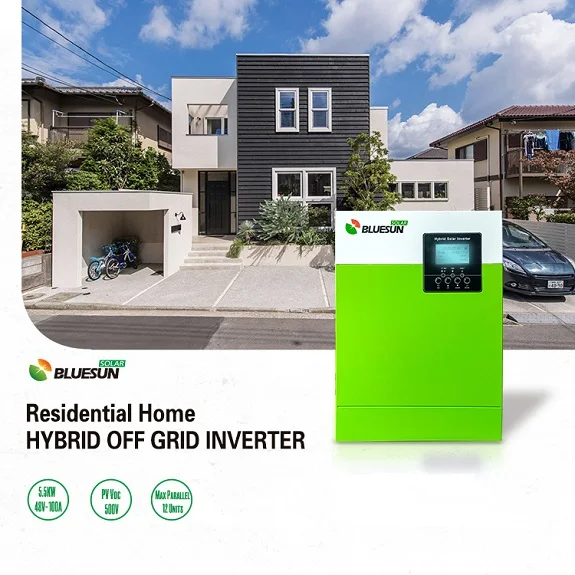

2023 Top Sale Bluesun 5.5KW inverters Parallel 5KW Hybrid Connection 48V Inverter mppt solar hybrid inverter
- Category: Solar Energy Products >>>
- Supplier: Bluesun,Solar,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
MAXIMUM 12PCS for Parallel Connection
Support Single phase and Three phase.
Contact Simone Zhang, Email: [email protected]. Whatsapp: +86 1994627 2459
MODEL | BSM-3500LV-24 | BSM-5500LV-48 | ||
Rated Power | 3500VA/3500W | 5500VA/5500W | ||
INPUT | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt.Mode) | 230VAC±5% | |||
Surge power | 7000VA | 11000VA | ||
Efficiency(Peak) PV to INV | 97% | |||
Efficiency(Peak) BAT to INV | 94% | |||
Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |||
Wave form | Pure Sine Wave | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 24VDC | 48VDC | ||
Floating Charge Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 33VDC | 63VDC | ||
Maximum charge current | 80A | 80A | ||
SOLAR CHARGER | ||||
MAX.PV Array Power | 5000W | 6000W | ||
MPPT Range@ Operating Voltage | 120-450VDC | |||
Maximum PV Array Open Circuit Voltage | 500VDC | |||
Maximum Charging Current | 100A | |||
Maximum Efficiency | 98% | |||
PHYSICAL | ||||
Dimension.D*W*H(mm) | 440*300*100 | |||
Net Weight (kgs) | 11kg | 12kg | ||
Communication Interface | USB/RS232(Standard) GPRS/WIFI(Optional) | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature Storage | 0°C to 55°C | |||
Temperature | -15°C to 60°C | |||

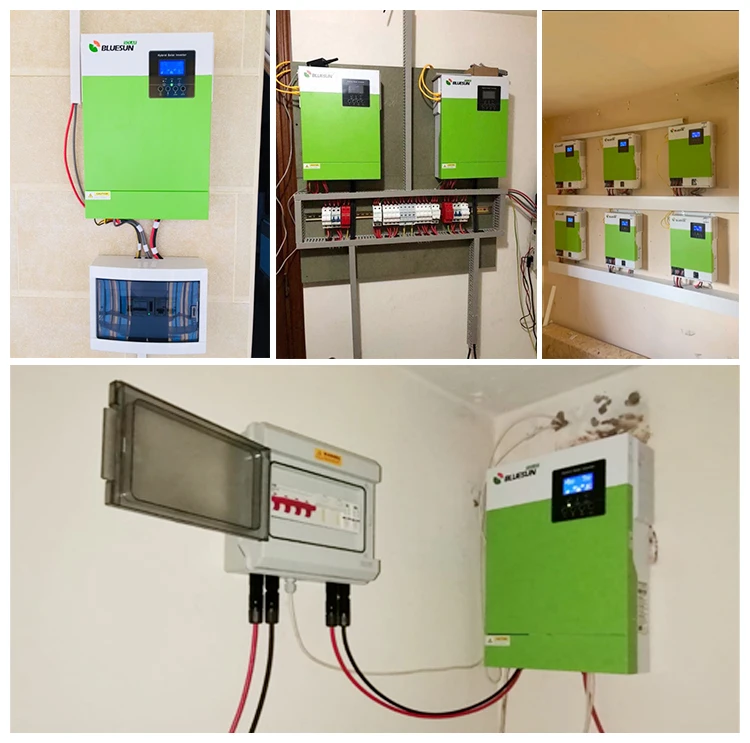

Project
Packing & Delivery
BSM-3000USLV-48：40pcs/pallet,
BSM-3500LV-24 : 40pcs/pallet,
BSM-5500LV-48： 40pcs/pallet.
BSM-5500LV-48： 40pcs/pallet.
