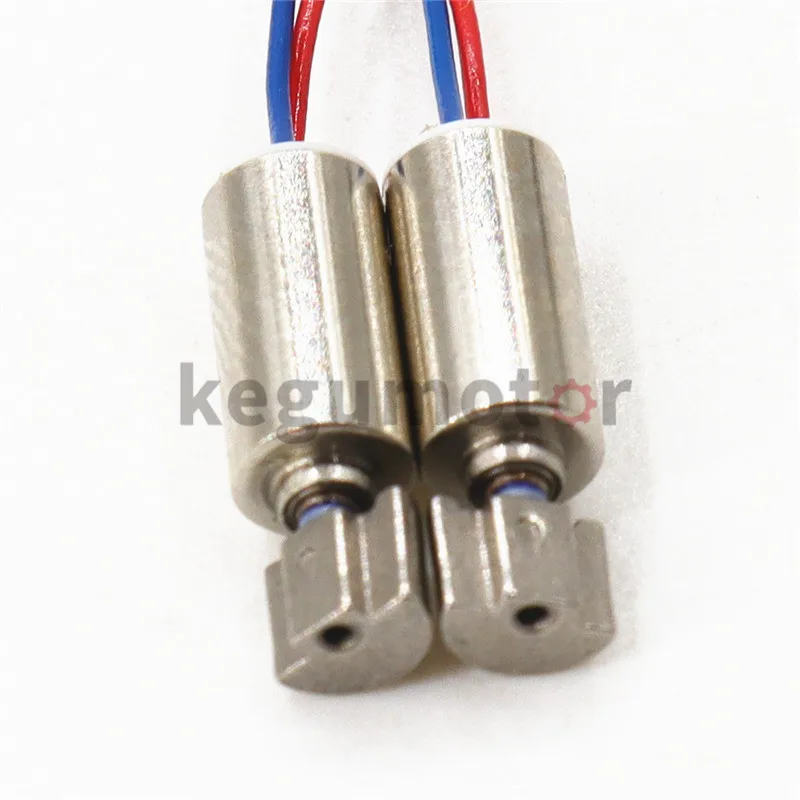

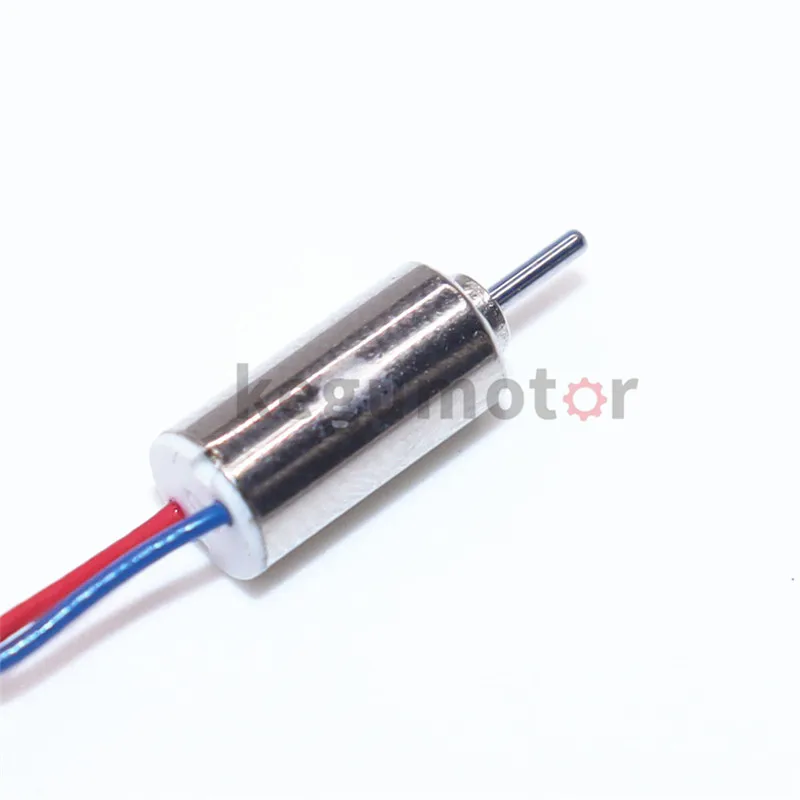

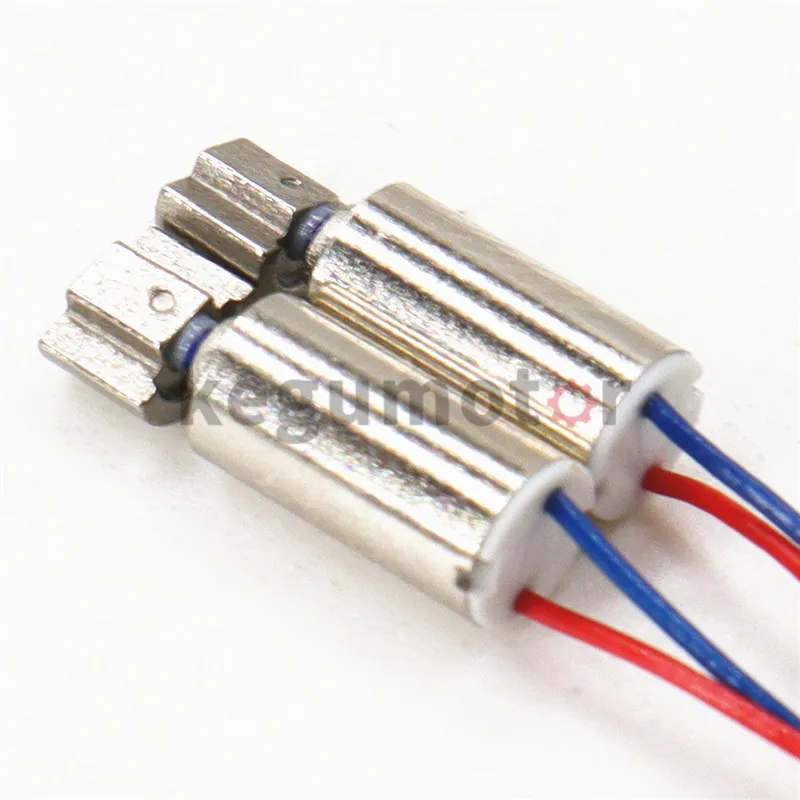

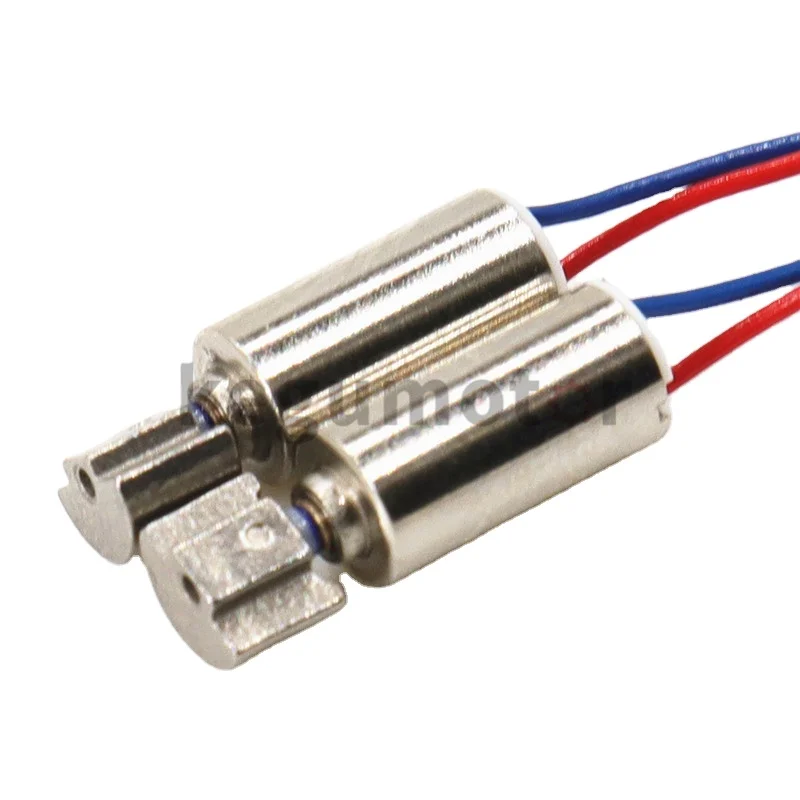

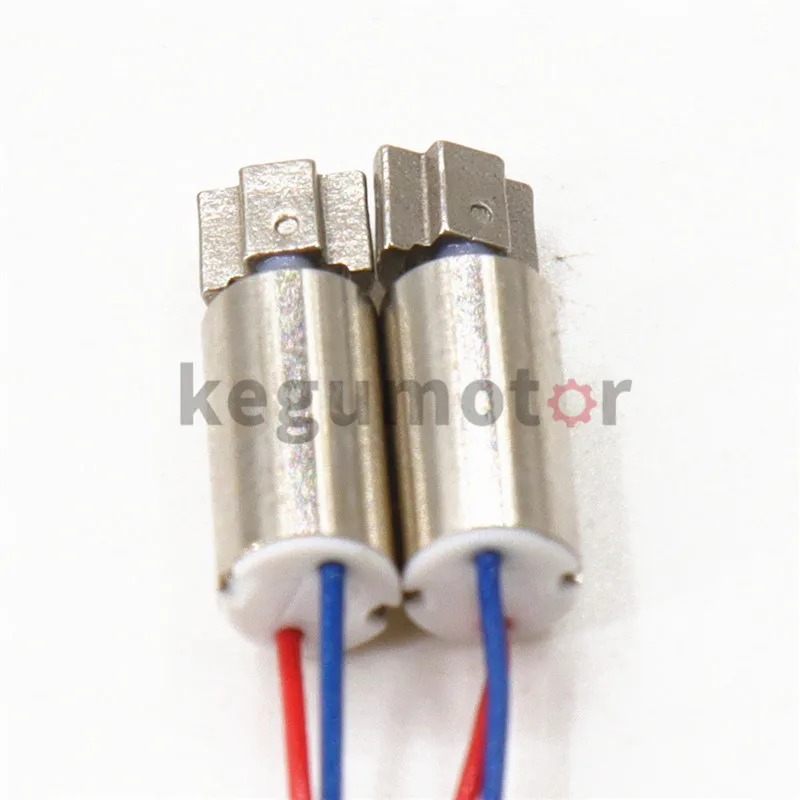

4MM diameter 0408 0410 0412 DC Coreless micro motor 3V 9000rpm for Helicopter and Timer
- Category: >>>
- Supplier: Shen Zhen Ke Gu Technology Co. Ltd
Share on (1600250517356):
Product Overview
Description
Product Description
4mm 2v mini brush 0408 0410 0412 coreless dc motor 0.5W for home appliance
0408 0410 0412 4mm coreless dc 2v electric motor for water pump and small electric drill
Volt | 2v |
No Load Speed | 20000rpm |
Rated Speed | 18000rpm |
Rated Torque | 1g.cm |
Application | Robot , door lock , toy, cabinet lock, home appliance,vacuum cleaner |
SPECIFICATION:
1. Voltage: DC 2V
2. No load speed: 20000±10%rpm
3. No load current: 0.01A
4. Diameter 4mm, length 8mm, shaft dia 1mm
5. Material: plastic gear and metal DC motor
6. Weight: 200g Approx
7. Application:Robot, Bike lock, Home Appliance, Door Lock etc
8. Customized,Adjust the performance at free(voltage, speed, torque)
Kegu Motor Provide intelligent lock solution
Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque
* Low Noise
* Longer life time up to 200,000 times unlock
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque
* Low Noise
* Longer life time up to 200,000 times unlock
Working life | 5 Hours | Voltage | DC 2V | |
No-load Current | 0.01A | No-load Speed | 20000 rpm | |
Load Current | 0.02A | Load Speed | 18068 rpm | |
Power | 0.01 w | Load Torque | 1 g.cm | |
Stall Current | 0.09A | sall Torque | 5g.cm | |
Warranty | 1 year | MOQ | 1000 pcs | |
Model Number | 0408 4mm coreless motor | Price | USD 0.38-0.9 | |
Application | mobile phone | Port | Shenzhen |

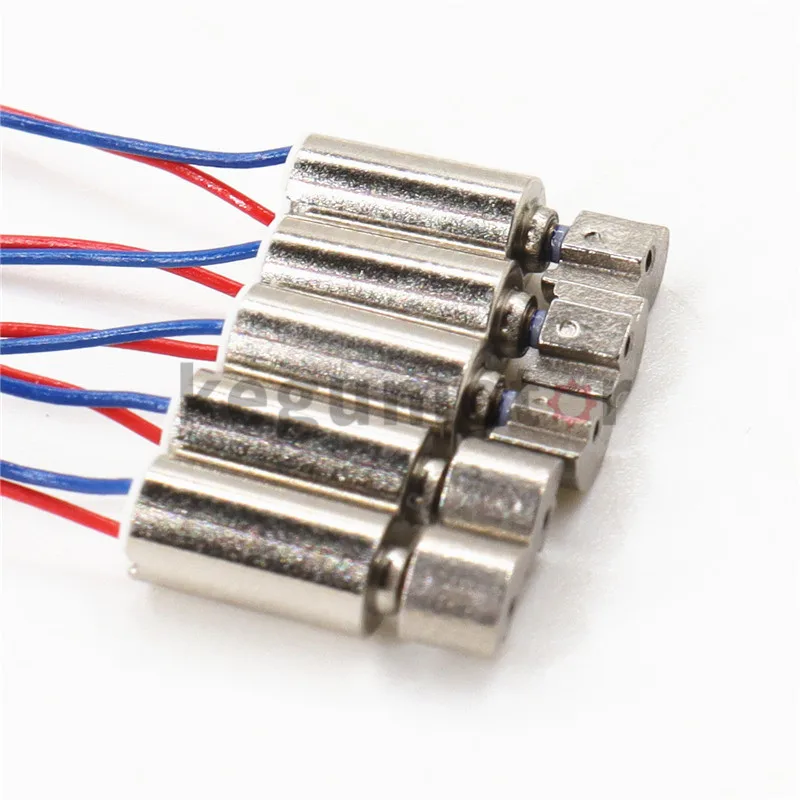

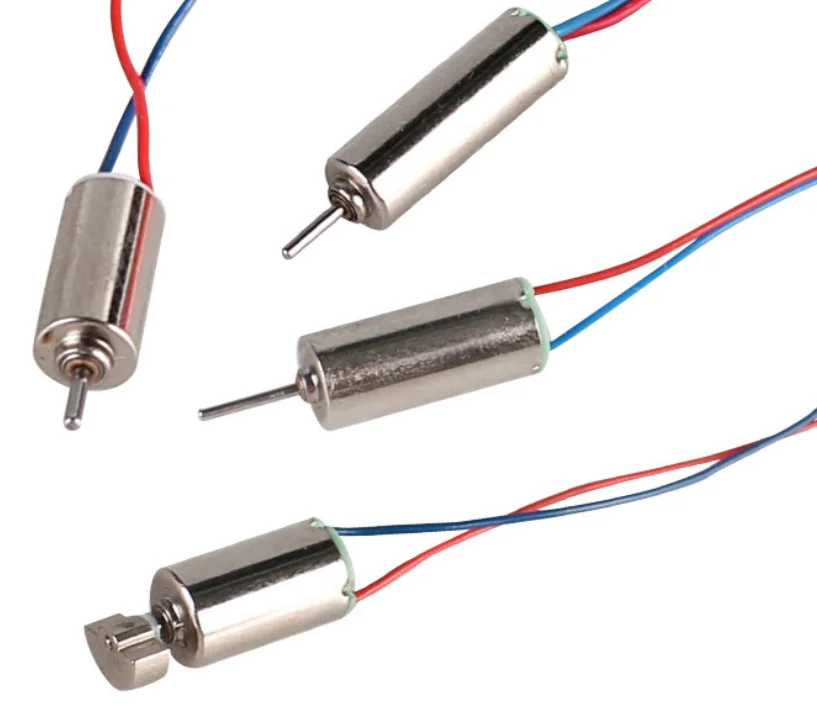

Detailed Images
Size Information

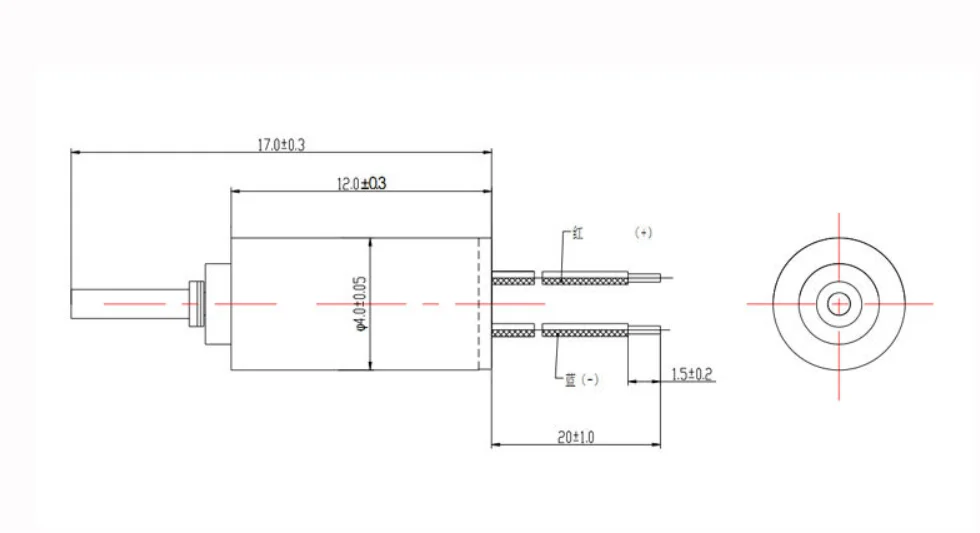

Drawing of 4mm coreless dc motor
0412 4mm coreless Motor description 4MM micro coreless dc motor Brand Kegumotor
Item 4mm coreless motor Location Shenzhen Model 0412 Load current 27mA Load power 0.01w Load volt 1.5V Size Φ 4mm*12mm Load speed 9800RPM
Load Torque 0.4G.cm Certificate ROHS/ISO9001 Application Blood pressure meter
Volt range 1.5-4.2V
0412 4mm coreless motor outline
Item 4mm coreless motor Location Shenzhen Model 0412 Load current 27mA Load power 0.01w Load volt 1.5V Size Φ 4mm*12mm Load speed 9800RPM
Load Torque 0.4G.cm Certificate ROHS/ISO9001 Application Blood pressure meter
Volt range 1.5-4.2V
0412 4mm coreless motor outline
Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm
Packing&Shipping
After Sales Service
The reliability and stability of the product is an important index to evaluate the technical level of the product.In order to accurately analyze, evaluate and verify the performance of the product.
So Kegu motor will reply customer in 2 days after receive
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.
Company Introduction
Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system. We also provide the drive solutions for customers from design, components manufacturing and assembly.The company strictly implements the IS9001:2015 management system.
Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.
Our Services & Strength
R&D team is committed to designing and developing micro drive systems for many years and providing drive system solutions for customers.
Provide customized, design, development, production and assembly services of micro gear transmission system.
Certifications
FAQ
Q:1.What kind of motors you can provide?
Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
A:Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
