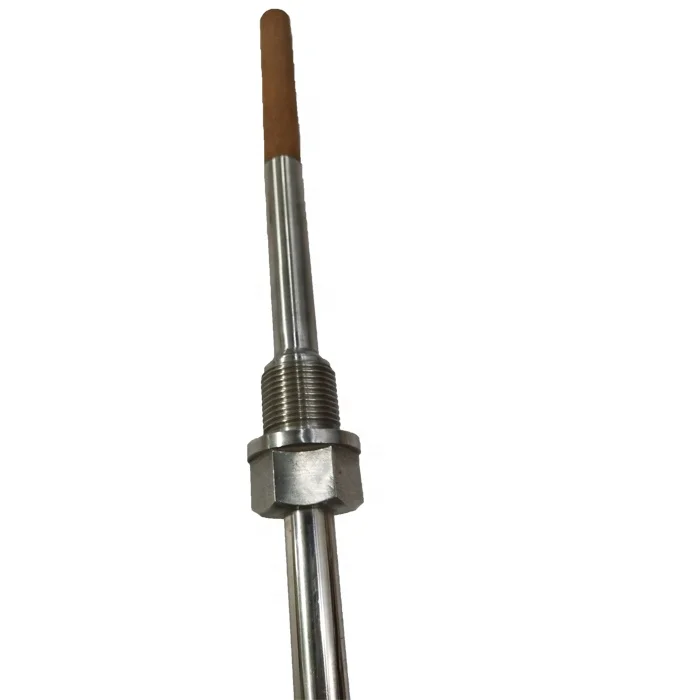

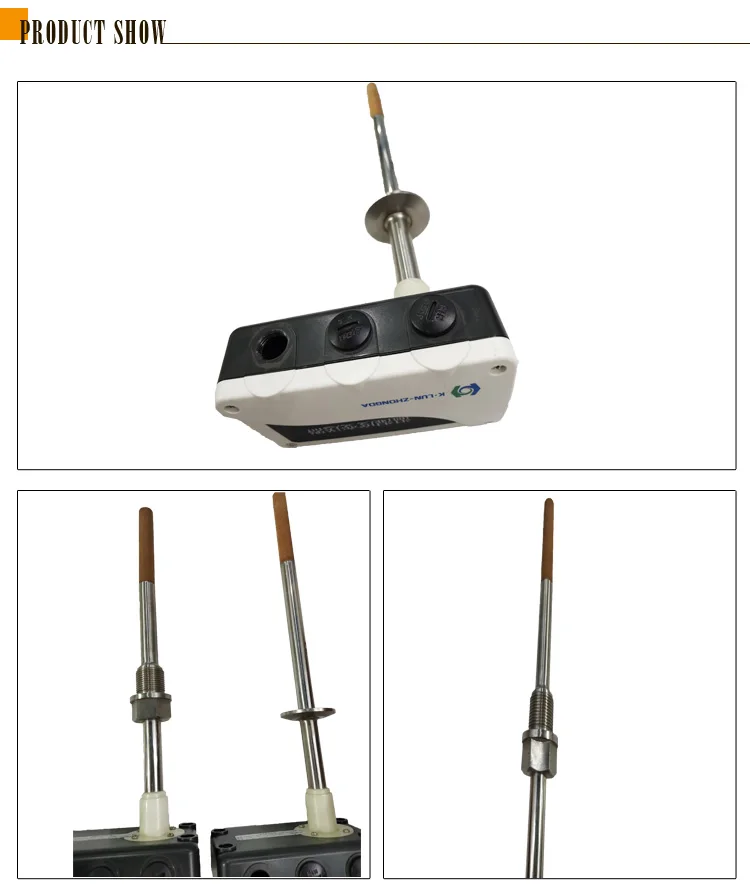

Pipe thread shell portable wholesale integrated temperature and humidity sensor with high sensitivity

Product Overview

Description

Pipe thread shell portable wholesale integrated temperature and humidity sensor with high sensitivity



Power	Forcurrentoutput(4-20mA)	DC24V(15V-36VDC)
Range	Temperature	-40- 120℃ customizable
	Humidity	Temperature0-100%RH
Precision	Temperature	Temperature±0.5℃(0-50℃)
	Humidity	±2%RH,±3%RH(20%-95%RH,25℃)
Work Condition	Temperature	-20-85℃
	Humidity	10-95%RH
Load Capacity	Forcurrentoutput	≤600Ω
	IEPE	≥10Ω
Response Time	≤2s(Wind Speed 1m/s)
Long-term Stability	Temperature	≤0.1℃/Year
	Humidity	≤1%RH/Year

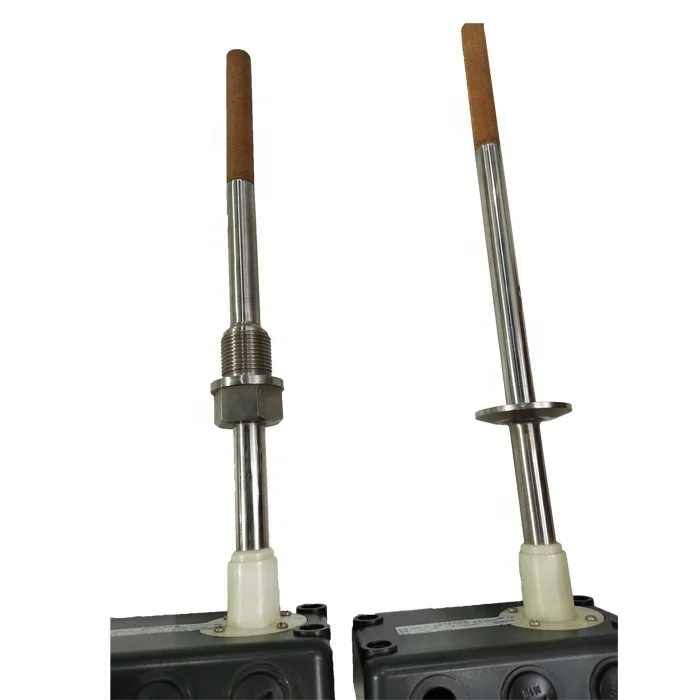

Installation	Pipe	M27*2 Thread Tightening
Size	ABS White 100mm*68mm*50mm
Deep	200mm(Standard)Customizable



1.  The stainless steel structure is beautiful in apprearance abd easy to install;

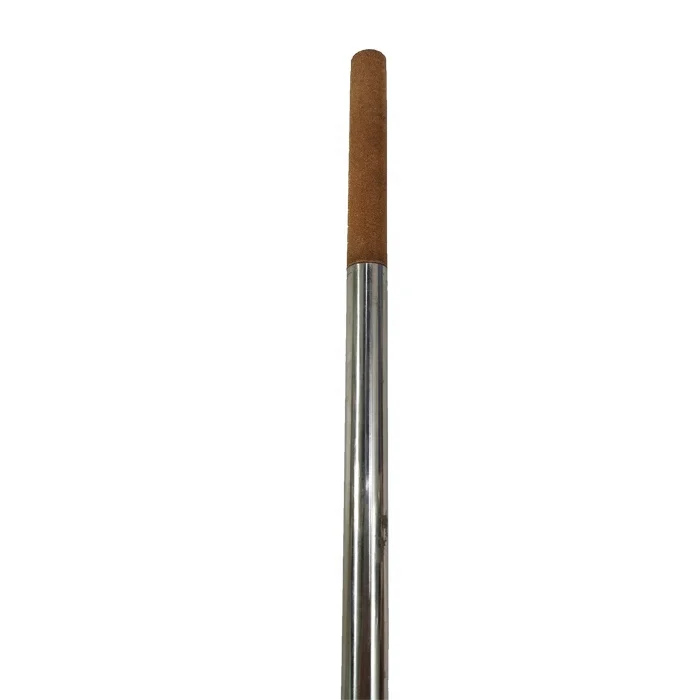

2. The powder metallurgy probe has accrute measurement and stable output;

3. Humidity full range temperature compensation;

4. Wide range operating voltage;

5. MCU can only handle, high anti- interference design.

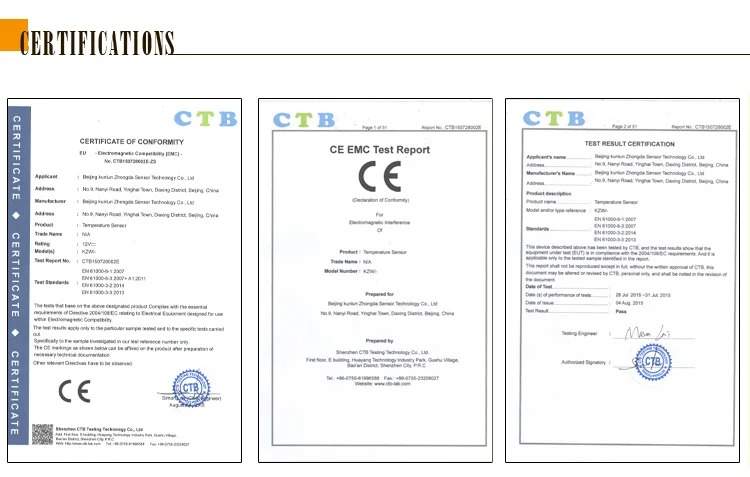

  The moisture sensor detection system of the injection molding machine was successfully applied in the injection molding workshop of Chery Automobile. Organic fertilizer moisture sensor for organic fertilizer production and manufacturing. Professional solution for pipe corridor monitoring. Wireless sensor. Industrial intelligent solution (Internet of Things data acquisition platform). There are mainly agricultural greenhouses IoT data collection platform, factory manufacturing IoT data collection platform. global cooperation: High rate of Chinese entrepreneurs visit the Korean Academy of Sciences A delegation from the Korean Academy of Sciences Mr. Park Guangnan and his party visited Kunlun University Signed "Strategic Cooperation Agreement" and "Business Contract" with the Korean Academy of Sciences Qualification honor: IoT temperature sensor and pressure sensor standard setter National High-Tech Enterprise Zhongguancun High-tech Enterprise Member Unit of Zhongguancun Internet of Things Alliance Member Unit of China Heating Association Passed the international ISO9001 quality assurance system certification
