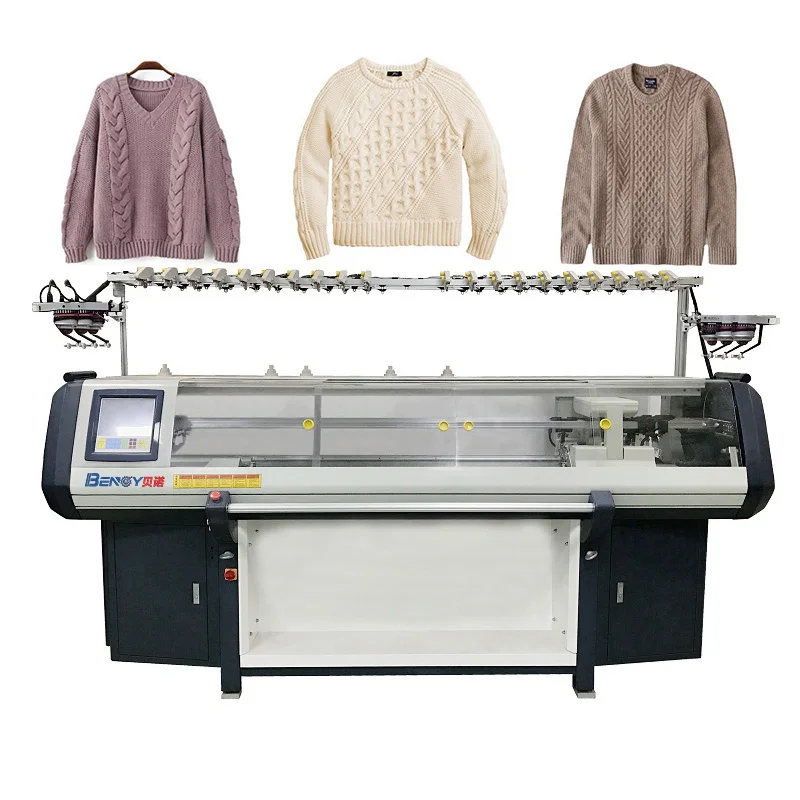

Professional 1.6m/s Speed Fully Automatic rib Knitting Machines With Yarn Storage device
- Category: >>>
- Supplier: Dongguan Benoy Intelligent Technology Co. Ltd.
Share on (1600250618554):
Product Overview
Description
Products Description

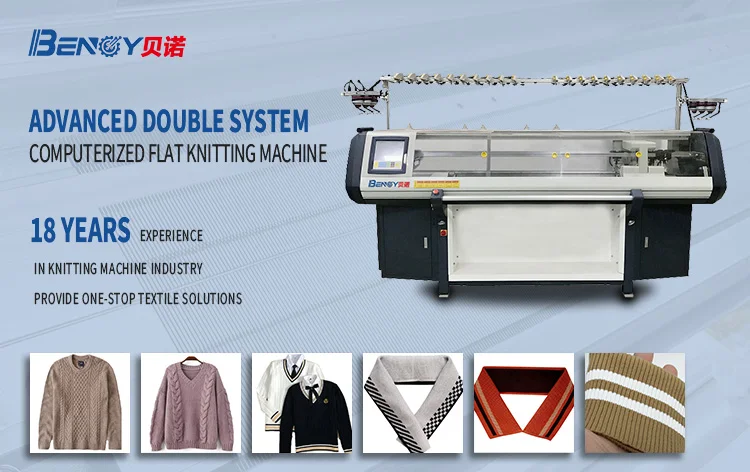

Single Carriage with double system, this computerized flat knitting machine are used digital technology to achieve the patterns of knit, transfer, tuck, pointel, intarsia, jacquard ,apparent shape, hidden shape, and other regular or irregular patterns knitting functions, can knit basic single or double jersey plain fabric, irregular multi-color jacquard, intarsia, cable and pointel structure patterns , which suitable to knit by yarns of pure silk, mixed silk, synthetic, wool,acrylic, mixed fiber material etc.
Knitted for shaping fabric and accessories of sweater, collar, cardigan, rib, cuff, scarf, pocket, socks, shoe upper, pullover, beanie, jogger, jersey, Blanket, Carpet etc.
Knitting Bed
2*3pcs Yarn Storage

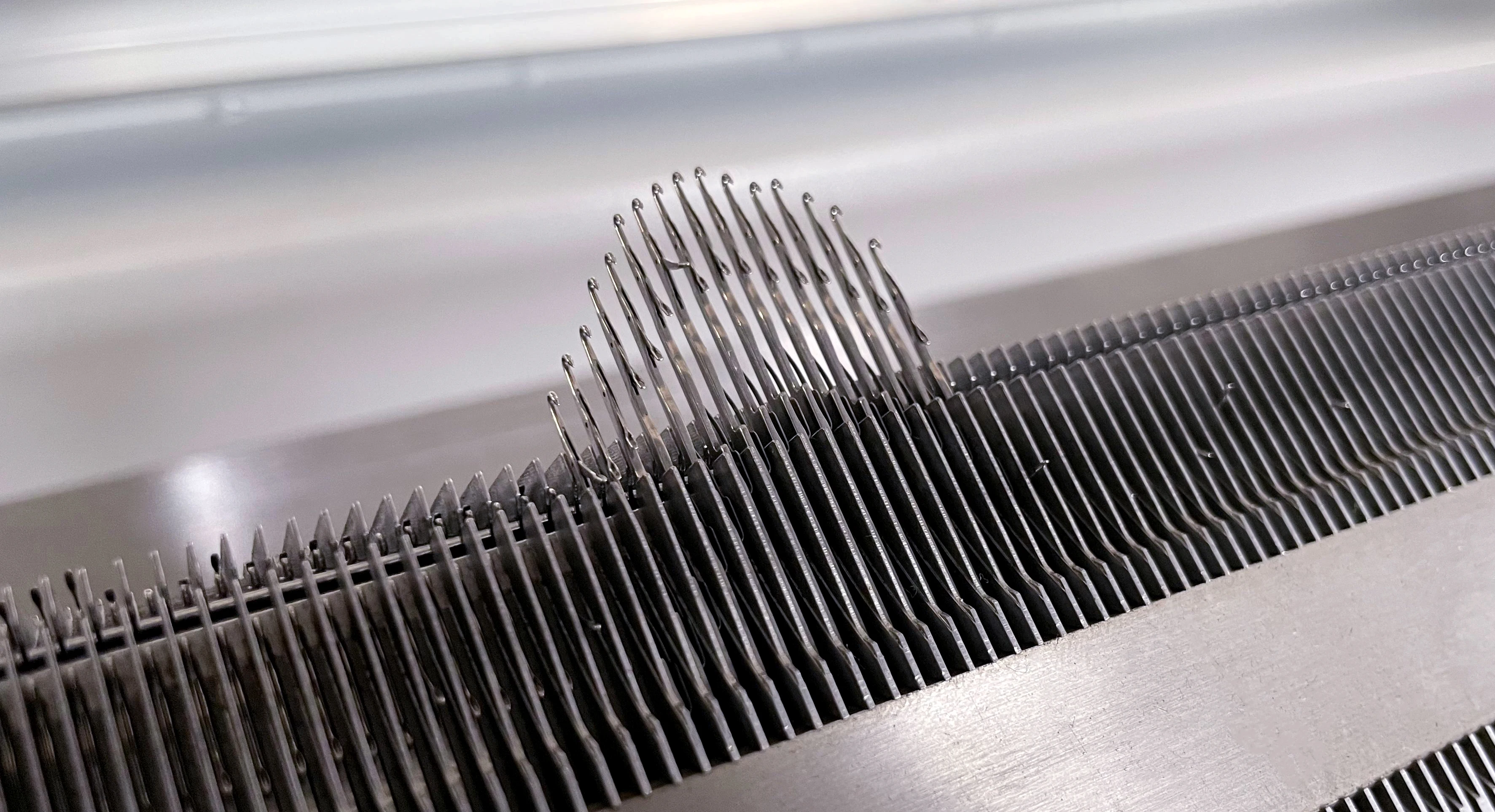

Knitting Needles
Drive Belts
Gauge | 1.5G, 3G, 5G, 7G, 9G, 12G, 13G, 14G, 16G, 18G |
Knitting width | 36/42/44/52/72/80/100 inches |

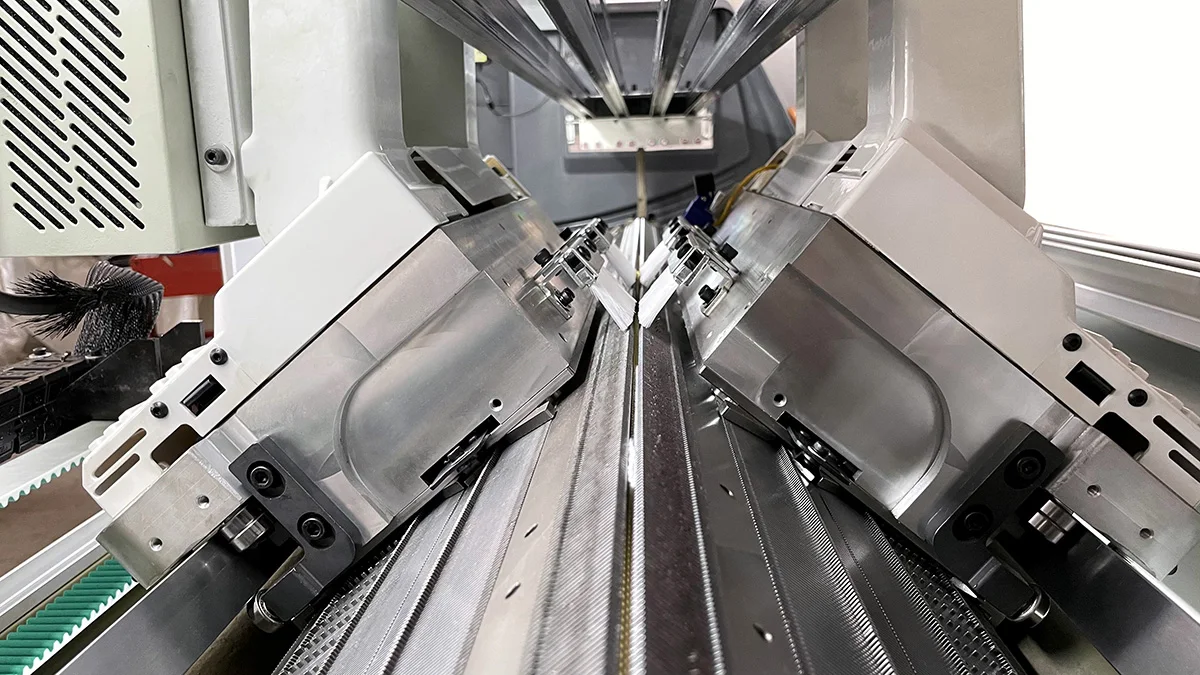

Knitting system | Single carriage with double systems/triple systems |
Machine speed | The maximum speed is 1.6m/s,32 section adjustable |
Racking | Motor drive, the maximum racking within 2 inches |
Needle actuator | 8 section electronic needle actuator |
Sinker | Driven by stepping motor, latest cross-sinker system design, Can be adjusted for different fabrics |
Roller device | High-order Rollar,32 section automatic control, subsection adjustable |
Stitch density/Loop density | Controlled by 32 section electricity, density adjustment driven by stepping motor, the adjustable range: 0-650 |
Tight tuck | Tight tuck cam controlled by motor, achieve different tightness of the tight tuck, the adjustable range: 0-90 |
Yarn forward device | Yarn feeder and yarn storage device(optional),accurate control of yarn tension, to ensure the quality of the overall quality of the fabric |

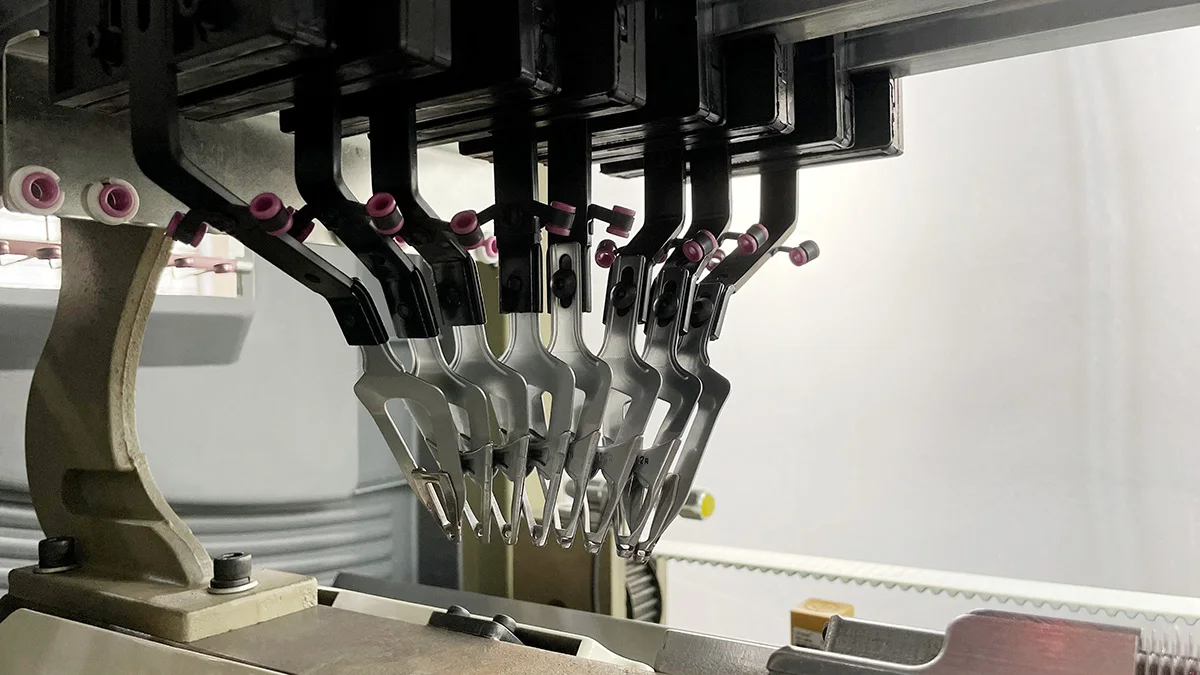

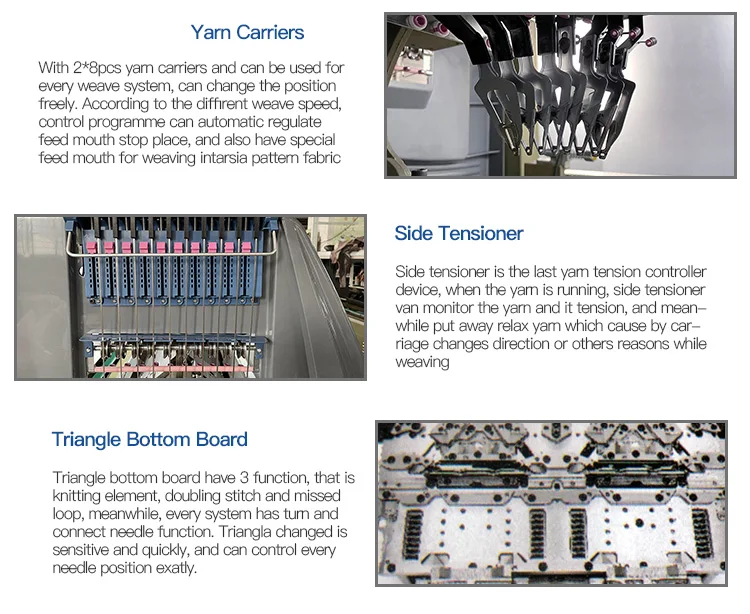

Yarn feeder | 2*8 yarn carriers are arranged on the left and right sides of the 4 double side guide rails. |
Transmission system | Belt drive, AC servo motor control. |
Data input | Input and output patterns via USB, PC and Internet |
Protection system | Automatic stopping device if yarn broken, yarn knot, batching, striking, completion, overload, designated starting and stopping, program error |
Safety device | The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency stopping and power off device |
Control system | hengqiang/ruineng system |

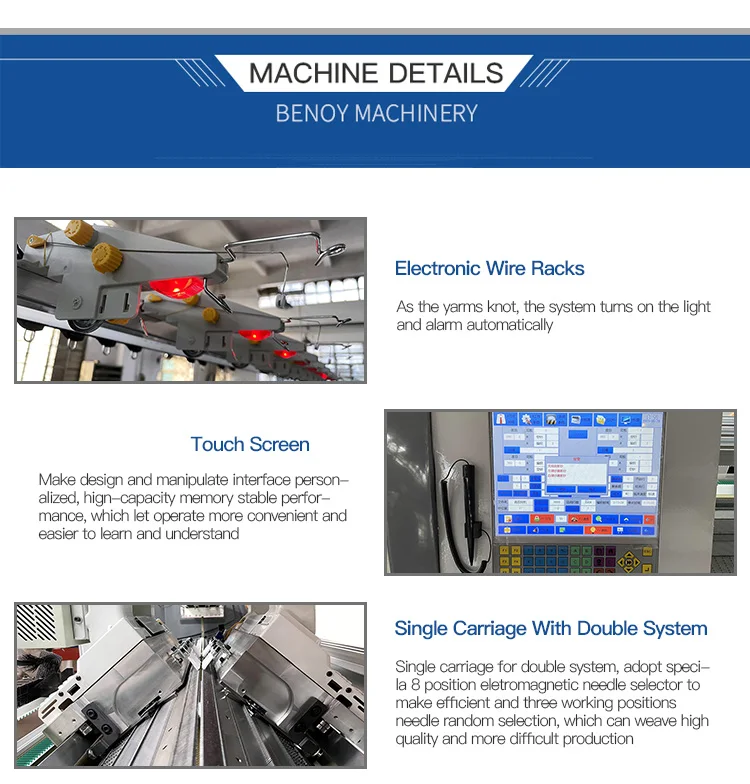

The screen adopts LCD touch screen display, graphical interface, can store a large number of pattern files, and can be called at any time according to production needs. | |
Through the screen checking page, you can view the working status and actual position of the cam; and adjust it at any time while the machine is running, which is most convenient for operation. | |
The control system (software part) and the pattern-making system are easily upgraded and are free of charge. | |
Multi-language version switching (Set up according to customer requirements) | |
Power | Voltage: AC 220-380V, Frequency: 50HZ/60HZ, Power:1.5KW |
Knitting Sample
Benoy flat knitting machines are mainly suitable for sweaters, shoe upper, jacquard collar, blankets, carpets, scarf, cuffs, hats, etc.
Why Choose Us
Company Profile
Benoy Intelligent Technology CO., LTD
Established in 2003, Benoy Intelligent Machinery is a high-tech enterprise integrating R&D, production and trade, with 18 years of experience in R&D and production of high-speed flat knitting machines. Our products include single system, double system and three system high speed computerized flat knitting machines, and other supporting textile equipment. We can provide one-stop textile solutions according to customers' requirement. It has obtained ISO9001, CE, ETL certificates.
Welcome to contact us anytime! We are your trustworthy strength partner.
We have another wholly owned factory that can OEM/ODM various precision mechanical parts, you just need to provide drawings and tell me specific requirements.
Welcome to contact us anytime! We are your trustworthy strength partner.
