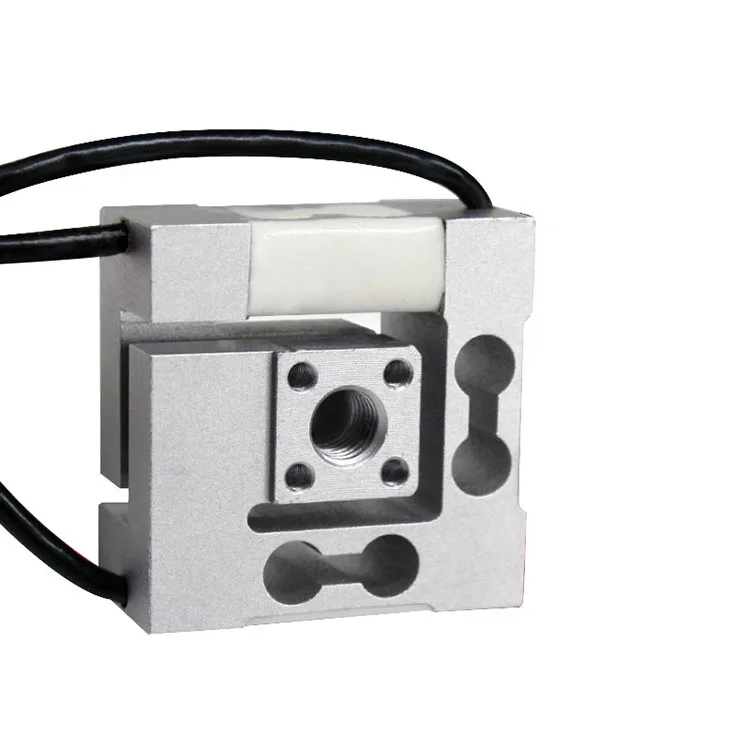

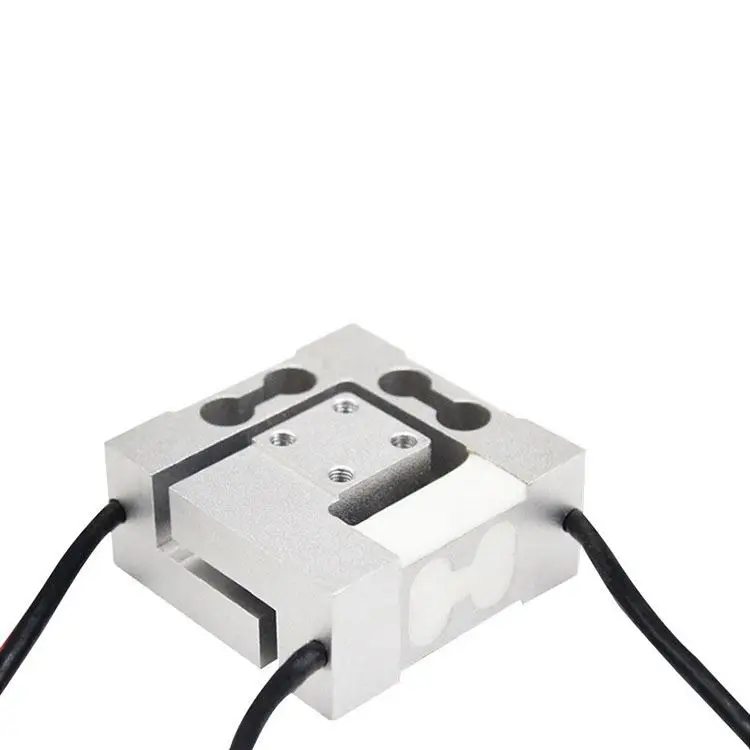

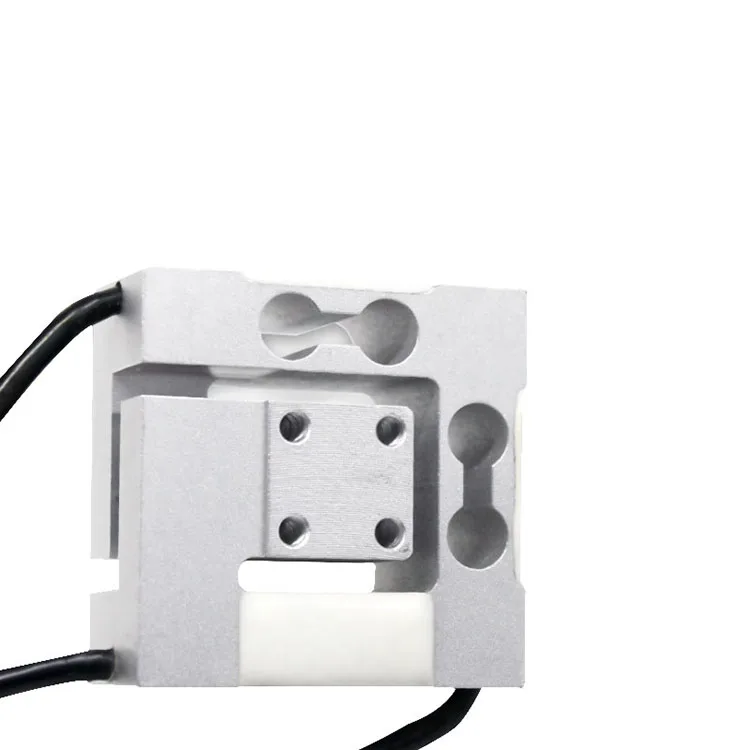

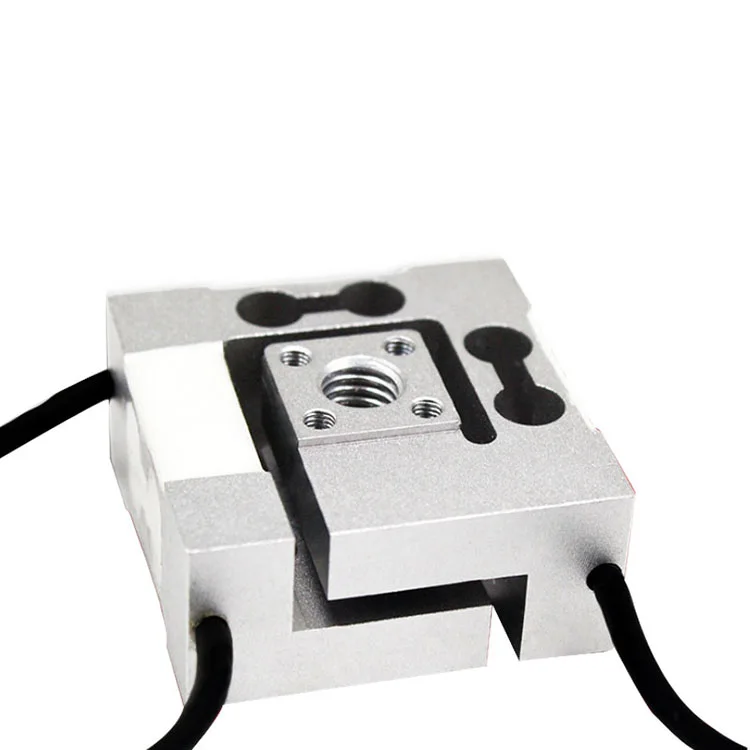

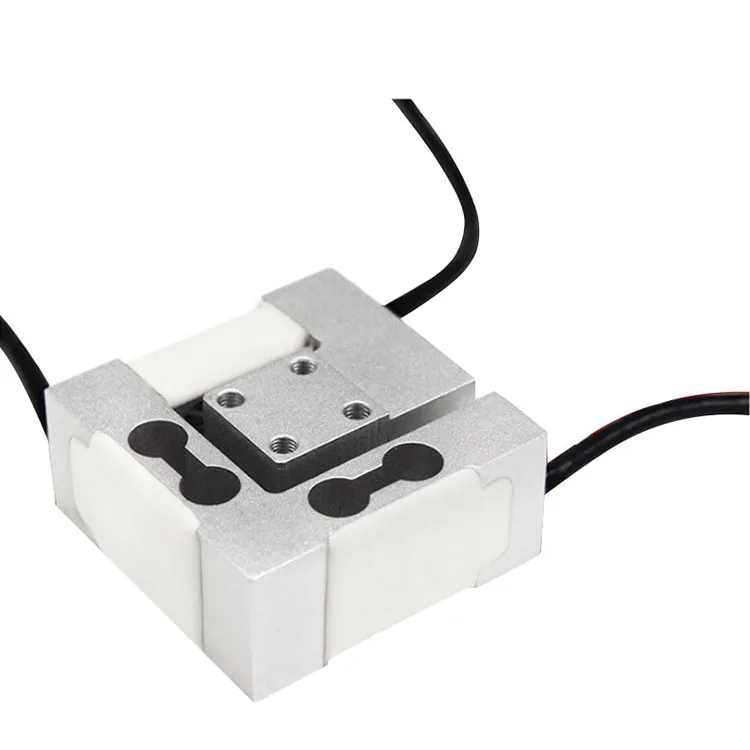

Multidirection Three Axis Fx Fy Fz Load Cell 3 Axis Transducers Force Sensor 6 Axis load cell 100kg 1000N
- Category: >>>
- Supplier: DST (shenzhen) Sensor Co. Ltd
Share on (1600250620103):
Product Overview
Description
Selling products
1, 2, 3, 5, 6, 10, 20, 30, 50, 100KG | |
Comprehensive error | ≤±0.1%, ±0.3% |
Sensitivity | 1.5±10%mV/V |
Zero balance | ±2.0%F.S |
Non-linearity | 0.1, 0.3%F.S |
Hysteresis | ≤±0.05%F.S |
Repeatability | ≤±0.05%F.S |
Creep | ≤±0.03%F.S/30min |
Temp.effect on span | ±0.05%F.S/10℃ |
Temp.effect on zero | ±0.05%F.S/10℃ |
Input resistance | 410±20Ω |
Output resistance | 350±10Ω |
Insulation resistance | ≥5000MΩ/100VDC |
Excitation voltage | 9~15VDC |
Compensated temp range | -10~60℃ |
Operating temp Range | -20~80℃ |
Safe overload | 120%F.S |
Ultimate overload | 150%F.S |
Electrical connections | RED/E+, BLACK/E- GREEN/S+, WHITE/S- |
DST is our brand. a high-tech Internet brand integrating R&D, production and sales and committed to becoming an excellent brand service provider in the field of weighing measurement and control.
At present, we mainly produces all kinds of weighing sensors, torque sensors, portable axle weighing scales and other related instruments In order to better serve our customers and give the good performance products, we have best product engineer team to our clients and we always uphold the principle of customer first. Our products are with certificate of ce rohs certificate, and it had been distributed worldwide for over 98 countries.
