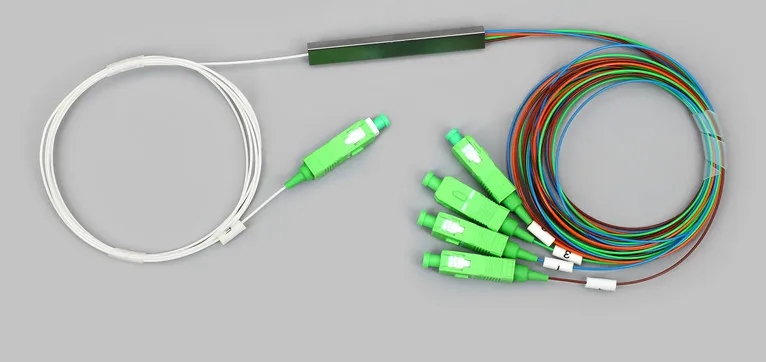

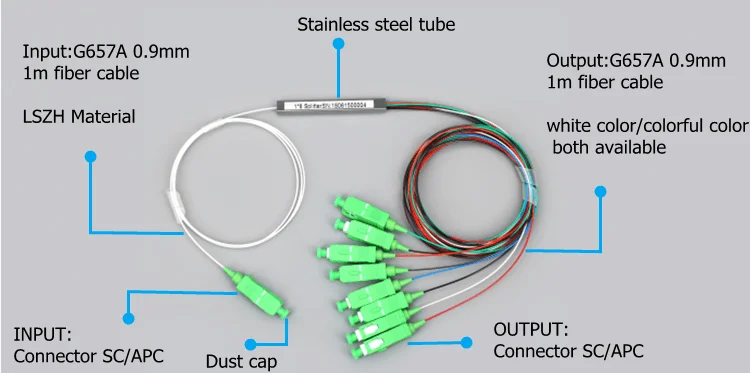

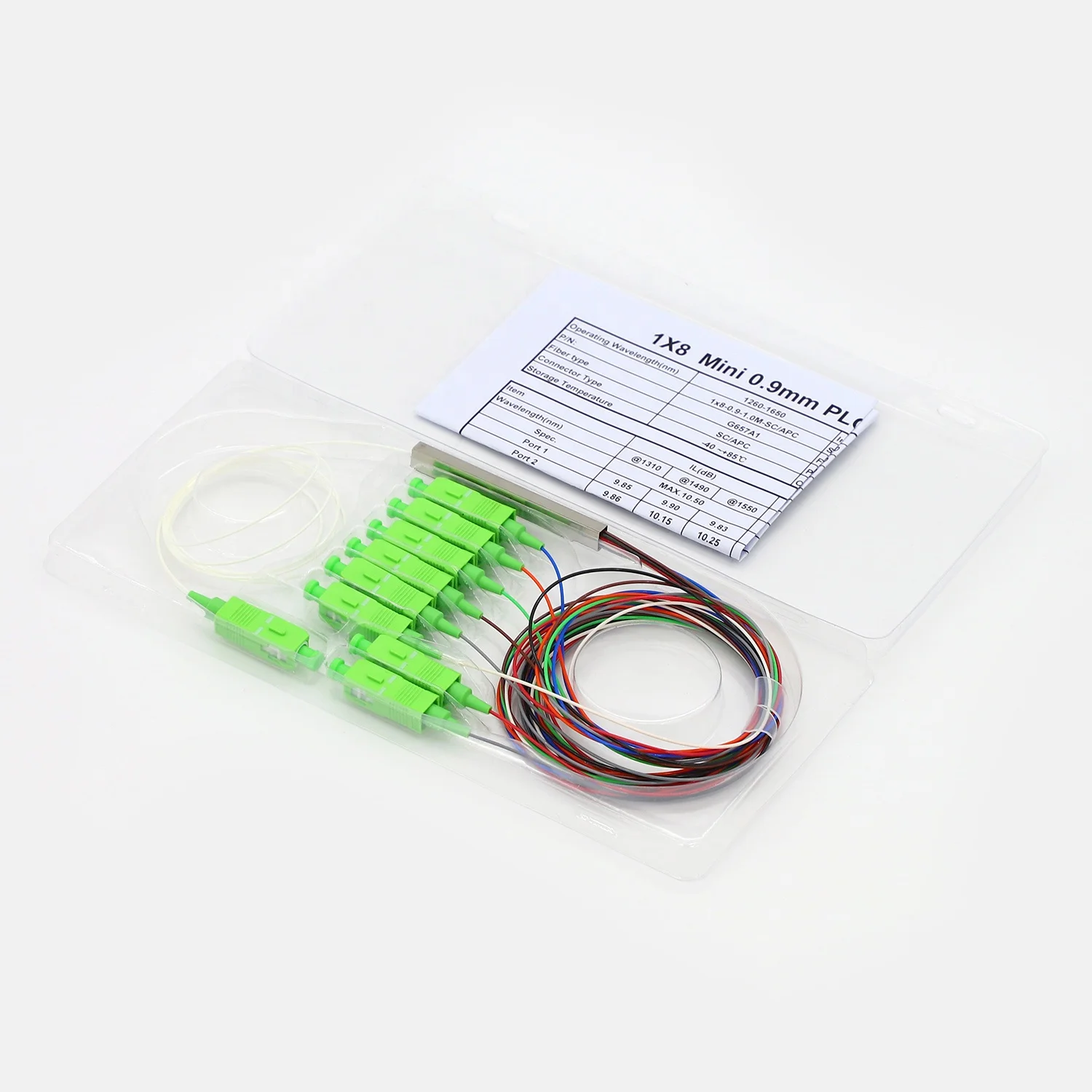

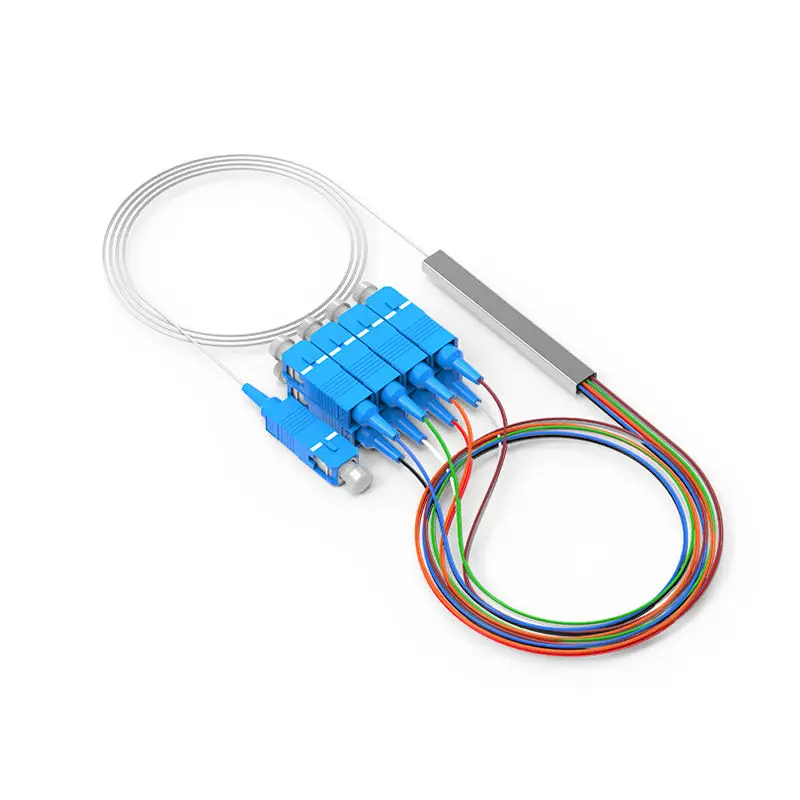

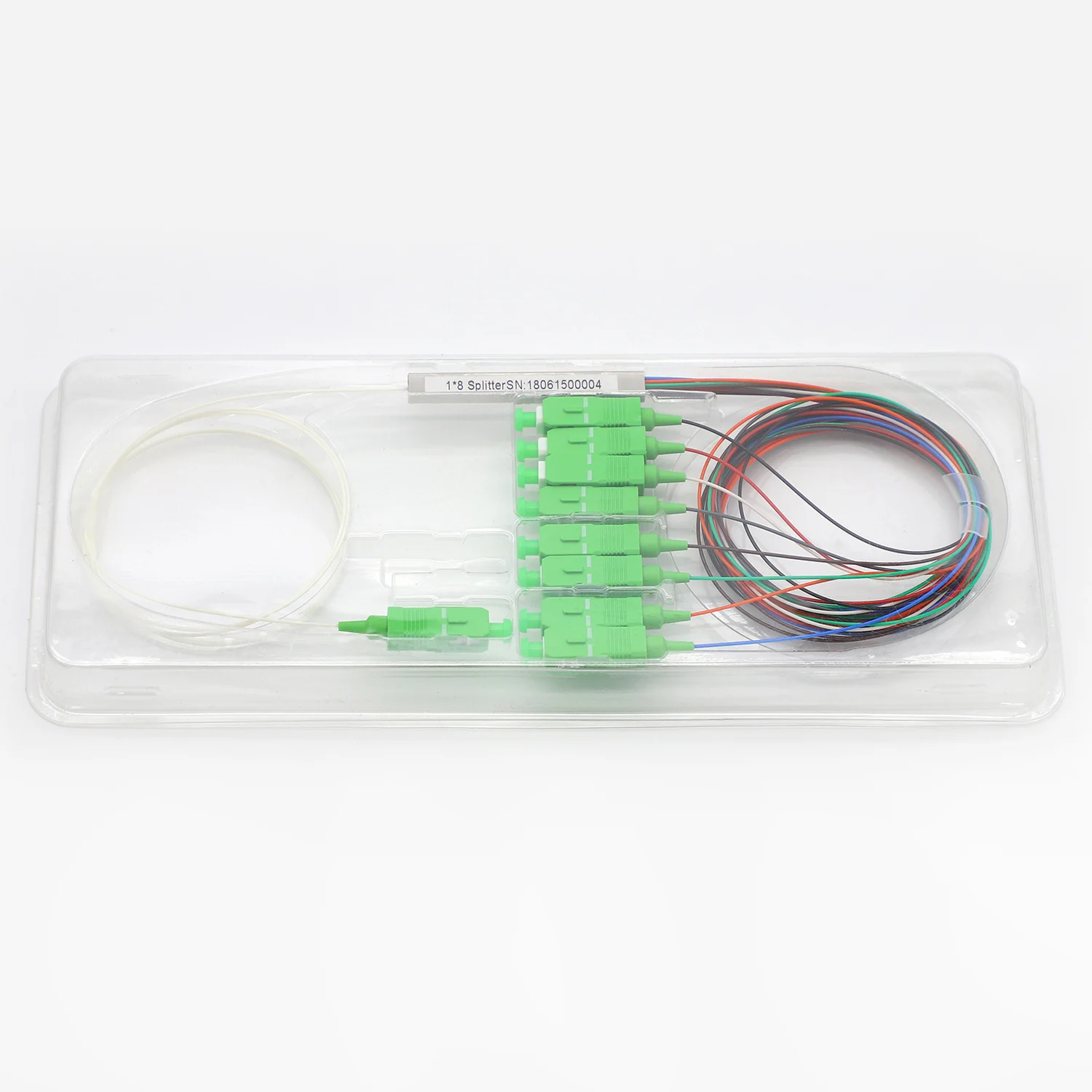

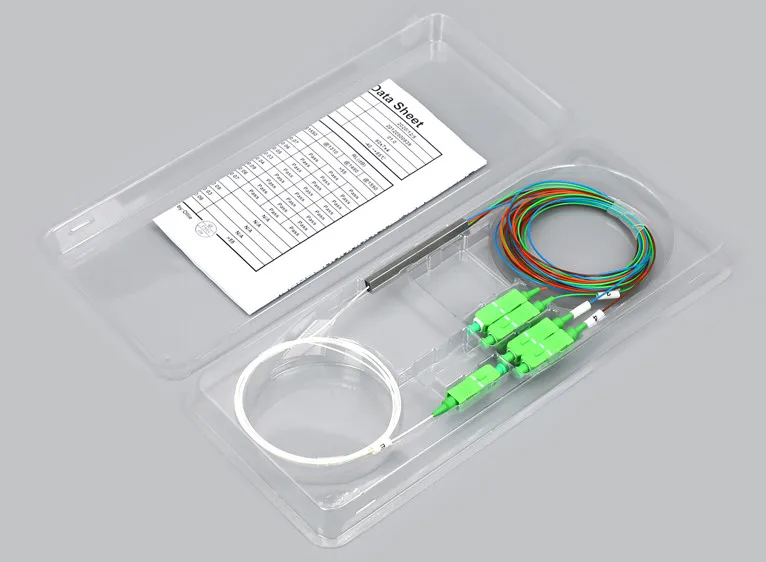

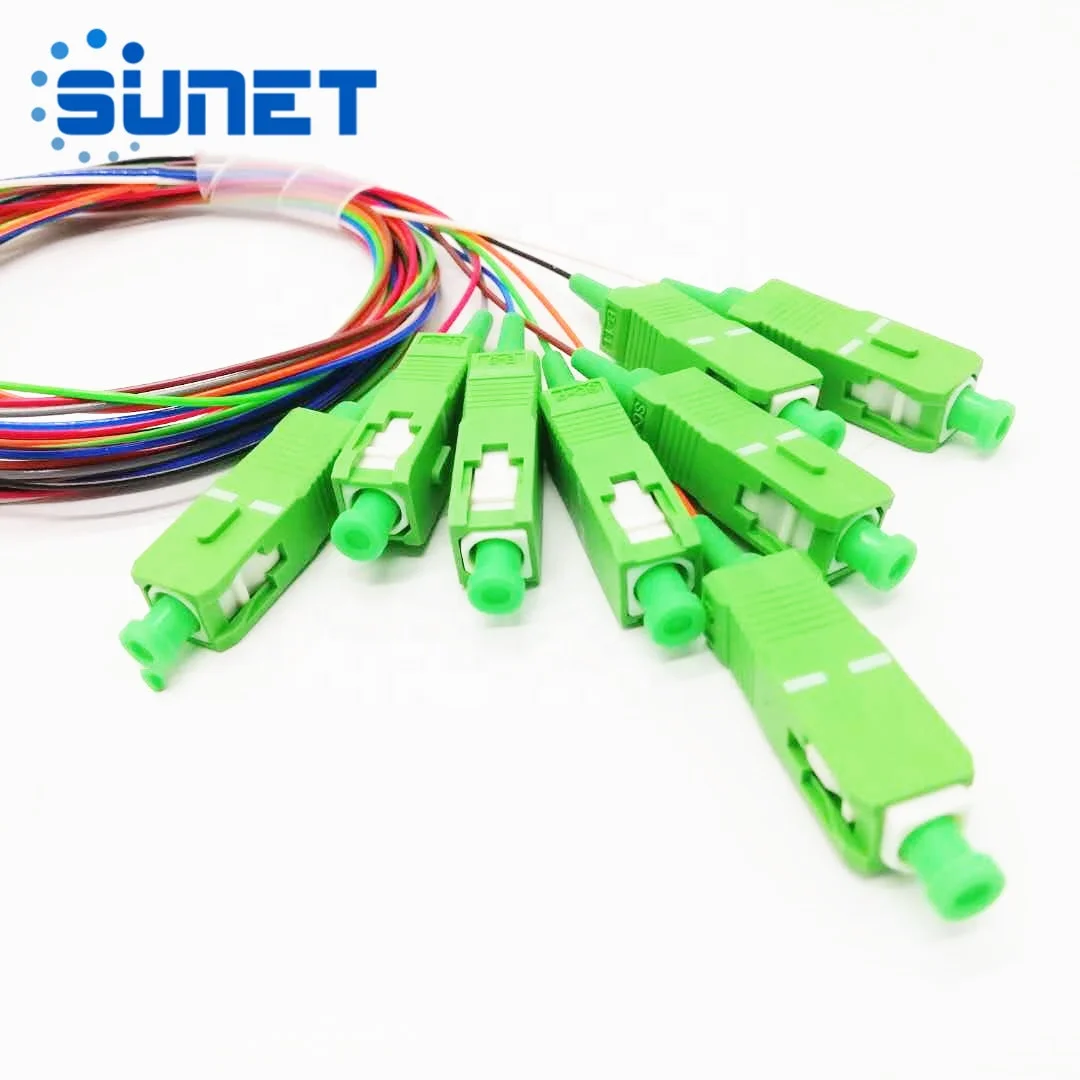

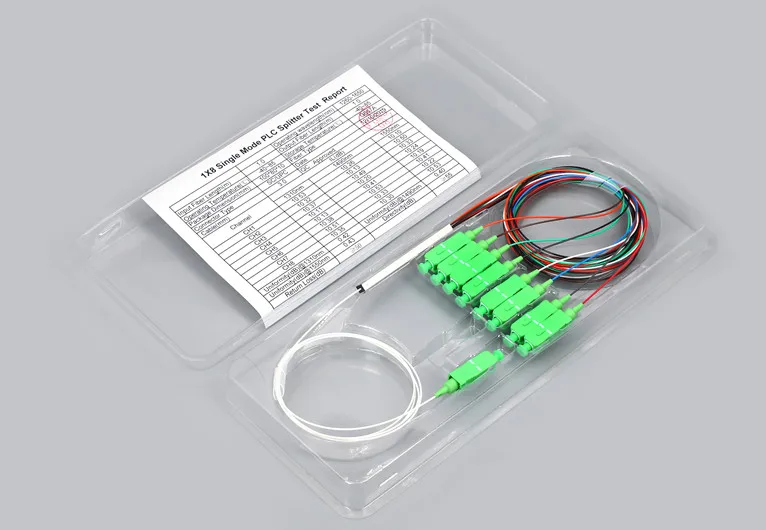

FTTH Optical PLC Splitter 1*8 Fiber Optic Splitter Mini Type Single Mode Steel Tube with APC Connector

Product Overview

Description









1).Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2).It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

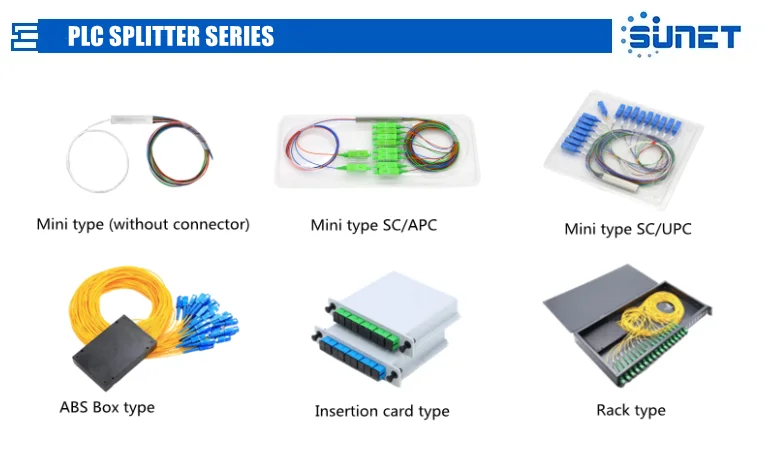

3).We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4).All products meet GR-1209-CORE and GR-1221-CORE requirements.

Parameter	Specification
Operating Wavelength (nm)	1260 ~ 1650
Type	1x4	1x8	1x16	2x4	2x8	2x16	1x32	2x32	1x64
Insertion Loss (dB) Max. *	<7.3	<10.5	<13.5	<7.6	<11.2	<14.5	<16.2	<18.2	<20.5
Uniformity (dB) Max.*	<0.8	<1.0	<1.5	<1.0	<1.5	<2.0	<2.0	<2.5	<2.5
PDL(dB)Max.*	<0.2	<0.2	<0.3	<0.3	<0.3	<0.4	<0.3	<0.4	<0.3
Directivity (dB)	≥55
Return Loss (dB)	UPC ≥55                   APC ≥60
Operating Temperature (°C)	-5~ +75
Storage Temperature (°C)	-40 ~ +85
Fiber length	1m or custom length
Fiber Type	Corning  SMF-28e fiber
Connector Type	Custom specified
Power Handling (mW)	300











































































































`
