Product Overview
Description

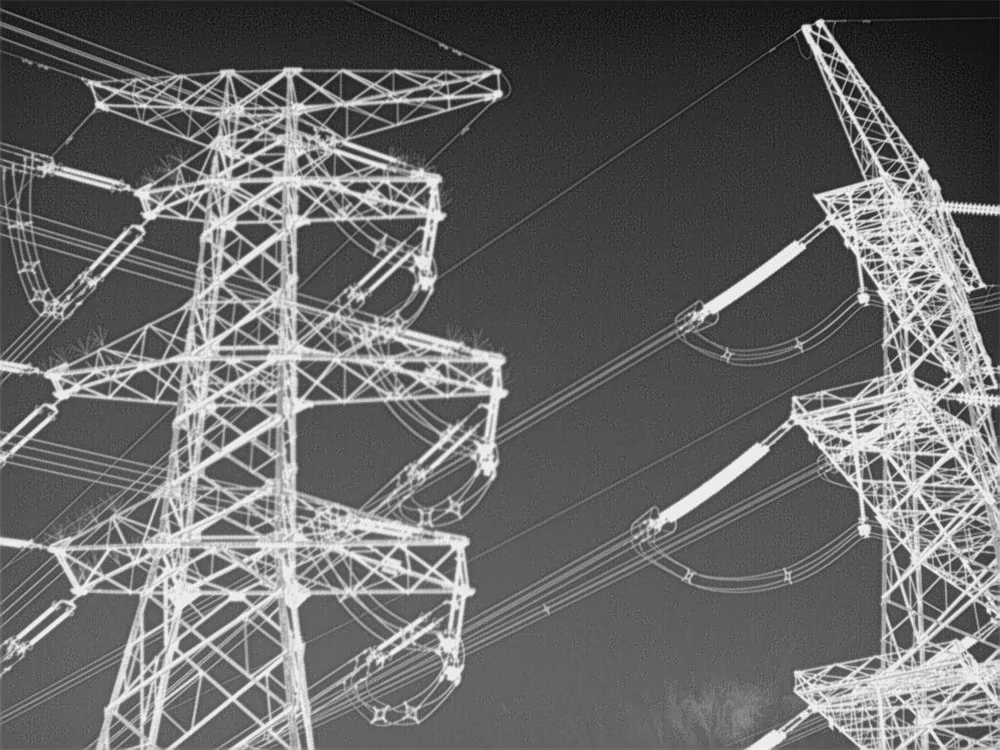

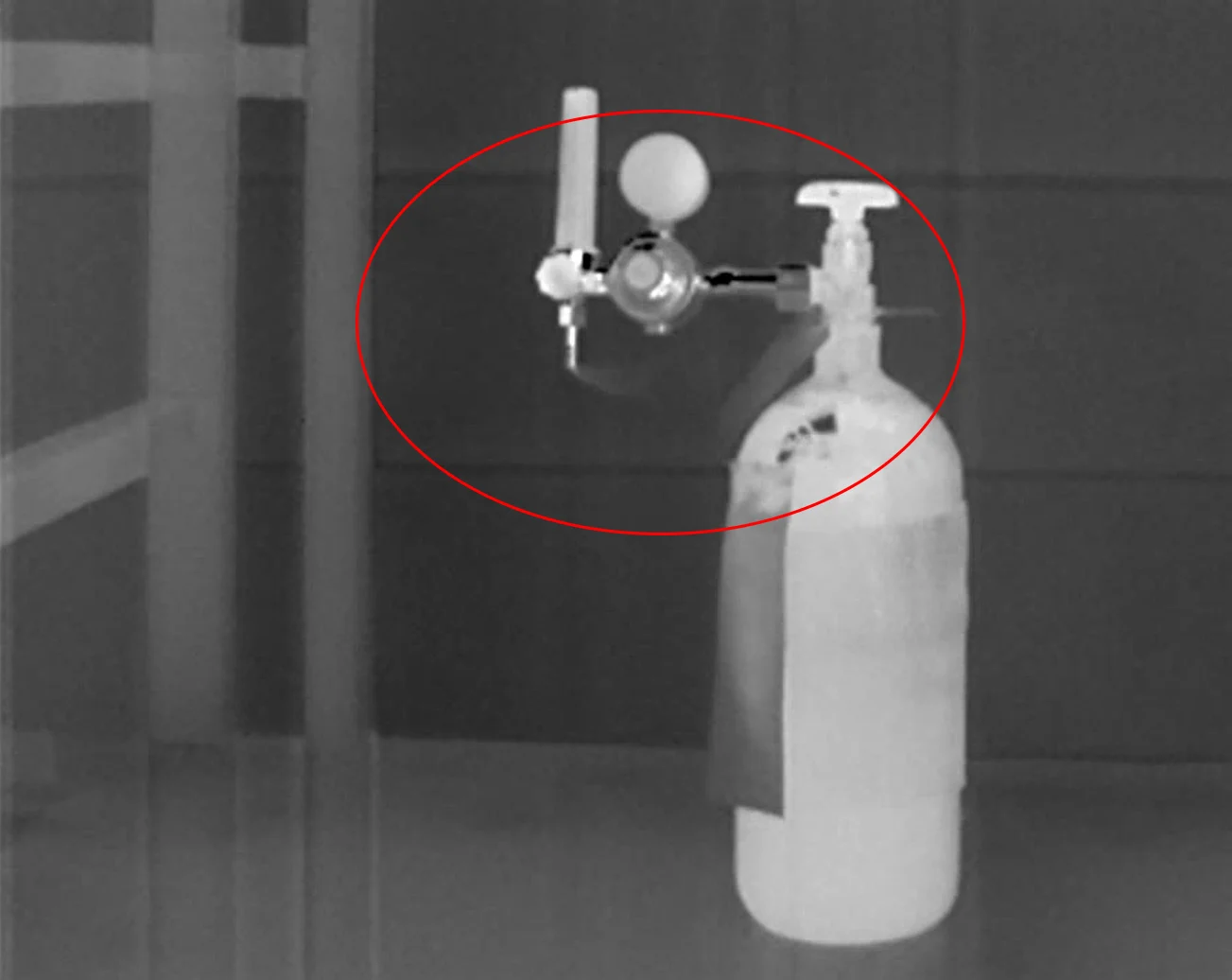

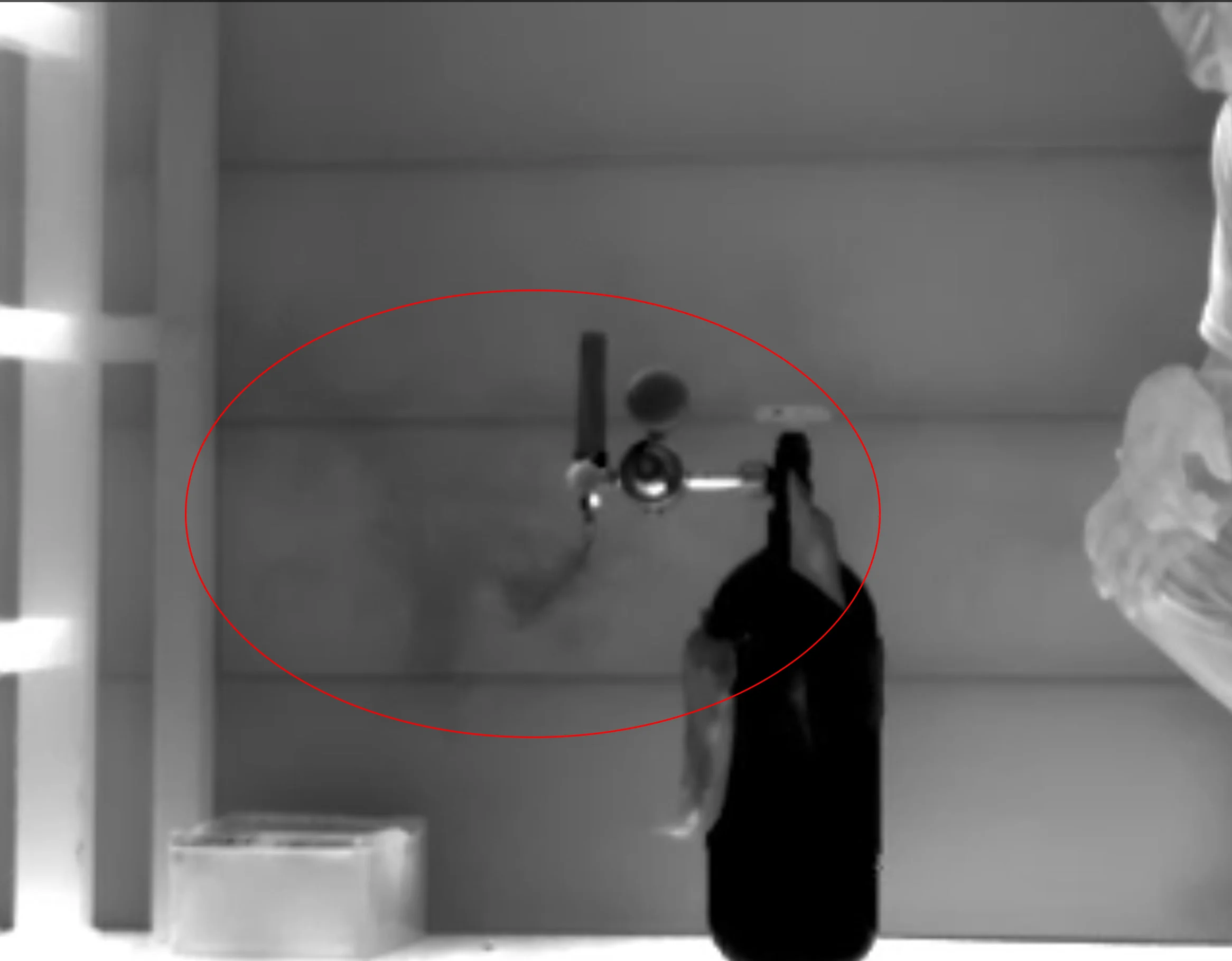

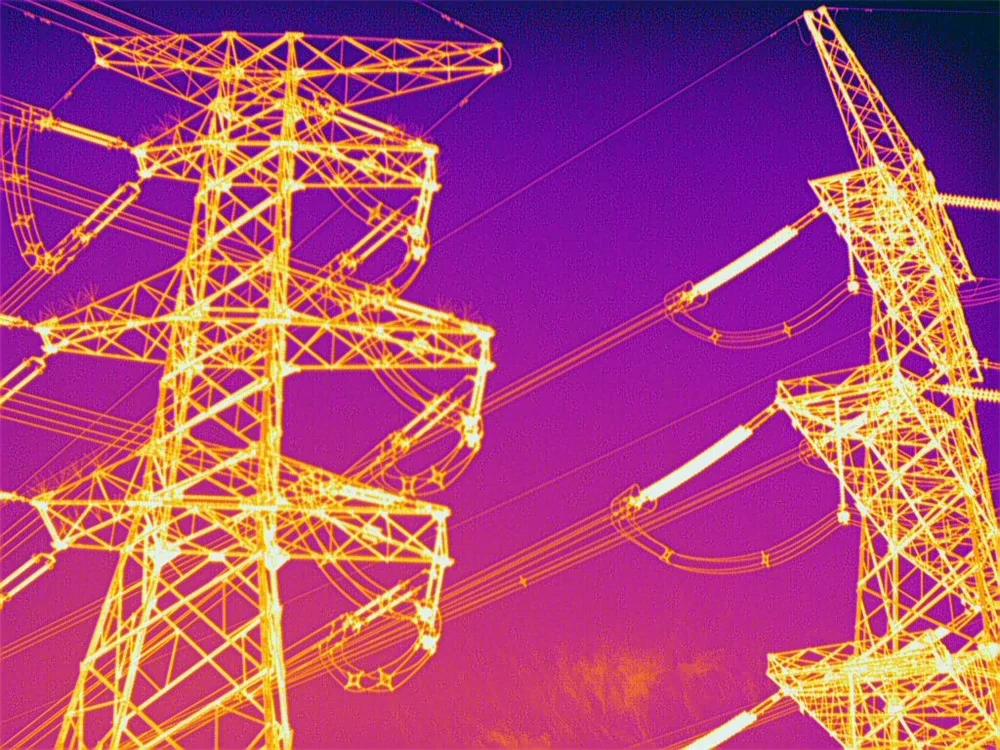

RF636 OGI camera can visualize SF6 and other gases leakage in a safety distance, which enables quick inspection in the large scale. The camera can be applicable in the field of electric power industry, by catching leakage early to reduce financial loss caused by repairs and breakdowns.
Detector and lens | ||
Resolution | 320×256 | |
Detector pitch | 30μm | |
Thermal sensitivity | ≤25mK@25℃ | |
Spectrum range | 10.3 - 10.7μm | |
Lens | Standard: 24° × 19° / Optional: 14.5°× 11.6° | |
Focus | Auto＆Manual | |
Image display | ||
Display | 5”Touch LCD，1024×600 Pixels | |
Viewfinder | 0.39”OLED，1024×600 Pixels | |
Visual camera | CMOS，Auto focus，One bright LED lamp | |
Color palettes | 10+1 customization | |
Zoom | 1–10×continuous, Digital zoom | |
Image adjustment | Auto/Manual | |
Gas enhancement | High sensitivity mode | |
Detects following gases | Sulfur Hexafluoride (SF6) , Ammonia (NH3), Ethylene, Acetic Acid, Allyl Bromide, Acetyl Chloride, Allyl Bromide, Allyl Chloride, Allyl Fluoride, Bromomethane, Chlorine Dioxide, Ethyl Cyanoacrylate, Furan, Hydrazine, Methylsilane, Methyl Ethyl Ketone, Methyl Vinyl Ketone, Propenal, Trichloroethylene, Tetrahydrofuran, Uranyl Fluoride, Vinyl Chloride, Vinyl Cyanide, Vinyl Ether, Freon 11, Freon 12 and so on. | |
Temperature measurement | ||
Temperature range | -40℃～+350℃ | |
Temperature accuracy | ±2℃ or ±2% | |
Isotherm | Yes | |
Alarm | Yes | |
Emissivity correction | Variable from 0.01 to 1.0 | |
Measurement corrections | Reflected temperature, distance,atmospheric transmission, humidity, external optics | |
Storage of images | ||
Image format | JEPG | |
Video format | H.264 | |
Voice annotation | 60 seconds voice | |
Storage media | 32G Removable TF memory card, extension available | |
Interface | ||
Video out | HDMI | |
Digital interface | USB and WLAN，Data transfer to PC | |
Others | ||
Setup | Day/Time/Language | |
Laser pointer | Class 2, Semiconductor diode laser, 1 mW, 635nm (red) | |
Battery | Rechargeable Li-ion battery， operating time≥3 hours | |
Start-up time | Typically 7min | |
Environmental data | ||
Operating temperature range | -20℃～+40℃ | |
Storage temperature range | -30℃～+60℃ | |
Encapsulation | IP54 | |
Physical data | ||
Camera weight | ≤2.8kg | |
Camera size (L×W ×H) | 305×172×145mm | |
Tripod mounting | UNC ¼"-20 | |
Above data are for reference only. The specification of the marketed products shall prevail.
